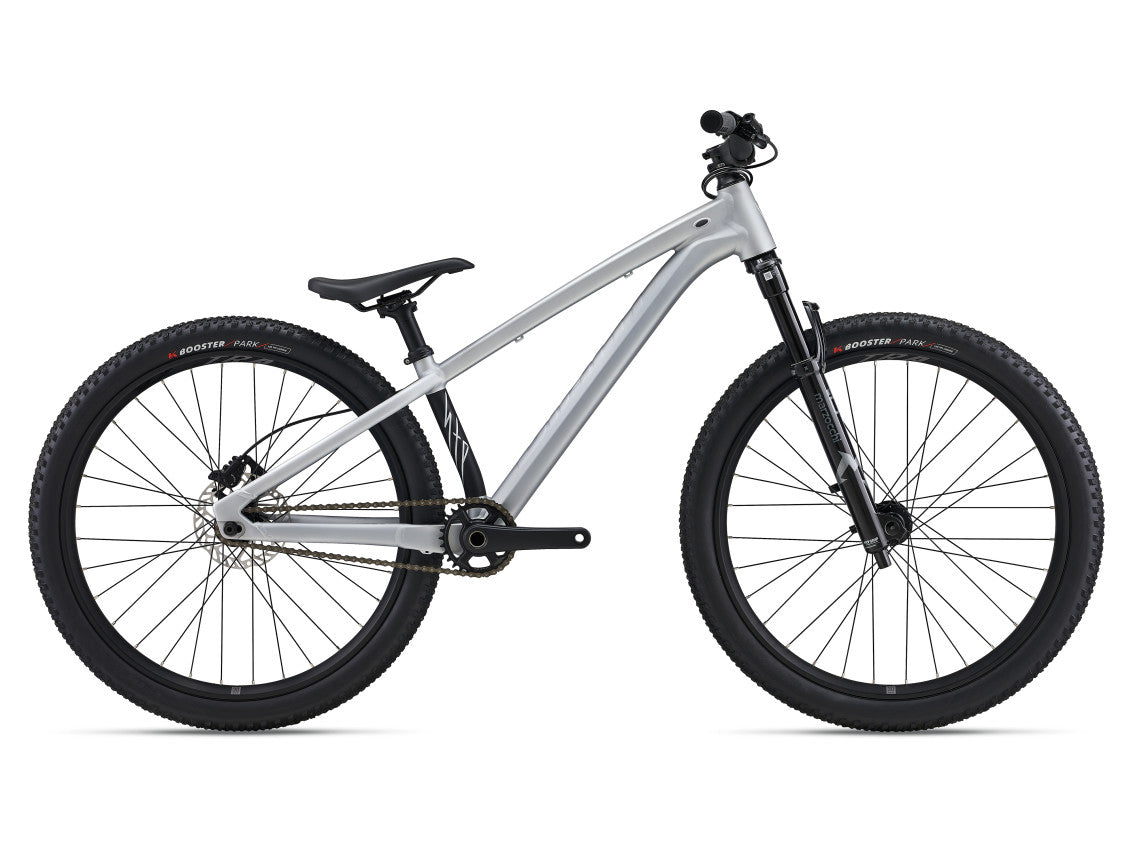

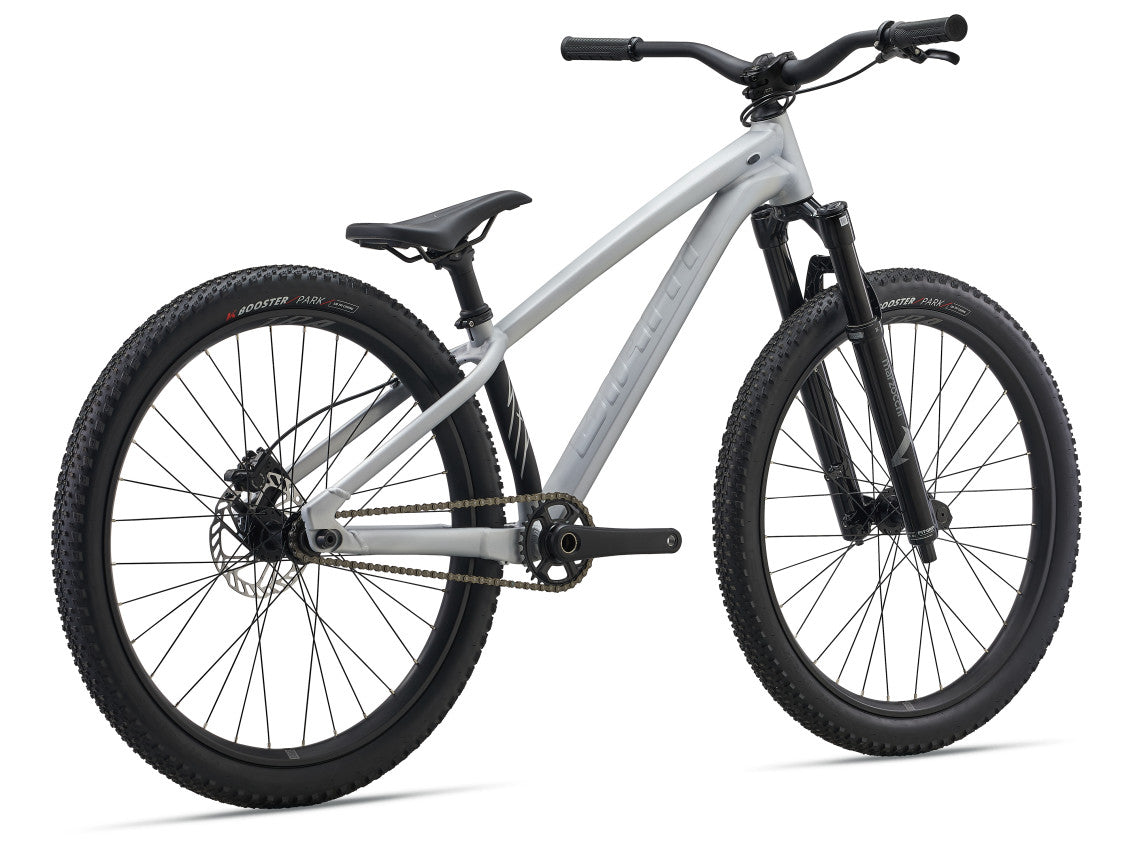

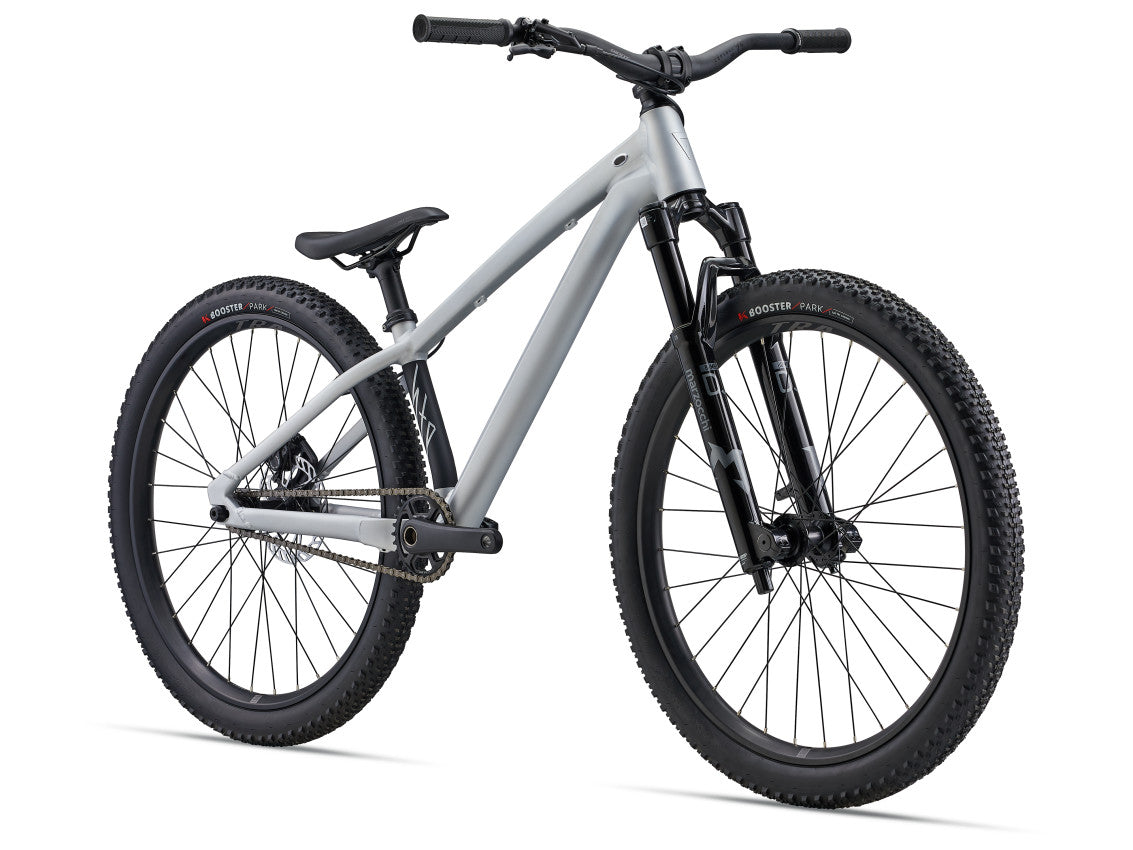

STP 26

$2,399.00

Tax included

Rail the corner, boost a jump, give it a go on that tricky line. The all-new STP 26 is built for pushing limits. With its lightweight, super strong ALUXX aluminium frame, 100mm Marzocchi Bomber DJ fork, and 26-inch Giant TRA 2 wheels, it’s rugged and ready for takeoff.

Colour

Silver

Product variants

Techs & Features

RUGGED DURABILITY

Super strong and lightweight ALUXX aluminium frameset is backed by a warranty for hard-charging durability. A 26-inch Giant TRA 2 wheelset features Wide Guard rim technology, allowing lower tyre pressures for better control along with increased puncture protection.

AGILITY AND CONTROL

The frame’s lower stand-over height offers balance and stability with a lower center of gravity. The 26-inch wheels and steeper head tube, combined with a shorter wheelbase and chainstays, make it quick and easily manoeuvrable for dirt jump performance. Gyro compatibility enables 360-degree handlebar rotation for bar spins.

READY FOR LANDING

The 135x10mm horizontal sliding rear dropout and Marzocchi Bomber DJ fork with 100mm of travel deliver smooth control on rugged terrain, jumps or drops—making it a versatile choice for dirt jumps or technical trails. A Giant Contact TR35 handlebar and shorter stem deliver pinpoint control that stands up to hard-charging dirt sessions.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

One Size

155 cm 185 cm

Name	One Size
A Seat Tube Length (mm) (inch)	310	12.2
A1 Seat Post Insertion Depth (mm) (inch)	225	8.9
B Seat Tube Angle (degrees)	72.0°
C Top Tube Length (mm) (inch)	594	23.4
D Head Tube Length (mm) (inch)	120	4.7
E Head Tube Angle (degrees)	68.5°
F Fork Rake (mm) (inch)	37	1.5
G Trail (mm) (inch)	95	3.7
H Wheelbase (mm) (inch)	1047	41.2
I Chain Stay Length (mm) (inch)	385	15.2
J Bottom Bracket Drop (mm) (inch)	25	1
K Stack (mm) (inch)	566	22.3
L Reach (mm) (inch)	410	16.1
M Stand Over Height (mm) (inch)	672	26.5
O Stem Length (mm) (inch)	35	1.4
P Crank Length (mm) (inch)	165	6.5

Specifications

Sizes One size

Colours Quicksilver

Frame ALUXX-Grade aluminium, 135x10 horizontal sliding dropouts

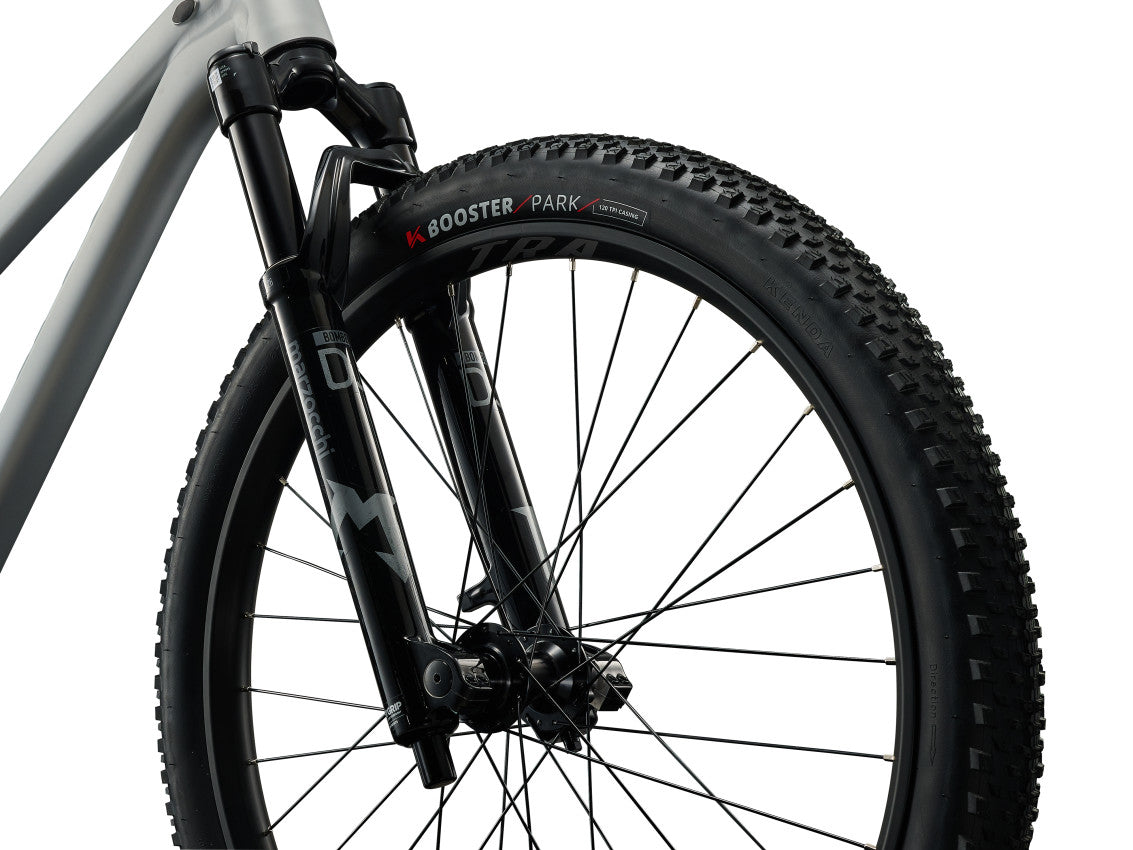

Fork Marzocchi Bomber DJ, 26", Travel 100mm, 36mm stanchions, GRIP damper, 20x110 non-boost

Shock N/A

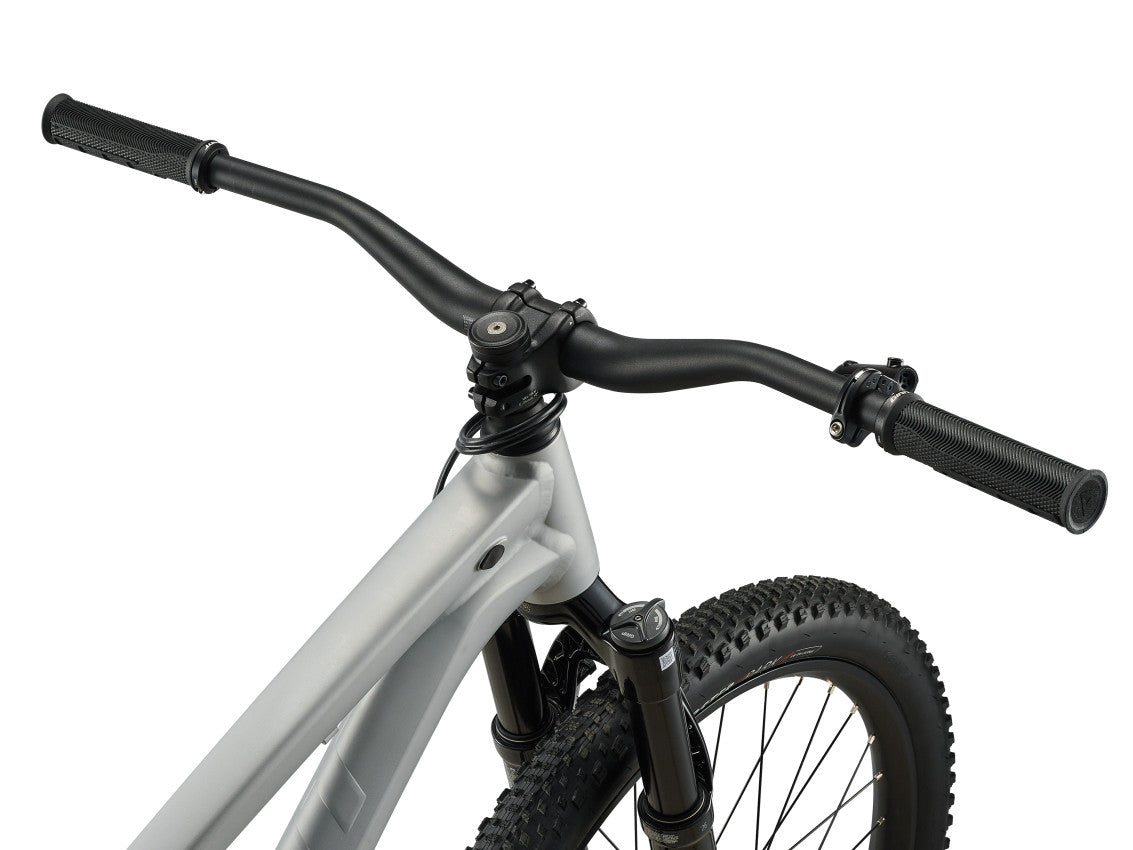

Handlebar Giant Contact TR, 35mm

Grips Giant Tactal Pro

Stem Giant Contact 35, 0 degree, 35mm

Seatpost Alloy, two-bolt, 30.9mm

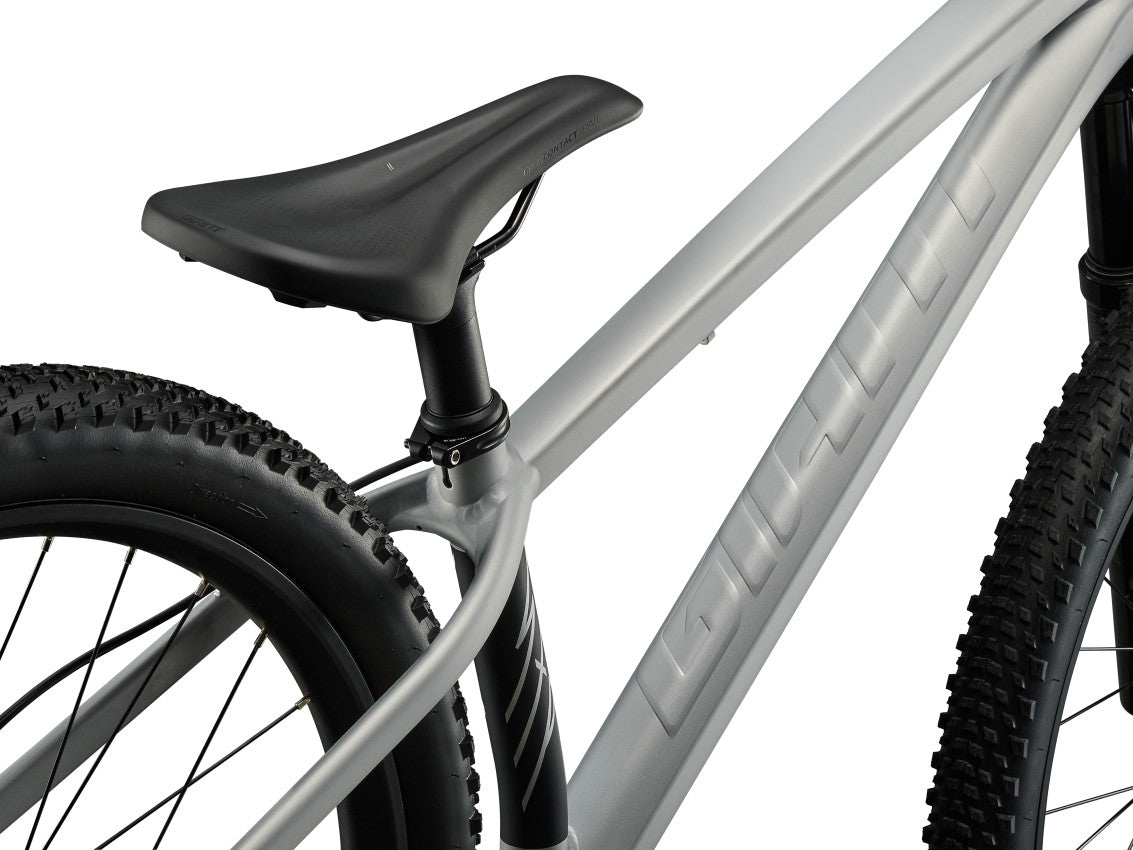

Saddle Giant Ergo Contact Trail

Pedals Platform

Shifters N/A

Front derailleur N/A

Rear derailleur N/A

Brakes Rear: Shimano MT500, 2 piston hydraulic brake Front: Mechanical disc, in small box, [F]180mm, [R]160mm rotors

Brake levers Shimano BL-MT501

Cassette 13t, stainless steel

Chain KMC Z1 wide

Crankset Prowheel Forged, 30t, 165mm

Bottom bracket Cartridge threaded

Rims Giant TRA 2 Hookless Tubeless ready Alloy 30mm inner width

Hubs Front: 20x110 non-boost, 32h, 6 bolt Rear: 135x10, Female Axle, M10 Lock-down Bolts, Alloy End-Caps, single speed, 32h, 6bolt

Spokes Stainless, 14g

Tyres Kenda Booster, 26x2.25"

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
