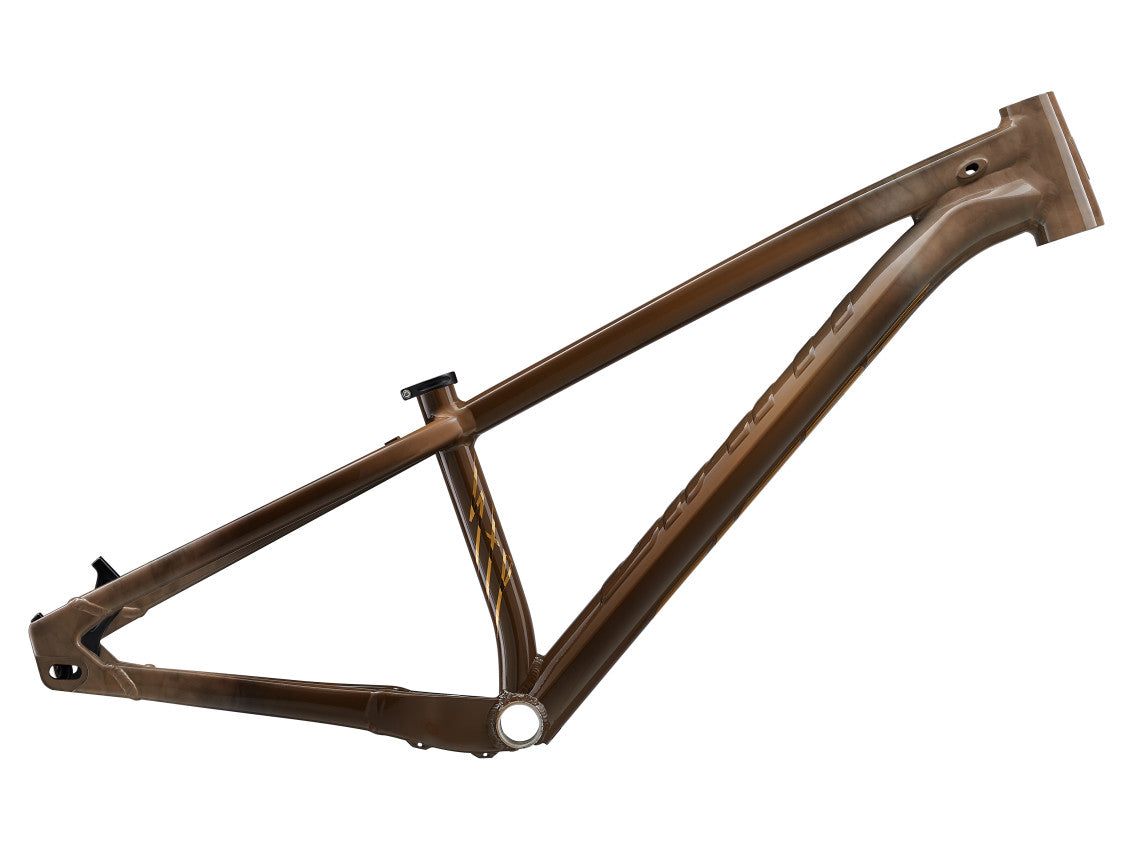

• Image 1 of 3 - MY26STP26-GiantFR_ColorA

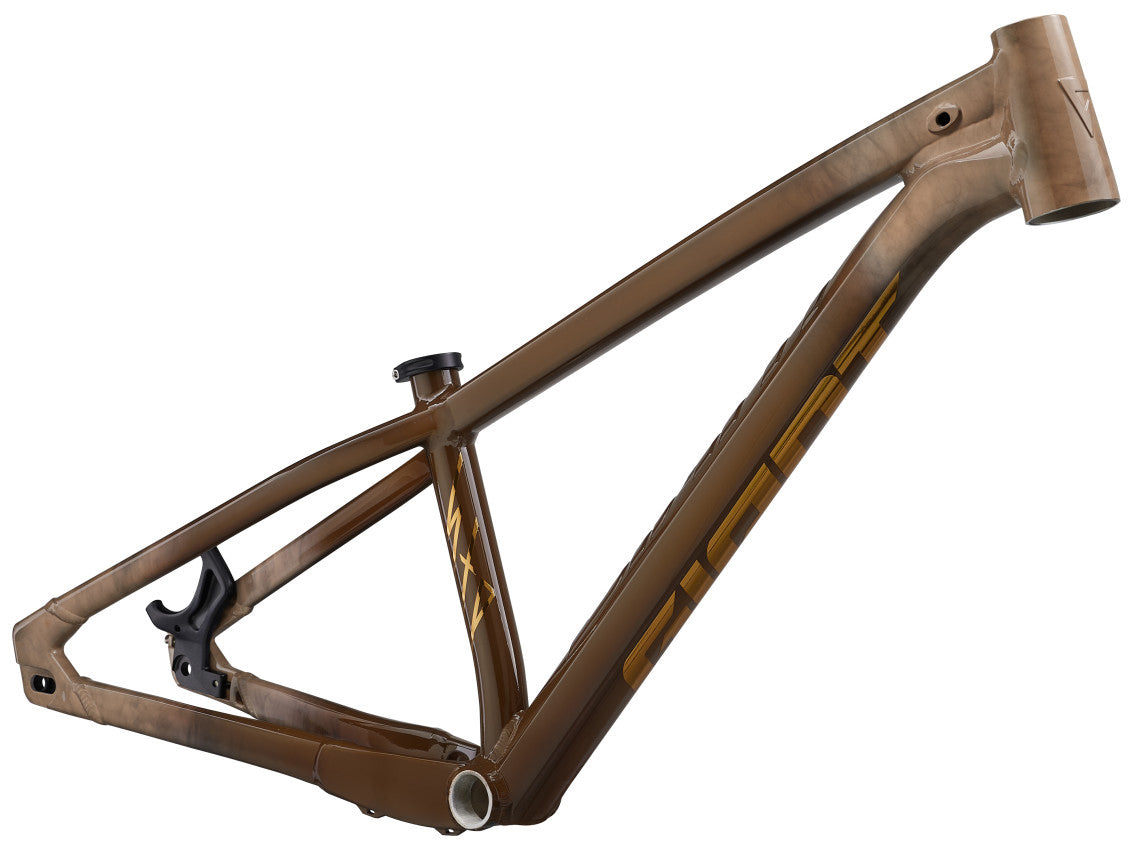

  • Image 2 of 3 - MY26STP26-GiantFR_ColorA_ColorA-Front

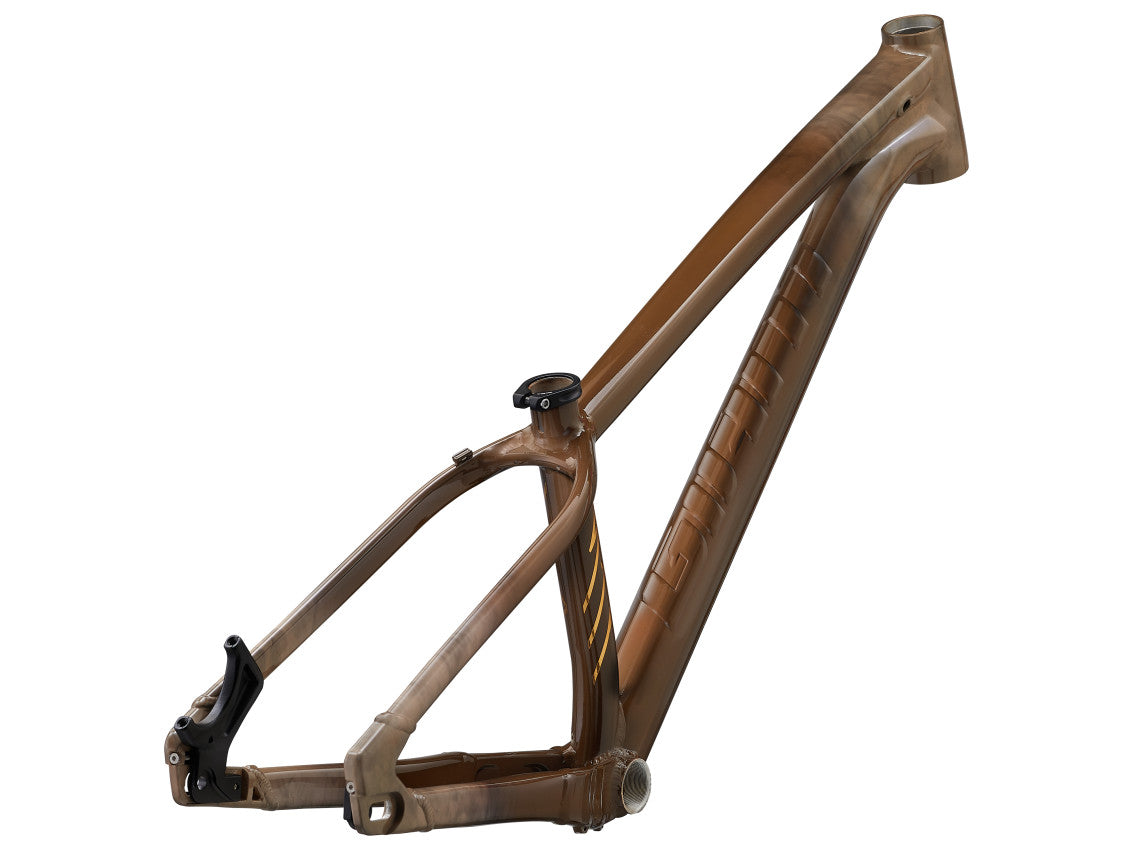

  • Image 3 of 3 - MY26STP26-GiantFR_ColorA-Rear
1 3
Giant Logo

STP Frame

$1,199.00
Tax included
Rail the corner, boost a jump, give it a go on that tricky line. The all-new STP 26 is built for pushing limits. With its lightweight, super strong ALUXX aluminium frame, 100mm Marzocchi Bomber DJ fork, and 26-inch Giant TRA 2 wheels, it’s rugged and ready for takeoff.
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

RUGGED DURABILITY

Super strong and lightweight ALUXX aluminium frameset is backed by a warranty for hard-charging durability. A 26-inch Giant TRA 2 wheelset features Wide Guard rim technology, allowing lower tyre pressures for better control along with increased puncture protection.

AGILITY AND CONTROL

The frame’s lower stand-over height offers balance and stability with a lower center of gravity. The 26-inch wheels and steeper head tube, combined with a shorter wheelbase and chainstays, make it quick and easily manoeuvrable for dirt jump performance. Gyro compatibility enables 360-degree handlebar rotation for bar spins.

READY FOR LANDING

The 135x10mm horizontal sliding rear dropout and Marzocchi Bomber DJ fork with 100mm of travel deliver smooth control on rugged terrain, jumps or drops—making it a versatile choice for dirt jumps or technical trails. A Giant Contact TR35 handlebar and shorter stem deliver pinpoint control that stands up to hard-charging dirt sessions.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • One Size
    155 cm 185 cm
Bike Geometry Diagram
Code Name One Size
A Seat Tube Length (mm) (inch) 310
A1 Seat Post Insertion Depth (mm) (inch) 225
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 594
D Head Tube Length (mm) (inch) 120
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 37
G Trail (mm) (inch) 95
H Wheelbase (mm) (inch) 1047
I Chain Stay Length (mm) (inch) 385
J Bottom Bracket Drop (mm) (inch) 25
K Stack (mm) (inch) 566
L Reach (mm) (inch) 410
M Stand Over Height (mm) (inch) 672
O Stem Length (mm) (inch) 35
P Crank Length (mm) (inch) 165

Specifications

Sizes One size
Colours Shadow Mist
Frame ALUXX-Grade aluminium, 135x10 horizontal sliding dropouts
Fork N/A
Shock N/A
Handlebar N/A
Grips N/A
Stem N/A
Seatpost N/A
Saddle N/A
Pedals N/A
Shifters N/A
Front derailleur N/A
Rear derailleur N/A
Brakes N/A
Brake levers N/A
Cassette N/A
Chain N/A
Crankset N/A
Bottom bracket N/A
Rims N/A
Hubs N/A
Spokes N/A
Tyres N/A
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
