Tempt 29 4
The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Techs & Features
Modern MTB Design

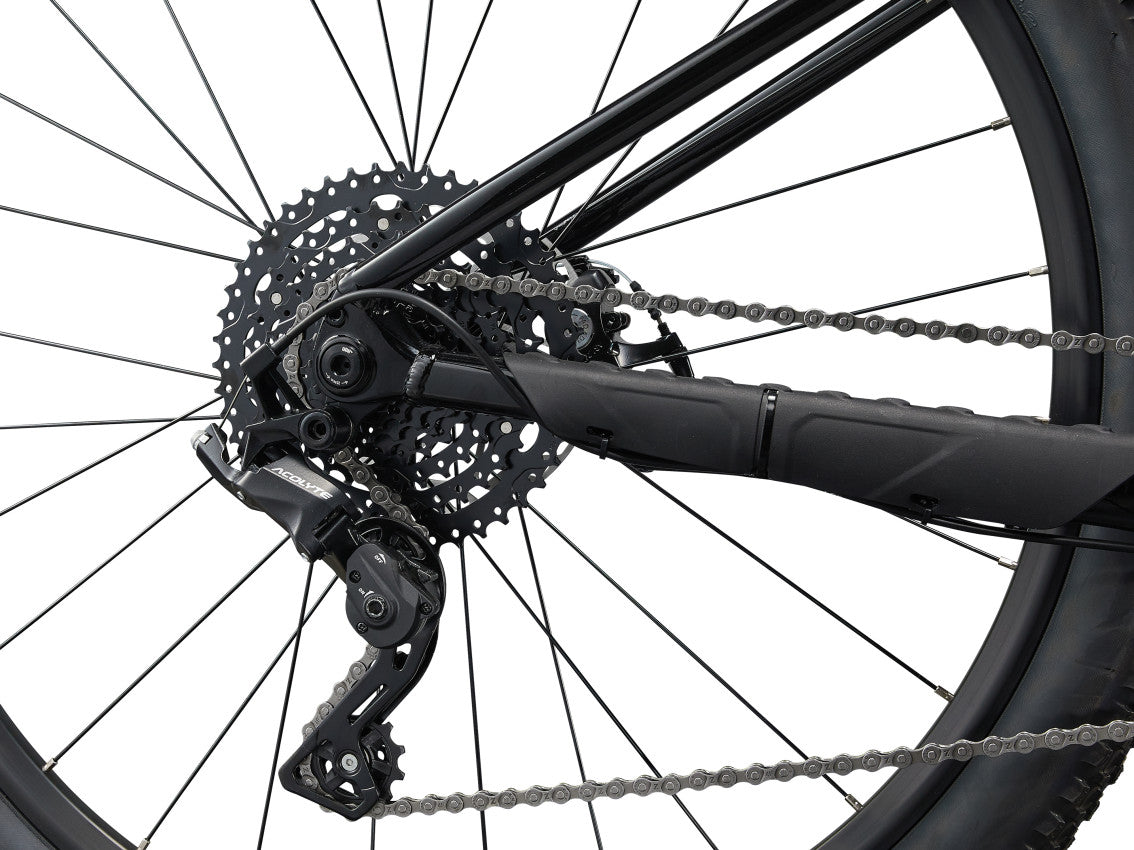

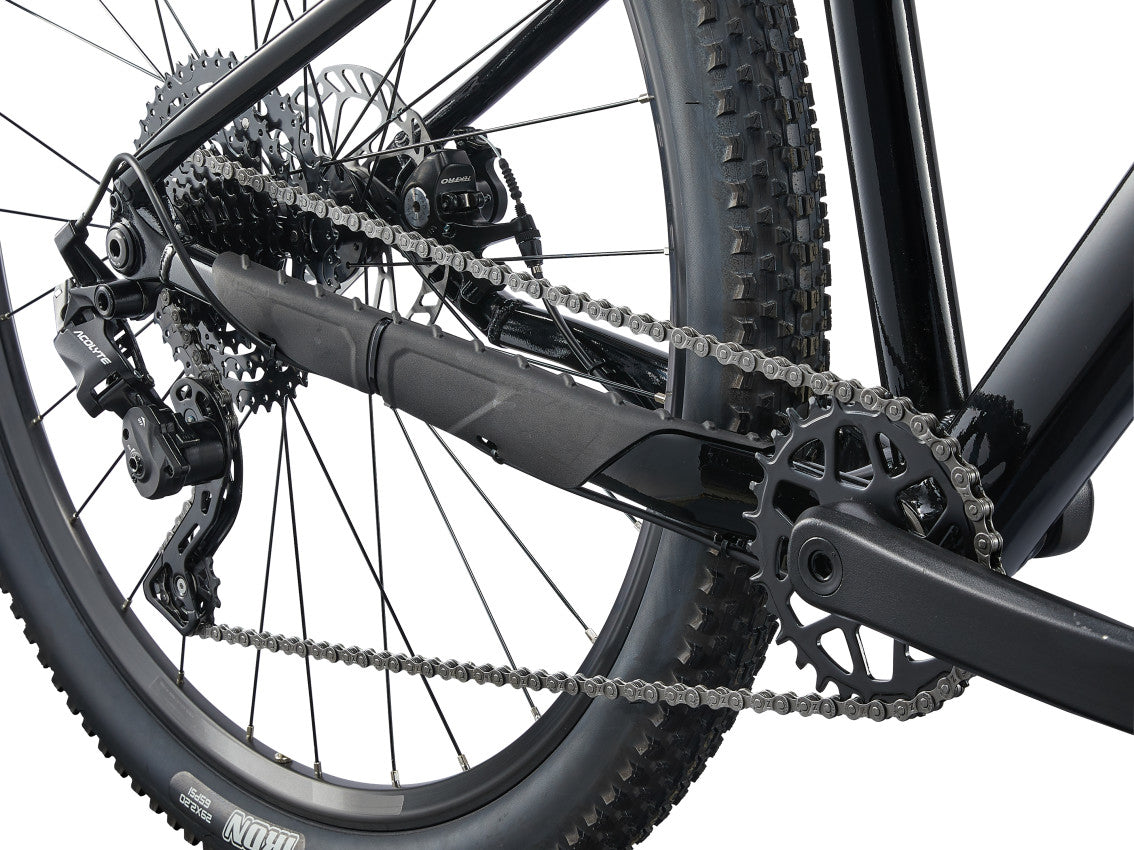

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control

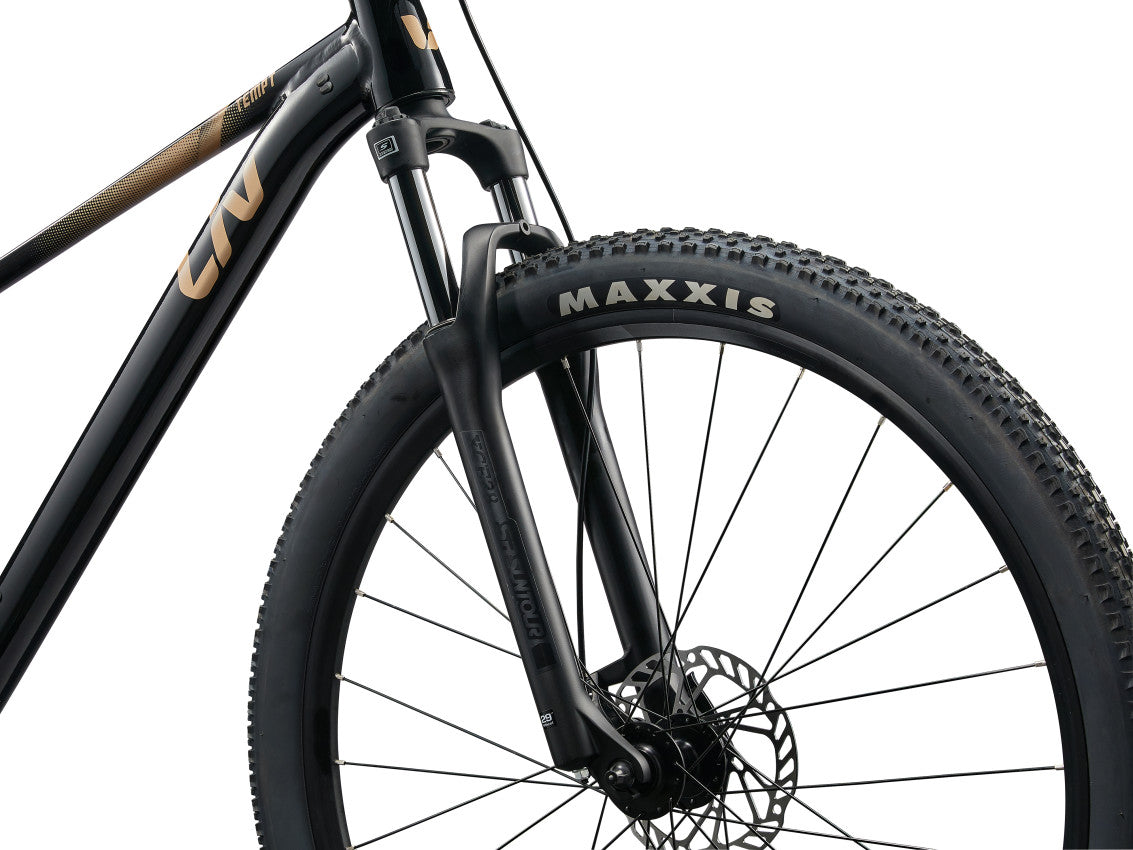

The new geometry is optimised for confident trail riding, with two wheel size options (27.5 or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tyres (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable
The all-new ALUXX aluminium frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.
-
S (29")158 cm 169 cm
-
M (29")164 cm 175 cm
| Code | Name | S (29") | M (29") |
|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 380 | 410 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 330 | 360 |
| B | Seat Tube Angle (degrees) | ||
| C | Top Tube Length (mm) (inch) | 571 | 599 |
| D | Head Tube Length (mm) (inch) | 90 | 100 |
| E | Head Tube Angle (degrees) | ||
| F | Fork Rake (mm) (inch) | 44 | 44 |
| G | Trail (mm) (inch) | 108.9 | 108.9 |
| H | Wheelbase (mm) (inch) | 1129 | 1158 |
| I | Chain Stay Length (mm) (inch) | 455 | 455 |
| J | Bottom Bracket Drop (mm) (inch) | 55 | 55 |
| K | Stack (mm) (inch) | 593 | 602 |
| L | Reach (mm) (inch) | 407 | 432 |
| M | Stand Over Height (mm) (inch) | 689 | 708 |
| O | Stem Length (mm) (inch) | 40 | 50 |
| P | Crank Length (mm) (inch) | 170 | 170 |
| Q | Wheel Size | 29" | 29" |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
