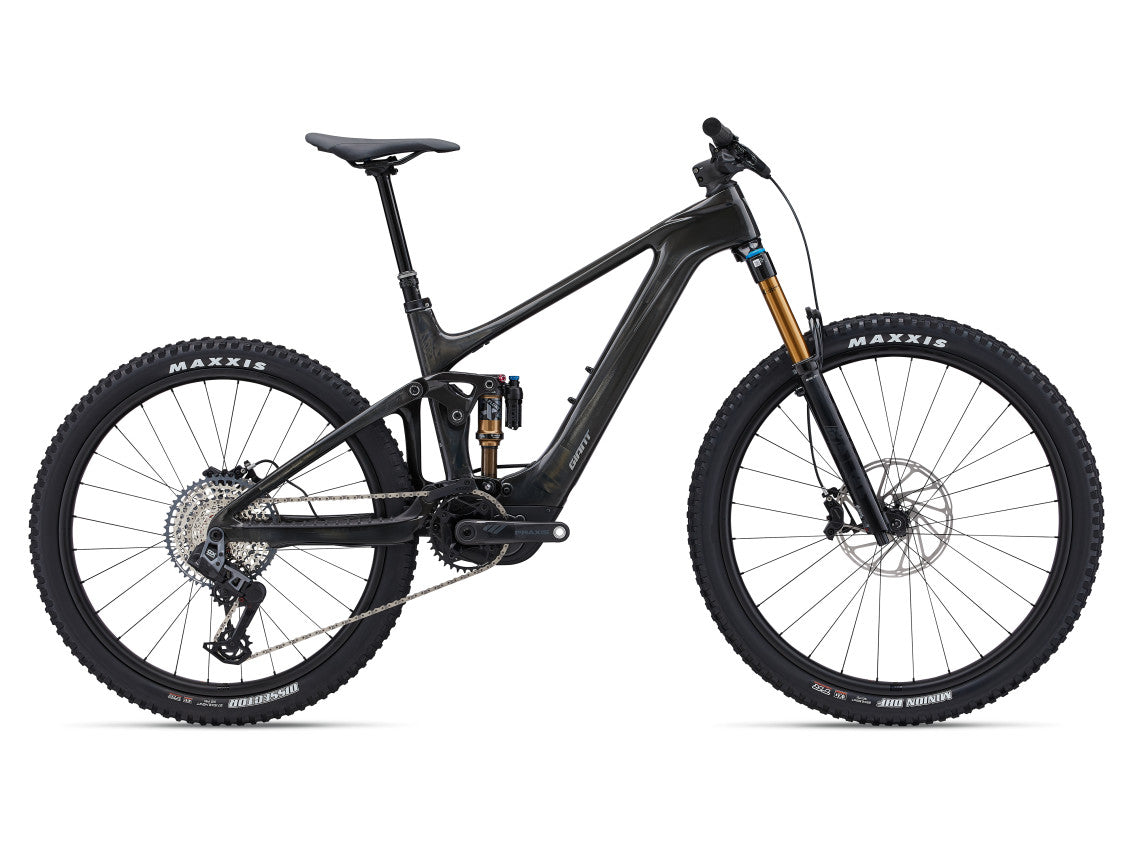

• Image 1 of 6 - MY24 Trance X Advanced E+ EL 1_Color A Raw Carbon

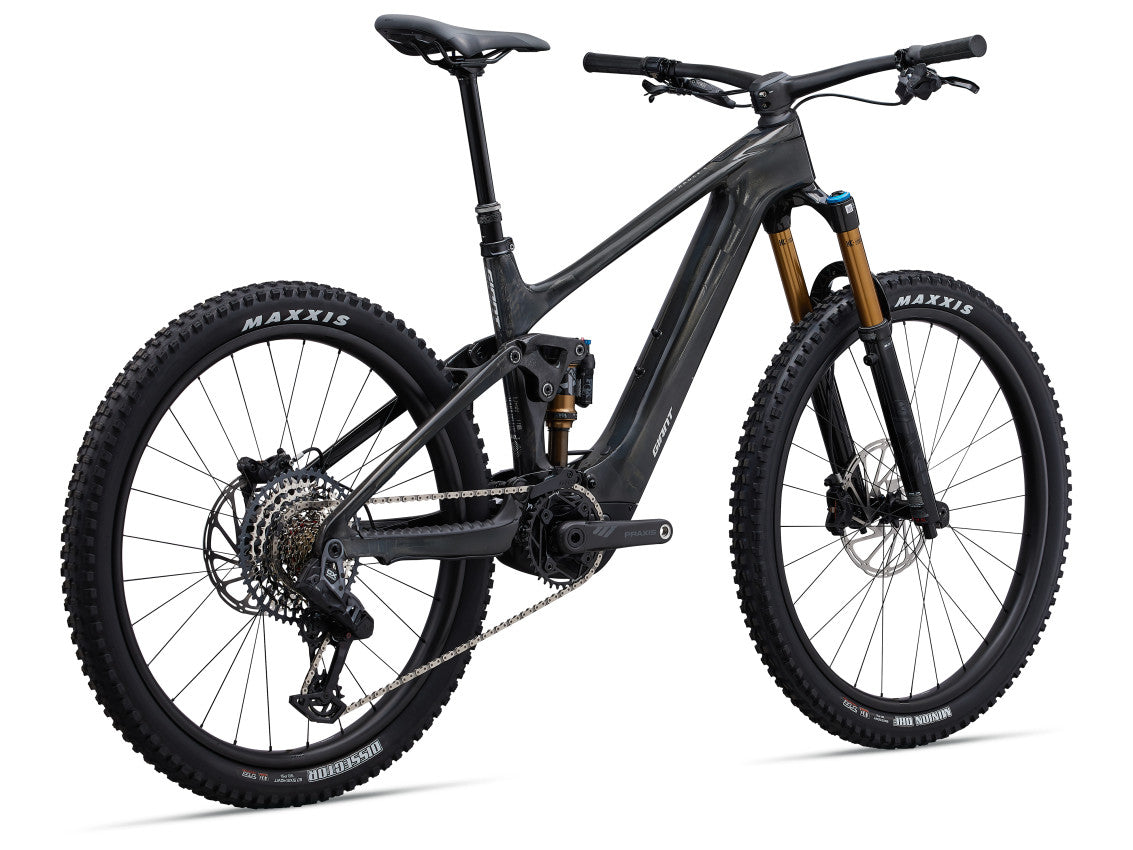

  • Image 2 of 6 - MY24 Trance X Advanced E+ EL 1_Color A Raw Carbon_Rear

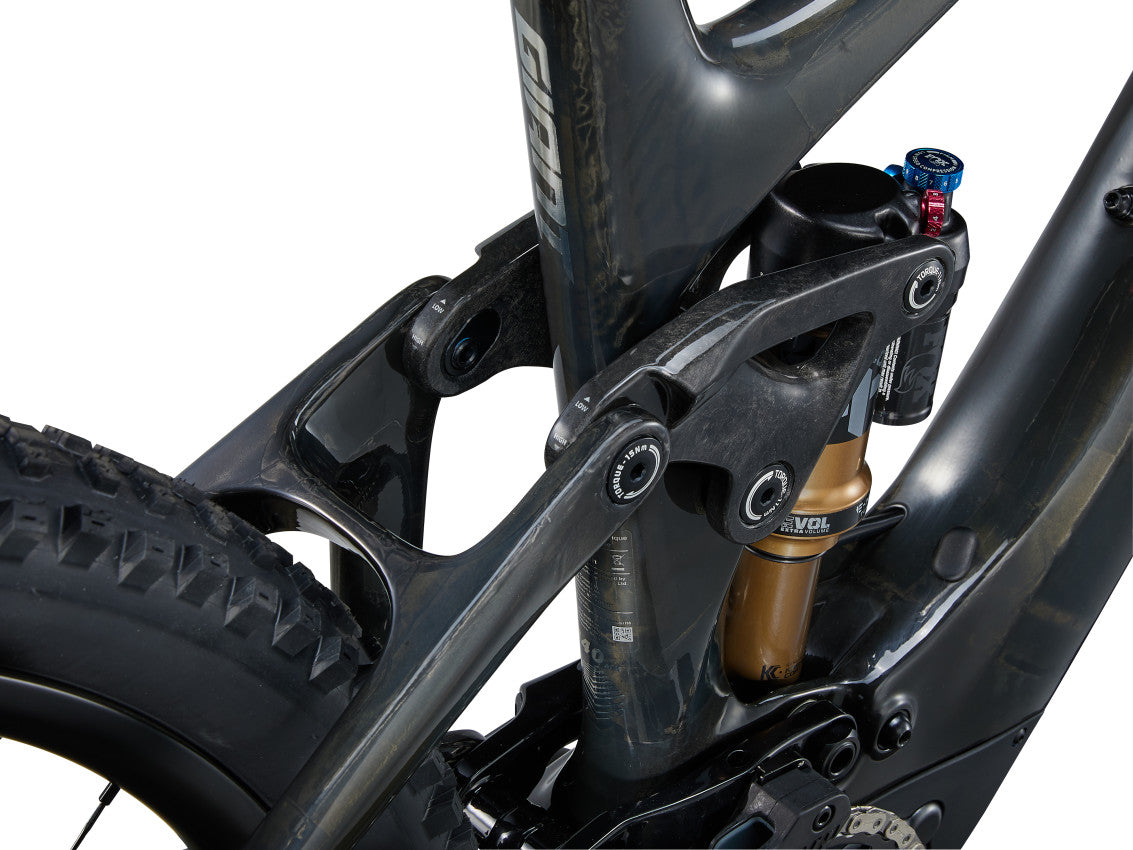

  • Image 3 of 6 - MY24 Trance X Advanced E+ EL 1_Color A Raw Carbon-D6

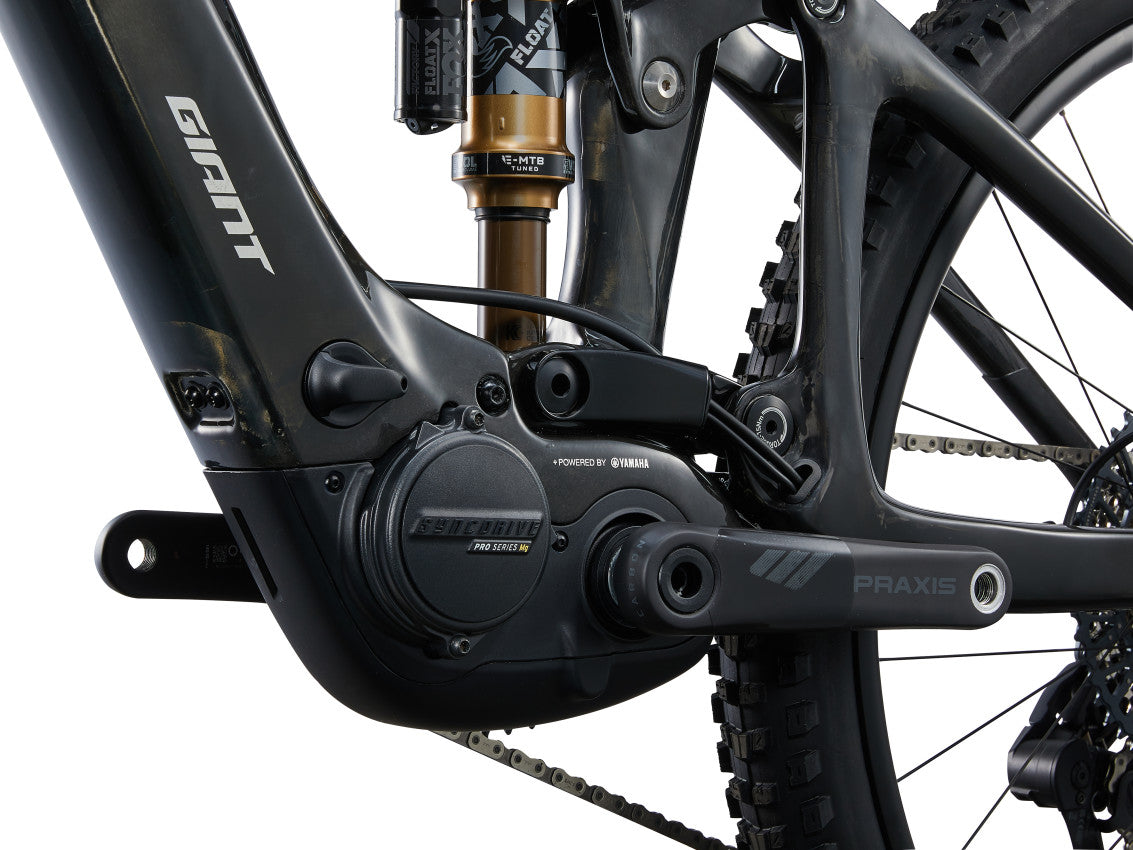

  • Image 4 of 6 - MY24 Trance X Advanced E+ EL 1_Color A Raw Carbon-D3

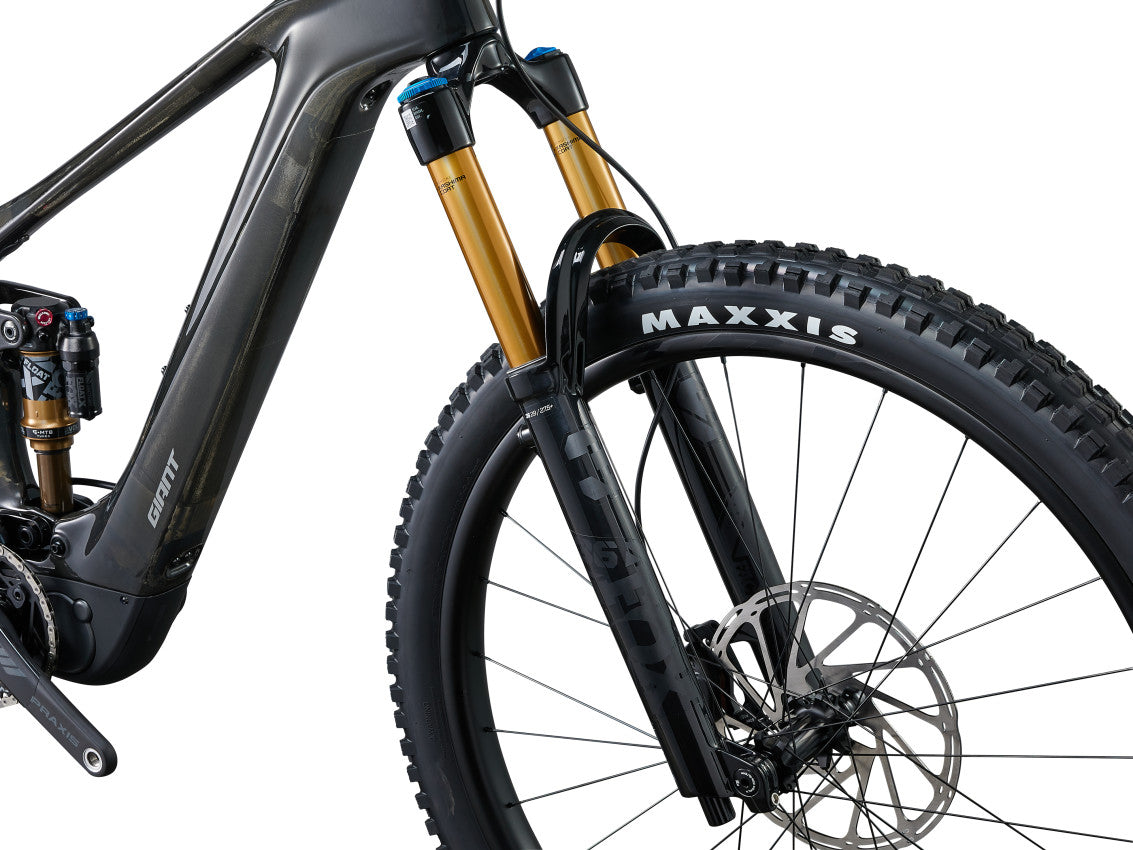

  • Image 5 of 6 - MY24 Trance X Advanced E+ EL 1_Color A Raw Carbon-D4

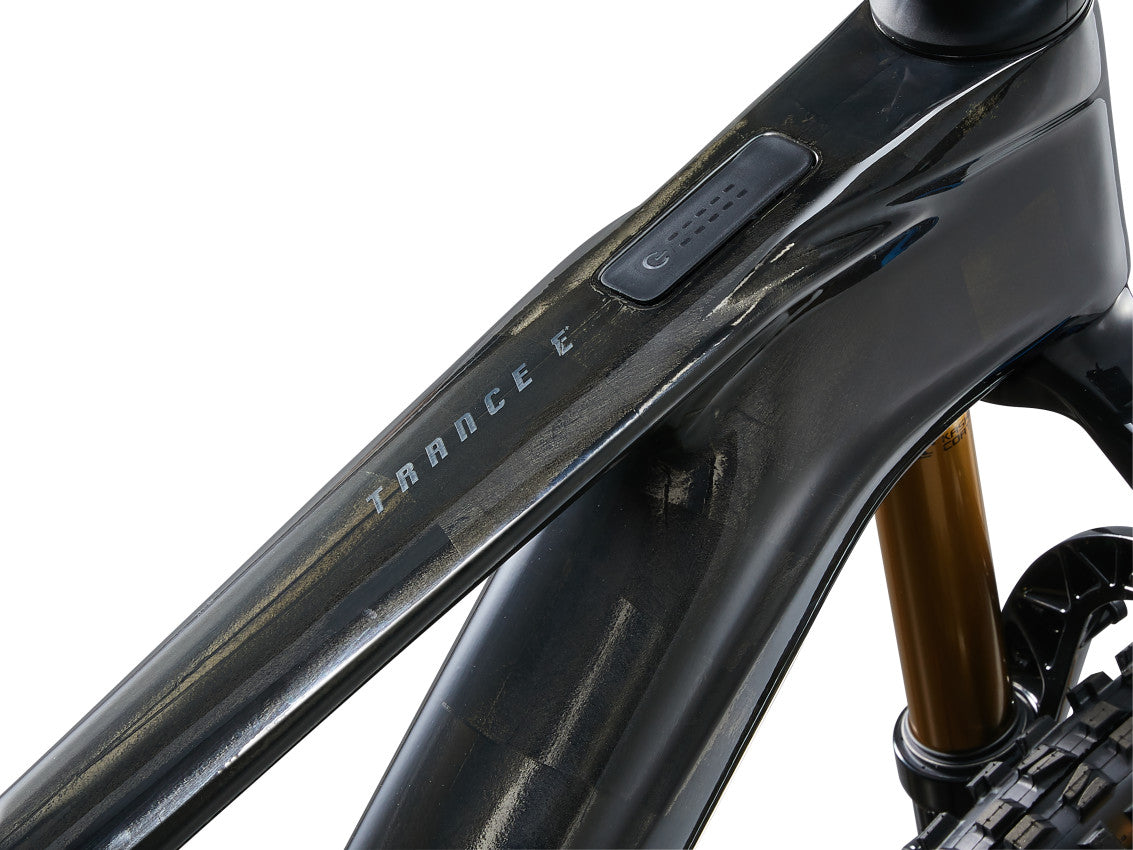

  • Image 6 of 6 - MY24 Trance X Advanced E+ EL 1_Color A Raw Carbon-D1
1 6
Giant Logo

Trance X Advanced E+ EL 1

$11,199.00 $14,999.00
Tax included
Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

Lighter weight

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced cockpit control

RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    163 cm 174 cm
  • M
    171 cm 182 cm
  • L
    179 cm 190 cm
  • XL
    187 cm 199 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 400 425 450 475
A1 Seat Post Insertion Depth (mm) (inch) 220 245 270 295
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 577 | 575 607 | 605 636 | 634 665 | 663
D Head Tube Length (mm) (inch) 95 100 115 130
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 113.1 | 108 113.1 | 108 113.1 | 108 113.1 | 108
H Wheelbase (mm) (inch) 1194 | 1195 1215 | 1212 1244 | 1244 1275 | 1275
I Chain Stay Length (mm) (inch) 447 | 447 447 | 447 447 | 447 447 | 447
J Bottom Bracket Drop (mm) (inch) 10 10 10 10
K Stack (mm) (inch) 607 | 601 611 | 605 625 | 619 639 | 633
L Reach (mm) (inch) 439 | 447 457 | 462 480 | 487 505 | 513
M Stand Over Height (mm) (inch) 726 | 735 733 | 742 732 | 741 741 | 750
O Stem Length (mm) (inch) 40 40 50 50
P Crank Length (mm) (inch) 160 165 165 170
Q Wheel Size 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R]

Specifications

Motor Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
Controller RideControl Ergo 3, grip integrated
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Sizes S, M, L, XL
Colours Raw Carbon
Frame Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
Fork Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
Shock Fox Float X Factory, EVOL Large Volume sleeve, custom tuned
Handlebar Giant Contact SLR Integrated, composite, 35mm
Grips Giant Tactal Pro-E, single lock-on
Stem Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
Seatpost TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
Saddle Giant Romero
Pedals N/A
Shifters SRAM AXS Pod, 1x12
Front derailleur MRP HD2 co-moulded chain guide
Rear derailleur SRAM GX Eagle T-Type AXS
Brakes SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R]
Brake levers SRAM Code R
Cassette SRAM GX, T-Type 10x52, 12-speed
Chain SRAM GX T-Type
Crankset Praxis Performance Carbon e-crank arms SRAM Eagle T-Type steel 36T chain ring S:160mm, M: 160mm, L:165mm, XL:165mm
Bottom bracket N/A
Rims E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R] 30mm inner width
Hubs E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Spokes Sapim E-Lite [R] Race [F], e-bike optimised
Tyres Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Extras Tubeless kit (liquid, valves, levers)
Lighting Optional:- Giant Recon series e-bike lights available and direct connectable
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
