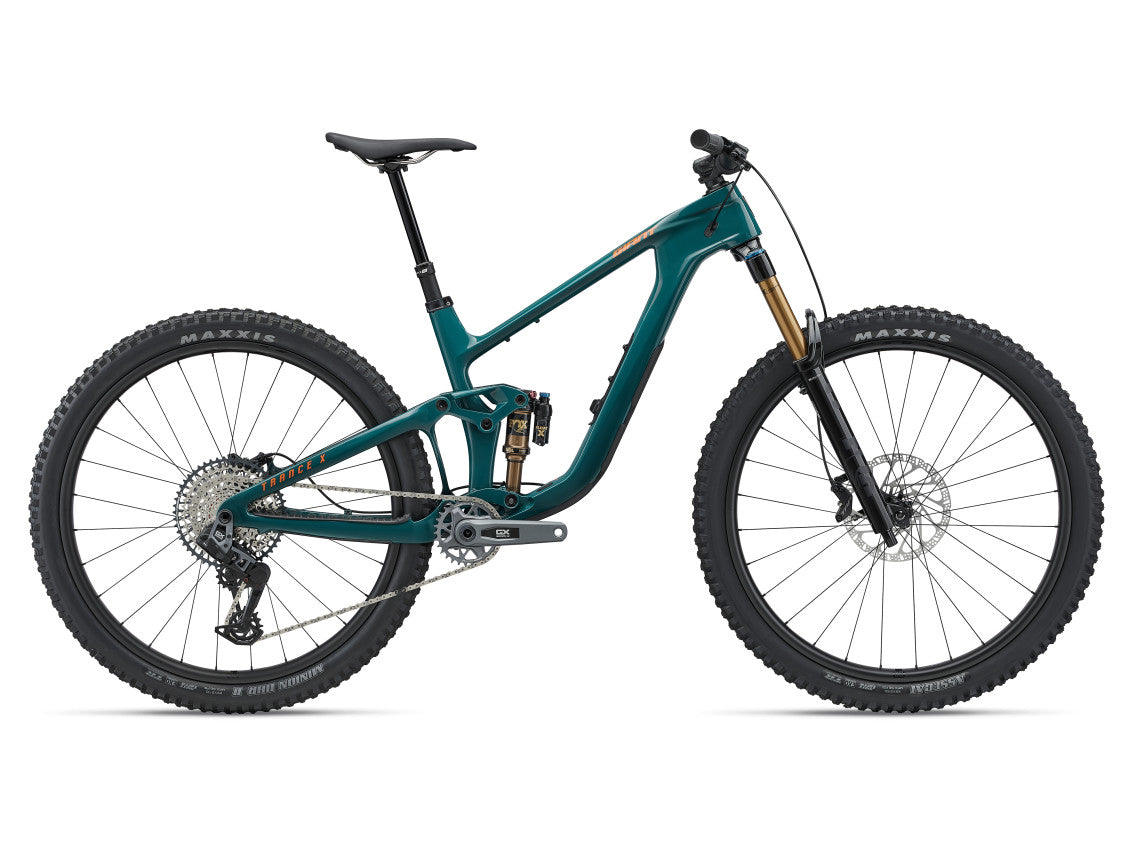

• Image 1 of 1 - MY27TranceXAdvanced1_ColorAAbyssTeal
Giant Logo

Trance X Advanced 1

$8,999.00
Tax included
Float up technical climbs and sail down chunky descents. This full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

More Travel

New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

Adjustable trail geometry

A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

Rear wheel options

All models come with 29-inch front and rear wheels, and the flip chip lets you switch to a mixed wheel setup with a 27.5-inch rear. The stock setup optimises stability and roll-over speed, while a 27.5-inch rear wheel delivers a snappier feel and more saddle-to-tyre clearance. Some riders favour this !mullet! setup for riding steep, technical terrain.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    163 cm 172 cm
  • M
    171 cm 180 cm
  • L
    179 cm 188 cm
  • XL
    187 cm 198 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 400 425 450 475
A1 Seat Post Insertion Depth (mm) (inch) 280 305 330 355
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 571 | 570 | 569 602 | 601 | 600 624 | 623 | 622 657 | 656 | 655
D Head Tube Length (mm) (inch) 100 105 115 125
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 134.1 | 131.3 | 128.4 134 | 131.3 | 128.5 133.9 | 131.3 | 128.5 133.9 | 131.3 | 128.6
H Wheelbase (mm) (inch) 1190 | 1190 | 1189 1222 | 1222 | 1221 1246 | 1246 | 1245 1281 | 1280 | 1280
I Chain Stay Length (mm) (inch) 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438
J Bottom Bracket Drop (mm) (inch) 40 | 35 | 30 40 | 35 | 30 40 | 35 | 30 40 | 35 | 30
K Stack (mm) (inch) 617 | 614 | 611 621 | 619 | 616 631 | 628 | 625 640 | 637 | 634
L Reach (mm) (inch) 426 | 430 | 434 456 | 460 | 464 476 | 480 | 484 507 | 510 | 514
M Stand Over Height (mm) (inch) 733 | 737 | 742 737 | 741 | 746 754 | 759 | 763 752 | 757 | 762
O Stem Length (mm) (inch) 40 40 50 50
P Crank Length (mm) (inch) 165 170 170 170

Specifications

Sizes S, M, L, XL
Colours Abyss Teal
Frame Advanced-Grade Composite front and rear triangles, UDH, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork Fox 36 Factory, 150mm, GRIP X damper, 15x110mm Kabolt X thru-axle, 44mm offset
Shock Fox Float X Factory, 2 position, custom tuned for Giant
Handlebar Giant Contact SL TR35, alloy, 20mm rise
Grips Giant Tactal Pro Single lock-on
Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle Giant Romero SL
Pedals N/A
Shifters SRAM AXS Pod, 1x12
Front derailleur N/A
Rear derailleur SRAM GX Eagle Transmission AXS
Brakes TRP EVO Pro, hydraulic, TRP 2.3mm rotors [F]203mm, [R]180mm
Brake levers TRP EVO Pro
Cassette SRAM XS-1275 Transmission, 10x52
Chain SRAM GX Transmission
Crankset SRAM GX Transmission, 30t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
Bottom bracket SRAM DUB, Press Fit
Rims Giant TRX Hookless Tubeless ready Carbon, 29", 30mm inner width
Hubs [F] Giant TRX MTB Alloy Hub, 6 Bolt, 28H [R] Giant TRX MTB Alloy Hub, SRAM XD Drive Body Pawl Driver (Pawl 36x2 T), 28H
Spokes Sapim Laser
Tyres [F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO, TR [R] Maxxis Minion DHR II 29x2.4 WT, MaxxTerra, EXO, TR tubeless
Extras Tubeless prepared, chain guide, 3M tailgate protector
Max tyre clearance 2.5"
Max chainring size 34t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
