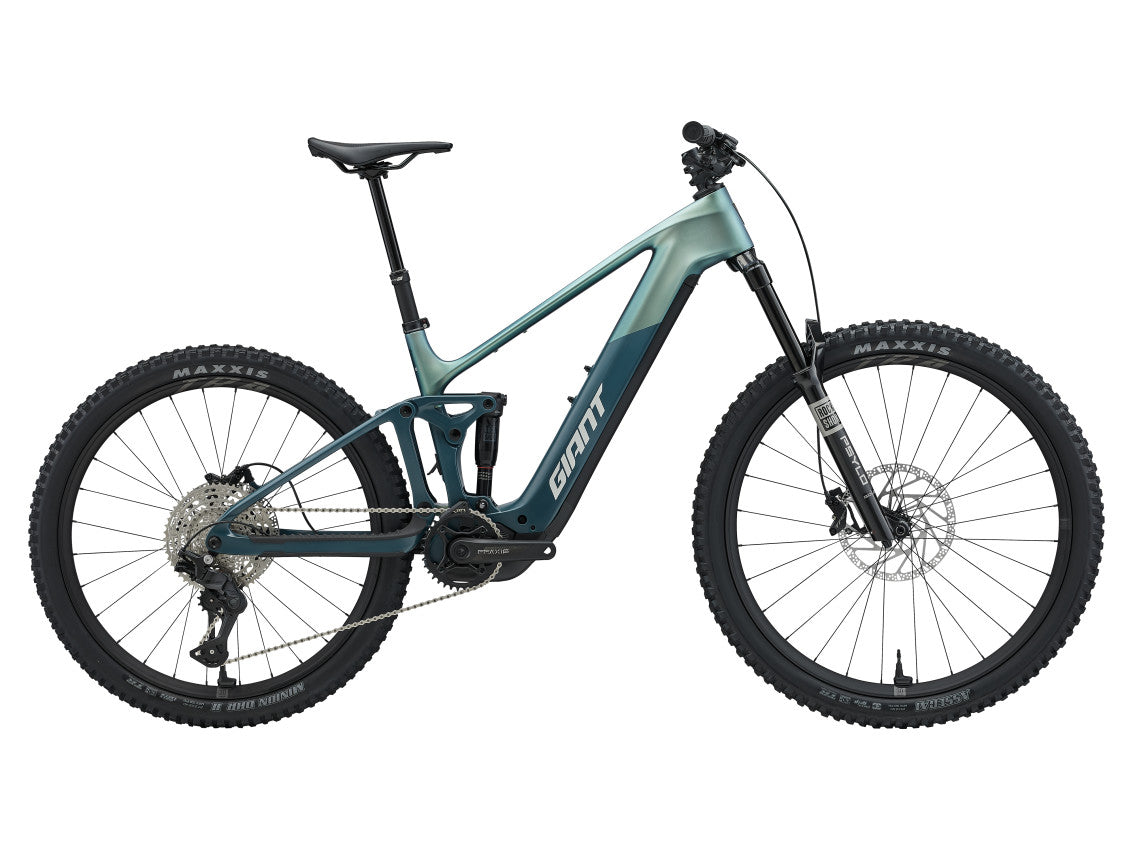

• Image 1 of 10 - FanaticTeal/DeepLake

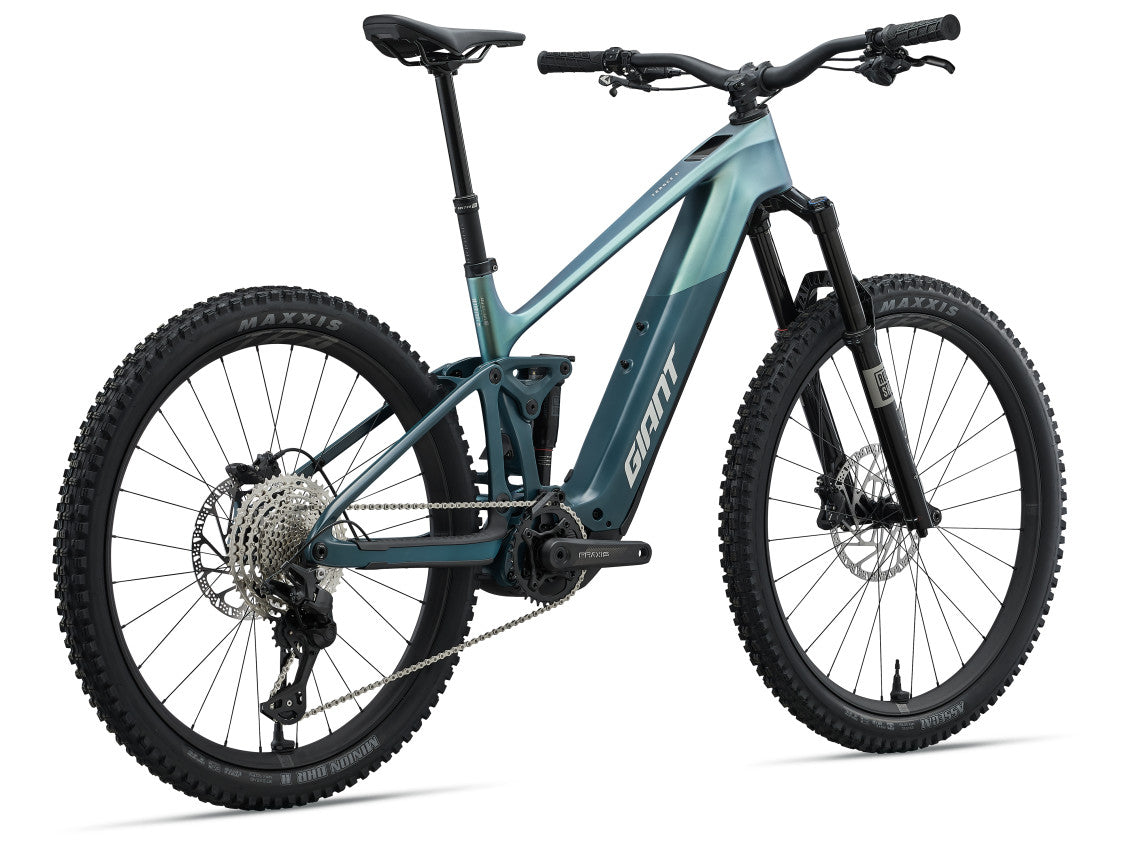

  • Image 2 of 10 - MY27TranceAdvancedE2_ColorA-Rear
  • Image 3 of 10 - MY27TranceAdvancedE2_ColorA-D2
  • Image 4 of 10 - MY27TranceAdvancedE2_ColorA-D3
  • Image 5 of 10 - MY27TranceAdvancedE2_ColorA-D7

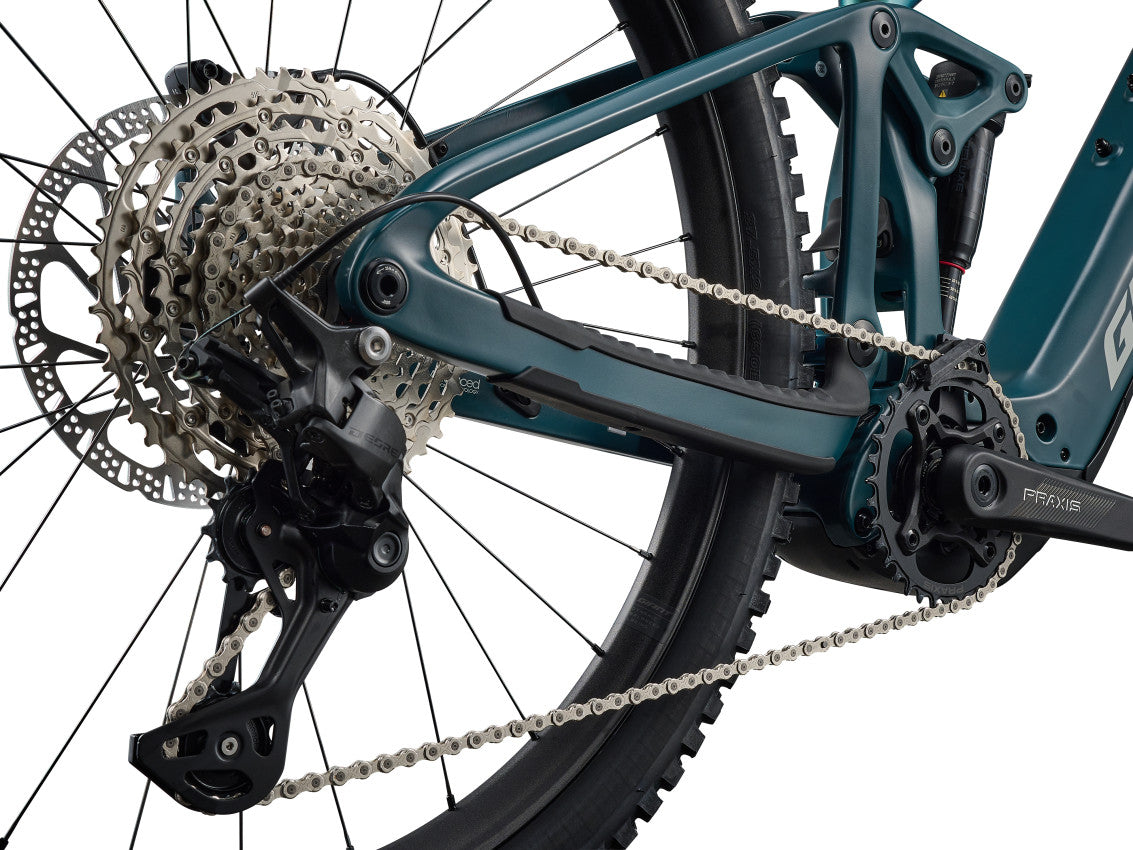

  • Image 6 of 10 - MY27TranceAdvancedE2_ColorA-D1
  • Image 7 of 10 - MY27TranceAdvancedE2_ColorA-D4
  • Image 8 of 10 - MY27TranceAdvancedE2_ColorA-D5
  • Image 9 of 10 - MY27TranceAdvancedE2_ColorA-D6

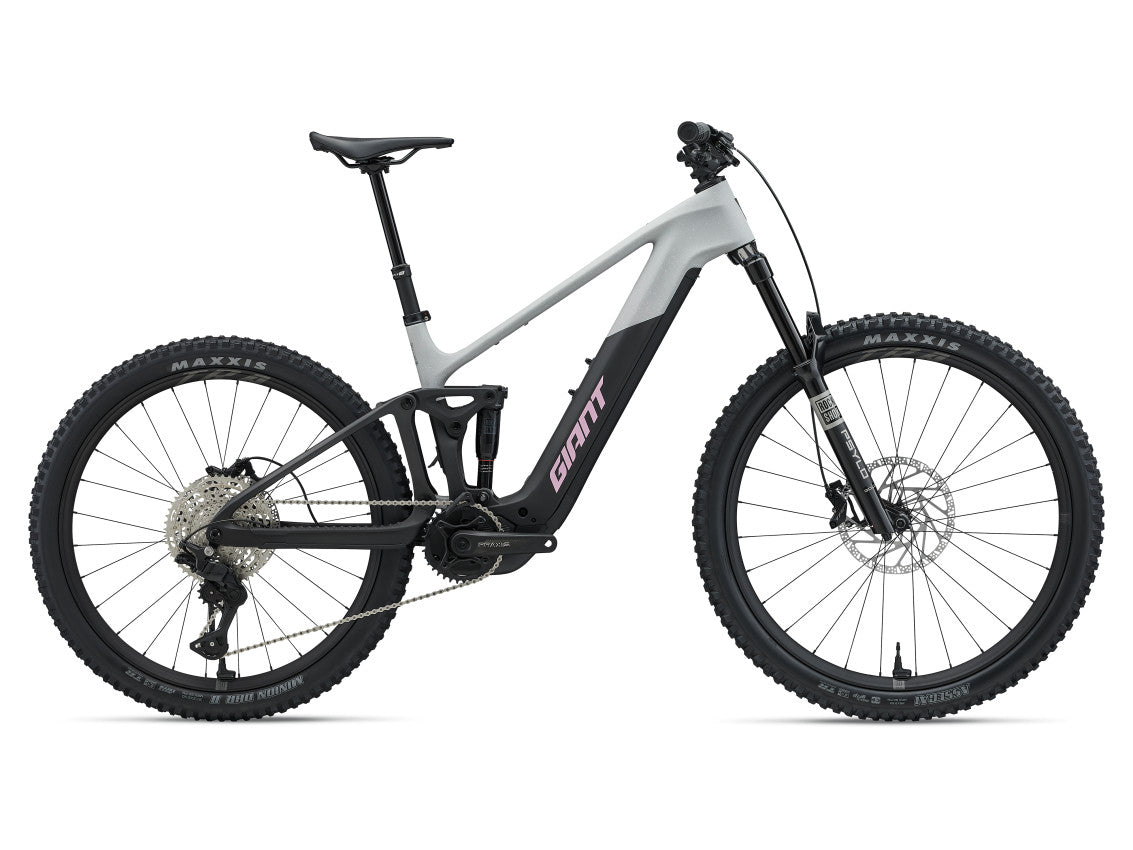

  • Image 10 of 10 - Moon Dust/Carbon
1 10
Giant Logo

Trance Advanced E+ 2

$9,699.00
Tax included
Full power that’s fully connected. The new Trance Advanced E+ and Giant E+ System were engineered as one for a full-power, fully controlled E-MTB experience. The frame, Maestro suspension, powertrain and software work together to give you instant power from 0 RPM, with sustained support and controlled grip that keeps you connected to the trail.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

ADVANCED CONTROL

Raw power matters, but it’s the smooth balance of torque and control that truly shapes your ride. While most E-MTBs must compromise their suspension designs around off-the-shelf motors, we engineered the SyncDrive Pro 4 motor and Maestro suspension together using a custom motor housing to accommodate Maestro’s proven dual-link suspension kinematics. The Synchronized Power Matrix senses the ride and adjusts the support to your tuning. When steep climbs turn loose, Traction Control detects rear wheel slip and refines the assist, so power finds grip and you stay in control. A mixed-wheel setup—29-inch front for smooth roll-over, 27.5-inch rear for added agility—and 3-position flip-chip geometry let you dial in handling to your riding style and terrain.

ALWAYS-ON POWER

The new 48V SyncDrive Pro 4 motor delivers lightning-fast response (0.28 seconds) and 120Nm of torque from the first crank of your pedals, starting at 0 rpm. It’s designed to read force, not rotation. Best of all, it doesn’t taper at speed, delivering 850W of peak power across the full cadence range. Weighing just 21.9kg with a new 840Wh battery, the new Trance Advanced E+ 0 handles like a lighter bike and holds power where others fade.

FULL-POWER CONFIDENCE

More power and torque lead to more stress on everything. The new Trance Advanced E+ is built to handle the forces of full-power E-MTB riding with engineered durability across the board. The new TRX and TRA HD WheelSystems feature high-torque titanium ratchet hubs that are 20% stronger than the previous generation and 25% stronger in fatigue testing than leading competitors. A new high-torque KMC chain delivers 35% stronger pin strength versus leading benchmark 12-speed chains. The EnergyPak 840 battery has a 2,300-cycle lifespan. And it’s all backed by Giant’s global retailer and service network.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    162 cm 174 cm
  • M
    168 cm 184 cm
  • L
    178 cm 192 cm
  • XL
    184 cm 200 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 400 425 450 475
A1 Seat Post Insertion Depth (mm) (inch) 245 270 295 310
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 568 | 567 | 566 605 | 604 | 603 630 | 629 | 628 662 | 661 | 660
D Head Tube Length (mm) (inch) 110 120 130 140
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 135.9 135.9 135.9 135.9
H Wheelbase (mm) (inch) 1200 | 1199 | 1197 1239 | 1237 | 1236 1267 | 1265 | 1264 1300 | 1299 | 1298
I Chain Stay Length (mm) (inch) 443 | 443 | 443 443 | 443 | 443 443 | 443 | 443 443 | 443 | 443
J Bottom Bracket Drop (mm) (inch) 17 | 12 | 7 17 | 12 | 7 17 | 12 | 7 17 | 12 | 7
K Stack (mm) (inch) 634 | 631 | 629 643 | 640 | 638 652 | 649 | 647 661 | 659 | 658
L Reach (mm) (inch) 422 | 425 | 428 457 | 460 | 463 477 | 480 | 484 504 | 510 | 513
O Stem Length (mm) (inch) 40 40 40 40
P Crank Length (mm) (inch) 155 155 155 155
Q Wheel Size 29" [F], 27.5" [R] 29" [F], 27.5" [R] 29" [F], 27.5" [R] 29" [F], 27.5" [R]

Specifications

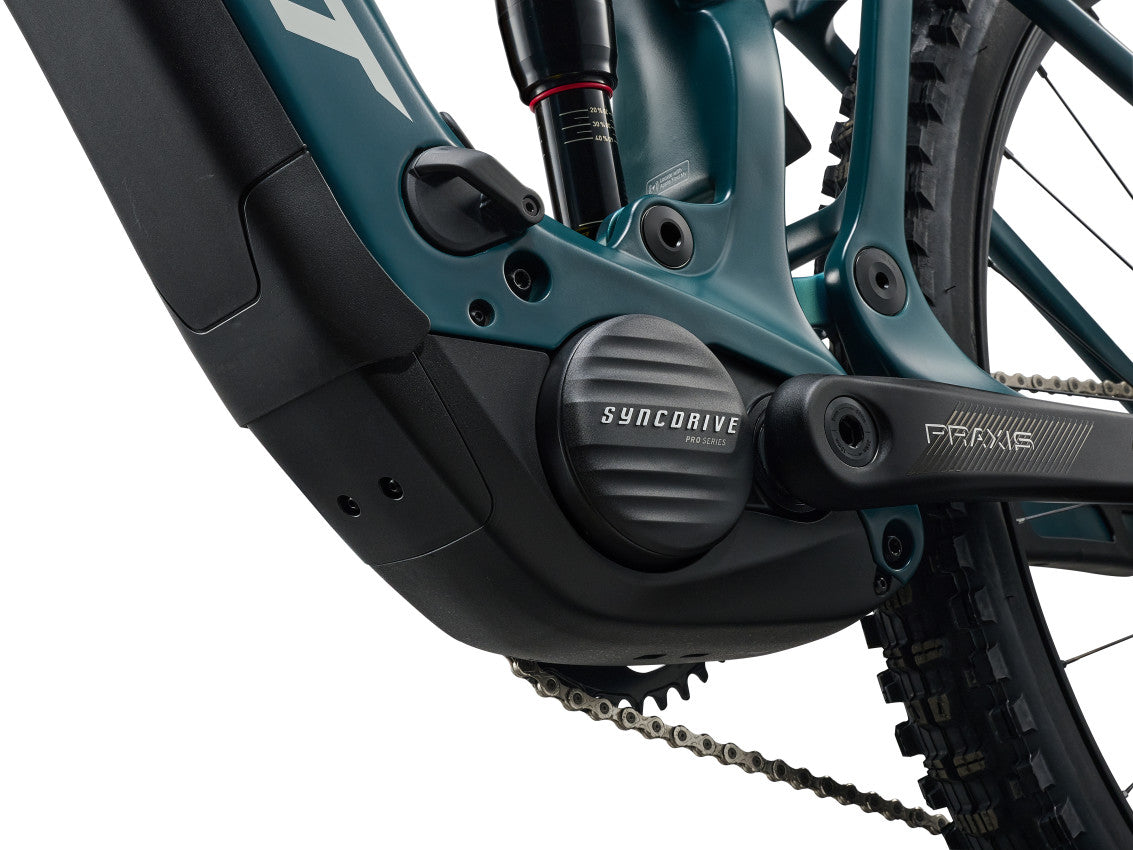

Motor SyncDrive Pro4, 120Nm, 48V, 850W Peak Power
Controller Giant RideControl Ergo 5 wireless Integrated E+ System

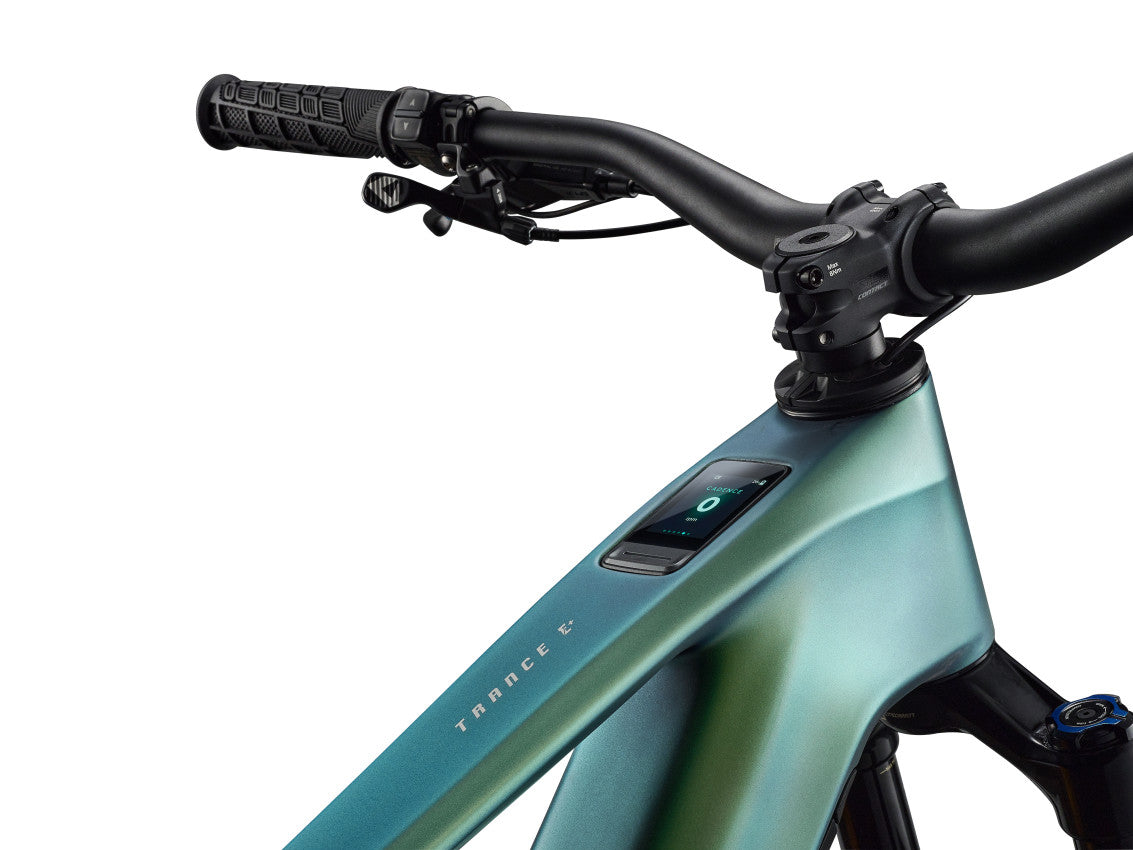

Display RideControl GO LUX, frame integrated LED display ANT+
Battery EnergyPak Smart 840Wh EnergyPak Plus 280 range extender compatible
Charger 48V 4A Smart Charger X
Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Sizes S, M, L, XL
Colours Fanatic Teal/DeepLake, Moon Dust/Carbon

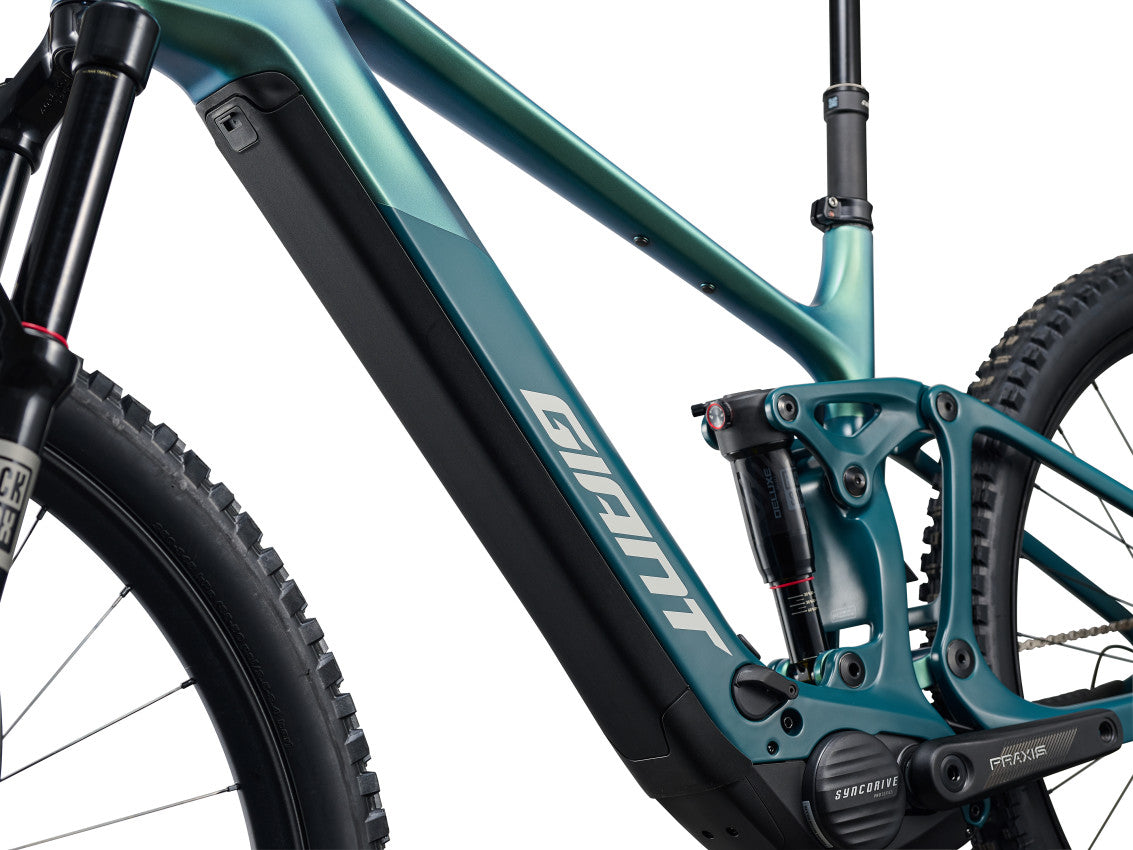

Frame Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle

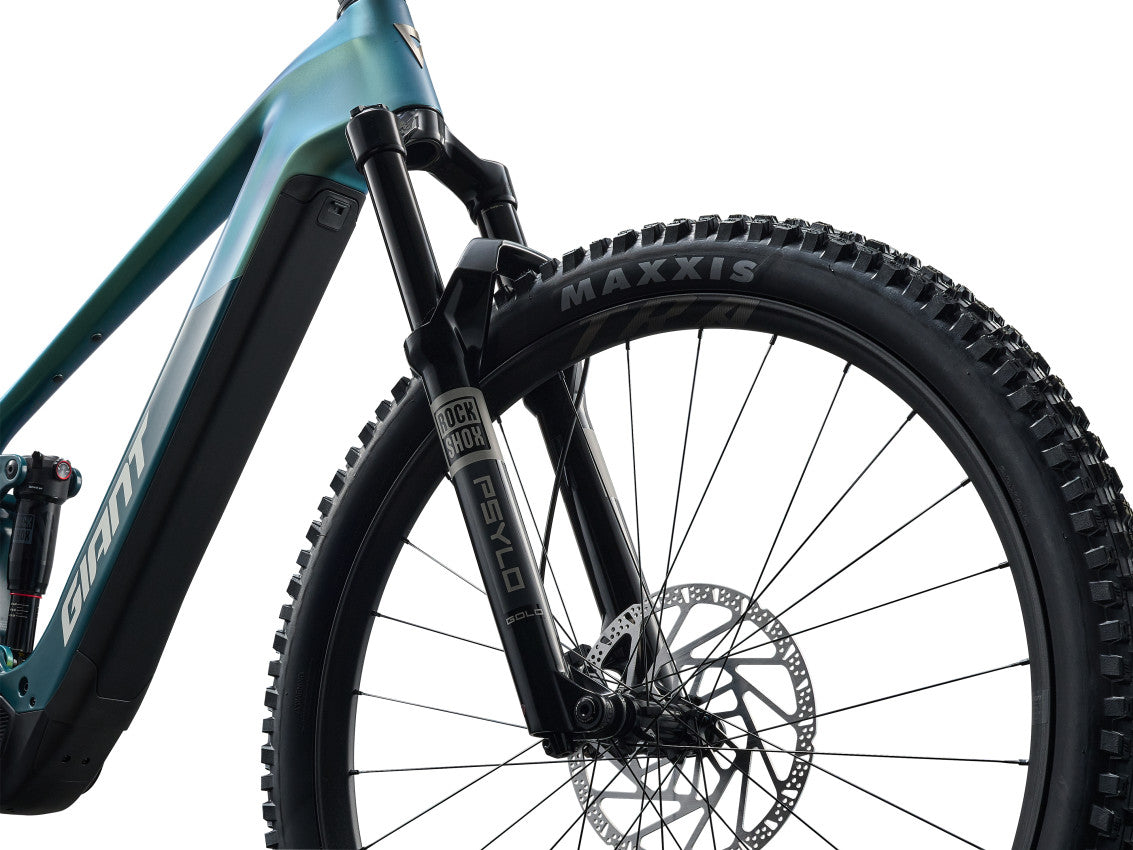

Fork RockShox Psylo Gold RC, 160mm travel, 44mm offset, Isolator RC damper, Maxle Stealth 15x110 thru-axle

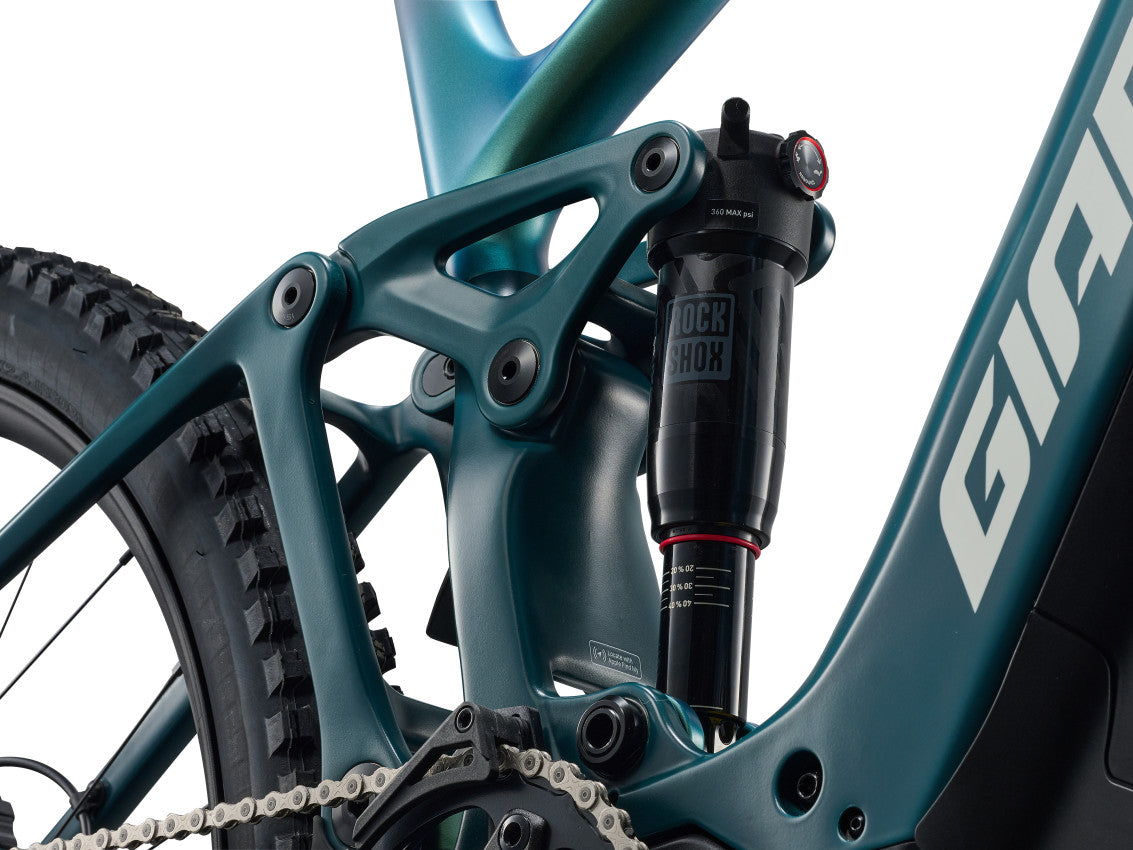

Shock RockShox Deluxe Select, custom tuned
Handlebar Giant Contact TR35, 35mm Rise
Grips Giant Tactal Pro Single lock-on
Stem Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost Giant Contact Switch AT travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle Giant Romero HD
Pedals N/A
Shifters Shimano Deore, 1x12
Rear derailleur Shimano Deore, Shadow+

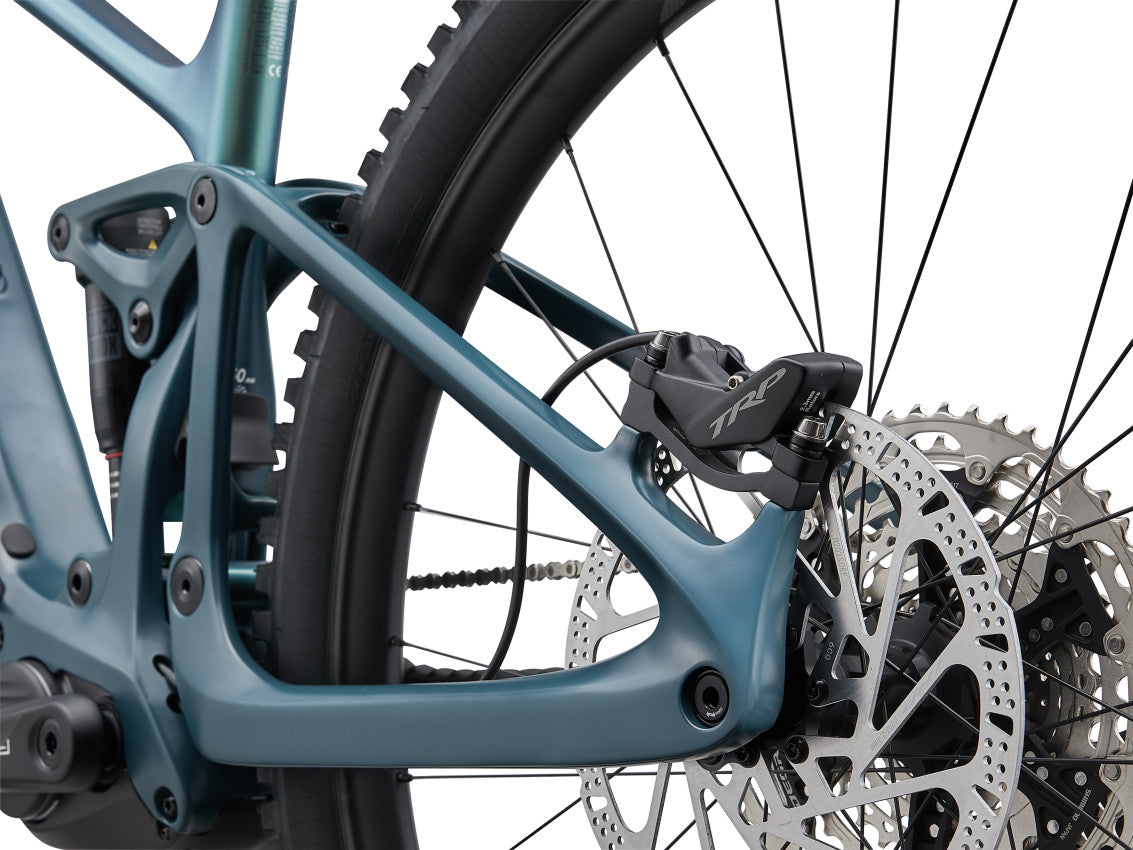

Brakes TRP EVO Comp, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm
Brake levers TRP EVO Comp
Cassette Shimano Deore CS-M6200, 10-51T
Chain KMC e12HT
Crankset Praxis e-HD alloy crank arms Praxis steel direct mount, 36T chain ring S:155mm, M: 155mm, L:155mm, XL:155mm
Bottom bracket N/A
Rims Giant E-TRA Hookless Tubeless ready Alloy 29" [F] 27.5" [R] 30mm inner width
Hubs [F] Giant E-TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRA MTB Alloy Hub, HG Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H
Spokes Sapim Laser, e-bike optimised
Tyres Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C Maxx Grip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, EXO+ 3C Maxx Terra [R]
Extras Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool)
Fender/chainguard Co-moulded guide 32-36T adjustable
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

EN 15194 compliant e-bike
