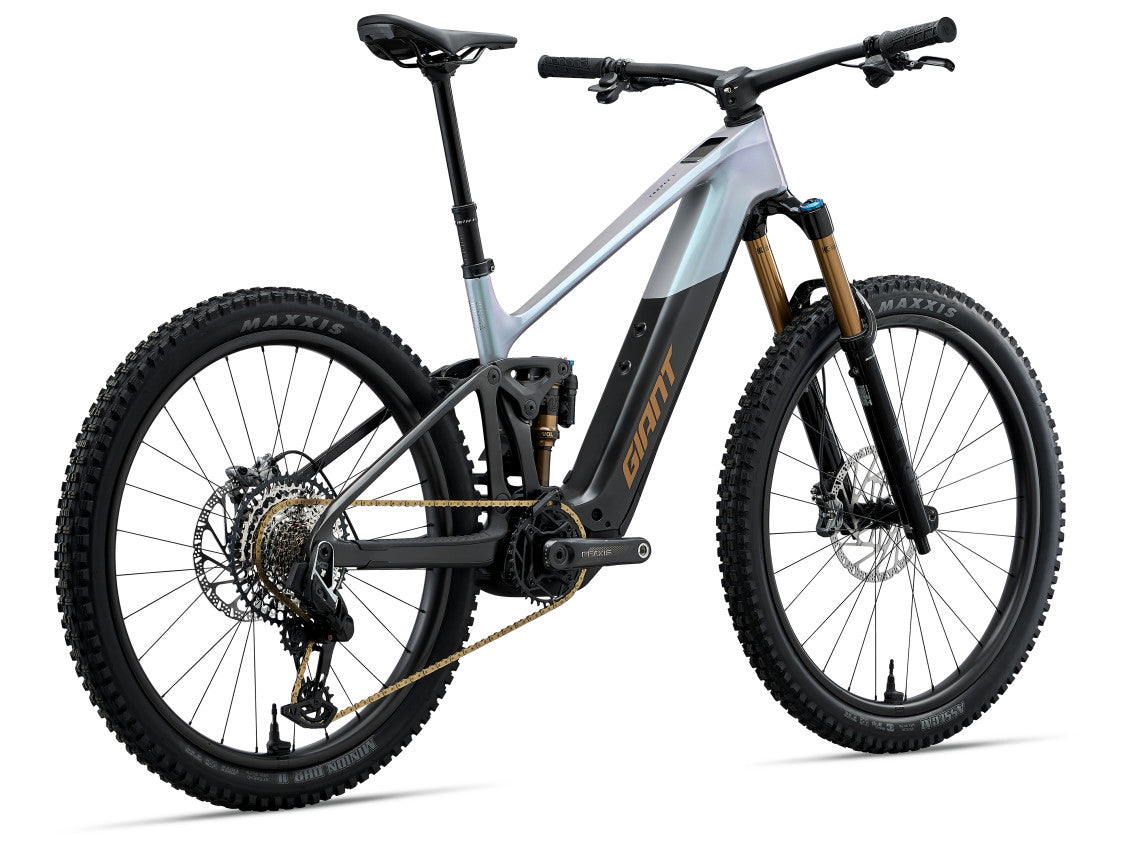

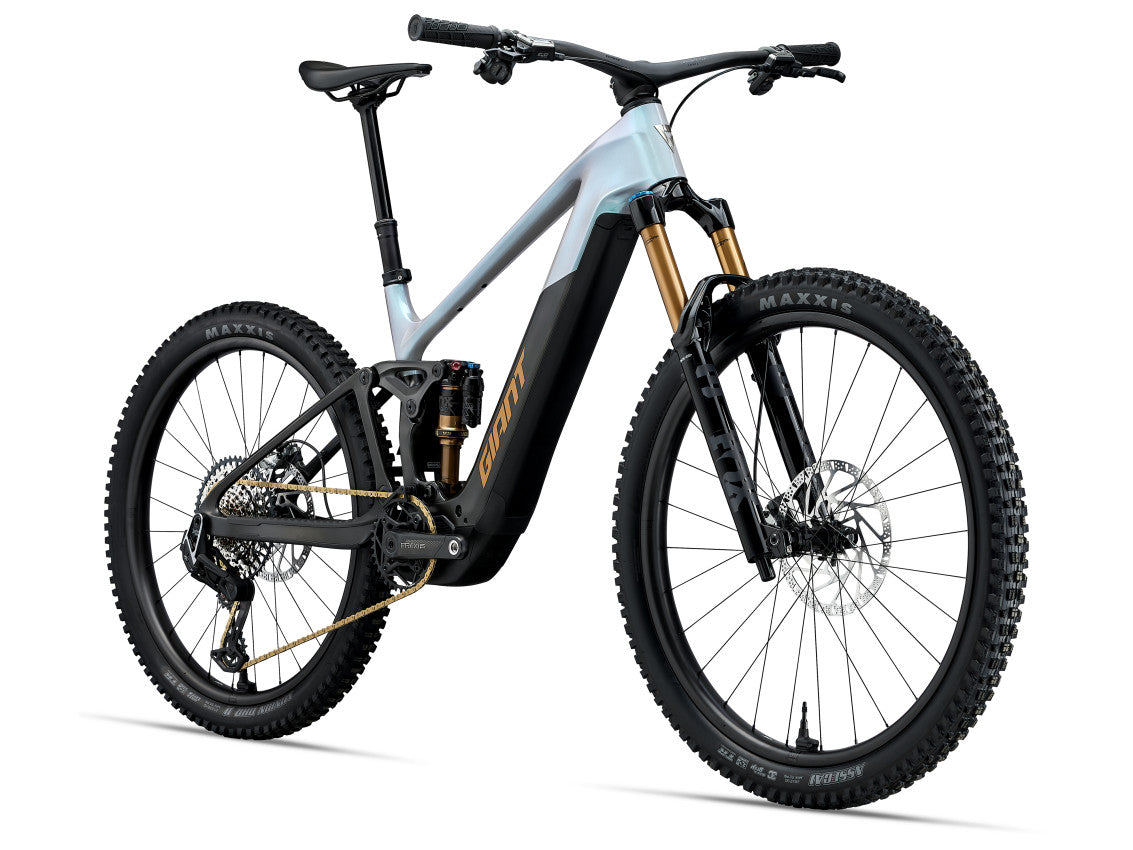

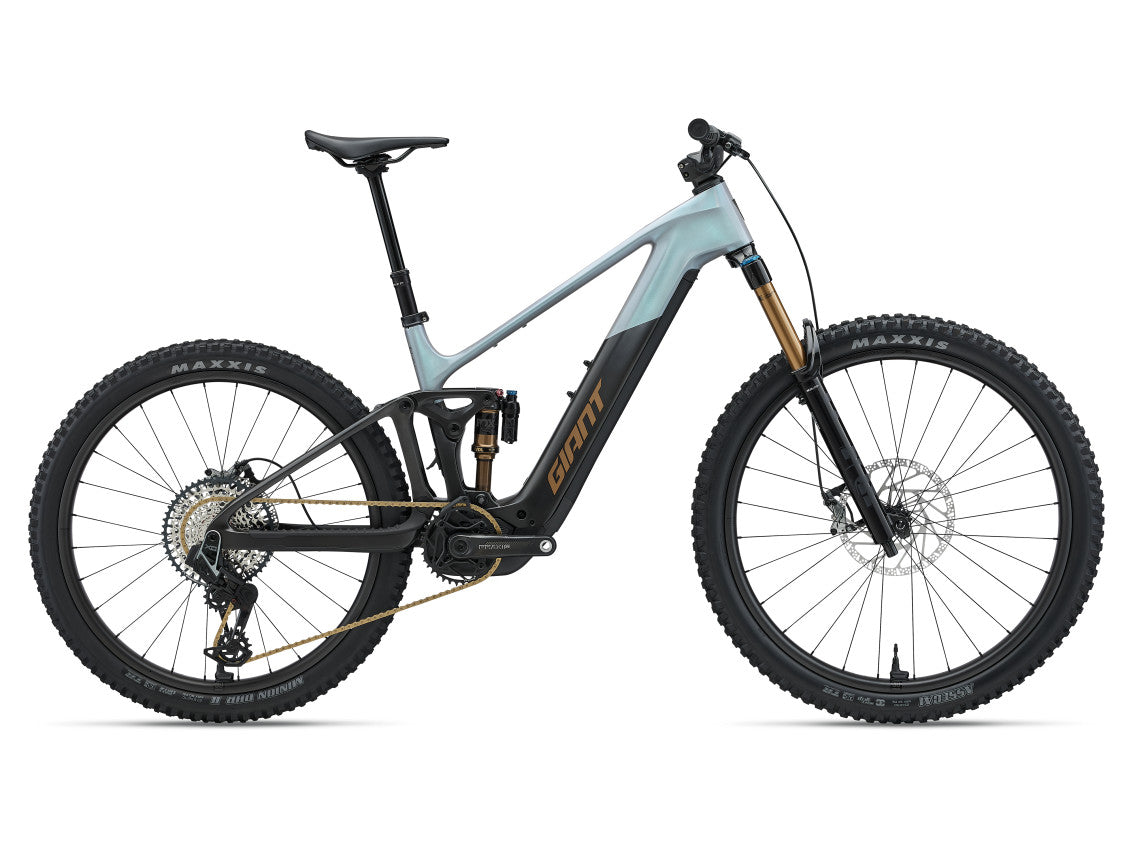

Trance Advanced E+ 0

$14,999.00

Tax included

Full power that’s fully connected. The new Trance Advanced E+ and Giant E+ System were engineered as one for a full-power, fully controlled E-MTB experience. The frame, Maestro suspension, powertrain and software work together to give you instant power from 0 RPM, with sustained support and controlled grip that keeps you connected to the trail.

Size

Sm Md Lg XL

Colour

Prismatic Haze

Product variants

Techs & Features

ADVANCED CONTROL

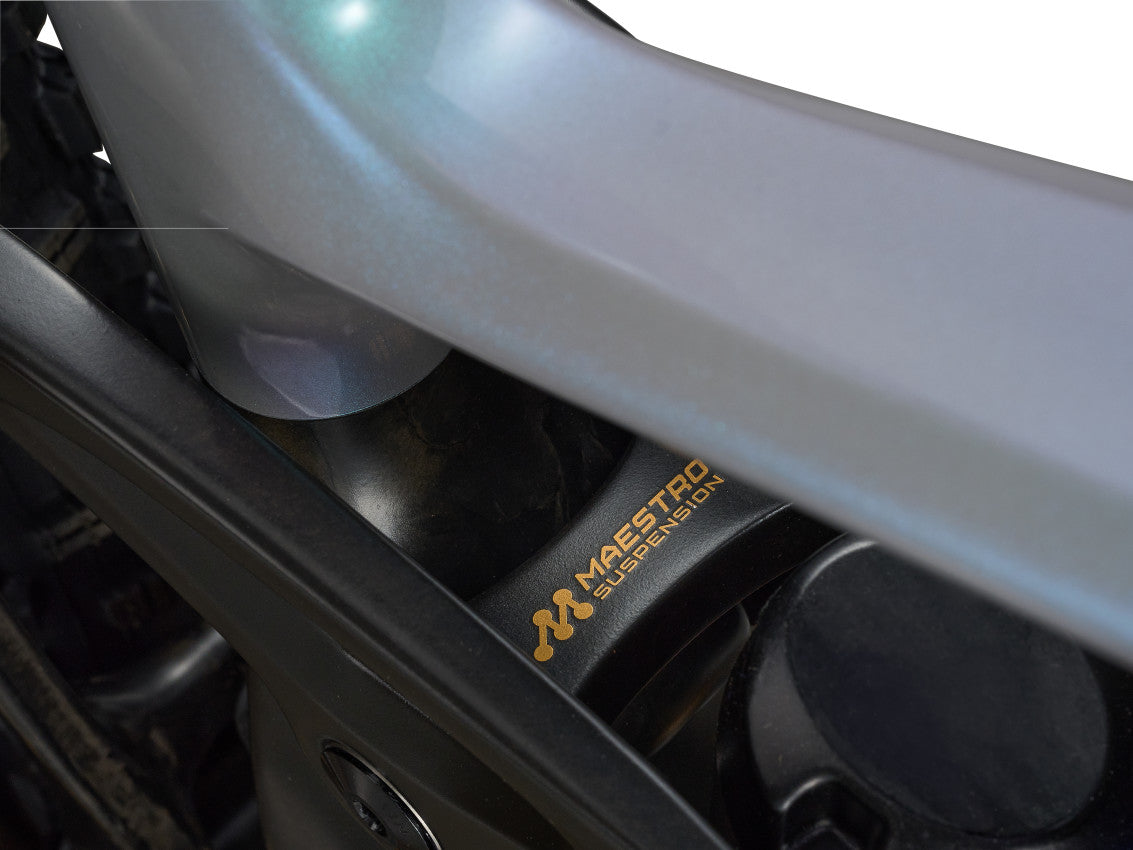

Raw power matters, but it’s the smooth balance of torque and control that truly shapes your ride. While most E-MTBs must compromise their suspension designs around off-the-shelf motors, we engineered the SyncDrive Pro 4 motor and Maestro suspension together using a custom motor housing to accommodate Maestro’s proven dual-link suspension kinematics. The Synchronized Power Matrix senses the ride and adjusts the support to your tuning. When steep climbs turn loose, Traction Control detects rear wheel slip and refines the assist, so power finds grip and you stay in control. A mixed-wheel setup—29-inch front for smooth roll-over, 27.5-inch rear for added agility—and 3-position flip-chip geometry let you dial in handling to your riding style and terrain.

ALWAYS-ON POWER

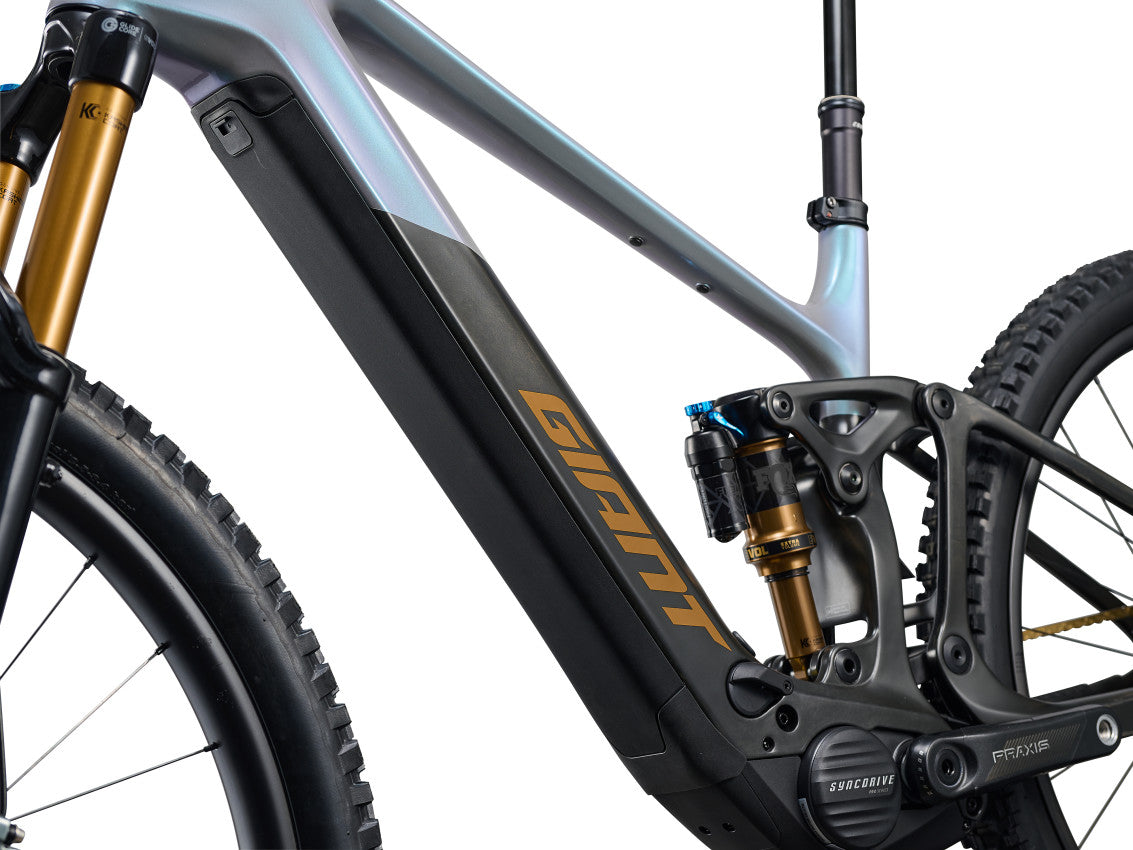

The new 48V SyncDrive Pro 4 motor delivers lightning-fast response (0.28 seconds) and 120Nm of torque from the first crank of your pedals, starting at 0 rpm. It’s designed to read force, not rotation. Best of all, it doesn’t taper at speed, delivering 850W of peak power across the full cadence range. Weighing just 21.9kg with a new 840Wh battery, the new Trance Advanced E+ 0 handles like a lighter bike and holds power where others fade.

FULL-POWER CONFIDENCE

More power and torque lead to more stress on everything. The new Trance Advanced E+ is built to handle the forces of full-power E-MTB riding with engineered durability across the board. The new TRX and TRA HD WheelSystems feature high-torque titanium ratchet hubs that are 20% stronger than the previous generation and 25% stronger in fatigue testing than leading competitors. A new high-torque KMC chain delivers 35% stronger pin strength versus leading benchmark 12-speed chains. The EnergyPak 840 battery has a 2,300-cycle lifespan. And it’s all backed by Giant’s global retailer and service network.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

S

162 cm 174 cm
M

168 cm 184 cm
L

178 cm 192 cm
XL

184 cm 200 cm

Name	S	M	L	XL
A Seat Tube Length (mm) (inch)	400	15.7	425	16.7	450	17.7	475	18.7
A1 Seat Post Insertion Depth (mm) (inch)	245	9.6	270	10.6	295	11.6	310	12.2
B Seat Tube Angle (degrees)	76.6° \| 77.0° \| 77.4°	76.6° \| 77.0° \| 77.4°	76.6° \| 77.0° \| 77.4°	76.6° \| 77.0° \| 77.4°
C Top Tube Length (mm) (inch)	568 \| 567 \| 566	22.4 \| 22.3 \| 22.3	605 \| 604 \| 603	23.8 \| 23.8 \| 23.7	630 \| 629 \| 628	24.8 \| 24.8 \| 24.7	662 \| 661 \| 660	26.1 \| 26 \| 26
D Head Tube Length (mm) (inch)	110	4.3	120	4.7	130	5.1	140	5.5
E Head Tube Angle (degrees)	64.1° \| 64.5° \| 64.9°	64.1° \| 64.5° \| 64.9°	64.1° \| 64.5° \| 64.9°	64.1° \| 64.5° \| 64.9°
F Fork Rake (mm) (inch)	44	1.7	44	1.7	44	1.7	44	1.7
G Trail (mm) (inch)	135.9	5.3	135.9	5.3	135.9	5.3	135.9	5.3
H Wheelbase (mm) (inch)	1200 \| 1199 \| 1197	47.2 \| 47.2 \| 47.1	1239 \| 1237 \| 1236	48.8 \| 48.7 \| 48.7	1267 \| 1265 \| 1264	49.9 \| 49.8 \| 49.8	1300 \| 1299 \| 1298	51.2 \| 51.1 \| 51.1
I Chain Stay Length (mm) (inch)	443 \| 443 \| 443	17.4 \| 17.4 \| 17.4	443 \| 443 \| 443	17.4 \| 17.4 \| 17.4	443 \| 443 \| 443	17.4 \| 17.4 \| 17.4	443 \| 443 \| 443	17.4 \| 17.4 \| 17.4
J Bottom Bracket Drop (mm) (inch)	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3
K Stack (mm) (inch)	634 \| 631 \| 629	25 \| 24.8 \| 24.8	643 \| 640 \| 638	25.3 \| 25.2 \| 25.1	652 \| 649 \| 647	25.7 \| 25.6 \| 25.5	661 \| 659 \| 658	26 \| 25.9 \| 25.9
L Reach (mm) (inch)	422 \| 425 \| 428	16.6 \| 16.7 \| 16.9	457 \| 460 \| 463	18 \| 18.1 \| 18.2	477 \| 480 \| 484	18.8 \| 18.9 \| 19.1	504 \| 510 \| 513	19.8 \| 20.1 \| 20.2
O Stem Length (mm) (inch)	40	1.6	40	1.6	40	1.6	40	1.6
P Crank Length (mm) (inch)	155	6.1	155	6.1	155	6.1	155	6.1
Q Wheel Size	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]

Specifications

Motor Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power

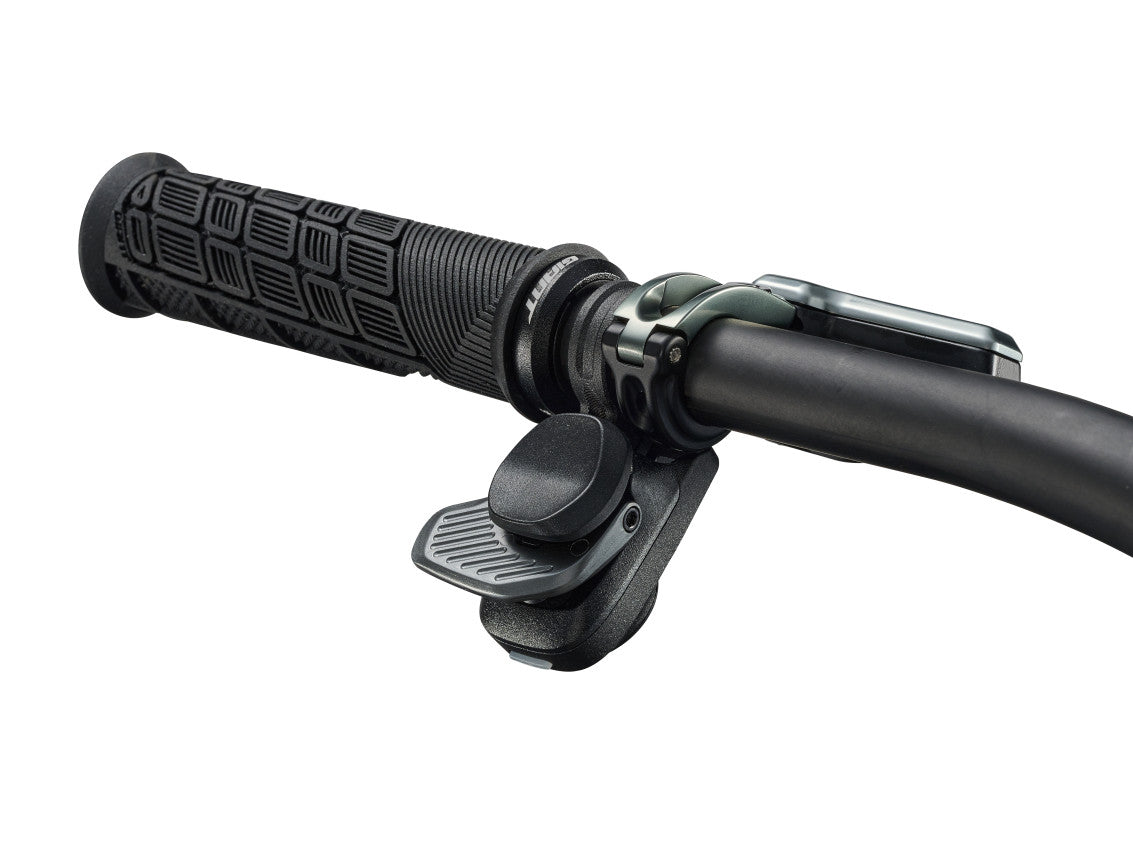

Controller Giant RideControl Ergo 5 wireless Integrated E+ System & seatpost remote

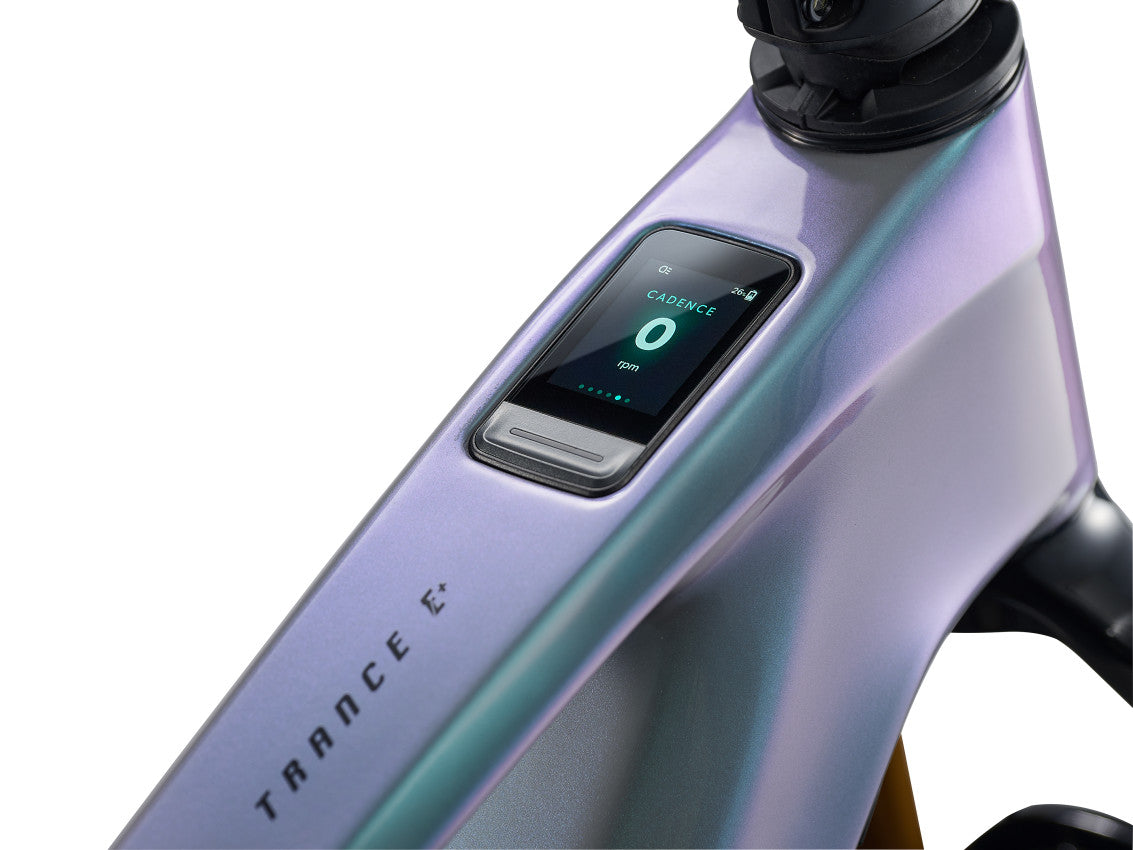

Display RideControl GO LUX, frame integrated LED display ANT+

Battery EnergyPak Smart 840Wh EnergyPak Plus 280 range extender compatible

Charger 48V 4A Smart Charger X

Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed

Sizes S, M, L, XL

Colours Prismatic Haze

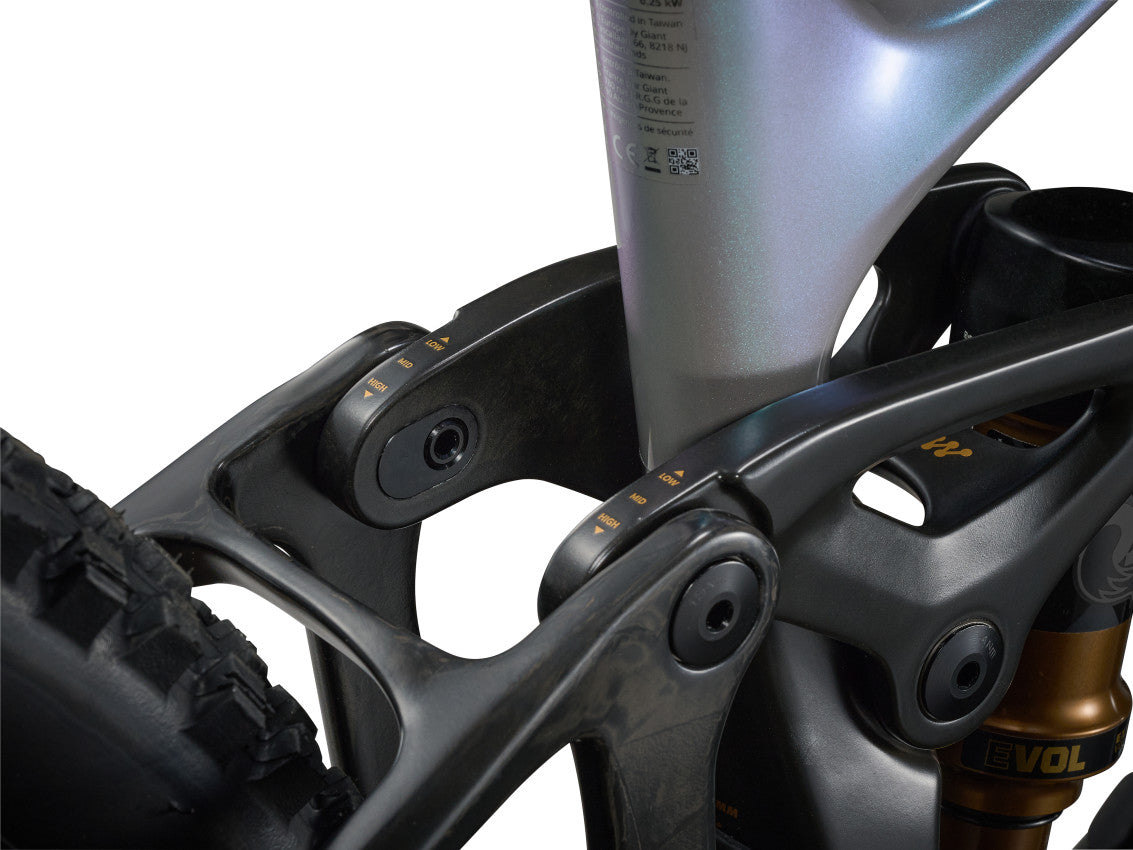

Frame Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle

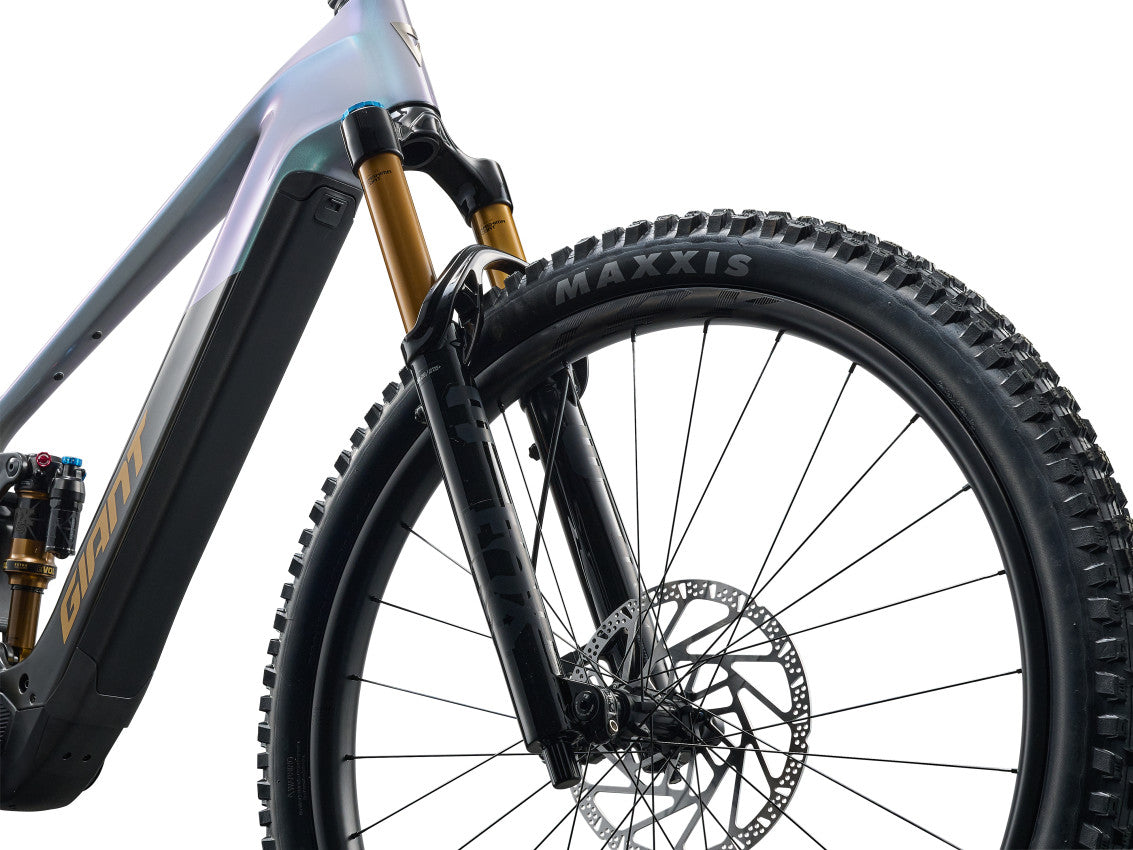

Fork Fox 36 Factory, 160mm travel, 44mm offset, GRIP X damper, Kabolt-X 15x110mm thru-axle

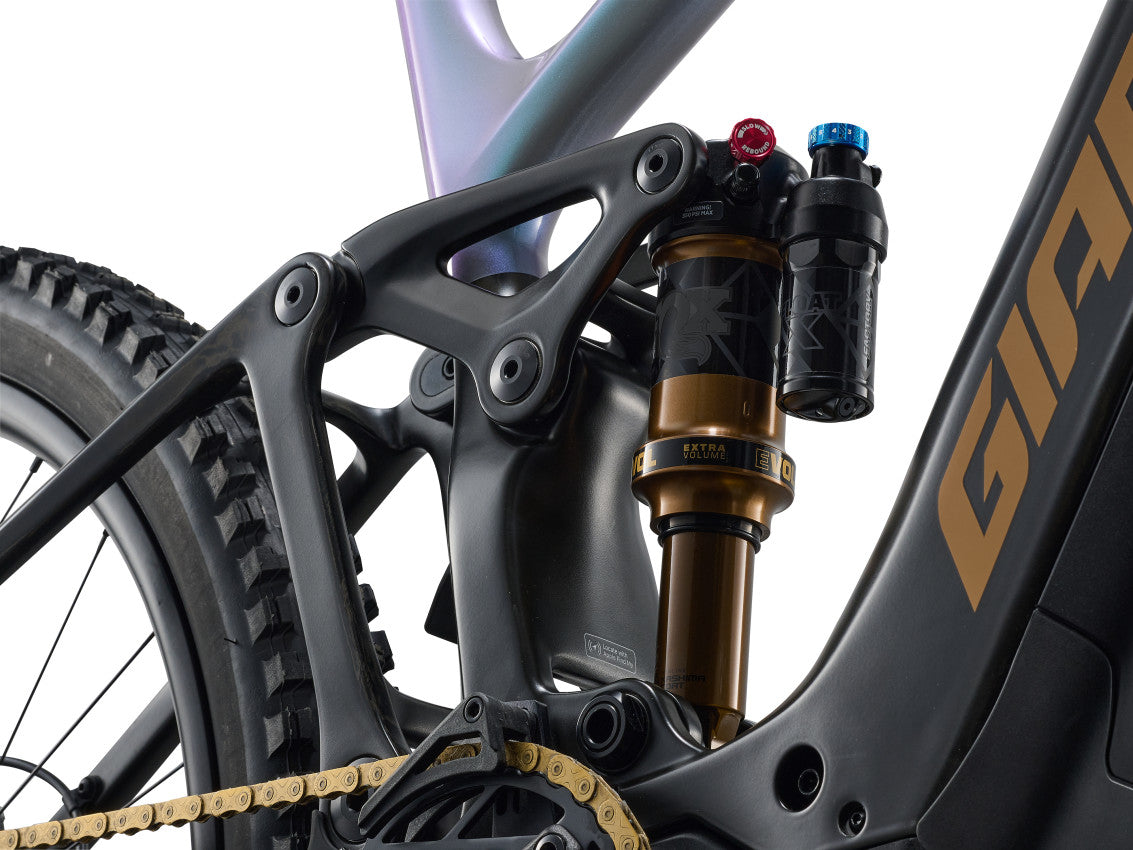

Shock Fox Float X Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned

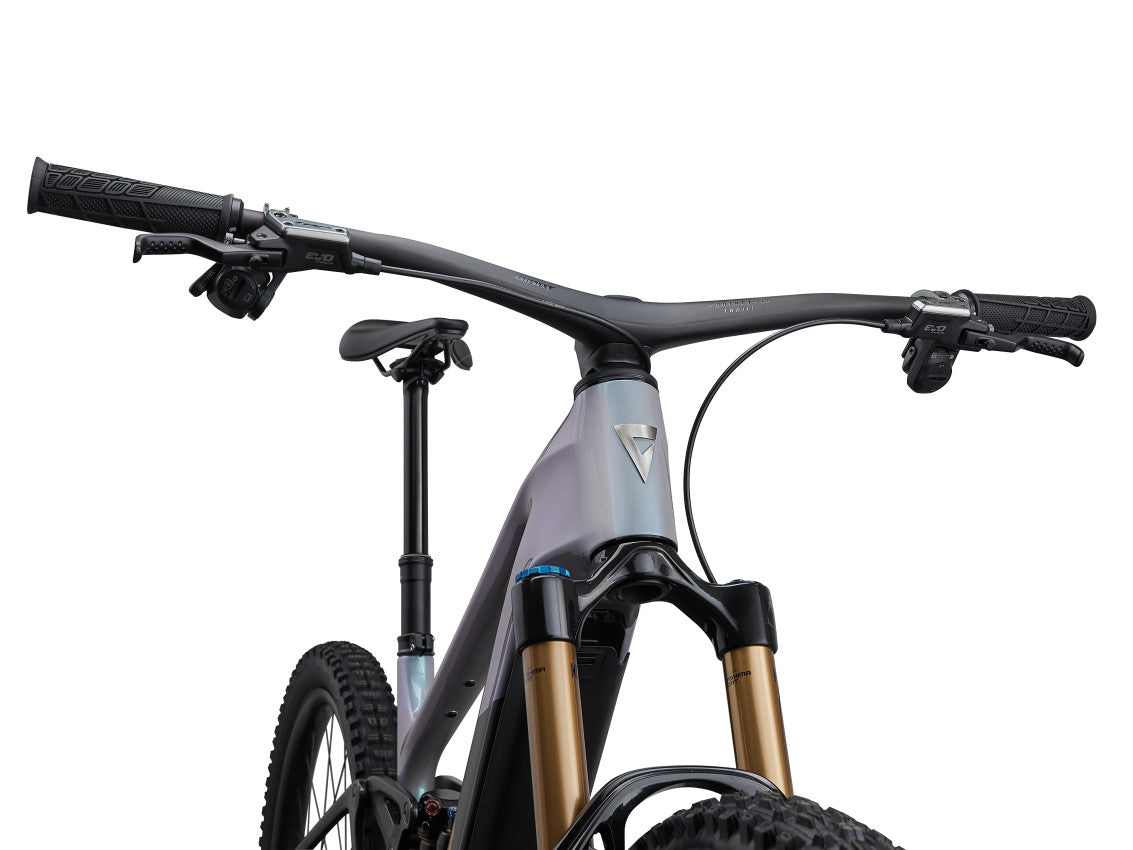

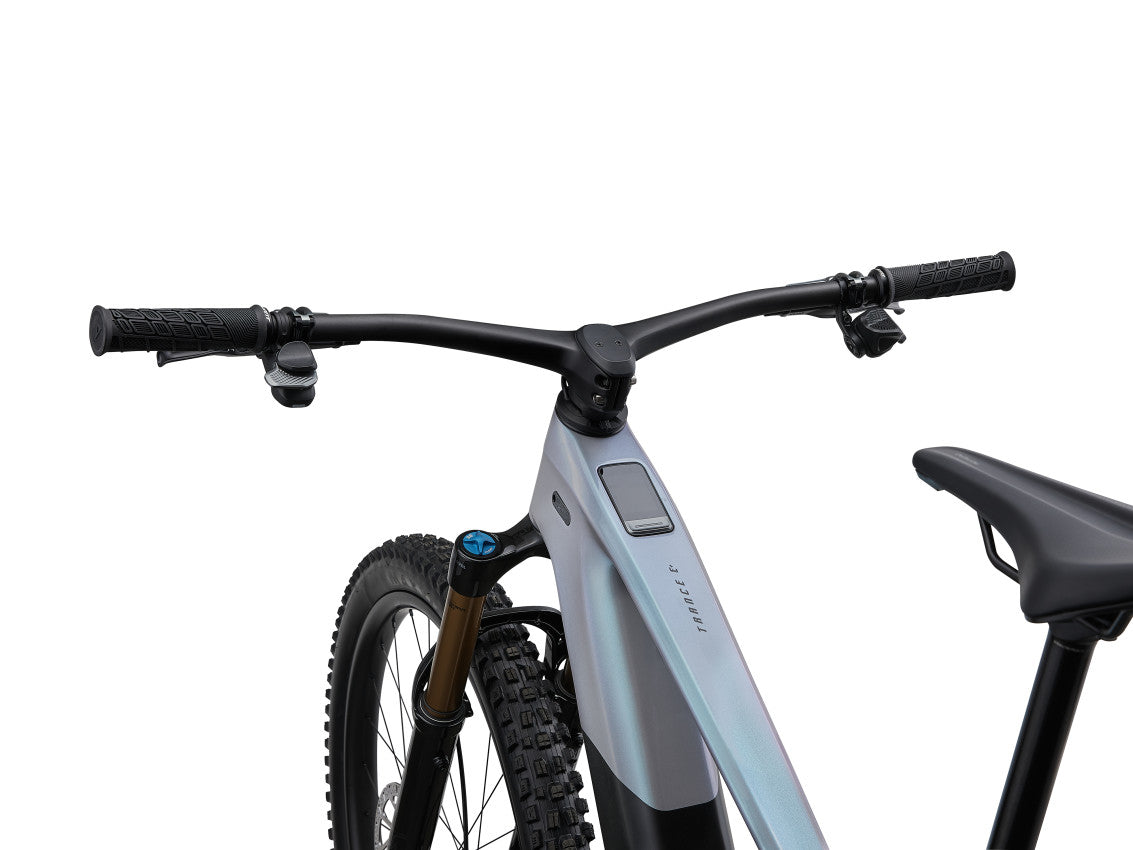

Handlebar Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 20mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System

Grips Giant Tactal Pro Single lock-on

Stem Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 20mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System

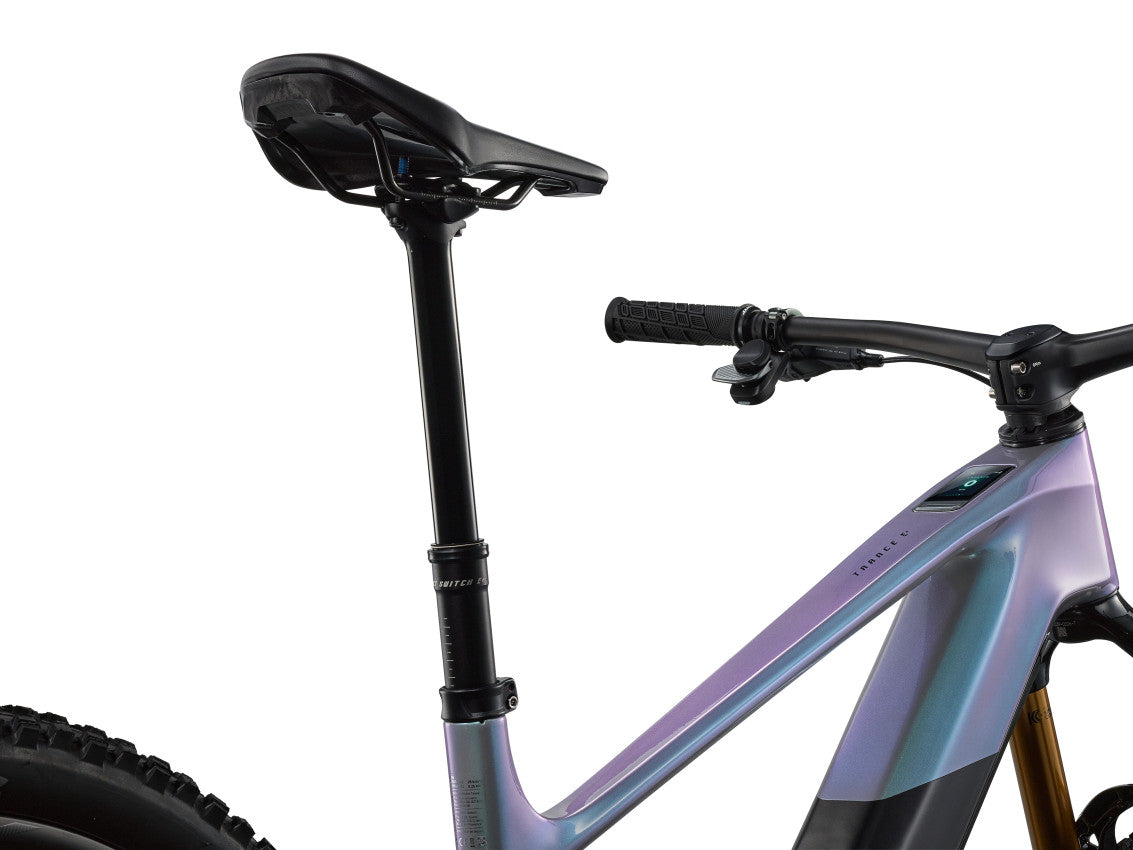

Seatpost Giant Contact Switch E, electronic travel-adjust dropper post S: 140mm travel / 30.9 x 457mm M:170mm travel / 30.9 x 514mm L: 170mm travel / 30.9 x 514mm XL: 200mm travel / 30.9 x 574mm

Saddle Giant Romero SL HD

Pedals N/A

Shifters SRAM AXS Pod, Rocker Paddle, 1x12

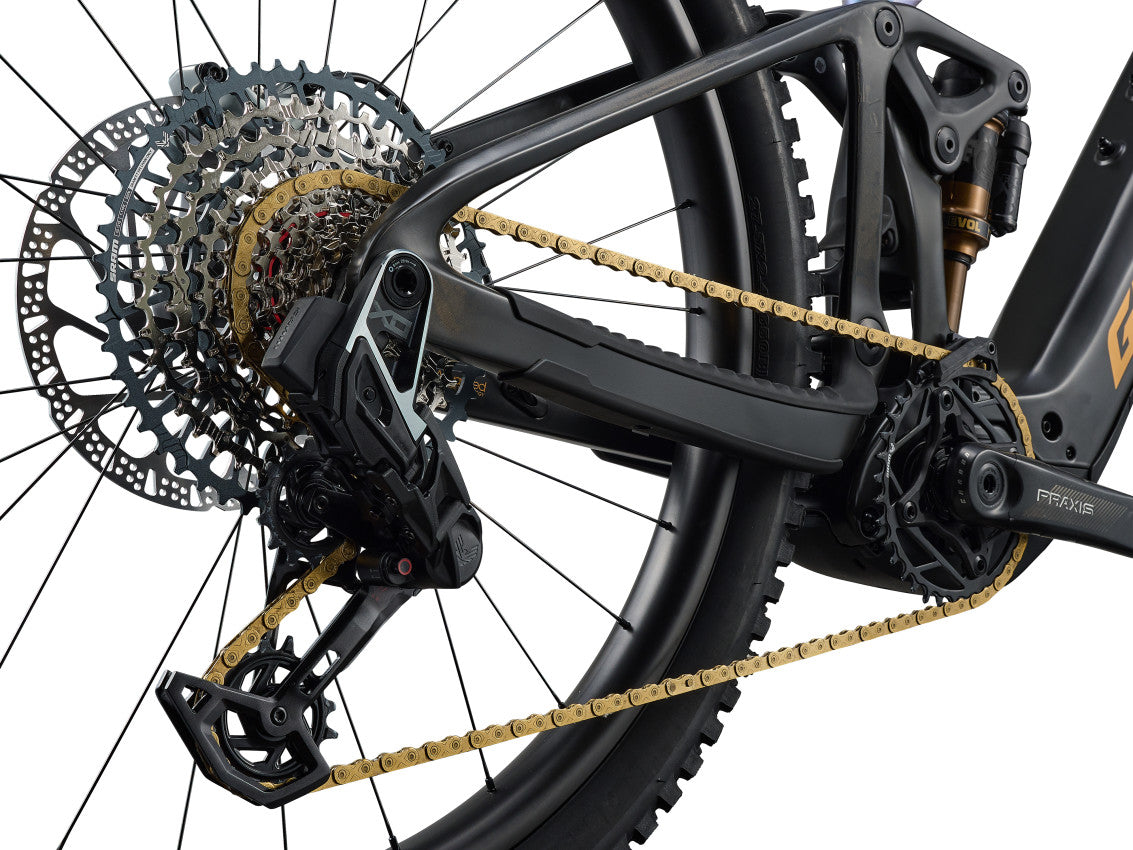

Rear derailleur SRAM X0 Eagle Transmission AXS

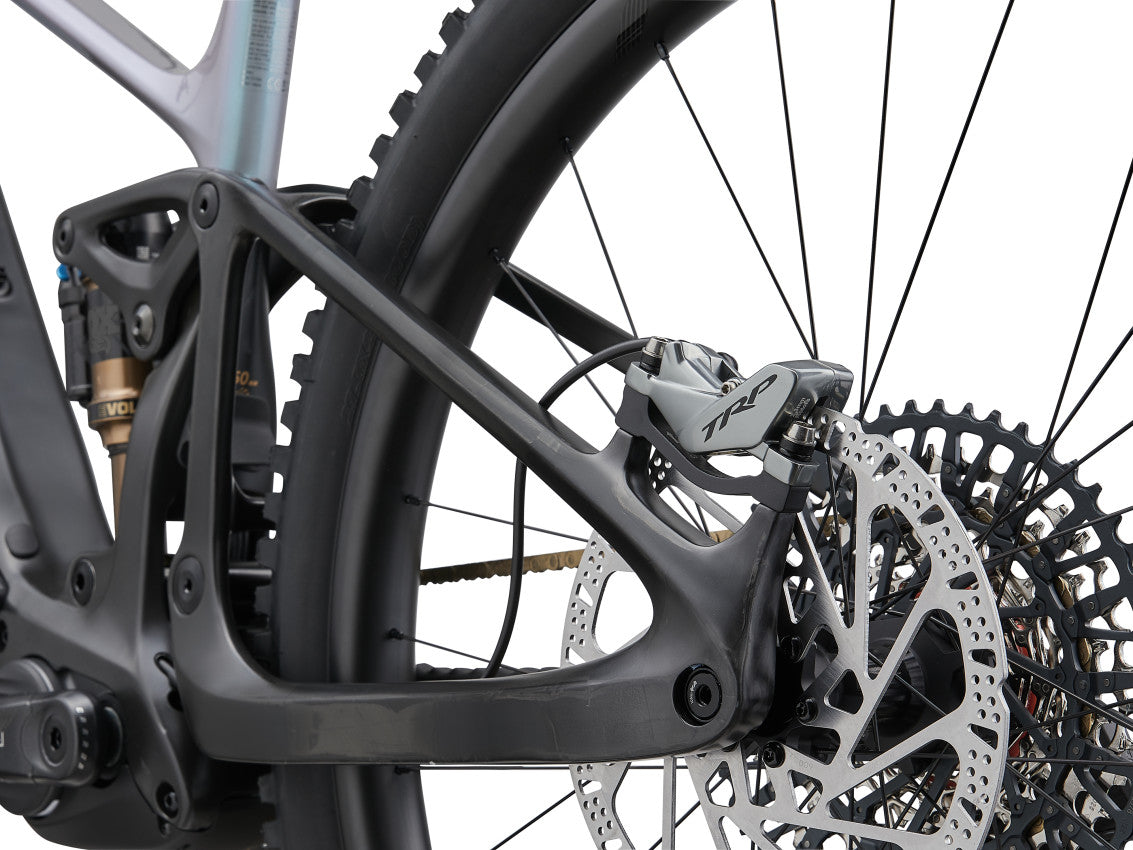

Brakes TRP EVO Pro, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm

Brake levers TRP EVO Pro

Cassette SRAM GX XS-1275 Eagle Tranmission 10-52T

Chain KMC eFlatHT

Crankset Praxis Performance Carbon e-crank arms SRAM Eagle Transmission steel direct mount, 36T chain ring S:155mm, M: 155mm, L:155mm, XL:155mm

Bottom bracket N/A

Rims Giant TRX Hookless Tubeless ready Carbon 29" [F] 27.5" [R] 30mm inner width

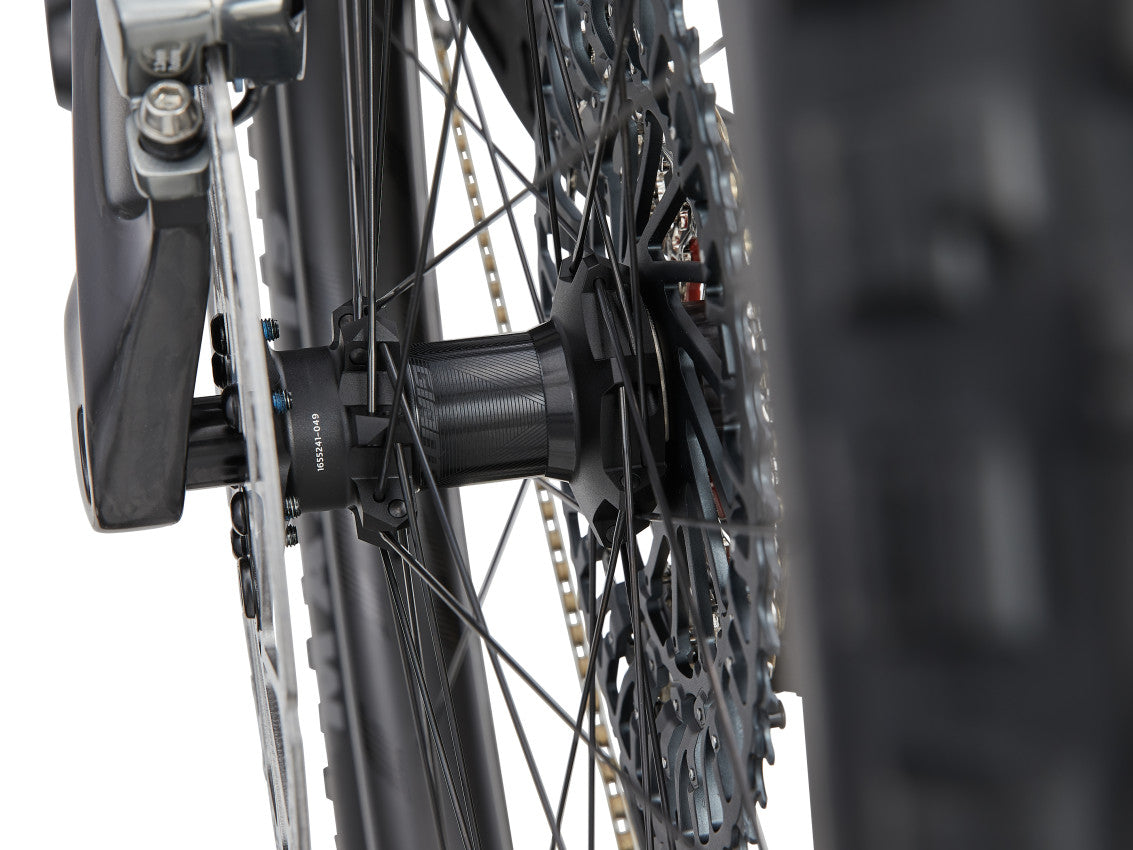

Hubs [F] Giant E-TRX MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRX MTB Alloy Hub, SRAM XD Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H

Spokes Sapim Laser, e-bike optimised

Tyres Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C Maxx Grip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, EXO+ 3C Maxx Terra [R]

Extras Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool)

Fender/chainguard Co-moulded guide 32-36T adjustable

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
