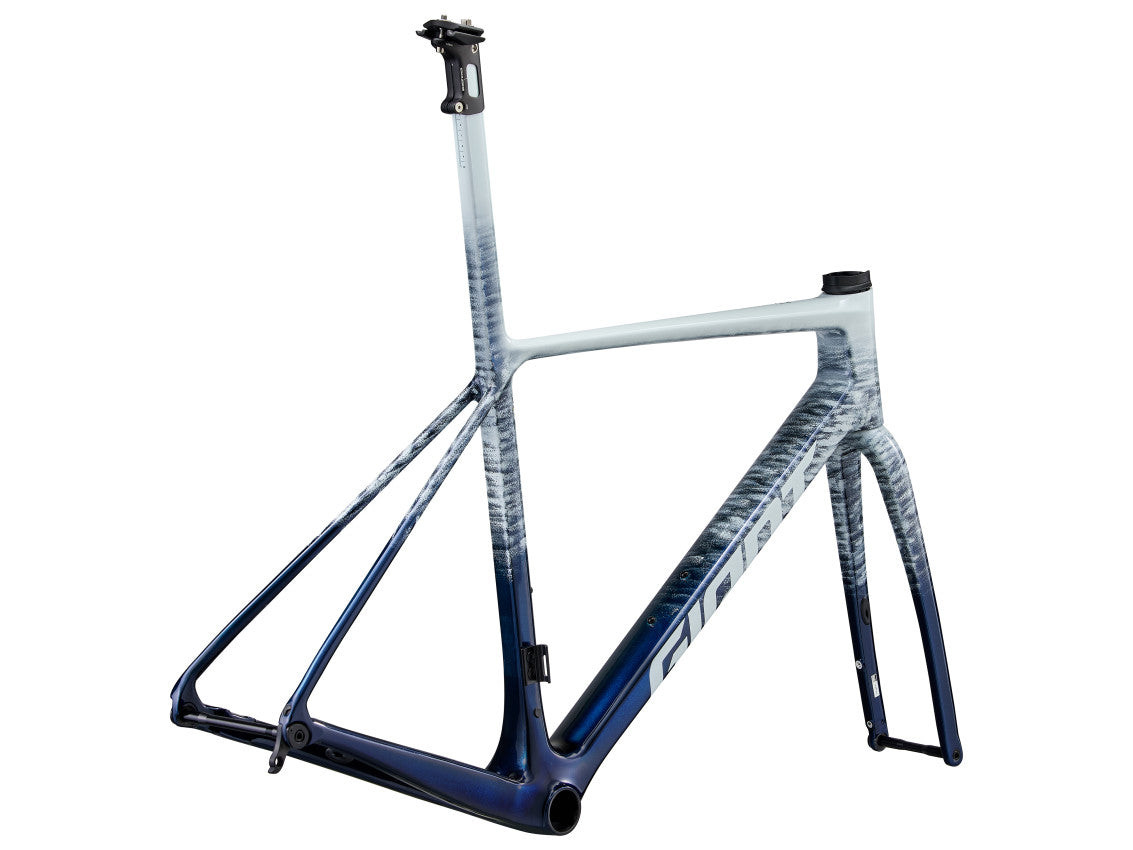

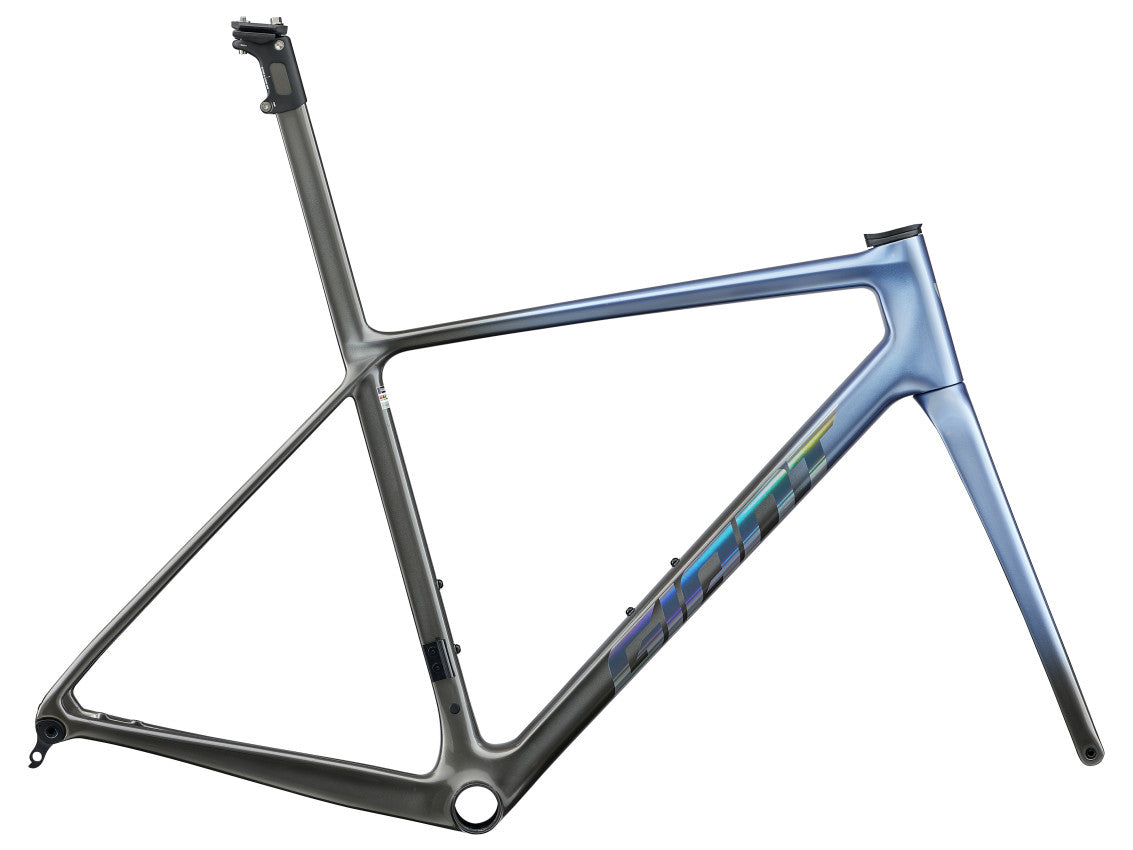

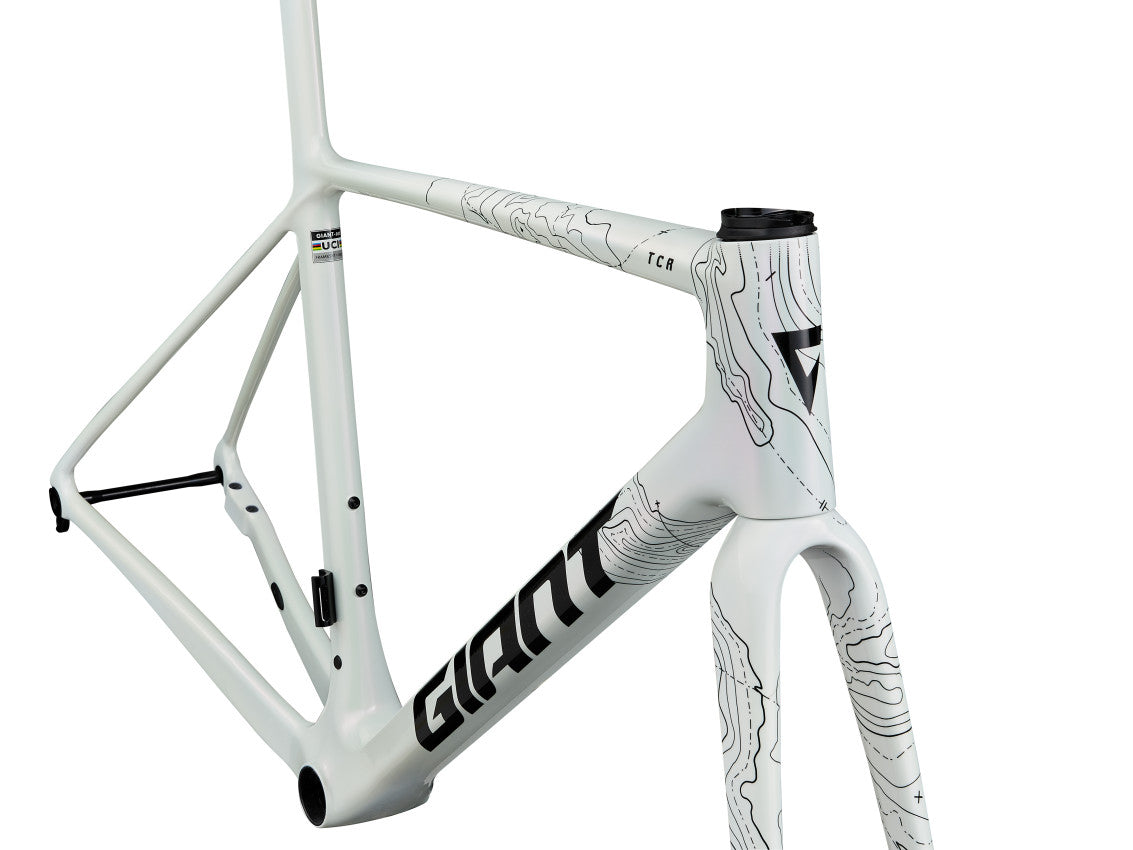

TCR Advanced SL-FF
Techs & Features
SYSTEM OPTIMISATION
The frame, fork and integrated seatpost are engineered, developed and tested to perform as a system. The fork features a D-shaped steerer tube with corresponding spacers that, in addition to improving aerodynamics, also allows the cables to be internally routed through the handlebars, stem and frame/fork for a cleaner profile. And the signature ISP saves 40g while also adding road smoothing compliance and further improving its aero performance.
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

Code | Name | S | M | ML | L | XL |
---|---|---|---|---|---|---|
A | Seat Tube Length (mm) (inch) | 710 | 740 | 770 | 800 | 830 |
B | Seat Tube Angle (degrees) | |||||
C | Top Tube Length (mm) (inch) | 535 | 550 | 565 | 580 | 600 |
D | Head Tube Length (mm) (inch) | 130 | 145 | 165 | 185 | 200 |
E | Head Tube Angle (degrees) | |||||
F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 |
G | Trail (mm) (inch) | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
H | Wheelbase (mm) (inch) | 977 | 980 | 991 | 1006 | 1020 |
I | Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 | 405 |
J | Bottom Bracket Drop (mm) (inch) | 70 | 70 | 67 | 67 | 67 |
K | Stack (mm) (inch) | 528 | 545 | 562 | 581 | 596 |
L | Reach (mm) (inch) | 383 | 388 | 393 | 402 | 412 |
M | Stand Over Height (mm) (inch) | 734 | 752 | 768 | 786 | 803 |
O | Stem Length (mm) (inch) | 90 | 100 | 110 | 110 | 120 |
P | Crank Length (mm) (inch) | 165 | 170 | 170 | 172.5 | 172.5 |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
