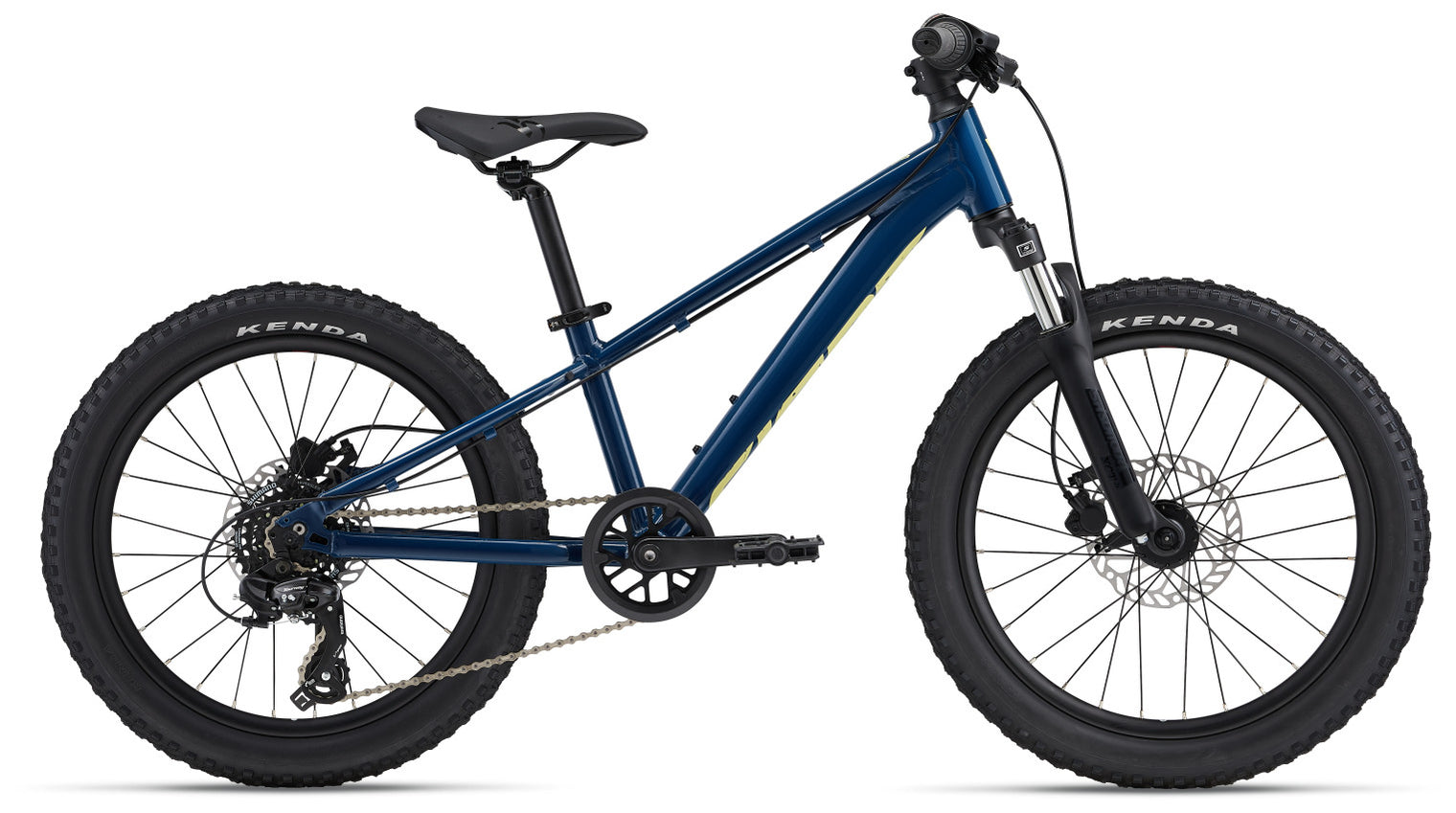

Giant STP 20 Blue Palace

$799.00

From the driveway to the bike park, STP 20 helps young riders make the transition from wobbly laps around the block to having fun on trails and off-road terrain.

5 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Dirt or street

Lightweight, strong and durable aluminium frameset is designed to go from street riding to bike parks or trails.

Kid-friendly design

Frame geometry is designed specifically for young riders with 20-inch wheels, a low standover height and taller front end for a stable ride quality.

Maximum control

Powerful disc brakes and suspension fork puts maximum control in the rider’s hands.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • One Size
    115 cm 130 cm
Bike Geometry Diagram
Code Name One Size
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 450
D Head Tube Length (mm) (inch) 105
E Head Tube Angle (degrees)
H Wheelbase (mm) (inch) 887
I Chain Stay Length (mm) (inch) 365
K Stack (mm) (inch) 448
L Reach (mm) (inch) 313
M Stand Over Height (mm) (inch) 545
P Crank Length (mm) (inch) 127

Specifications

Sizes One size
Colours Blue Palace
Frame ALUXX-Grade aluminium
Fork SR XCT L20, coil, 60mm
Shock N/A
Handlebar Giant Sport, alloy, 31.8mm
Grips Giant Junior
Stem Forged alloy, 0-degree
Seatpost Alloy, 27.2
Saddle STP JR
Pedals Platform
Shifters microSHIFT Twist, 1x7
Front derailleur N/A
Rear derailleur Shimano Tourney TY300
Brakes Tektro HD-J285, hydraulic [F]160mm, [R]160mm rotors
Brake levers Tektro HD-J285
Cassette Shimano CS-HG200, 12x32
Chain KMC Z7
Crankset Alloy forged, 30t, 127mm
Bottom bracket Cartridge
Rims Giant 20", alloy, 28mm inner width
Hubs Giant Disc, 28h, QR, alloy, disc
Spokes Stainless, 14g
Tires Kenda Karma, 20x2.2"
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
