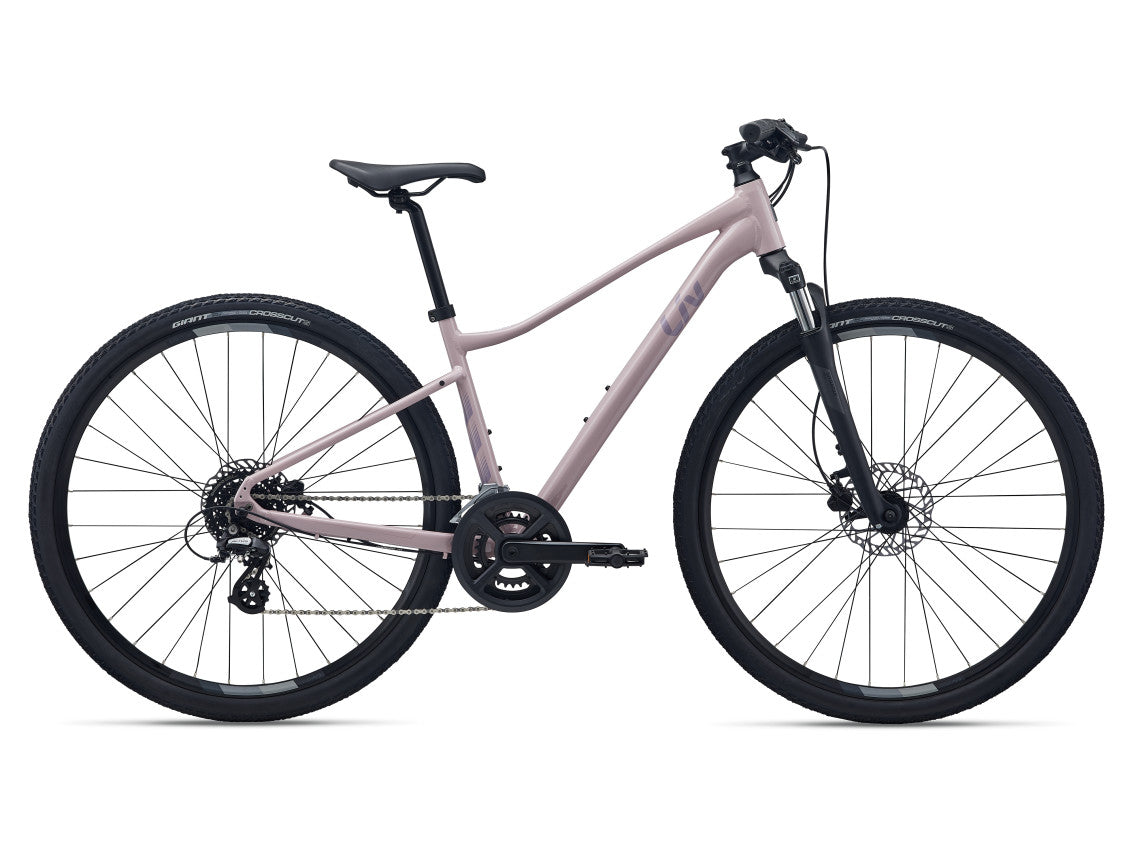

Rove 4
Techs & Features
Trail Tamer
Equipped with a suspension fork, the Rove provides extra comfort and control, ready to tackle gravel and trails the moment you venture off the beaten path.
Confident Cruiser
Thanks to responsive, reliable disc brakes, you'll always have speed management at your fingertips, rain or shine.
Practical Partner
With integrated mounts for a rear cargo rack and a low standover height for easy mounting and dismounting, the Rove turns bike errands into a hassle-free experience.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

Code | Name | XS | S | M |
---|---|---|---|---|
A | Seat Tube Length (mm) (inch) | 380 | 420 | 460 |
B | Seat Tube Angle (degrees) | |||
C | Top Tube Length (mm) (inch) | 550 | 570 | 590 |
D | Head Tube Length (mm) (inch) | 110 | 120 | 135 |
E | Head Tube Angle (degrees) | |||
F | Fork Rake (mm) (inch) | 42 | 42 | 42 |
G | Trail (mm) (inch) | 85.1 | 85.1 | 85.1 |
H | Wheelbase (mm) (inch) | 1059 | 1074 | 1089 |
I | Chain Stay Length (mm) (inch) | 450 | 450 | 450 |
J | Bottom Bracket Drop (mm) (inch) | 62 | 62 | 62 |
K | Stack (mm) (inch) | 601 | 611 | 625 |
L | Reach (mm) (inch) | 378 | 389 | 399 |
M | Stand Over Height (mm) (inch) | 679 | 691 | 708 |
O | Stem Length (mm) (inch) | 70 | 80 | 80 |
P | Crank Length (mm) (inch) | 165 | 170 | 170 |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
