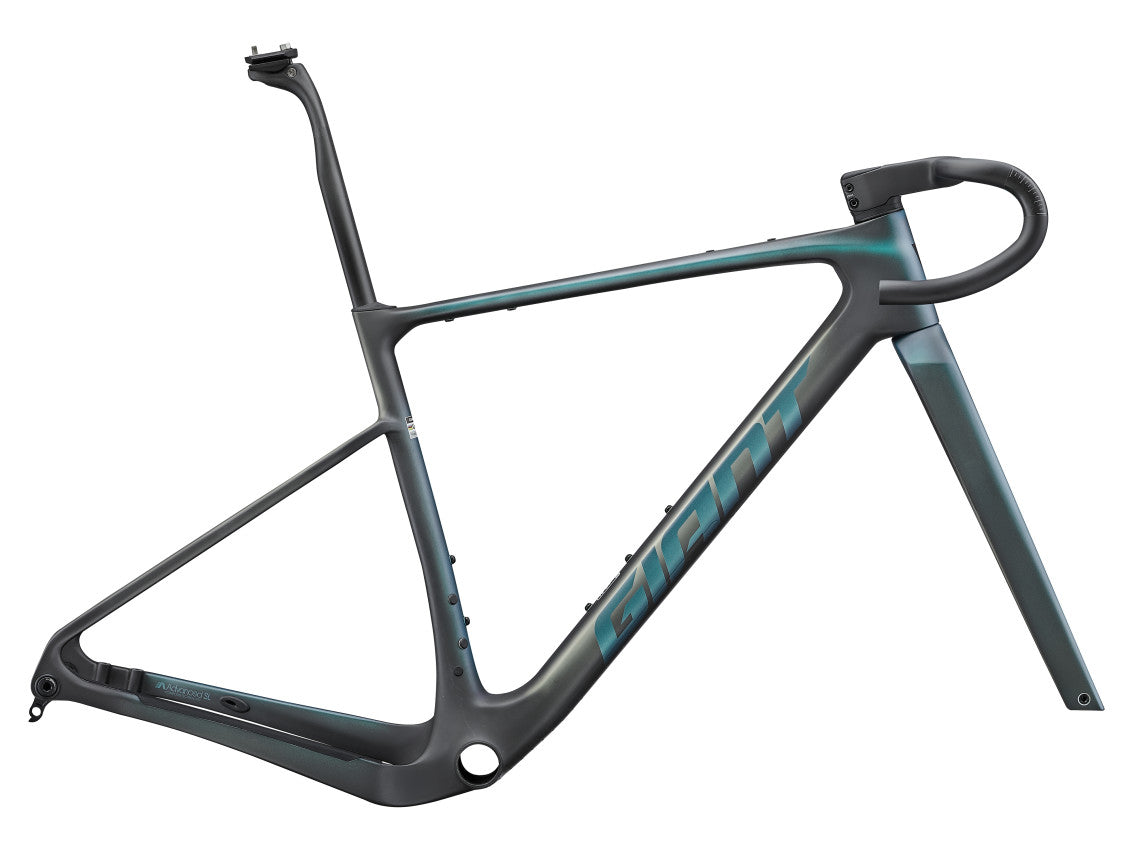

• Image 1 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal

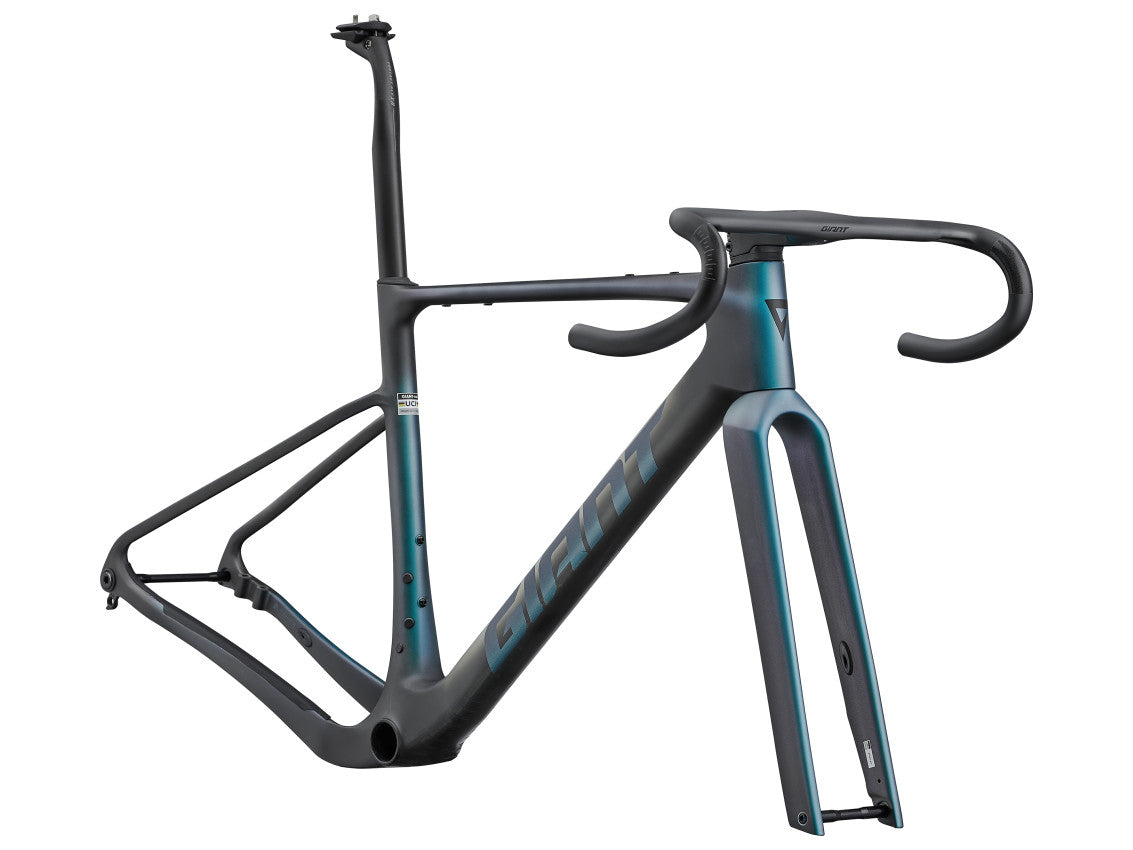

  • Image 2 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-Front

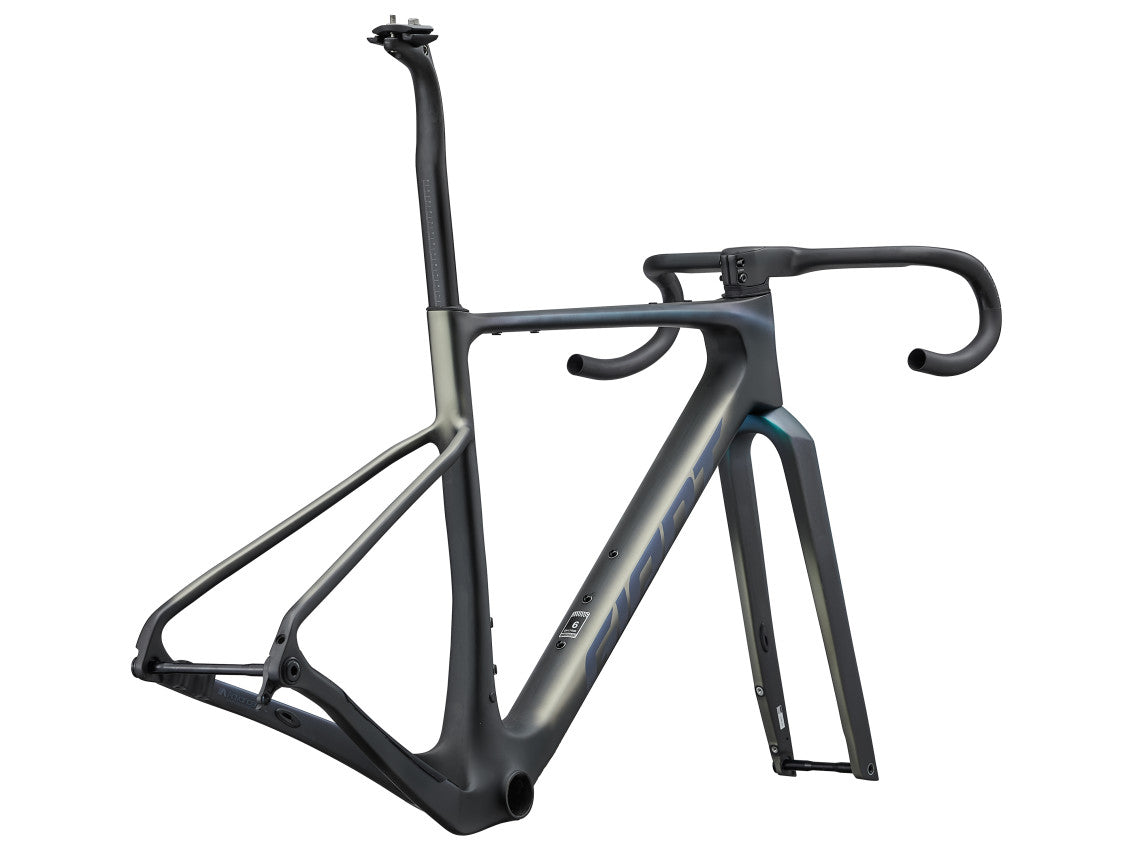

  • Image 3 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-Rear

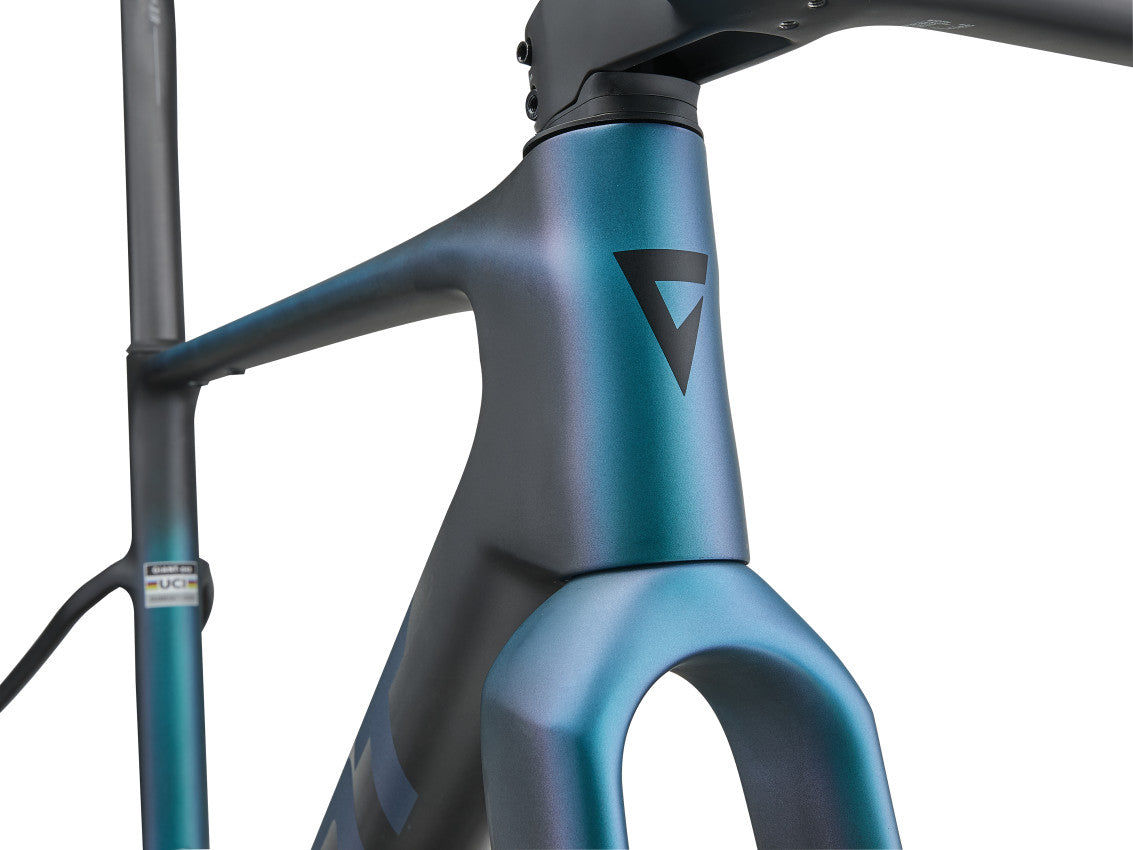

  • Image 4 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-D-3

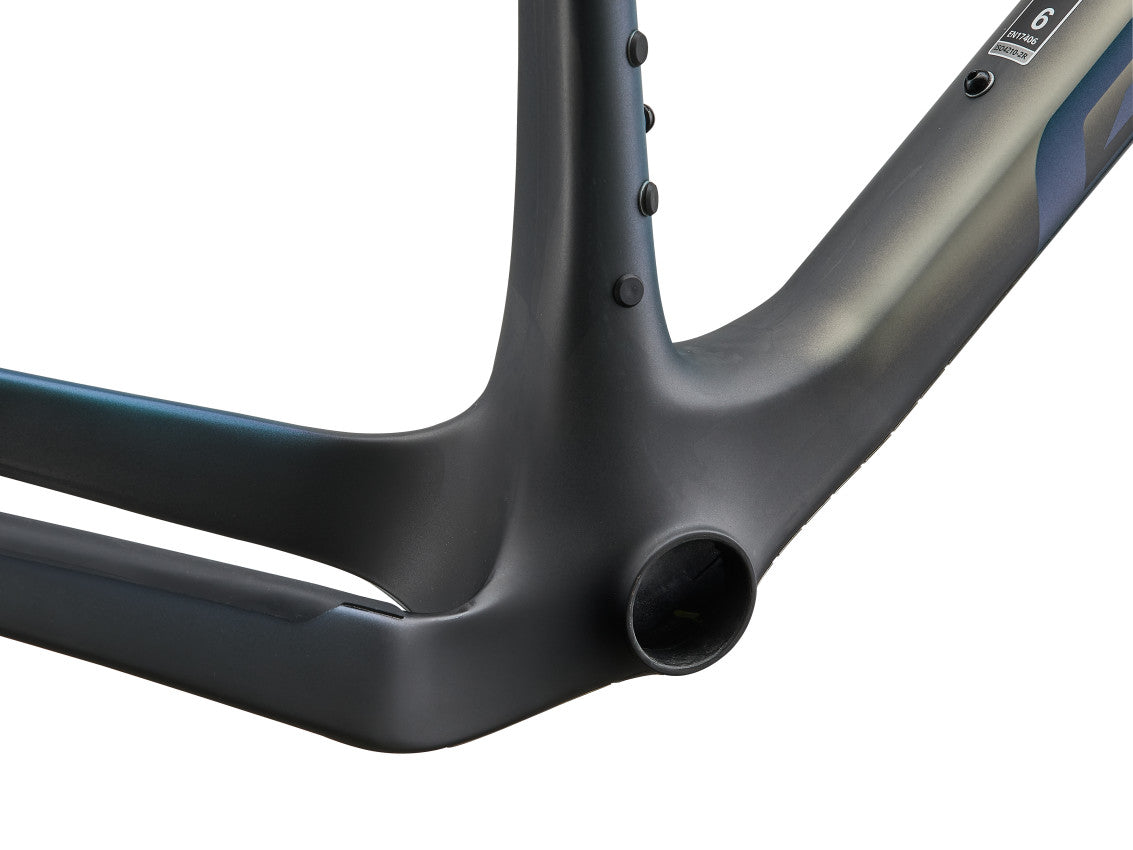

  • Image 5 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-D-4

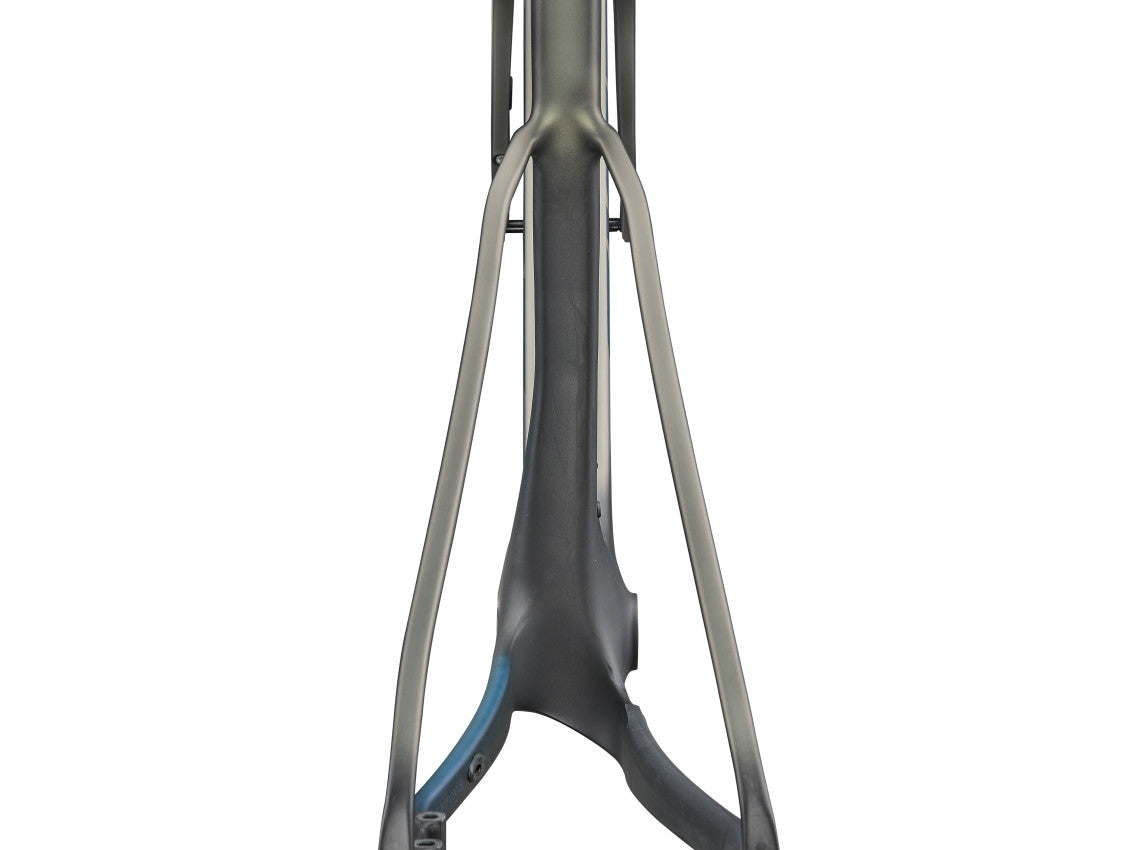

  • Image 6 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-D-2

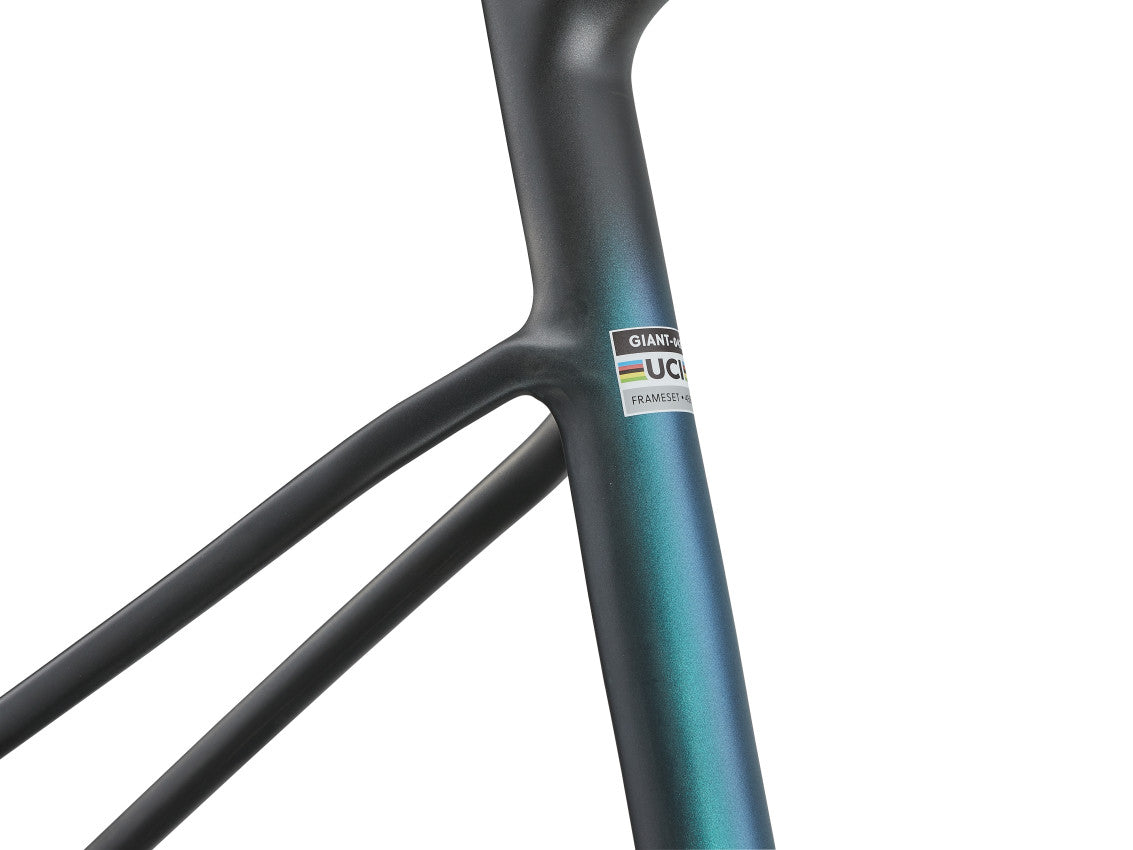

  • Image 7 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-D-1

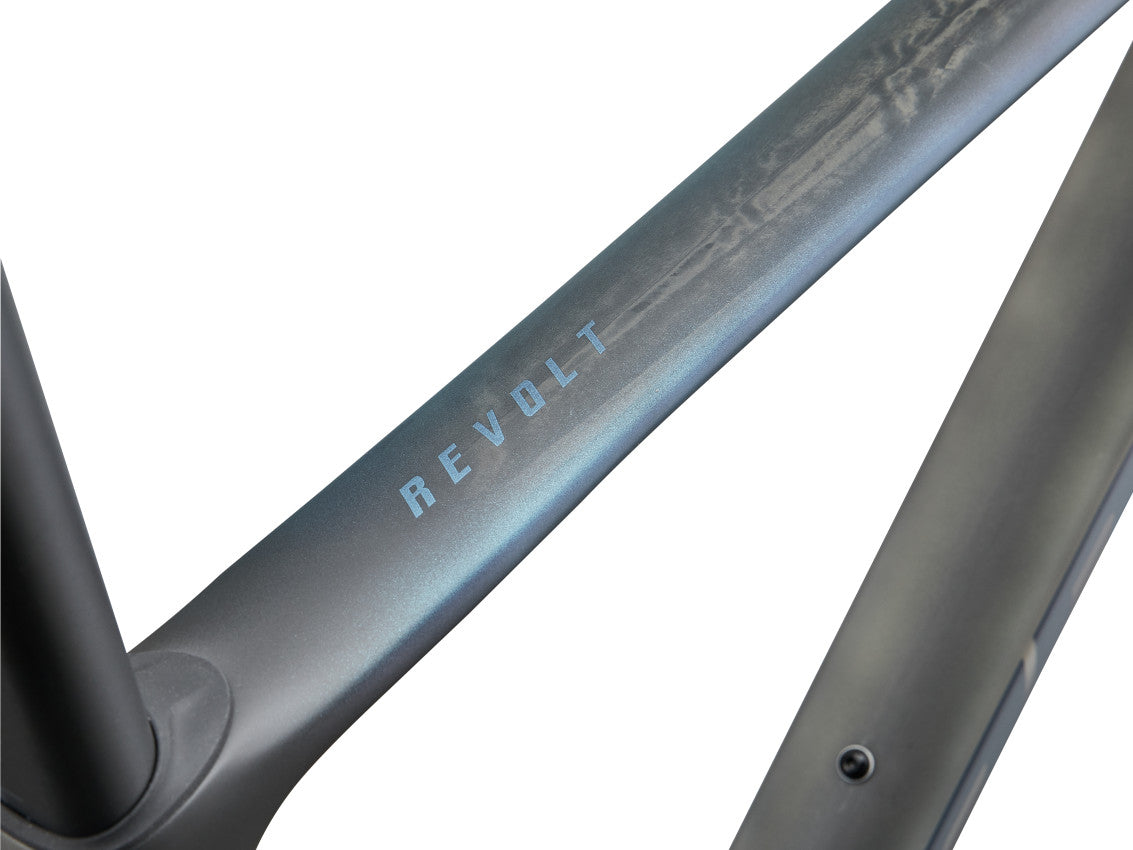

  • Image 8 of 8 - MY27RevoltAdvancedSL-FF_ColorASuperspeedTeal-D-5
1 8
Giant Logo

Revolt Advanced SL Frameset

$5,999.00
Tax included
The new Revolt Advanced SL Frameset delivers the perfect blend of aerodynamic efficiency, low weight, and precise handling. Developed for elite gravel competition, it's engineered to help you carry speed further, stay composed on rough terrain, and create a race-ready machine tailored to your exact needs.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimised for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimised for 45mm tyres with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    159 cm 171 cm
  • M
    169 cm 181 cm
  • ML
    174 cm 186 cm
  • L
    179 cm 191 cm
  • XL
    189 cm 200 cm
Bike Geometry Diagram
Code Name S M ML L XL
A Seat Tube Length (mm) (inch) 450 470 490 510 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 540 550 565 580 590
D Head Tube Length (mm) (inch) 100 120 135 155 180
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50
G Trail (mm) (inch) 74 71 67 67 67
H Wheelbase (mm) (inch) 1027 1033 1039 1055 1066
I Chain Stay Length (mm) (inch) 433 433 433 433 433
J Bottom Bracket Drop (mm) (inch) 80 80 80 80 80
K Stack (mm) (inch) 536 557 573 592 616
L Reach (mm) (inch) 391 395 401 410 413
M Stand Over Height (mm) (inch) 743 762 779 798 818
O Stem Length (mm) (inch) 80 90 100 100 110
P Crank Length (mm) (inch) 165 170 170 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C

Specifications

Sizes S, M, M/L, L, XL
Colours Superspeed Teal
Frame Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact SLR XR Integrated XS:70x38/42cm, S:80x38/42cm, M:90x40/44cm, M/L:100x40/44cm, L:100x40/44cm, XL:110x42/46cm
Stem Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seatpost Giant Contact SLR XR D-Fuse, composite, 20mm offset
Extras Computer mount, chain guide
Max tyre clearance 53mm
Max chainring size 54t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
