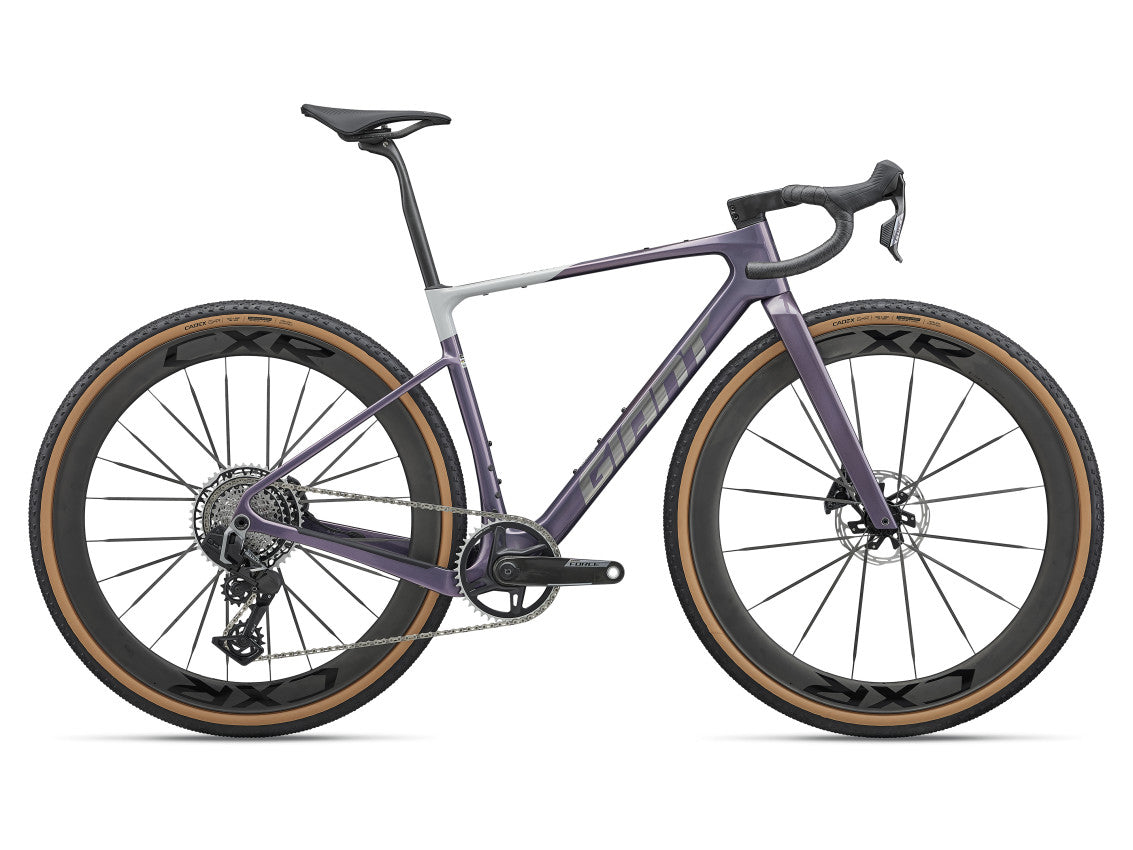

• Image 1 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple

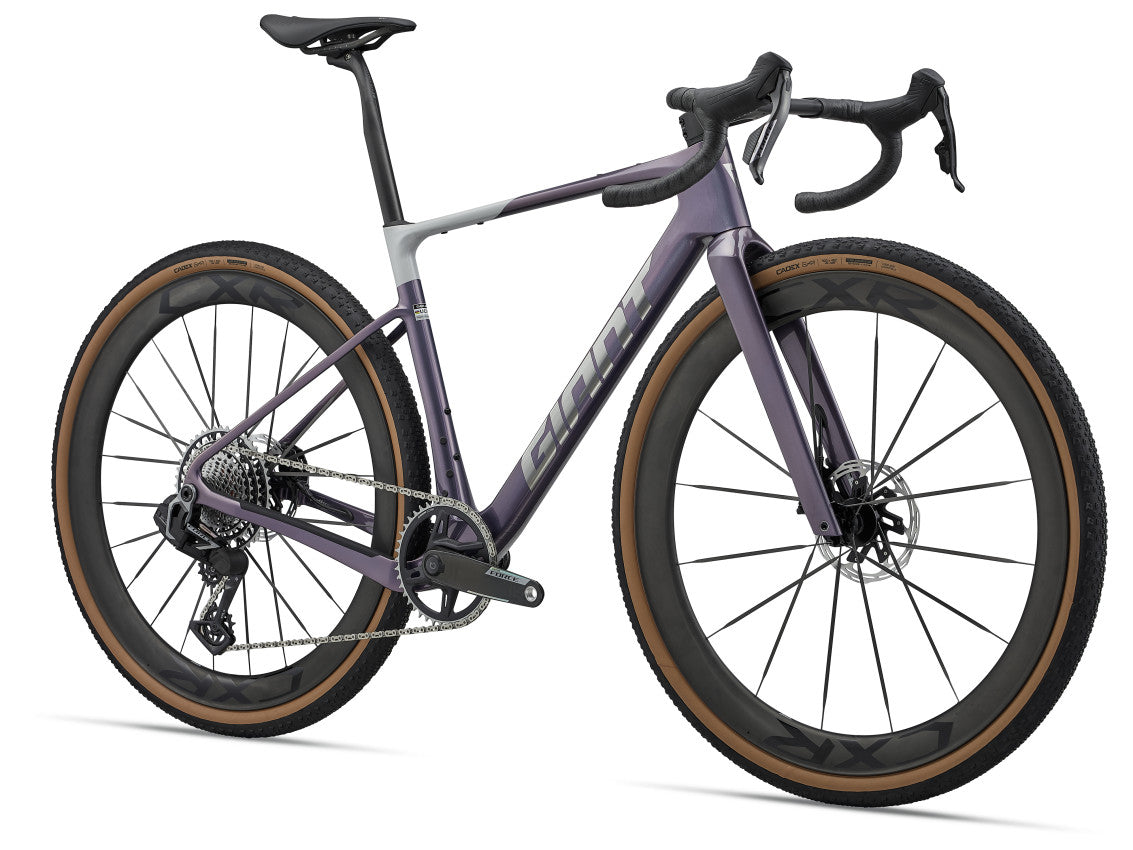

  • Image 2 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-Front

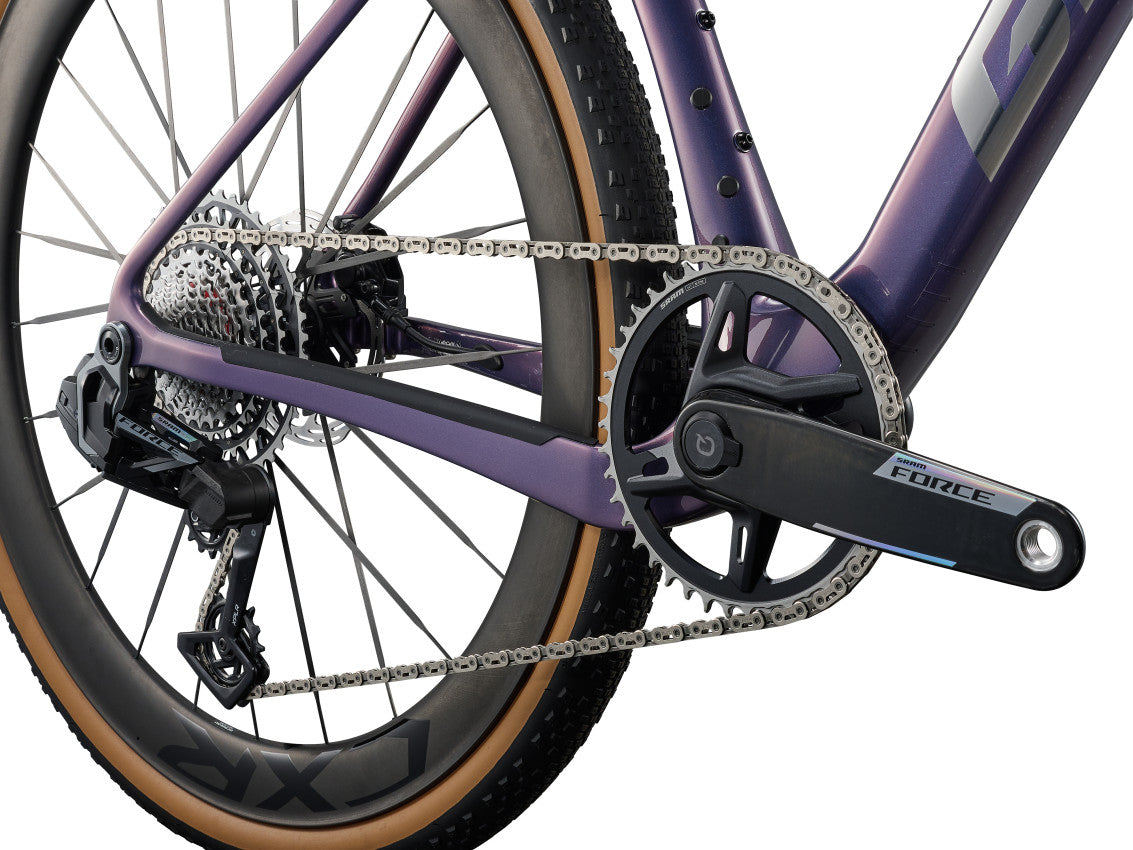

  • Image 3 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D7

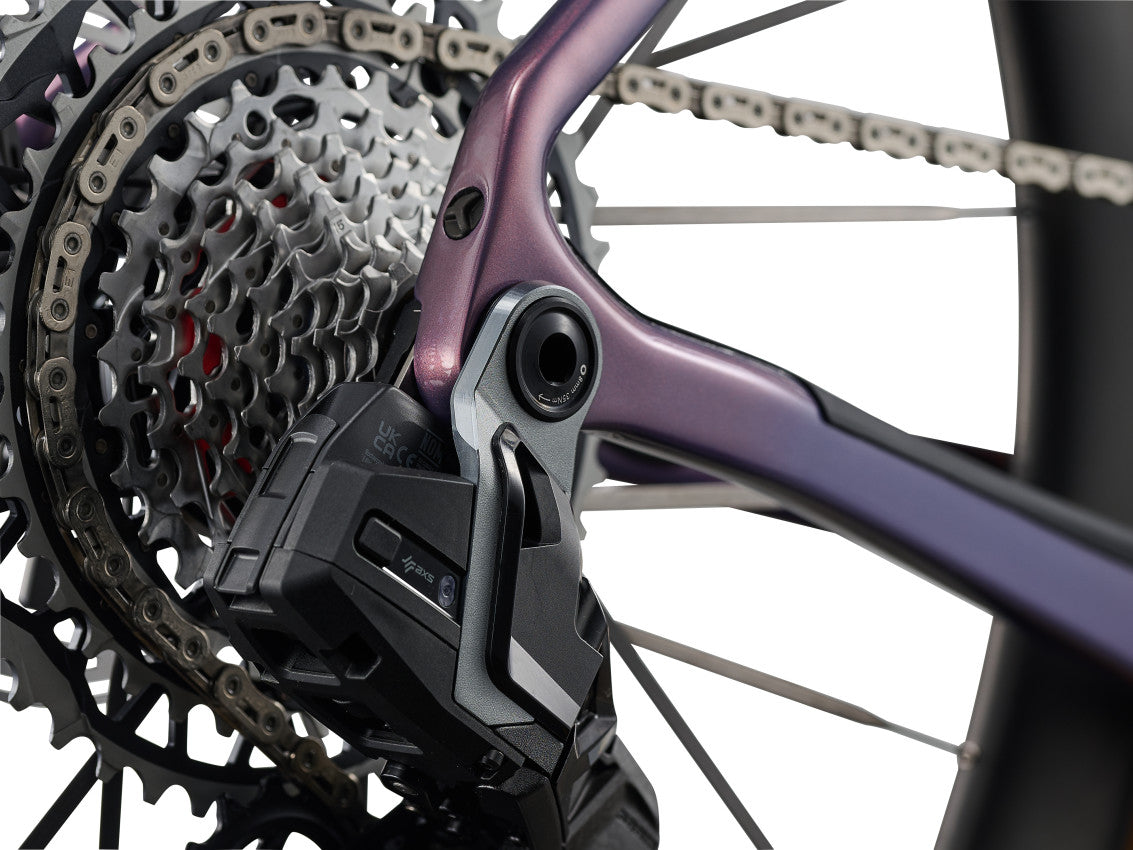

  • Image 4 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D8

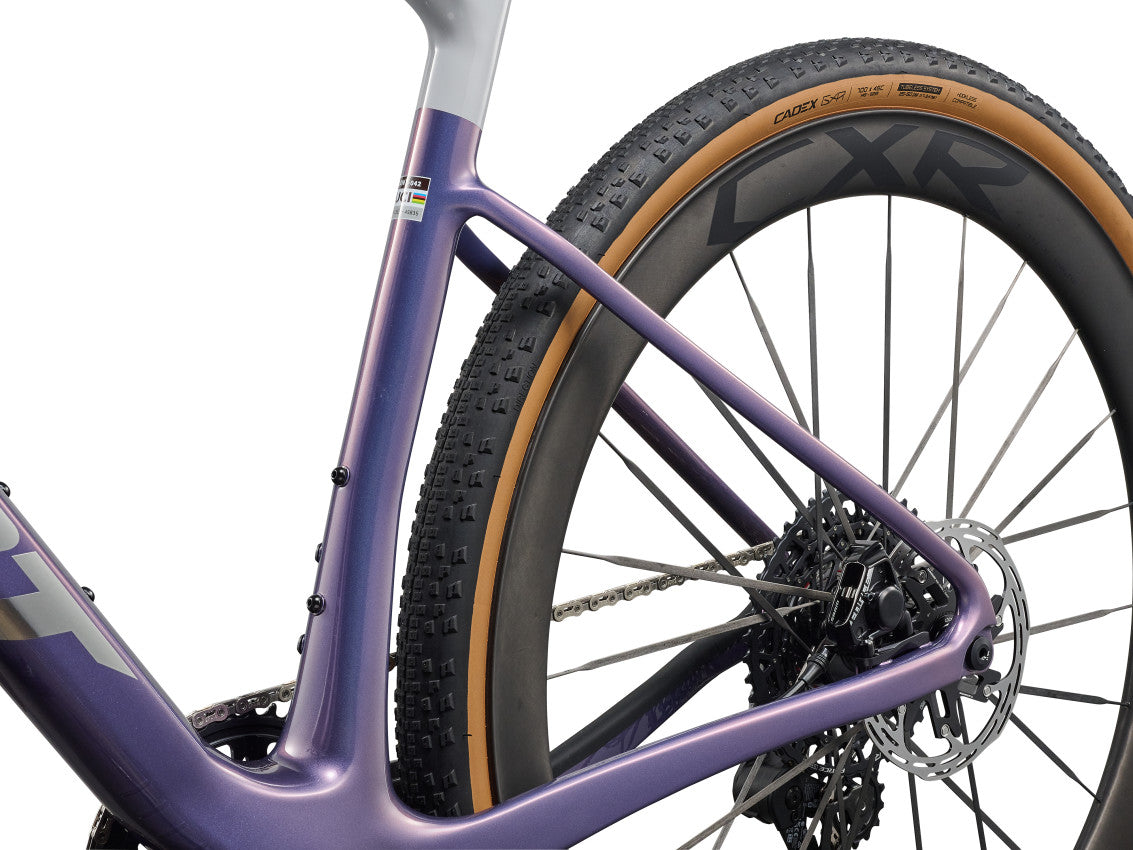

  • Image 5 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D5

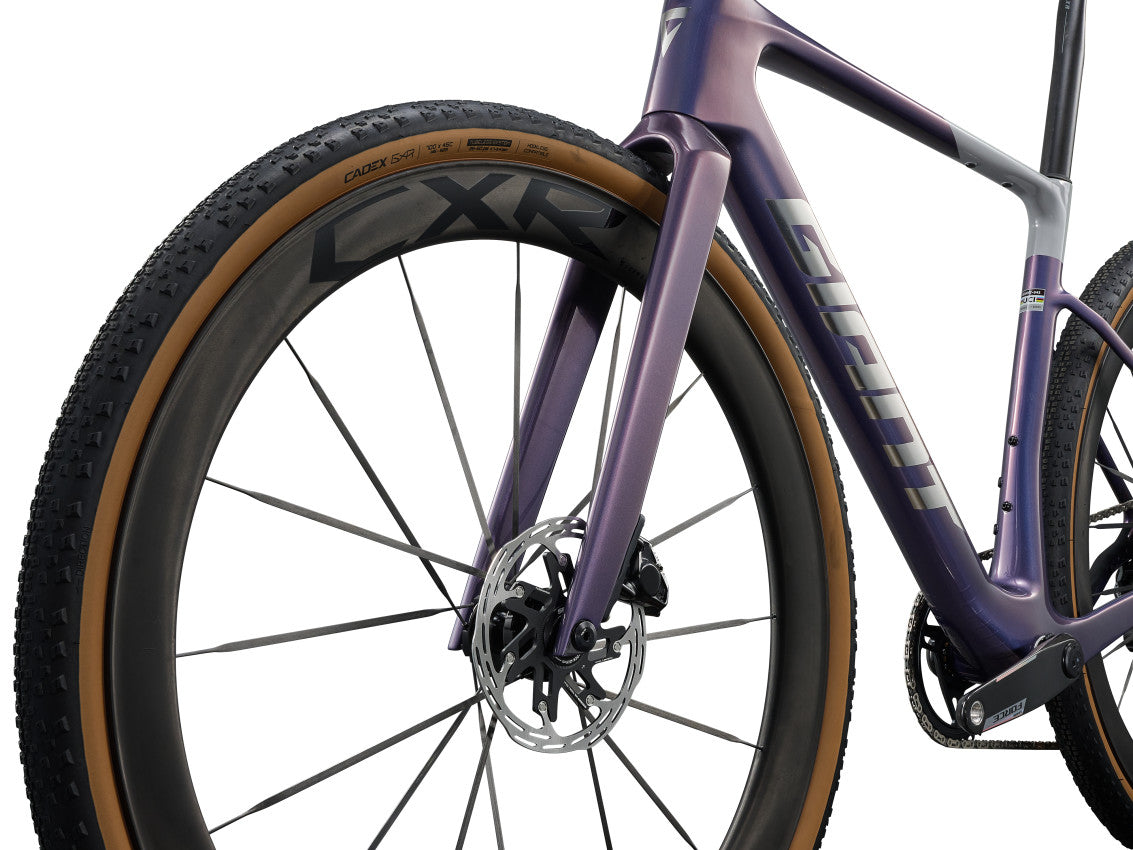

  • Image 6 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D1

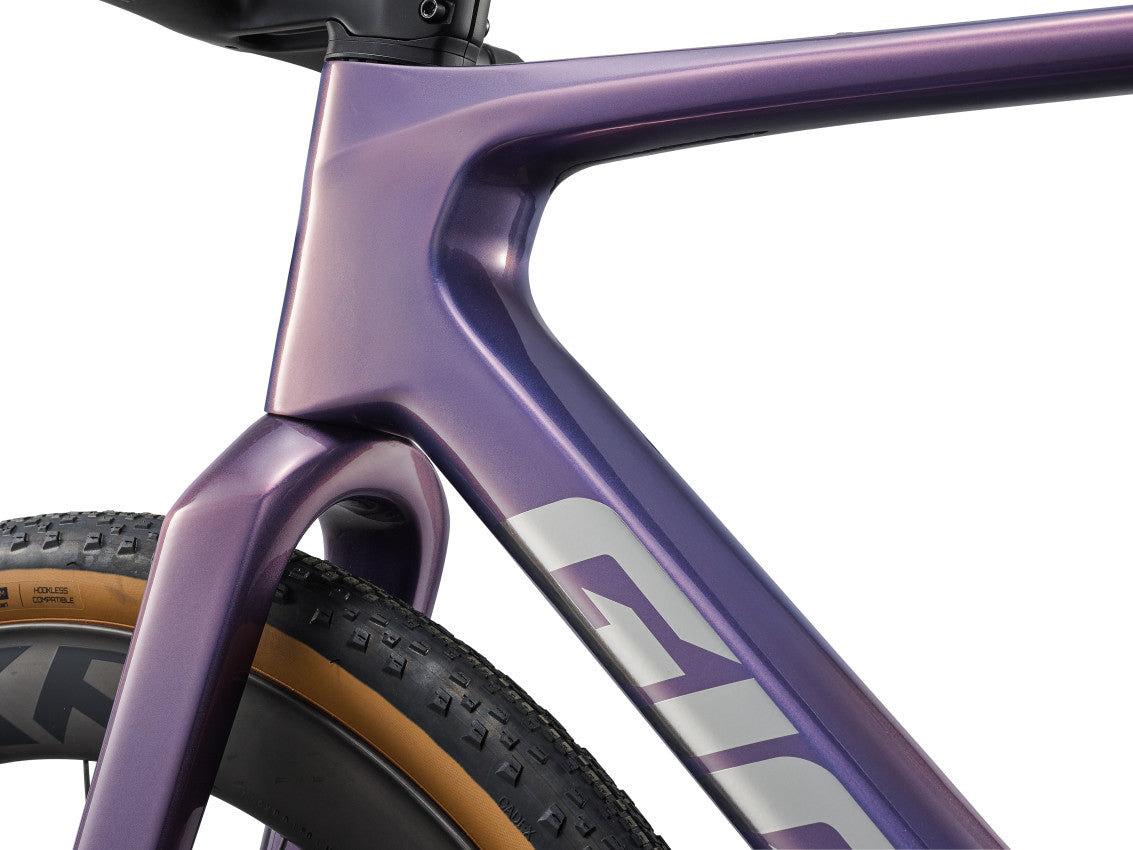

  • Image 7 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D4

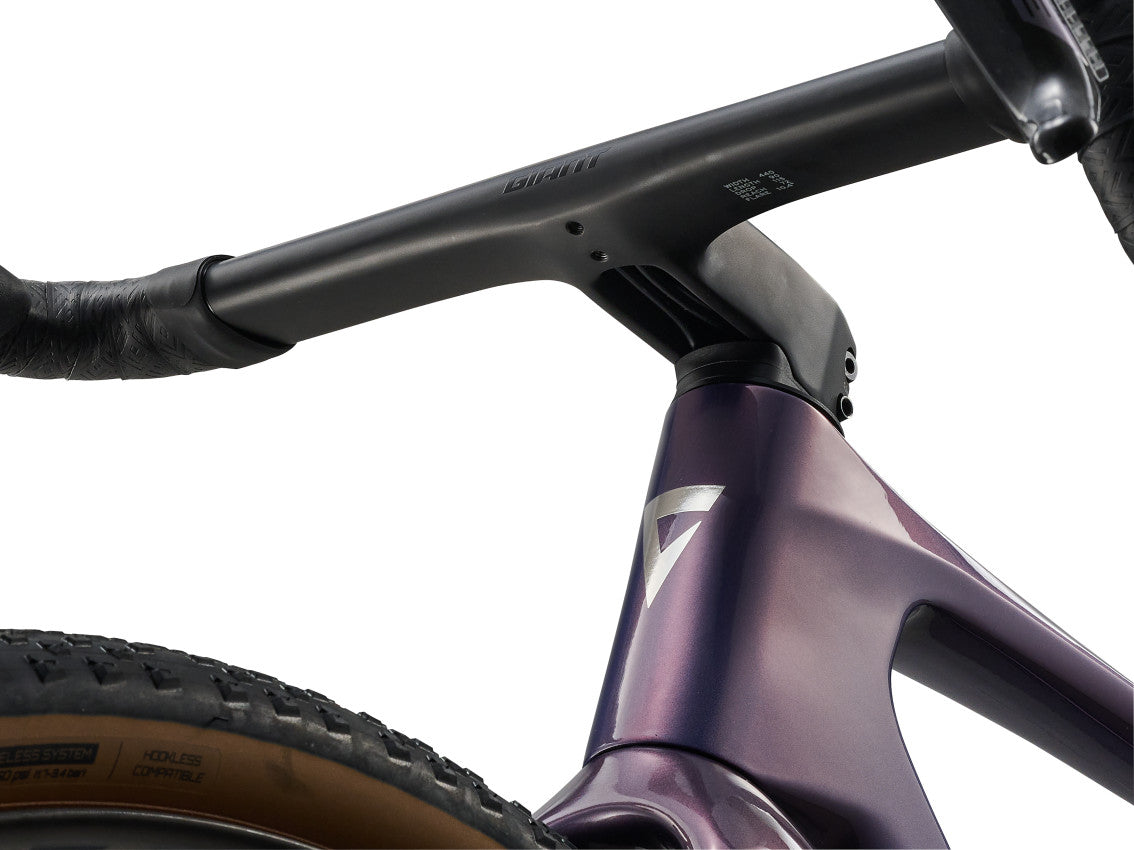

  • Image 8 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D2

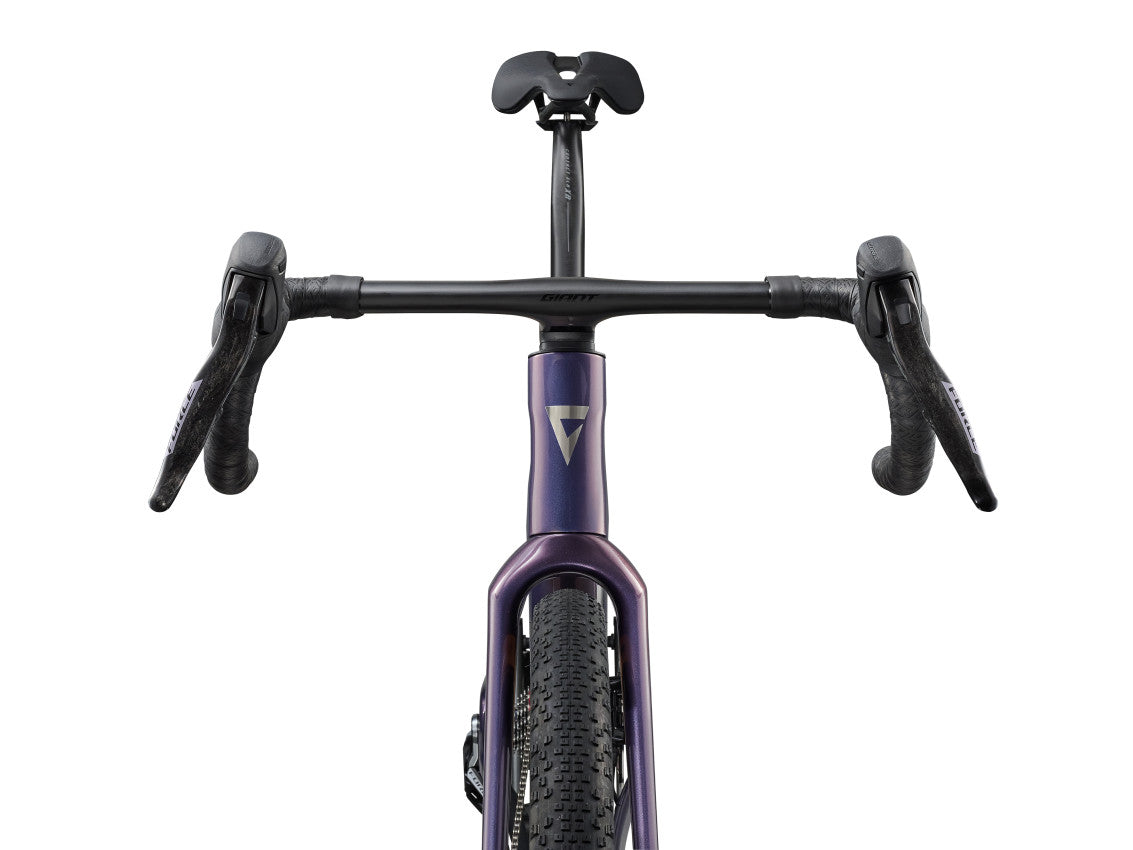

  • Image 9 of 9 - MY27RevoltAdvancedSL1_ColorATempestPurple-D3
1 9
Giant Logo

Revolt Advanced SL 1

$9,999.00
Tax included
The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tyres add up to a total system weight savings of 288g*. The lighter weight and wider tyres result in more dynamic handling, faster acceleration, and greater climbing efficiency.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimised for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tyres designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimised for 45mm tyres with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    155 cm 166 cm
  • S
    159 cm 171 cm
  • M
    169 cm 181 cm
  • ML
    174 cm 186 cm
  • L
    179 cm 191 cm
  • XL
    189 cm 200 cm
Bike Geometry Diagram
Code Name XS S M ML L XL
A Seat Tube Length (mm) (inch) 430 450 470 490 510 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 530 540 550 565 580 590
D Head Tube Length (mm) (inch) 90 100 120 135 155 180
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50 50
G Trail (mm) (inch) 78 74 71 67 67 67
H Wheelbase (mm) (inch) 1026 1027 1033 1039 1055 1066
I Chain Stay Length (mm) (inch) 433 433 433 433 433 433
J Bottom Bracket Drop (mm) (inch) 80 80 80 80 80 80
K Stack (mm) (inch) 525 536 557 573 592 616
L Reach (mm) (inch) 389 391 395 401 410 413
M Stand Over Height (mm) (inch) 726 743 762 779 798 818
O Stem Length (mm) (inch) 70 80 90 100 100 110
P Crank Length (mm) (inch) 165 165 170 170 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C

Specifications

Sizes XS, S, M, M/L, L, XL
Colours Tempest Purple
Frame Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact SLR XR Integrated XS:70x38/42cm, S:80x38/42cm, M:90x40/44cm, M/L:100x40/44cm, L:100x40/44cm, XL:110x42/46cm
Grips Stratus Lite 3.0
Stem Giant Contact SLR XR Integrated XS:70, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm
Seatpost Giant Contact SLR XR D-Fuse, composite, 20mm offset
Saddle Giant Grit SLR
Shifters SRAM Force AXS HRD, ED-Force-E1, 1x13
Rear derailleur SRAM Force AXS, RD-Force-E-E1
Brakes SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm
Brake levers SRAM Force AXS HRD, ED-Force-E1
Cassette SRAM RED XG-1371-E1, 13-speed, 10-46
Chain SRAM Force E1
Crankset SRAM Force XPLR AXS with spindle power meter, 42t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom bracket SRAM DUB, press fit
Rims Giant CXR 0 WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
Hubs [F] Giant Low Friction Aero Hub, Center Lock [R] Giant Low Friction Aero Hub, 60-tooth ratchet driver, Center Lock
Spokes Aero Bladed Carbon Spoke
Tyres CADEX GXR, 700x45c, tubeless
Extras Tubeless prepared, computer mount, chain guide
Max tyre clearance 53mm
Max chainring size 54t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
