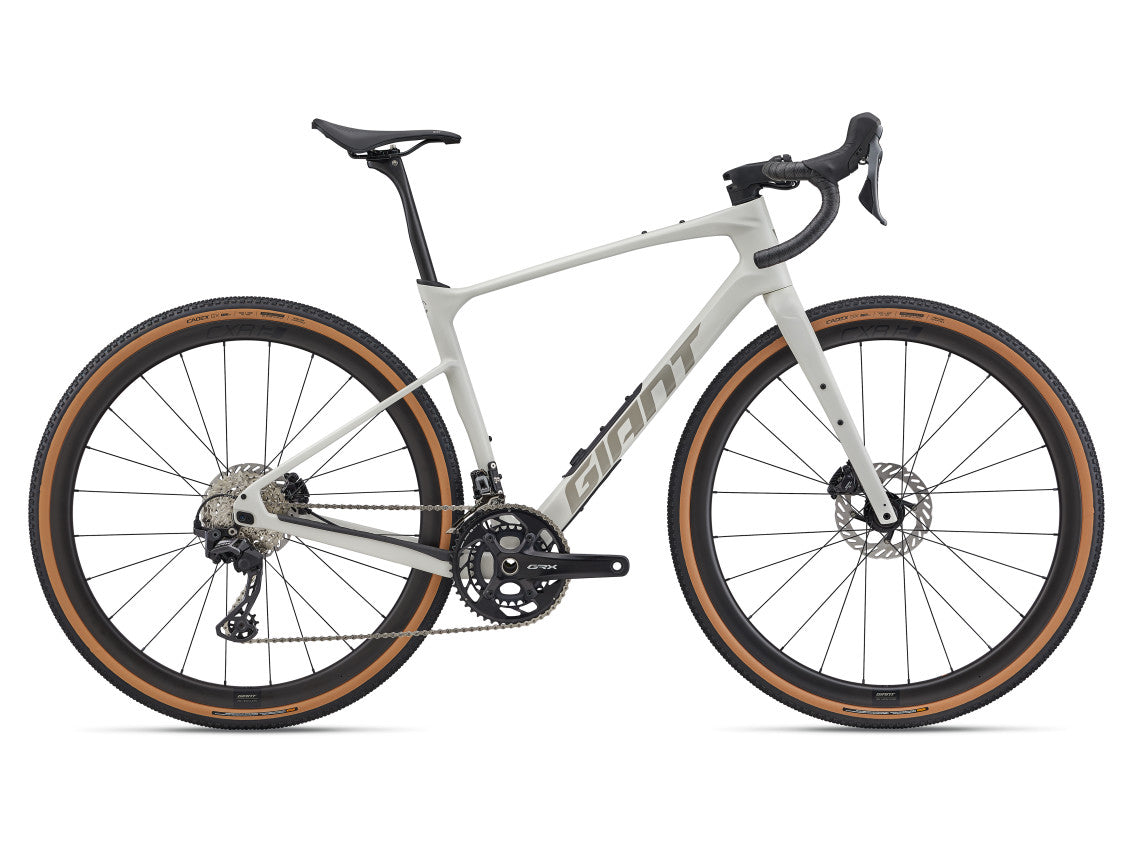

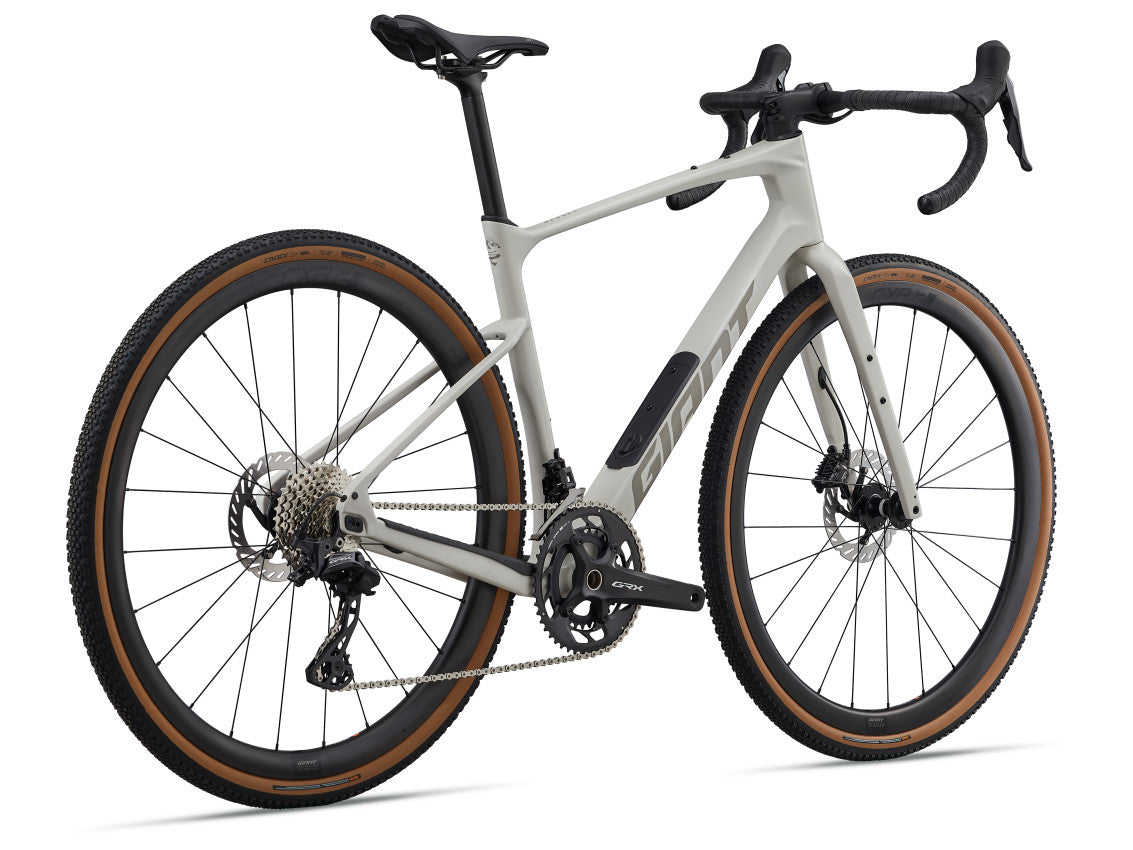

Revolt Advanced 0

$5,199.00

Tax included

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Size

Lg ML Md Sm XL XS

Colour

Snow drift

Product variants

Techs & Features

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

Code	Name	XS	S	M	ML	L	XL
A	Seat Tube Length (mm) (inch)	430	16.9	450	17.7	470	18.5	490	19.3	510	20.1	530	20.9
B	Seat Tube Angle (degrees)	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm) (inch)	540	21.3	550	21.7	560	22	575	22.6	585	23	600	23.6
D	Head Tube Length (mm) (inch)	125	4.9	135	5.3	150	5.9	165	6.5	180	7.1	195	7.7
E	Head Tube Angle (degrees)	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F	Fork Rake (mm) (inch)	50	2	50	2	50	2	50	2	50	2	50	2
G	Trail (mm) (inch)	78 \| 82	3.1 \| 3.2	72 \| 75	2.8 \| 3	68 \| 72	2.7 \| 2.8	65 \| 68	2.6 \| 2.7	65 \| 68	2.6 \| 2.7	65 \| 68	2.6 \| 2.7
H	Wheelbase (mm) (inch)	1024 \| 1034	40.3 \| 40.7	1020 \| 1030	40.2 \| 40.6	1026 \| 1036	40.4 \| 40.8	1031 \| 1041	40.6 \| 41	1041 \| 1051	41 \| 41.4	1056 \| 1066	41.6 \| 42
I	Chain Stay Length (mm) (inch)	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1
J	Bottom Bracket Drop (mm) (inch)	80 \| 81	3.1 \| 3.2	80 \| 81	3.1 \| 3.2	80 \| 81	3.1 \| 3.2	80 \| 81	3.1 \| 3.2	80 \| 81	3.1 \| 3.2	80 \| 81	3.1 \| 3.2
K	Stack (mm) (inch)	556	21.9	570	22.4	586	23.1	602	23.7	616	24.3	630	24.8
L	Reach (mm) (inch)	381	15	381	15	387	15.2	391	15.4	397	15.6	407	16
M	Stand Over Height (mm) (inch)	724 \| 731	28.5 \| 28.8	740 \| 747	29.1 \| 29.4	757 \| 764	29.8 \| 30.1	774 \| 780	30.5 \| 30.7	791 \| 797	31.1 \| 31.4	807 \| 814	31.8 \| 32
O	Stem Length (mm) (inch)	50	2	60	2.4	70	2.8	80	3.1	80	3.1	90	3.5
P	Crank Length (mm) (inch)	170	6.7	170	6.7	172.5	6.8	172.5	6.8	175	6.9	175	6.9

Specifications

Sizes XS, S, M, M/L, L, XL

Colours Snow Drift

Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips Stratus Lite 3.0

Stem Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost Giant D-Fuse, composite, -5/+15mm offset

Saddle Giant Grit

Pedals N/A

Shifters Shimano GRX RX-820, 2x12

Front derailleur Shimano GRX RX-820

Rear derailleur Shimano GRX RX-820

Brakes Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm

Brake levers Shimano GRX RX-820 hydraulic

Cassette Shimano CS-HG710, 12-speed, 11x36

Chain KMC X12L-1

Crankset Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom bracket Shimano, press fit

Rims Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle

Spokes Sapim Sprint

Tires CADEX GX, 700x40c, tubeless

Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag

Max tire clearance 53mm

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
