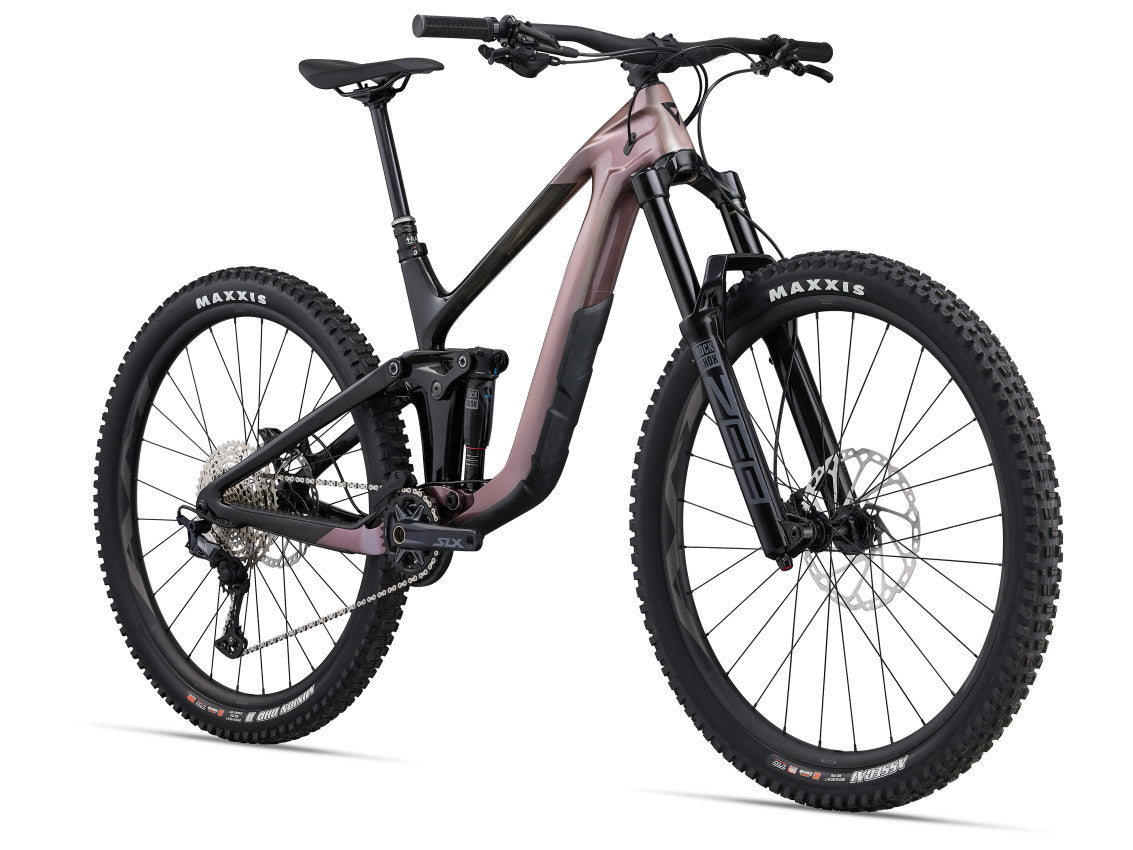

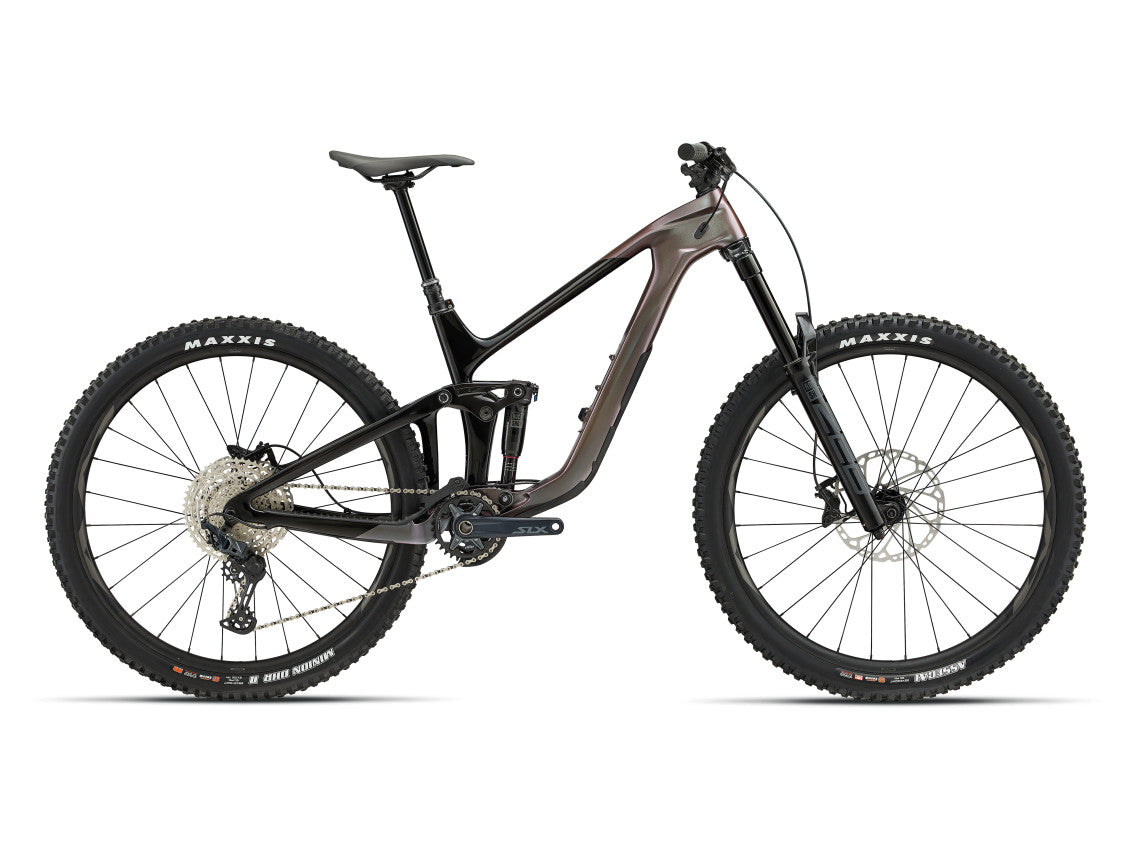

Reign Advanced Pro 2 L Orion Nebula/Carbon

$5,299.00 $6,599.00

This all-new composite chassis is built strong, light and fast for Giant enduro pros. A new suspension setup been developed, tested and raced at the highest levels. And more adjustability lets you tackle technical trails just the way you like.

Size

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Race-bred suspension

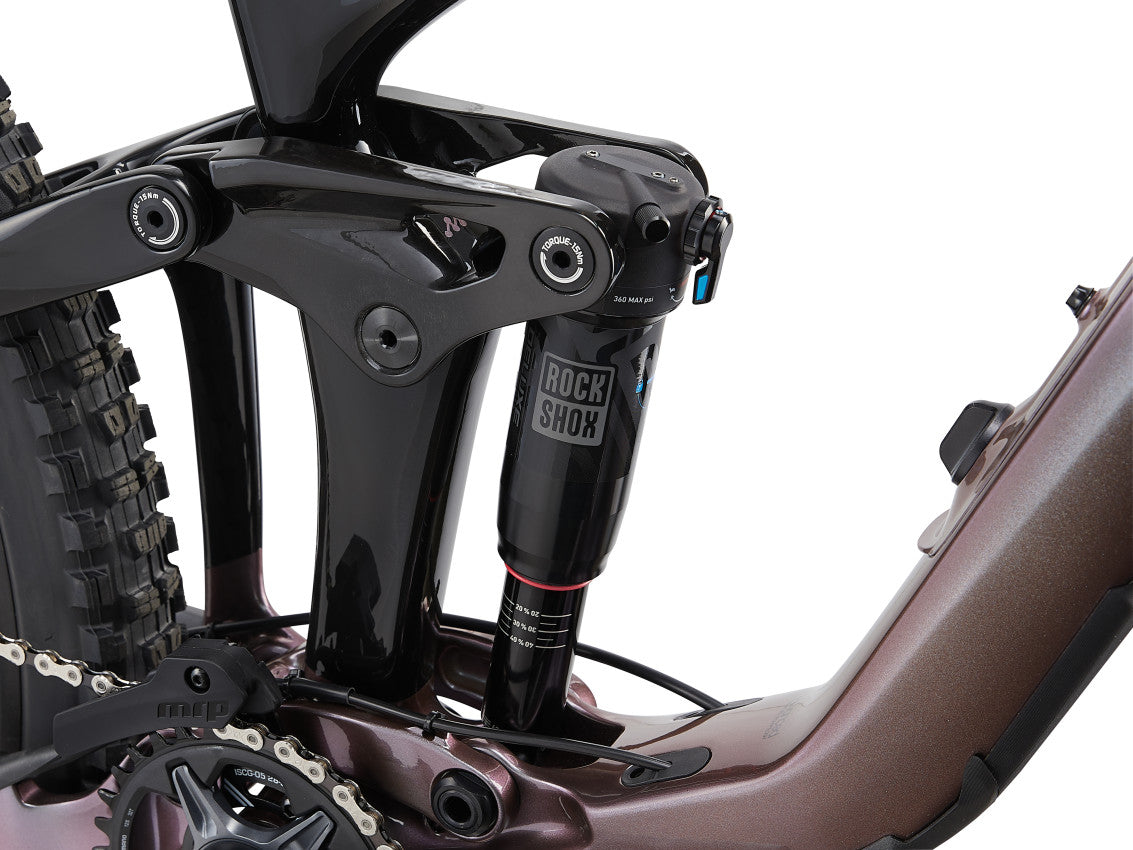

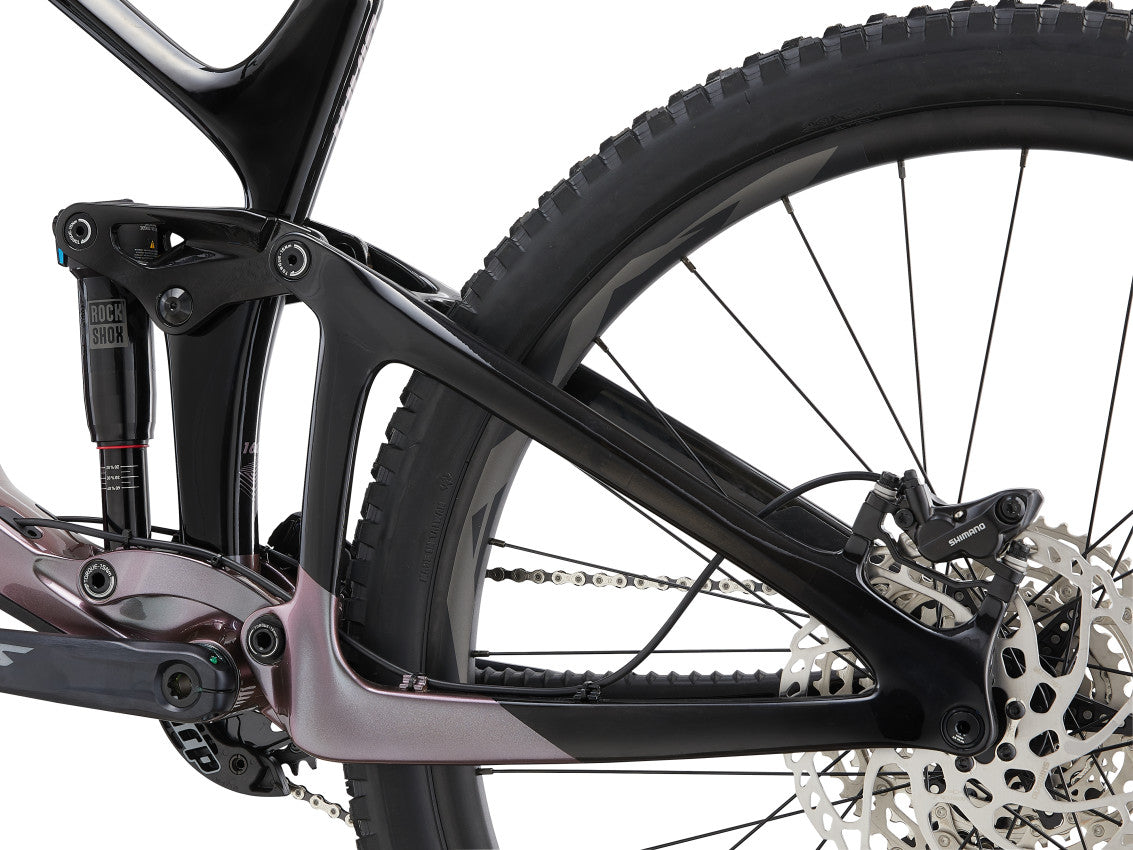

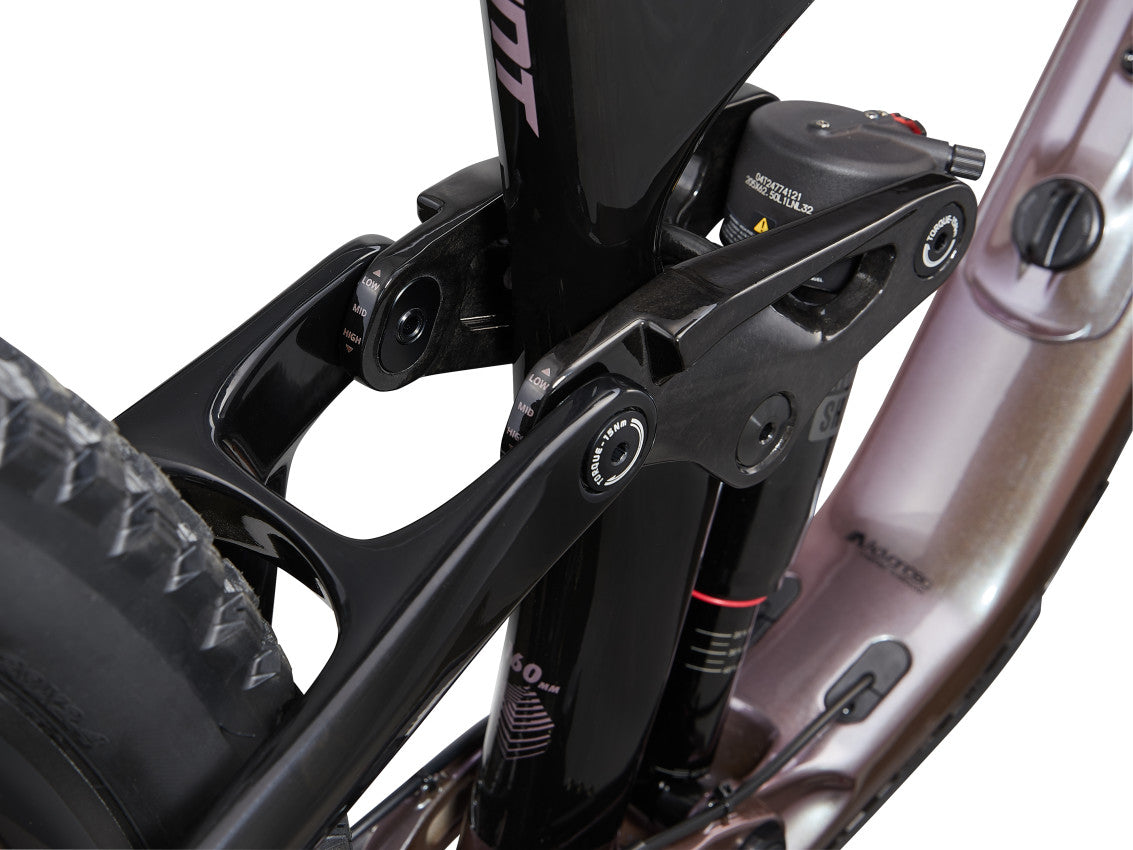

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    163 cm 172 cm
  • M
    171 cm 180 cm
  • L
    179 cm 188 cm
  • XL
    187 cm 198 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 400 425 450 475
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 556 | 555 | 555 587 | 586 | 585 620 | 620 | 619 652 | 652 | 651
D Head Tube Length (mm) (inch) 100 105 115 120
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135
H Wheelbase (mm) (inch) 1214 | 1213 | 1212 1246 | 1245 | 1244 1271 | 1270 | 1269 1304 | 1303 | 1302
I Chain Stay Length (mm) (inch) 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442
J Bottom Bracket Drop (mm) (inch) 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25
K Stack (mm) (inch) 627 | 624 | 622 632 | 629 | 626 641 | 638 | 635 645 | 642 | 639
L Reach (mm) (inch) 426 | 430 | 434 456 | 460 | 464 476 | 480 | 484 506 | 510 | 514
M Stand Over Height (mm) (inch) 720 | 724 | 729 735 | 739 | 744 751 | 756 | 760 746 | 751 | 756
O Stem Length (mm) (inch) 40 40 40 40
P Crank Length (mm) (inch) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"

Specifications

Sizes S, M, L, XL
Colours Orion Nebula/Carbon

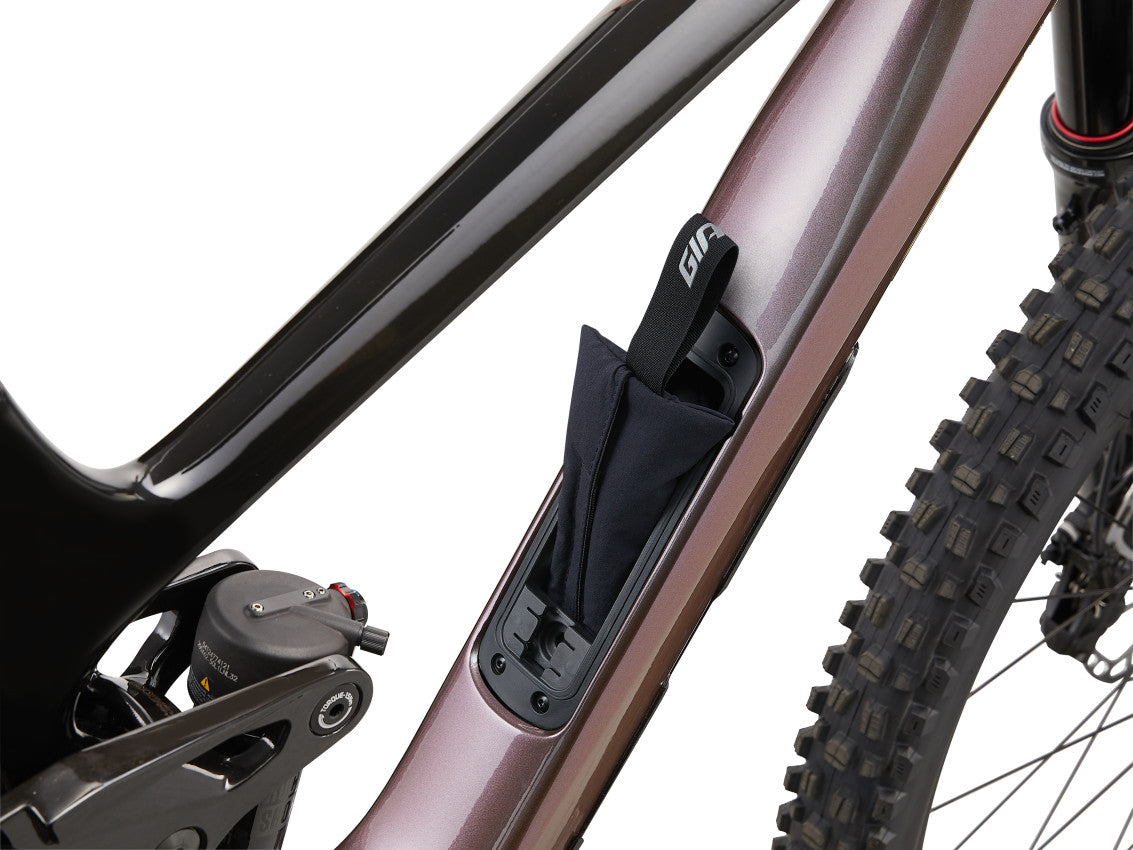

Frame Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage
Fork RockShox ZEB Select, 170mm, Charger RC, 15x110 Maxle Stealth, 44mm offset, custom tuned for Giant
Shock RockShox Deluxe Select+, 205/62.5, custom tuned for Giant
Handlebar Giant Contact SLR TR35
Grips Giant Tactal Pro Single
Stem Giant Contact SL 35
Seatpost TranzX travel-adjustable dropper, remote
Saddle Giant Romero SL
Pedals N/A
Shifters Shimano SLX SL-M7100, 1x12
Front derailleur N/A

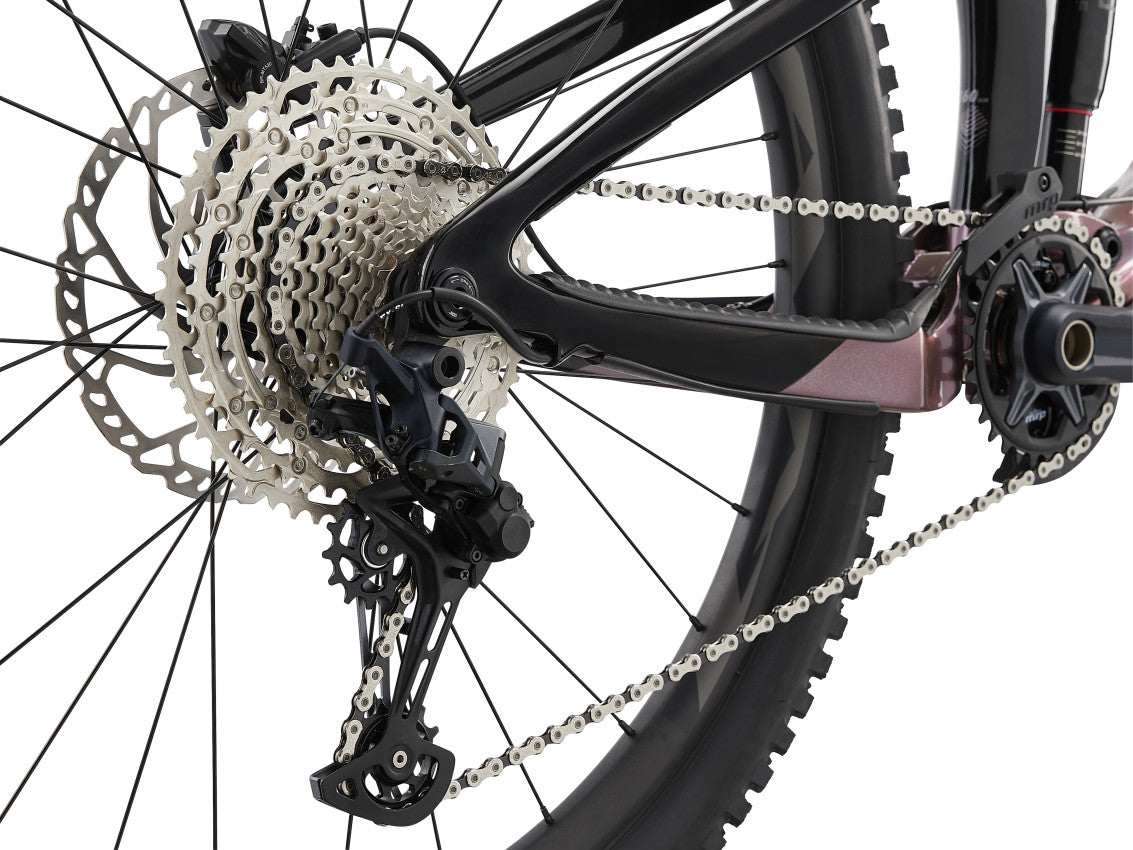

Rear derailleur Shimano SLX RD-M7100
Brakes Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
Brake levers Shimano Deore BL-MT501
Cassette Shimano Deore M6100, 10x51
Chain Shimano
Crankset Shimano SLX, 32t, 55mm chainline
Bottom bracket Shimano, press fit
Rims Giant AM 29, alloy
Hubs Alloy, sealed
Spokes Sapim
Tires [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
