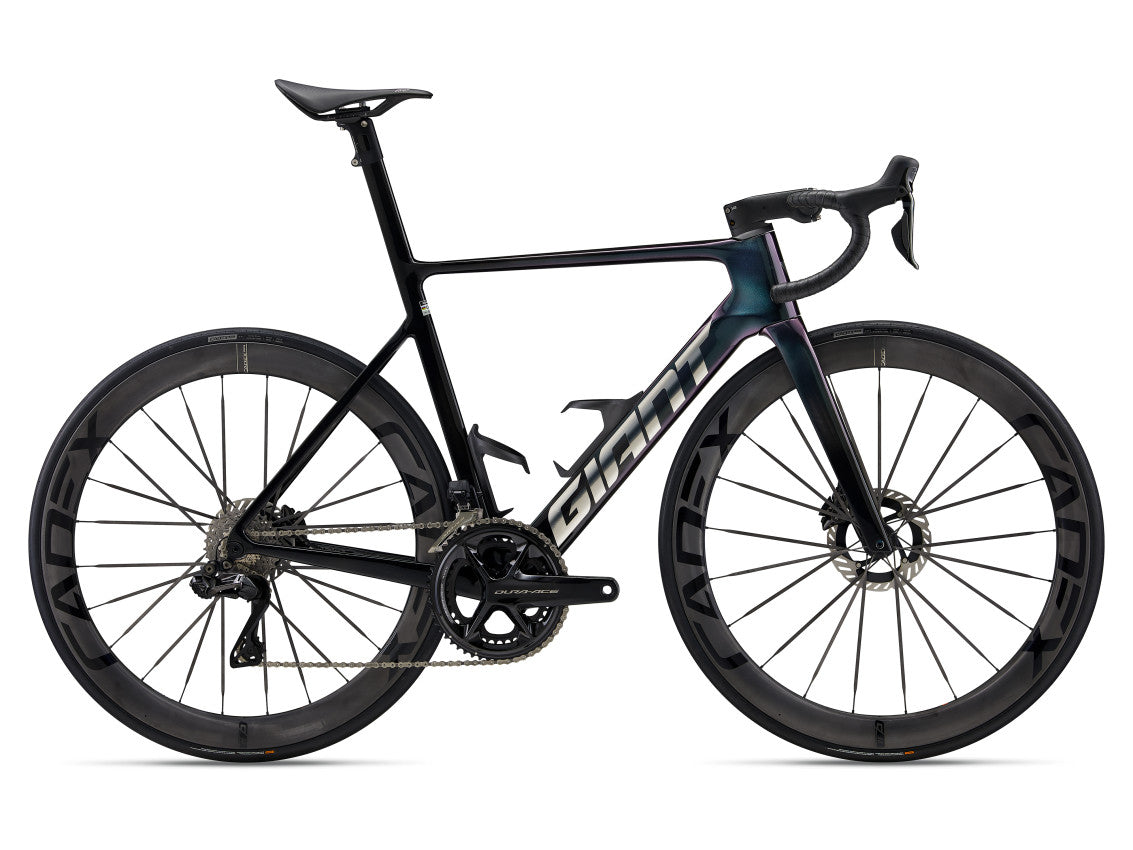

Propel Advanced SL 0-DA
Techs & Features
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.
Easier adjustability
Cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 150 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

Code | Name | XS | S | M | ML | L | XL |
---|---|---|---|---|---|---|---|
A | Seat Tube Length (mm) (inch) | 680 | 710 | 740 | 770 | 800 | 830 |
B | Seat Tube Angle (degrees) | ||||||
C | Top Tube Length (mm) (inch) | 520 | 535 | 550 | 565 | 580 | 600 |
D | Head Tube Length (mm) (inch) | 120 | 130 | 145 | 165 | 185 | 200 |
E | Head Tube Angle (degrees) | ||||||
F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 | 45 |
G | Trail (mm) (inch) | 70.5 | 62.5 | 57.8 | 57.8 | 57.8 | 57.8 |
H | Wheelbase (mm) (inch) | 976 | 977 | 980 | 991 | 1006 | 1020 |
I | Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 | 405 | 405 |
J | Bottom Bracket Drop (mm) (inch) | 72 | 70 | 70 | 67 | 67 | 67 |
K | Stack (mm) (inch) | 517 | 528 | 545 | 562 | 581 | 596 |
L | Reach (mm) (inch) | 376 | 383 | 388 | 393 | 402 | 412 |
M | Stand Over Height (mm) (inch) | 734 | 755 | 775 | 794 | 821 | 834 |
O | Stem Length (mm) (inch) | 80 | 90 | 100 | 110 | 110 | 120 |
P | Crank Length (mm) (inch) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
