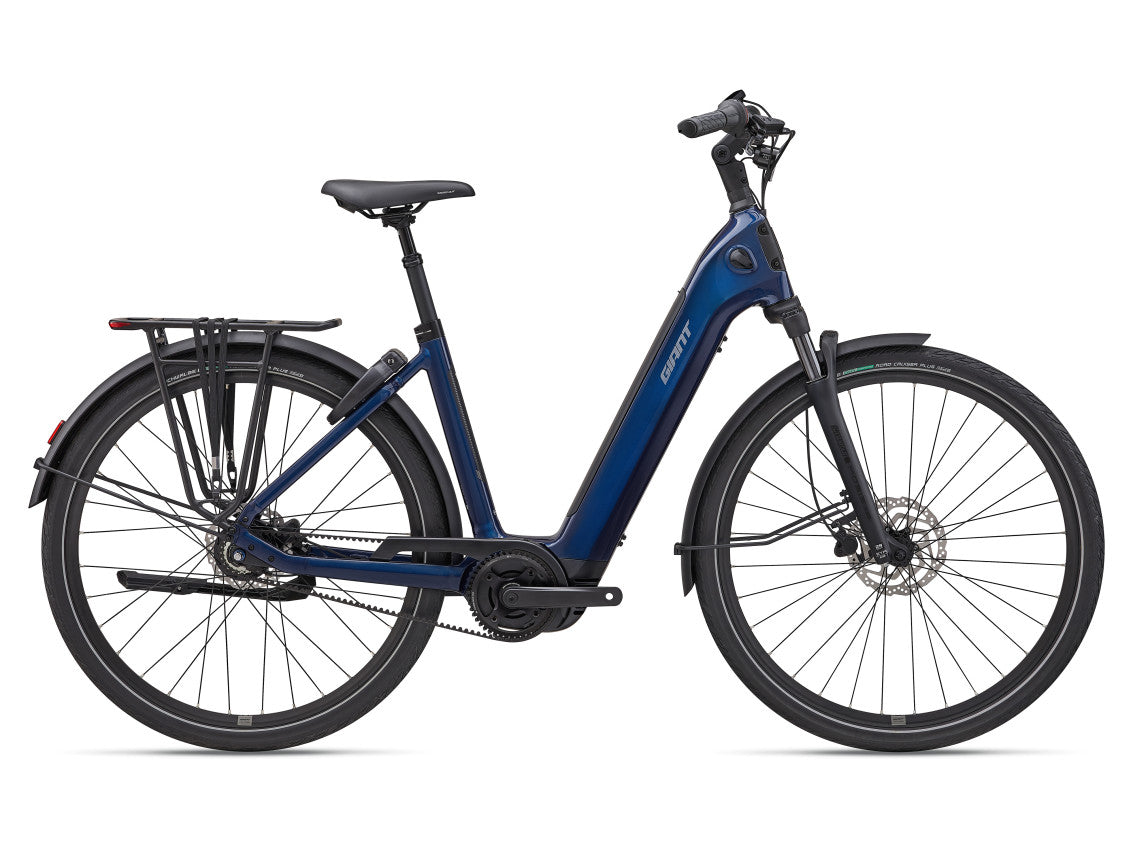

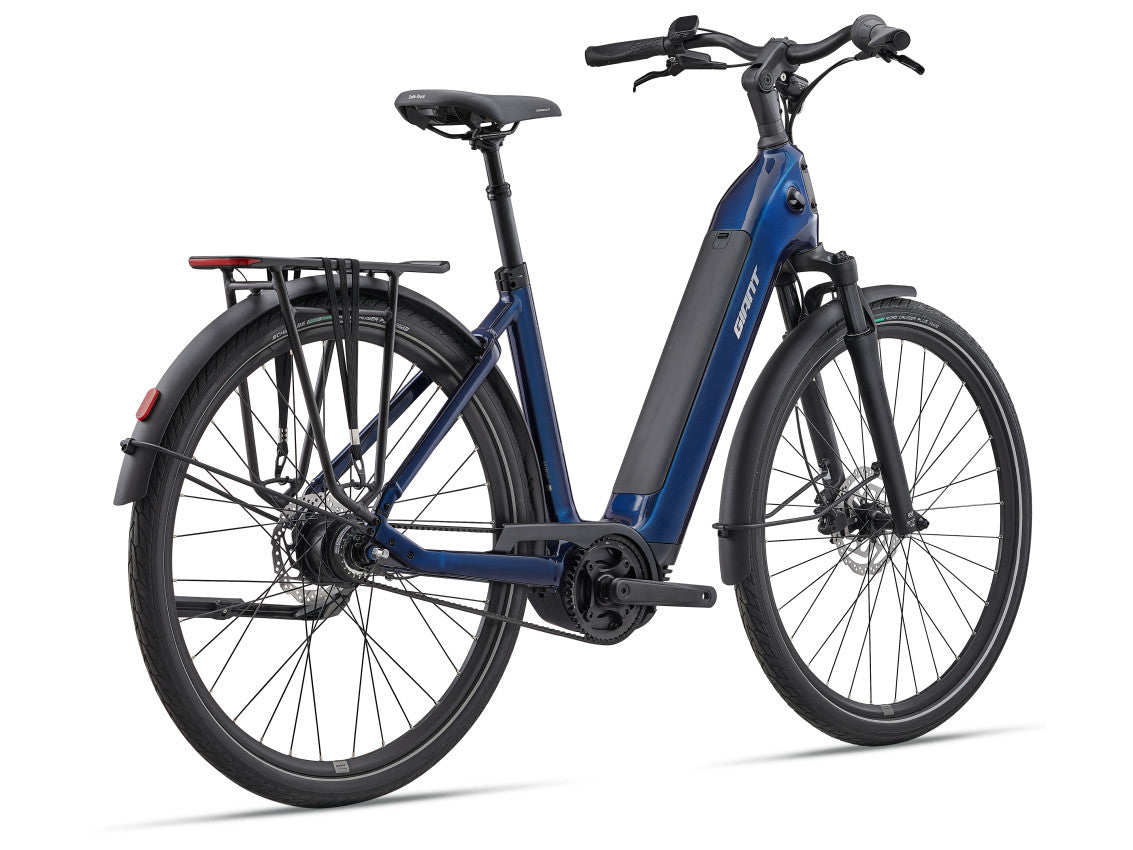

NewTour E+ 1

$4,949.00 $5,499.00
Tax included
Exploration feels best when the ride is effortless and intuitive. The NewTour E+ pairs an upright, confidence-inspiring ride feel with thoughtful design, creating an E-bike that moves smoothly from city streets into parks, open routes and beyond.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

COMFORT IN MOTION

Ease and stability define the ride experience. Upright geometry combined with a comfort-focused setup creates a relaxed, confidence-inspiring feel, while suspension in both the fork and seatpost helps smooth rough pavement and shared paths. This balanced approach keeps the ride composed as conditions change, encouraging longer outings without constant adjustment.

SECURE, CONNECTED RIDING

Peace of mind is built into every ride. Integrated E-bike security features, including E-lock, disable motor assistance and trigger an alarm if the bike is moved while locked, while Apple Find My integration enables location tracking and monitoring. Together, these systems help riders feel confident leaving the bike and ready to ride again.

SEAMLESS DESIGN & INTEGRATION

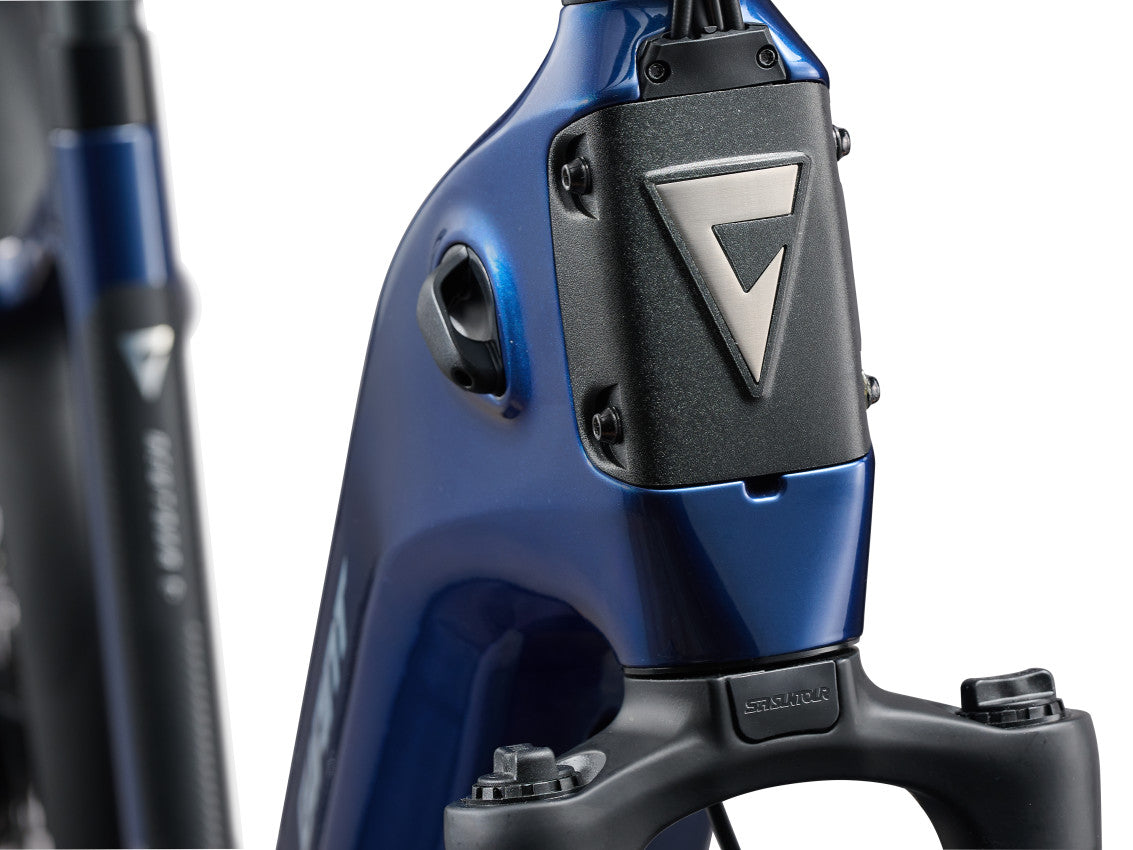

Every detail is designed to feel intentional and refined. Clean cable routing through the head tube badge, integrated lighting, and compatibility with practical accessories create a cohesive design that balances everyday usability with a premium appearance—supporting both the ride experience and the bike’s visual identity.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    160 cm 175 cm
  • M
    167 cm 182 cm
  • L
    174 cm 189 cm
  • XL
    181 cm 196 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 450 500 550 600
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 590 605 620 635
D Head Tube Length (mm) (inch) 170 170 170 170
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 95.7 95.7 95.7 95.7
H Wheelbase (mm) (inch) 1155 1155 1155 1155
I Chain Stay Length (mm) (inch) 482.3 482.3 482.3 482.3
J Bottom Bracket Drop (mm) (inch) 75 75 75 75
K Stack (mm) (inch) 672 672 672 672
L Reach (mm) (inch) 405 405 405 405
O Stem Length (mm) (inch) 70 70 90 110
P Crank Length (mm) (inch) 170 170 170 170
Q Wheel Size 622X50 622x50 622X50 622X50

Specifications

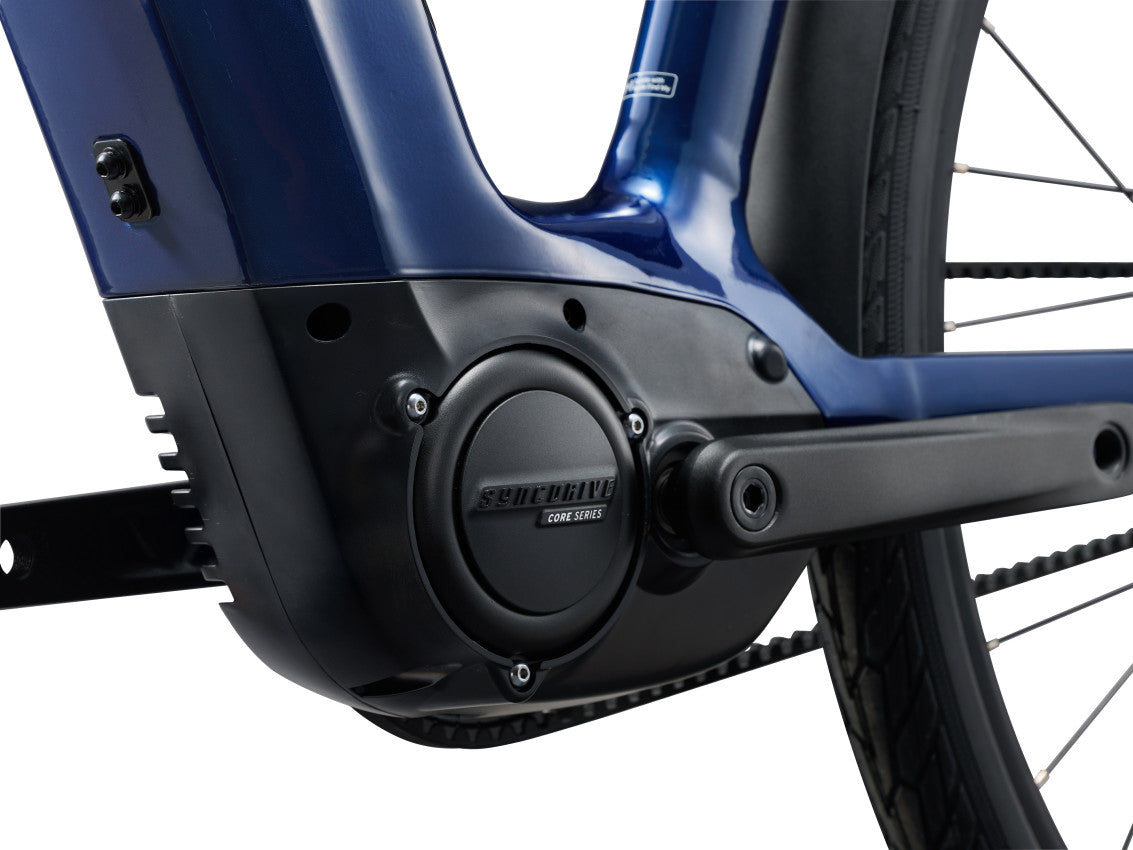

Motor Giant SyncDrive Core2 55Nm, PedalPlus 6-Sensor technology
Controller Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

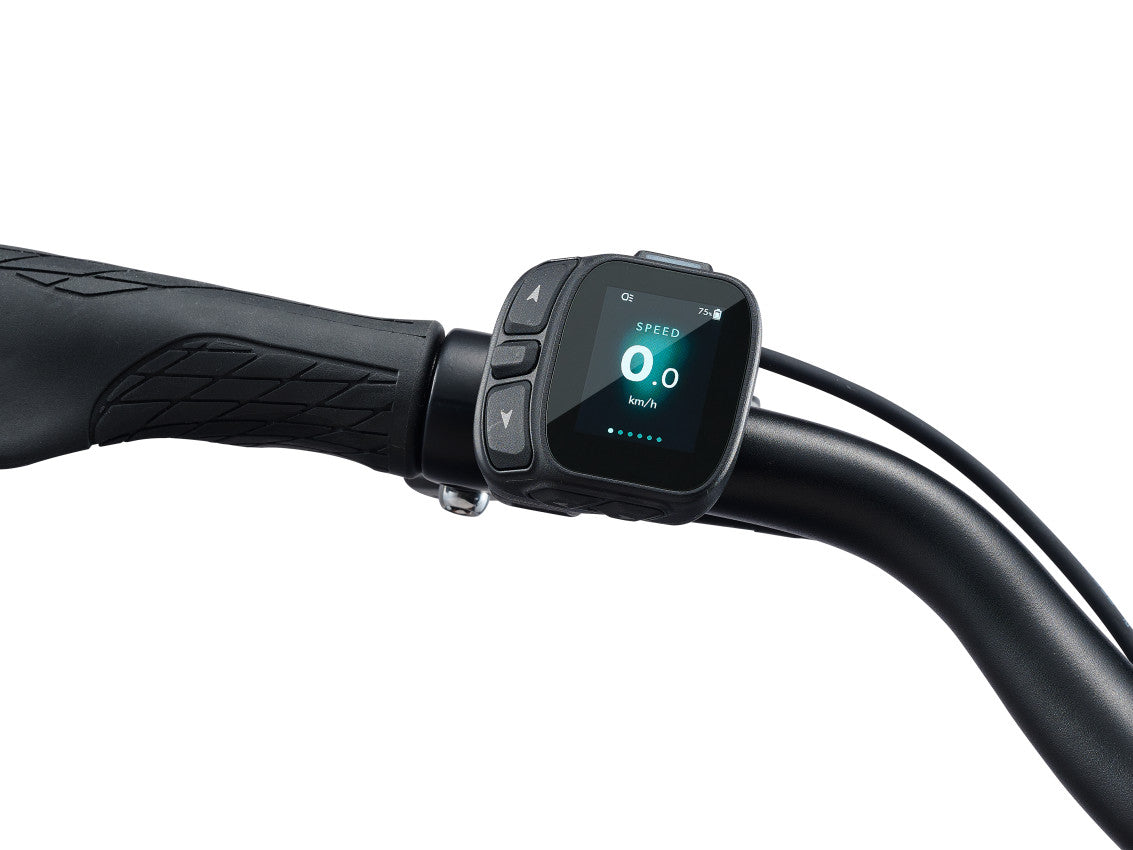

Display Giant RideControl Dash 2, full colour LCD display
Battery Giant EnergyPak 625Wh
Charger Giant EnergyPak 4A smart charger
Sizes S, M, L, XL
Colours Eclipse
Frame ALUXX-grade aluminium, Integrated battery design, KSA18 Kickstand

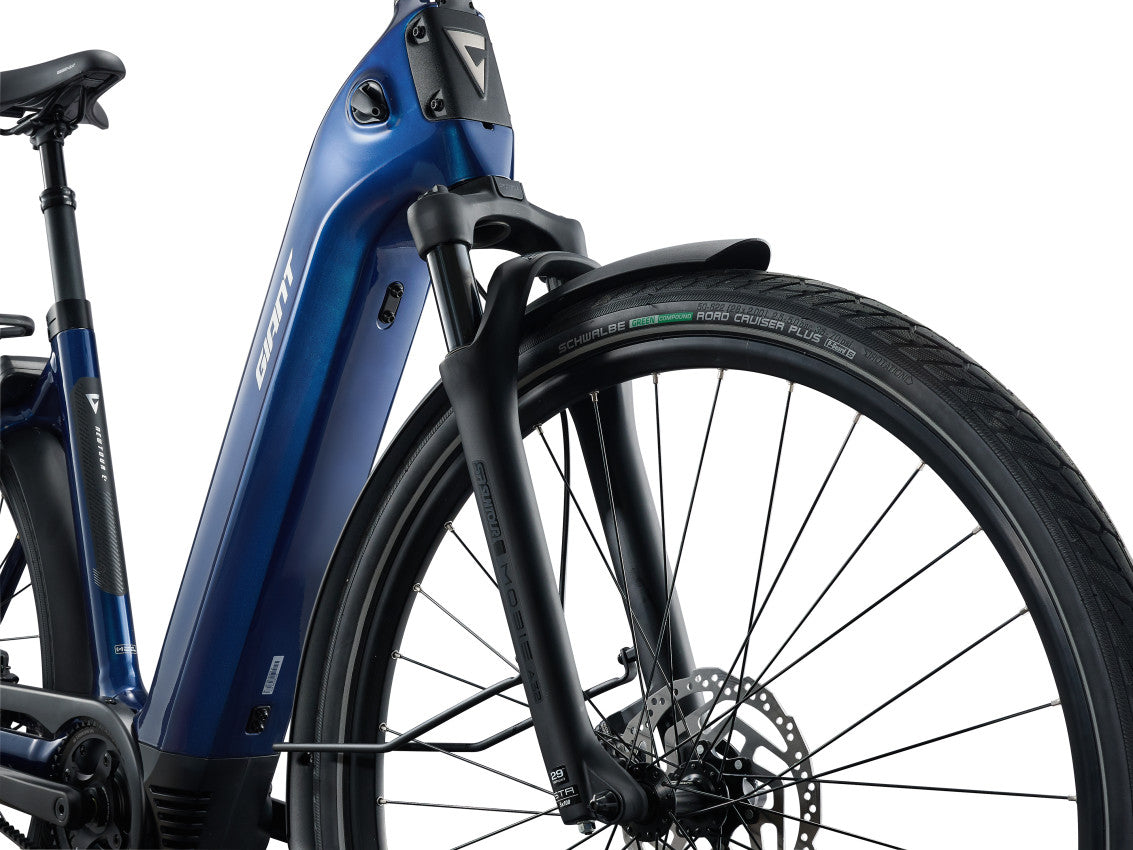

Fork SR Suntour Mobie A32 Coil 29" 5TA 63mm travel, 9x100mm Q/R
Handlebar Aluminium, 30° back sweep, 31.8mm
Grips Giant Comfort Ergo Microtech Plus
Stem Aluminium angle adjustable stem, S:90mm, M:90mm, L:110mm, XL:110mm
Seatpost Suspension, 30.9mm
Saddle Selle Royal Essenza Plus
Pedals Platform
Shifters Shimano Nexus 8 RevoShift
Front derailleur N/A
Rear derailleur N/A
Brakes Tektro HD-M281, hydraulic disc, 180mm [F] 160mm [R]
Brake levers Tektro HD-M281, hydraulic disc
Cassette Gates CDC stainless steel 22T rear sprocket
Chain Gates CDC Carbon Drive 122T CenterTrack belt
Crankset Forged Alloy, Gates 46T
Bottom bracket N/A
Rims Giant GX03, Aluminium

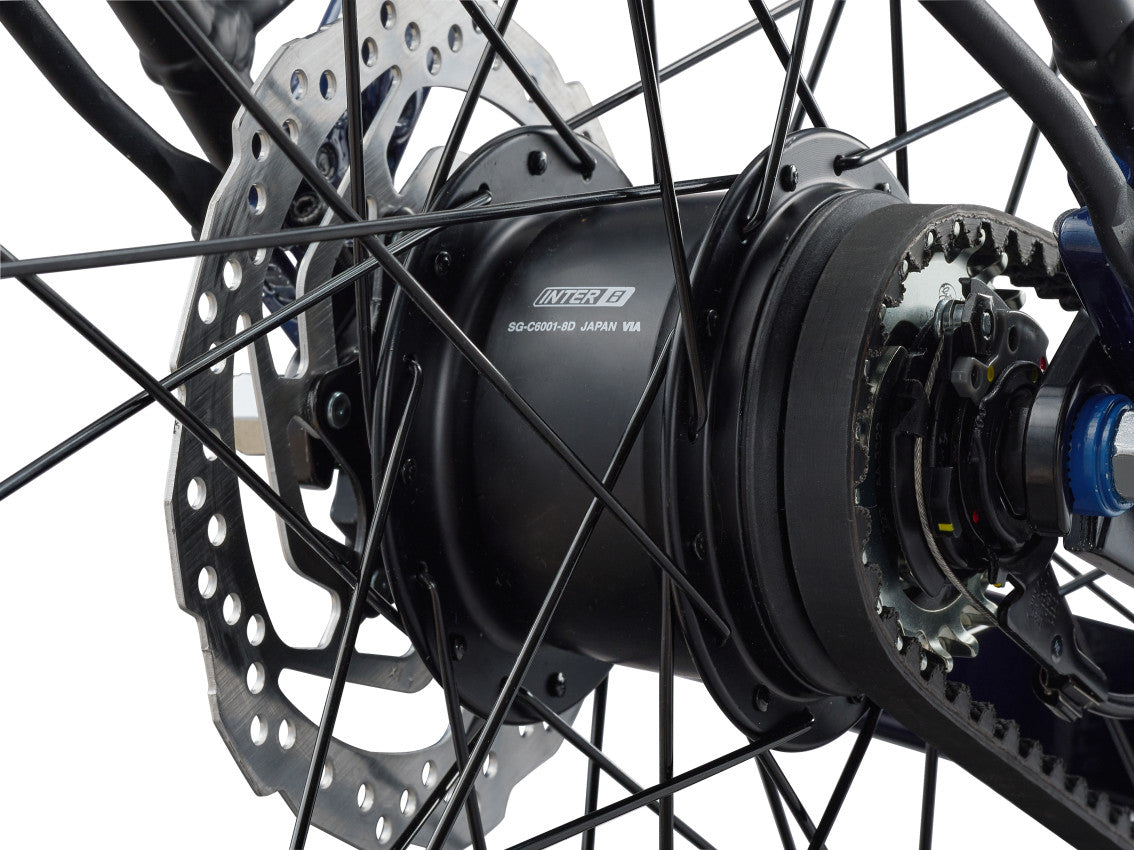

Hubs Shimano HB-QC300 [F] Shimano Nexus 8 disc brake [R]
Spokes Stainless steel [F] Stainless steel 13-14G butted [R]
Tyres Schwalbe Road Cruiser Plus, 29"x50C, Wire Bead w/ reflective stripe
Extras KSA18 direct mount kickstand
Compatibility Aegis Radar, Aegis Tire Checker

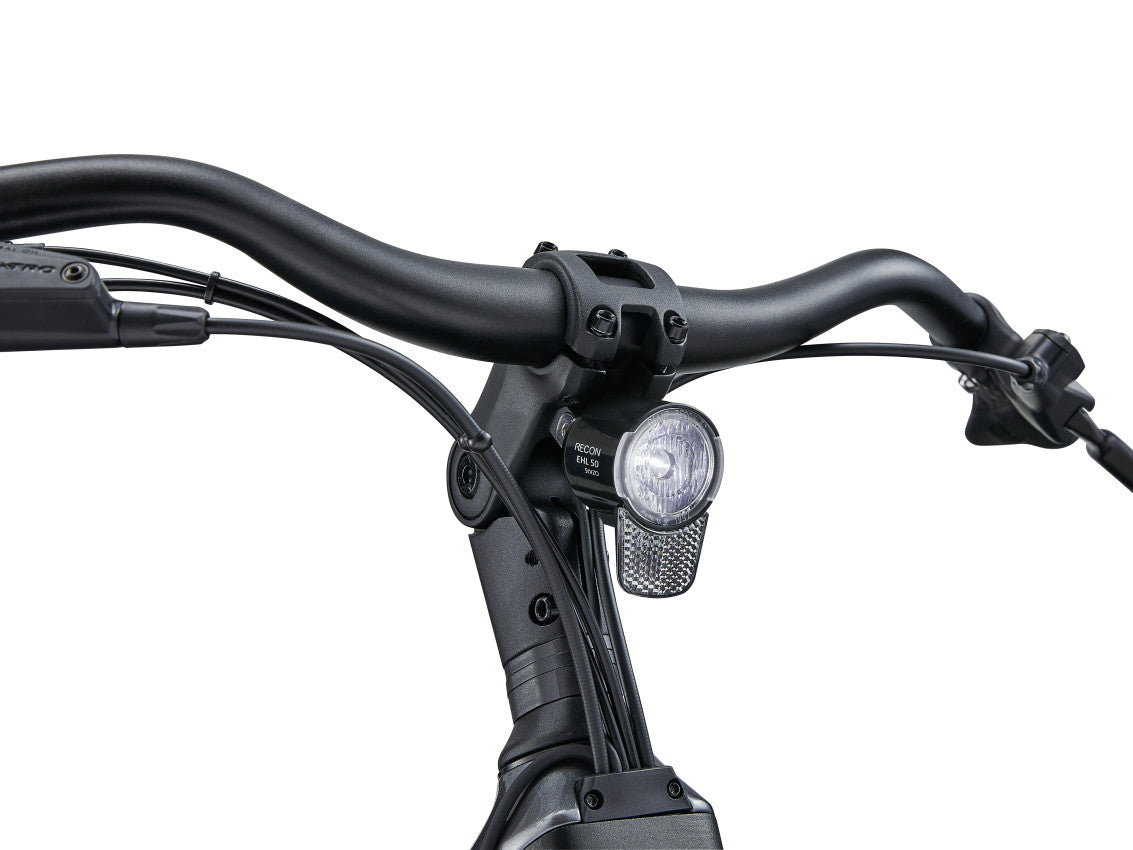

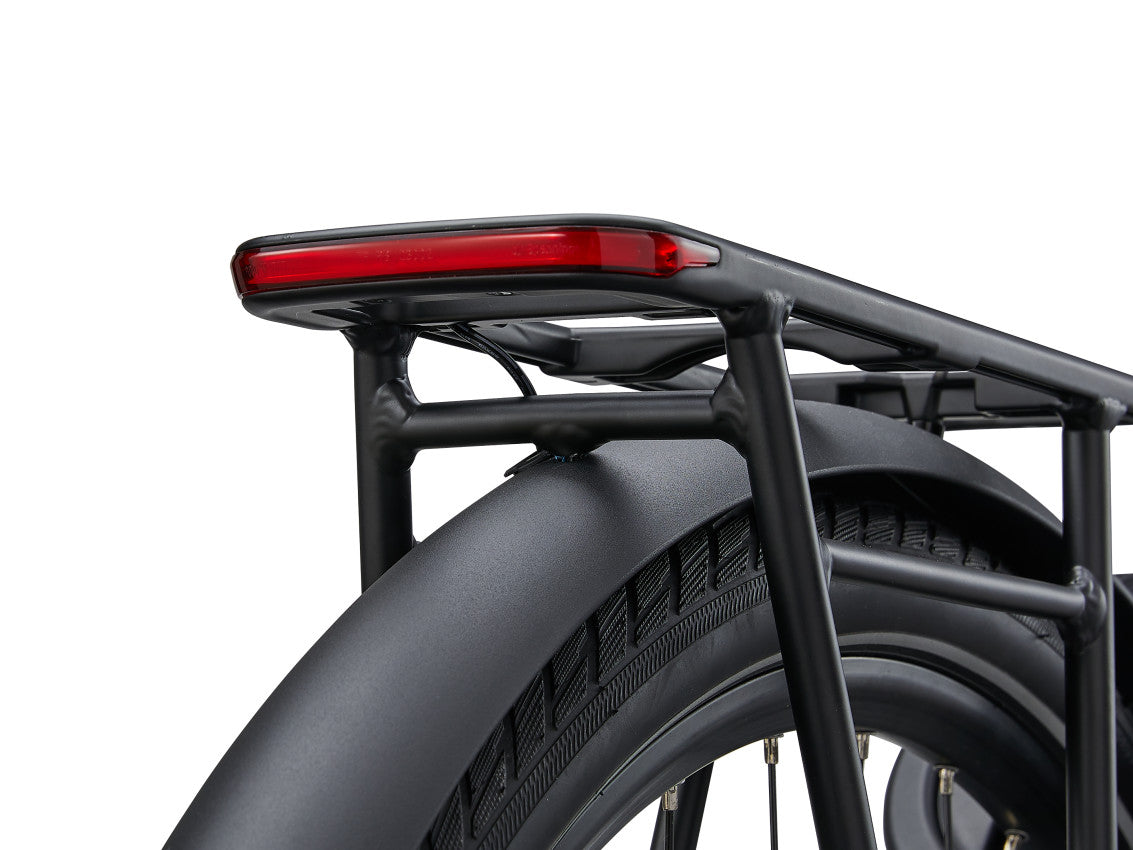

Lighting Giant Recon HL50, 50 lux [F] Carrier integrated tail light [R]

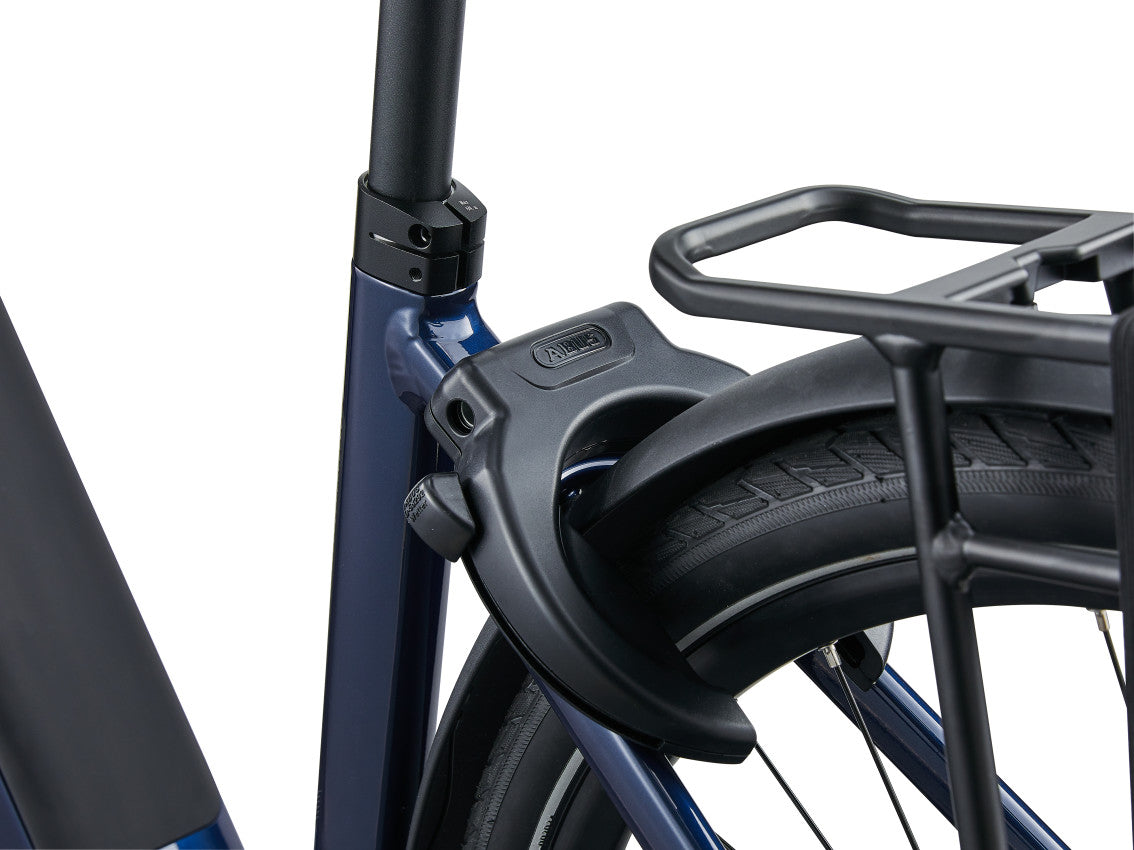

Lock ABUS Xplus battery lock

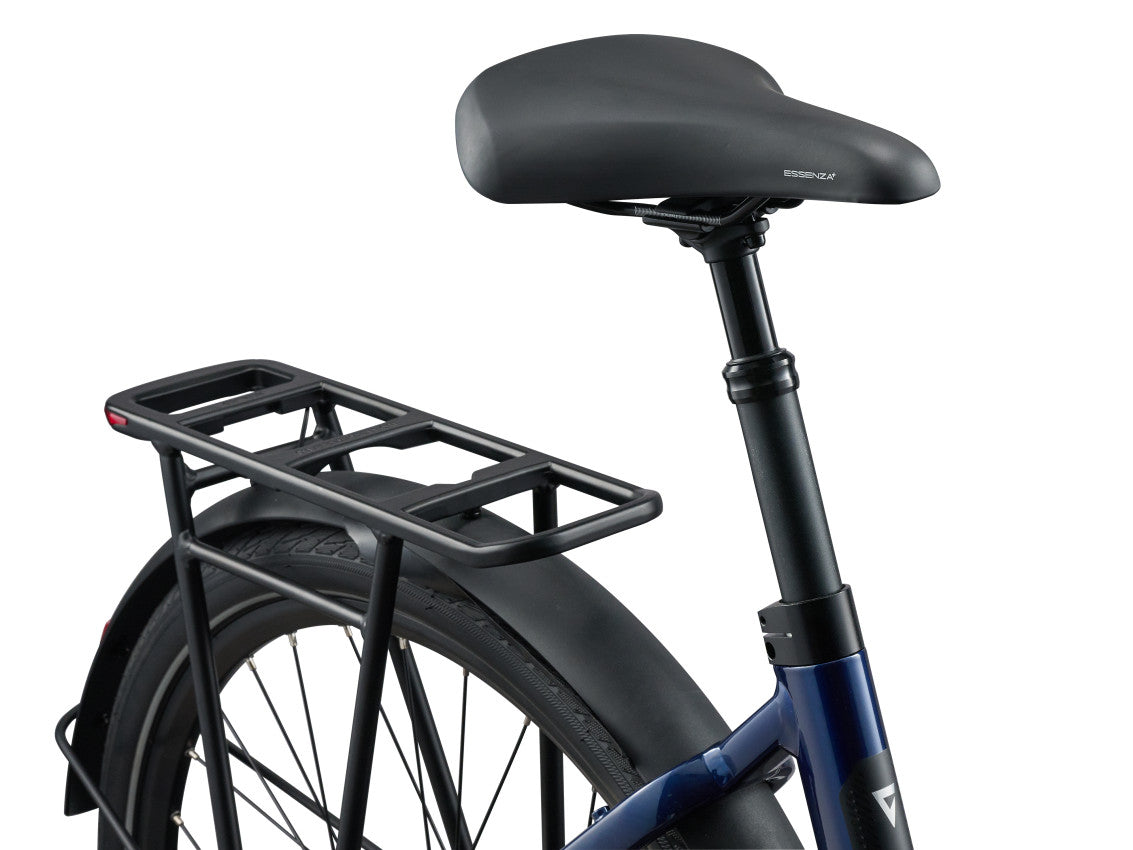

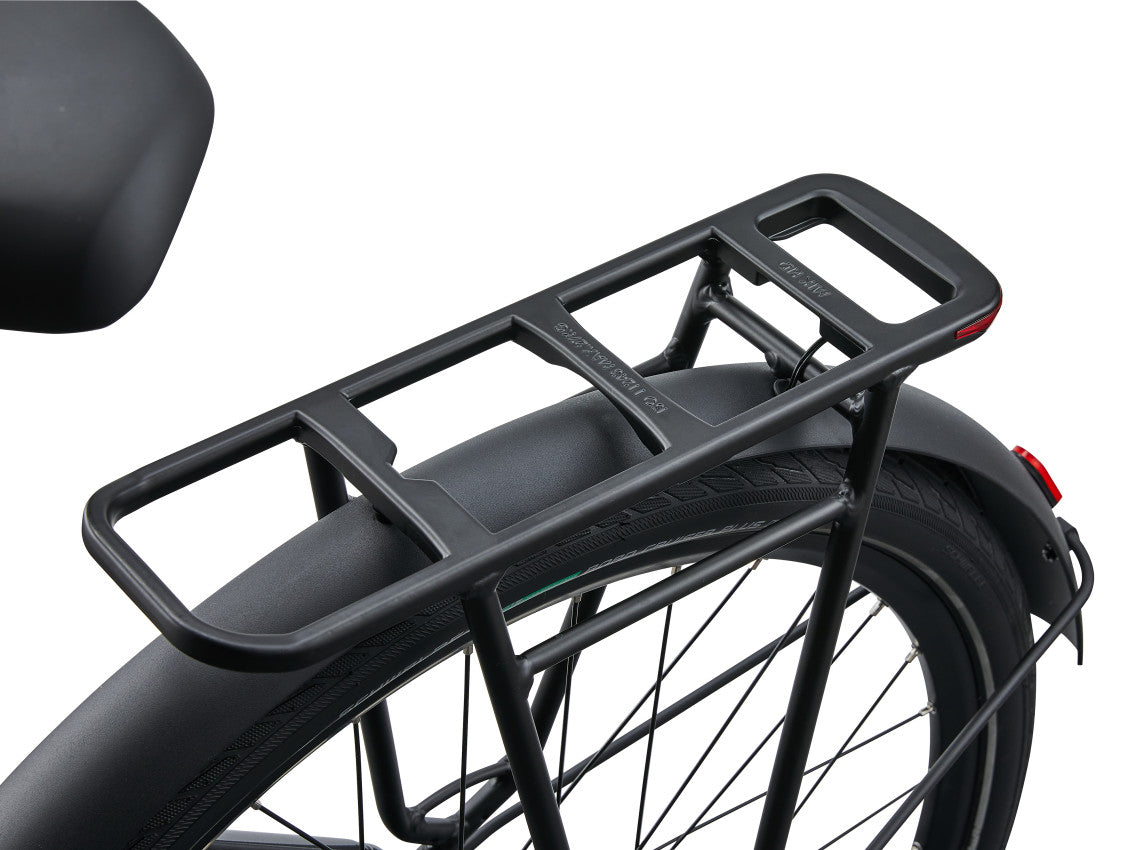

Carrier MIK rack. System bag & basket compatible
Fender/chainguard Aluminium
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
