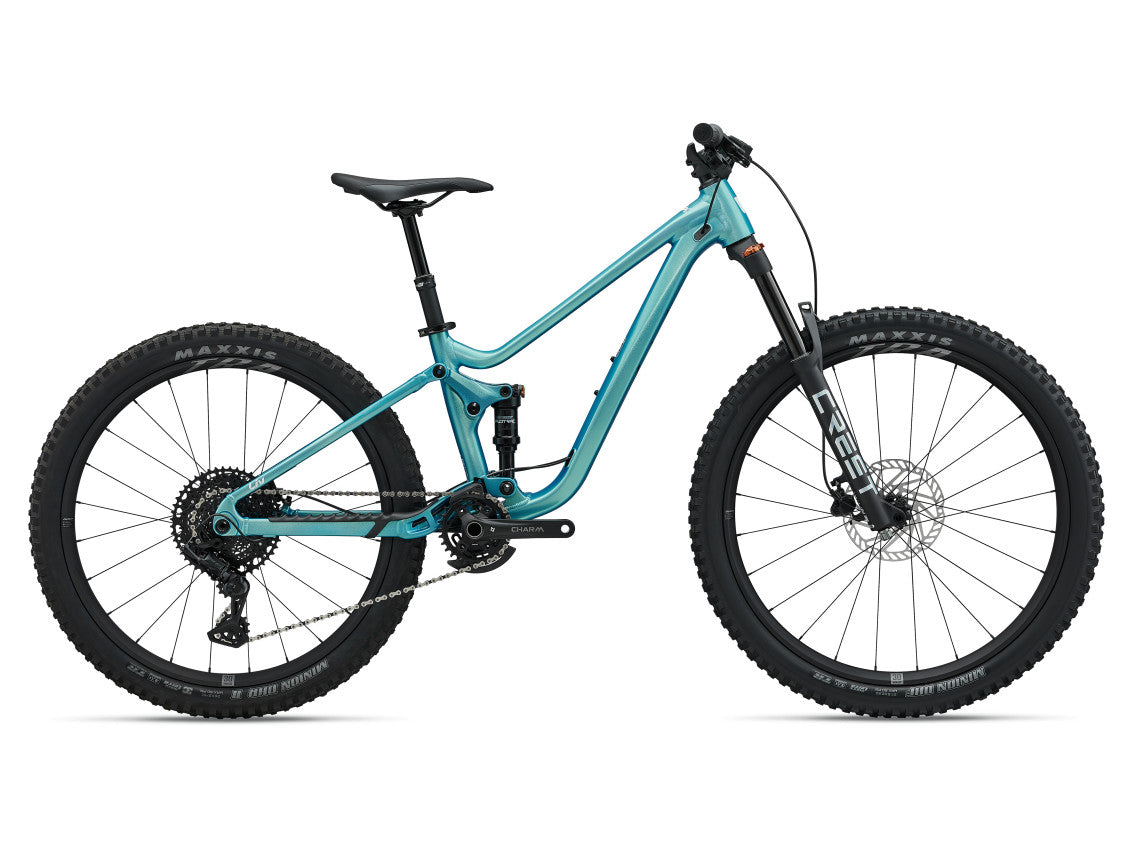

Faith Liv
Techs & Features
YOUTH-TUNED SUSPENSION
The Crest FloTrac Lite Shock delivers 135mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimisation guarantees effortless setup and the best youth fit - continuing Liv's commitment to supporting the next generation of female riders.
AGILE AND EFFICIENT
An ALUXX SL aluminium frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimise weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximises pedalling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.
OFF-ROAD CONTROL
With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tyre pressure, increasing grip and stability. For smaller riders, 27.5-inch front and 26-inch rear wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimise riding position while climbing or descending, giving them more control to conquer the trail.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.
-
One Size145 cm 165 cm
| Code | Name | One Size |
|---|---|---|
| A Seat Tube Length (mm) (inch) | 350 | |
| A1 Seat Post Insertion Depth (mm) (inch) | 285 | |
| B Seat Tube Angle (degrees) | ||
| C Top Tube Length (mm) (inch) | 545 | |
| D Head Tube Length (mm) (inch) | 105 | |
| E Head Tube Angle (degrees) | ||
| F Fork Rake (mm) (inch) | 41 | |
| G Trail (mm) (inch) | 123 | |
| H Wheelbase (mm) (inch) | 1148 | |
| I Chain Stay Length (mm) (inch) | 425 | |
| J Bottom Bracket Drop (mm) (inch) | 10 | |
| K Stack (mm) (inch) | 585 | |
| L Reach (mm) (inch) | 410 | |
| M Stand Over Height (mm) (inch) | 676 | |
| O Stem Length (mm) (inch) | 40 | |
| P Crank Length (mm) (inch) | 155 |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
