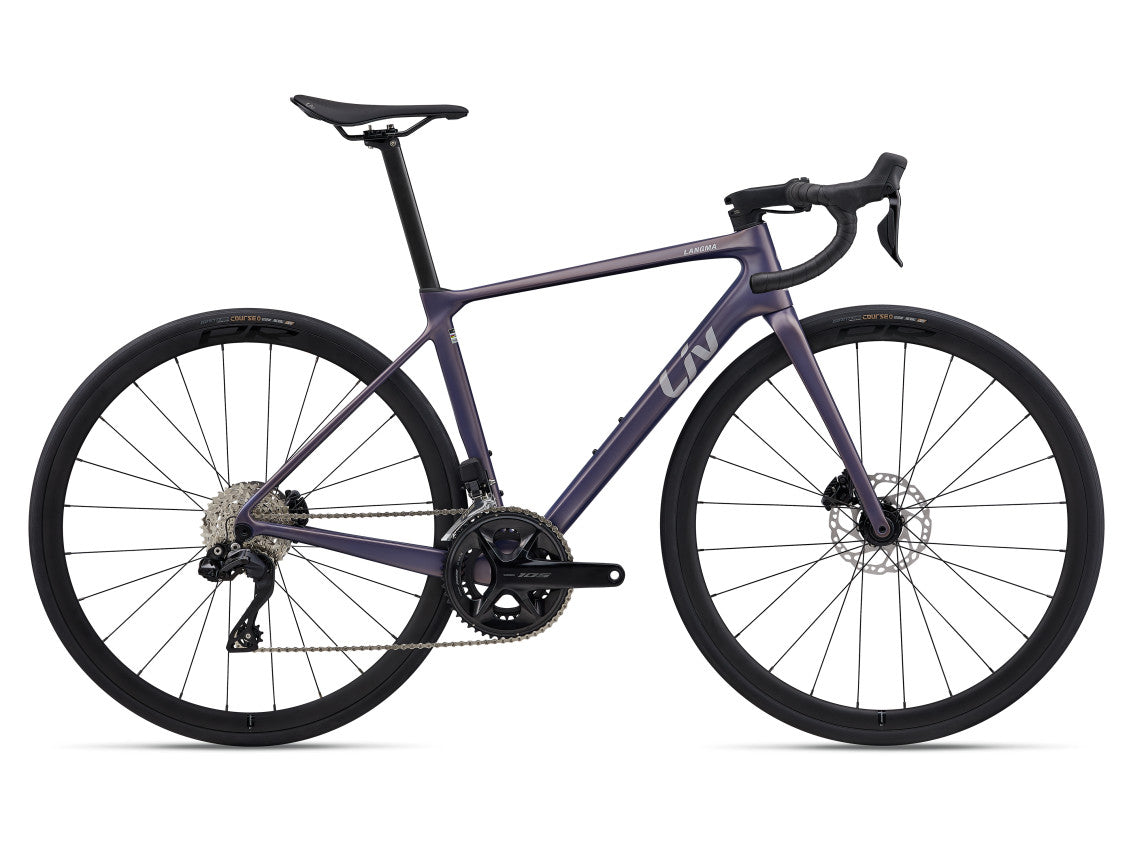

• Image 1 of 1 - METEORITE MIST - A
Liv Logo

Langma Advanced 1

$4,999.00
Tax included
The official bike of road riding season, the Langma Advanced was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

QOM-LEVEL EFFICIENCY

The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.

LIMIT-PUSHING CONTROL

Up to 33mm tyre clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.

GAP-WIDENING AERO

With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

Bike Geometry Diagram
Code Name XS S M
A Seat Tube Length (mm) (inch) 420 450 480
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 508 524 540
D Head Tube Length (mm) (inch) 120 135 155
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 49 49 49
G Trail (mm) (inch) 68 61 58
H Wheelbase (mm) (inch) 973 977 984
I Chain Stay Length (mm) (inch) 405 405 405
J Bottom Bracket Drop (mm) (inch) 72 70 70
K Stack (mm) (inch) 517 532 553
L Reach (mm) (inch) 370 377 382
M Stand Over Height (mm) (inch) 707 736 763
O Stem Length (mm) (inch) 80 90 100
P Crank Length (mm) (inch) 165 170 170

Specifications

Sizes XS, S, M
Colours Meteorite Mist
Frame Advanced-grade Composite, 12x142mm thru-axle, disc
Fork Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar Liv Contact XS:36cm, S:38cm, M:40cm
Grips Liv Stratus Elite 2.0
Stem Giant Contact AeroLight XS:80mm, S:90mm, M:100mm
Seatpost Giant Variant, composite, -5/+15mm offset
Saddle Liv Approach
Pedals N/A
Shifters Shimano 105 Di2
Front derailleur Shimano 105 Di2 FD-R7150
Rear derailleur Shimano 105 Di2 RD-R7150
Brakes Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors, [F] 160mm, [R] 140mm
Brake levers Shimano 105 Di2
Cassette Shimano 105, 12-speed, 11x34
Chain KMC X12L-1
Crankset Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm
Bottom bracket Shimano, press fit
Rims Giant P-R1, [F]30mm, [R]30mm
Hubs 12mm thru-axle
Spokes Sapim
Tires Giant Gavia Course 0, tubeless, 700x28c, folding
Extras Tubeless prepared, 33mm max tyre size
Max tire clearance 33mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
