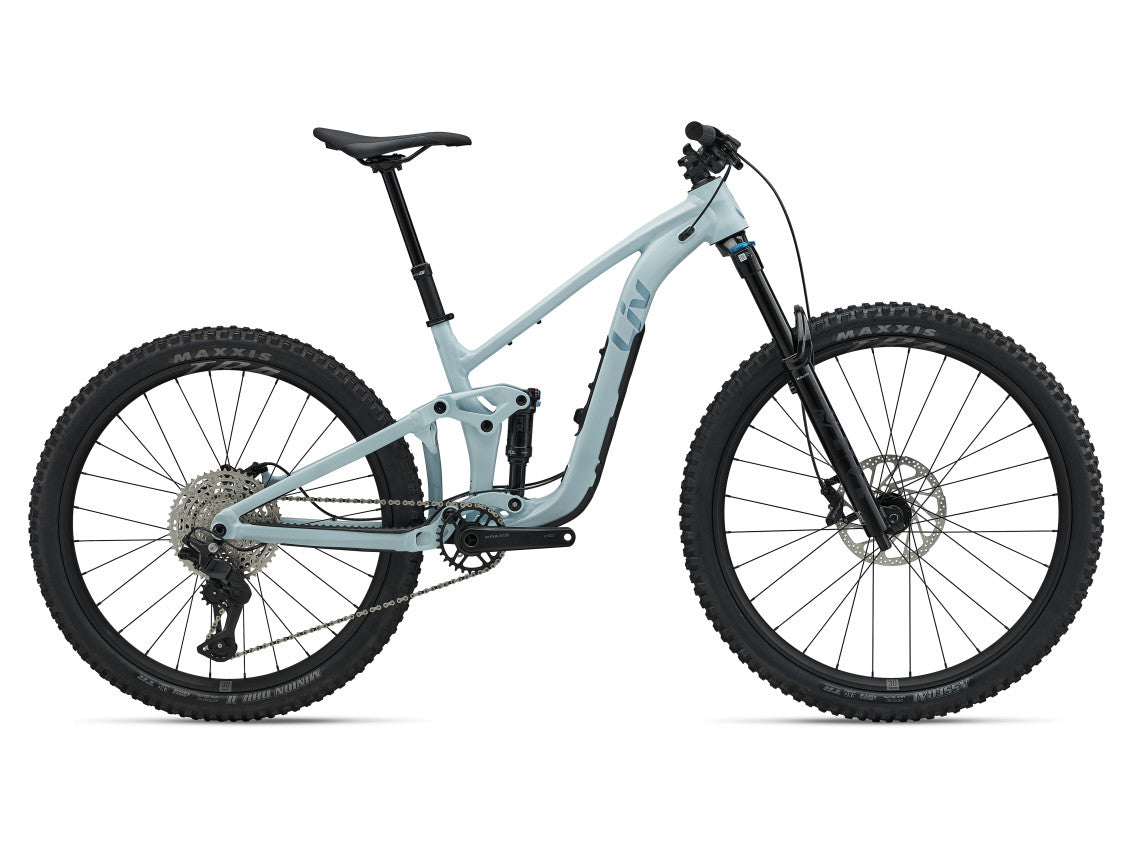

• Image 1 of 1 - MY27IntrigueX2_ColorAMorningHaze
Liv Logo

Intrigue X 2

$4,499.00
Tax included
The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customisable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

Performance Mid Travel Trail

Constructed with lightweight and durable ALUXX SL-grade aluminium, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

Adjustable Frame Geometry

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customise the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimise your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for size M

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. The medium frame size comes equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    150 cm 163 cm
  • S
    158 cm 169 cm
  • M
    164 cm 175 cm
Bike Geometry Diagram
Code Name XS S M
A Seat Tube Length (mm) (inch) 370 390 420
A1 Seat Post Insertion Depth (mm) (inch) 240 260 290
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 548 | 547 | 546 564 | 563 | 562 582 | 581 | 580
D Head Tube Length (mm) (inch) 95 100 105
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44
G Trail (mm) (inch) 134.2 | 131.3 | 128.3 134.1 | 131.3 | 128.3 134.1 | 131.3 | 128.3
H Wheelbase (mm) (inch) 1159 | 1159 | 1158 1176 | 1176 | 1175 1202 | 1201 | 1201
I Chain Stay Length (mm) (inch) 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438
J Bottom Bracket Drop (mm) (inch) 25 | 20 | 15 25 | 20 | 15 40 | 35 | 30
K Stack (mm) (inch) 615 | 613 | 610 620 | 617 | 614 621 | 619 | 616
L Reach (mm) (inch) 397 | 401 | 405 412 | 415 | 420 436 | 440 | 444
M Stand Over Height (mm) (inch) 730 | 734 | 738 733 | 737 | 742 745 | 749 | 754
O Stem Length (mm) (inch) 40 50 50
P Crank Length (mm) (inch) 165 170 170

Specifications

Sizes XS, S, M
Colours Morning Haze
Frame ALUXX SL-grade Aluminium front and rear triangles, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, rear wheel, 27.5" [XS/S], 29" [M], integrated downtube storage, 55mm Chainline
Fork Fox 36 Float Rhythm, 150mm, GRIP damper, 15x110mm Kabolt X thru-axle, 44mm offset
Shock Fox Float Performance, 2 position, custom tuned for Liv
Handlebar Giant Contact TR35, alloy, 20mm rise
Grips Liv Tactal Pro Single lock-on
Stem Giant Contact SL 35 XS: 40mm, S: 50mm, M: 50mm
Seatpost Giant Contact Switch AT dropper, adjustable travel, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm
Saddle Liv Sylvia
Pedals N/A
Shifters Shimano Deore, SL-M6200, 1x12
Front derailleur N/A
Rear derailleur Shimano Deore, M7200, Shadow
Brakes TRP EVO Comp, hydraulic, TRP [F] 203mm, [R] 180mm
Brake levers TRP EVO Comp
Cassette Shimano Deore 6200, 10x51
Chain KMC X12
Crankset Praxis Cadet M24, 30T, Alloy Chainring, 55mm chainline XS:165mm, S:170mm, M:170mm
Bottom bracket Praxis press fit
Rims Giant TRA Hookless Tubeless ready Alloy, 30mm inner width 27.5" rear wheel [XS/S], 29" rear wheel [M]
Hubs [F] Giant Boost Alloy Hub, 6 Bolt, Sealed Bearing, 28H [R] Giant Boost Alloy Hub, 6 Bolt, Sealed Bearing, HG, 28H
Spokes Sapim, 28, J-bend
Tyres [F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO, TR [R] Maxxis Minion DHR II 27.5x2.4 [XS/S], 29x2.4 [M], WT, MaxxTerra, EXO, TR tubeless
Extras Tubeless prepared, chain guide, 3M tailgate protector
Max tyre clearance 2.5"
Max chainring size 34t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
