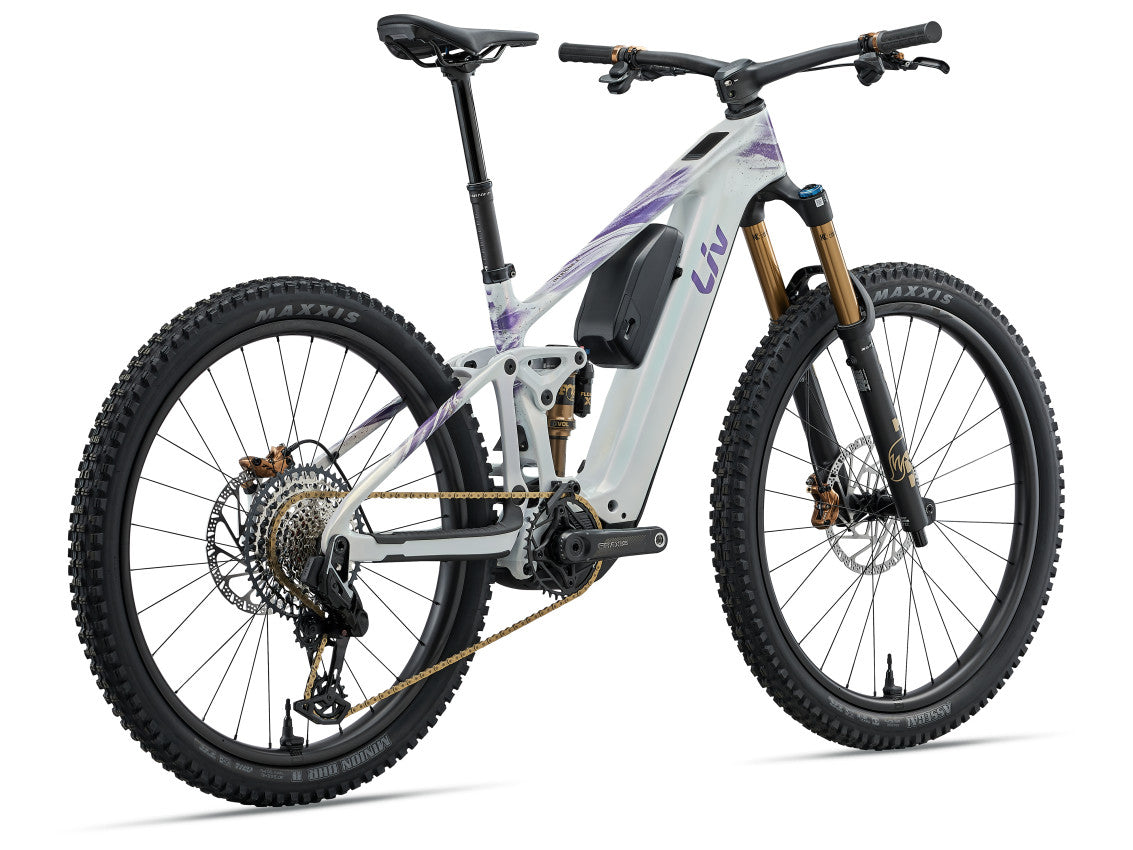

Intrigue Advanced E+ 0

$14,999.00

Tax included

Chase the next ridge. Clean the big climb. Get after it. Our new full-power carbon e-trail bike hits the sweet spot of power, weight, and handling. Keep it light or add the range extender for an epic day. Defy gravity with sustained support, smooth power delivery, and intelligent traction control. Charge technical terrain with adjustable geometry, MX wheels, and Maestro suspension. The new Intrigue Advanced E+ is ready to move more mountain.

Size

XS Sm Md

Colour

Prism Pearl

Product variants

Techs & Features

MORE USABLE POWER

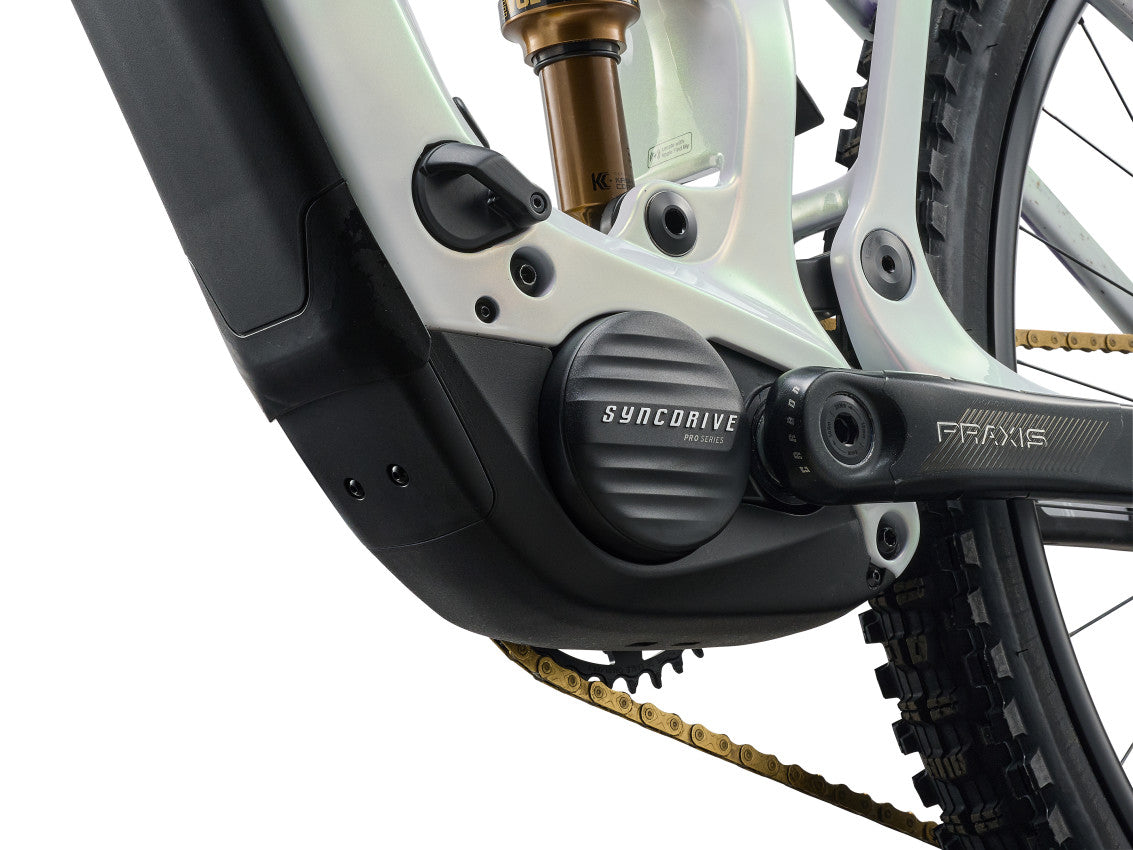

The 48 V SyncDrive Pro 4 system delivers sustained 120 Nm support and 850 W peak power for steep, technical climbs. Zero-cadence torque-based response engages in just 0.28 seconds, giving you immediate support to restart and maintain momentum from low-speed situations. Synchronized Power Matrix reads rider and bike inputs to deliver support that feels connected and intuitive, while Traction Control detects rear-wheel slip and refines motor support to help you regain grip when climbs get steep and loose.

MORE RANGE FLEXIBILITY

The EnergyPak Smart 560X packs 560 Wh of full-power capacity into a compact 2.6 kg battery, with a lifespan of up to 2,300 cycles for long-term reliability. Its high-density 352 Wh/L design allows the battery to integrate cleanly into the frame, helping the bike feel easier to move, quicker to respond, and more natural underneath you when the trail gets tight or technical. Add the compatible 280 Wh EnergyPak Plus range extender for up to 840 Wh total capacity—so you can go light or go long.

MORE RESPONSIVE HANDLING

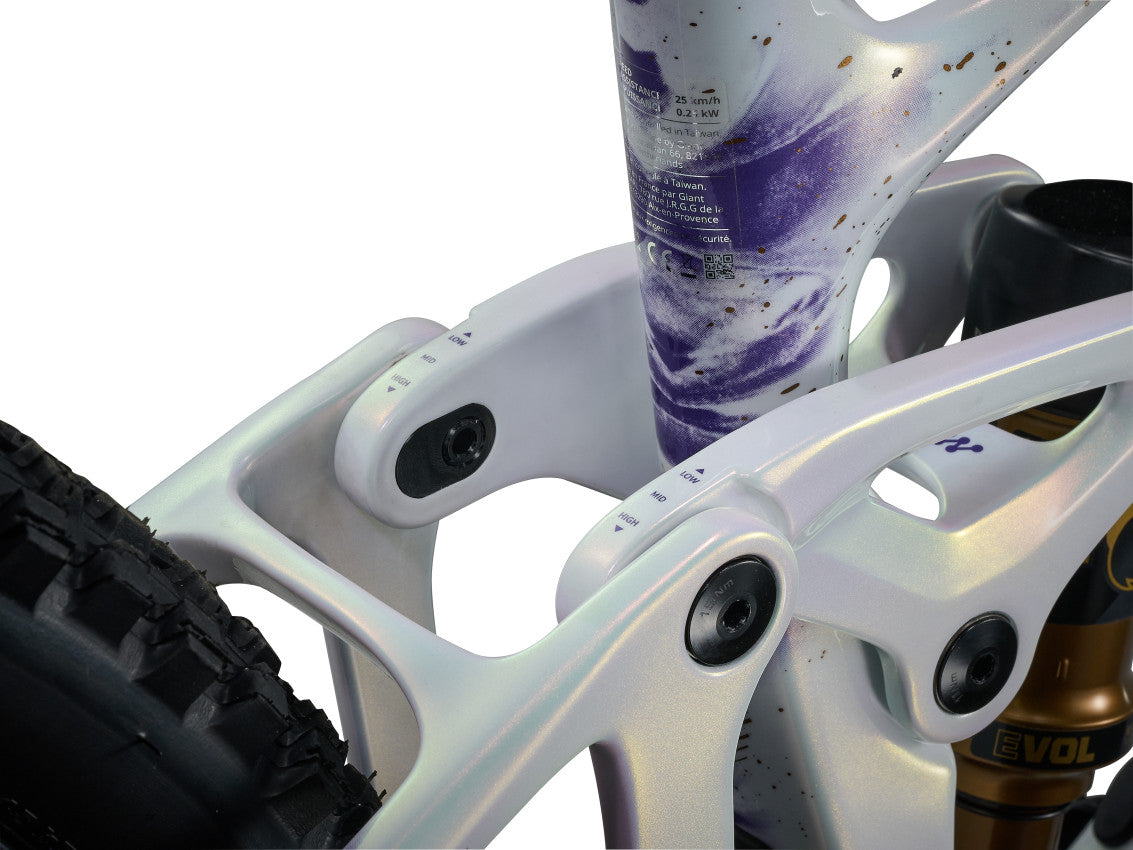

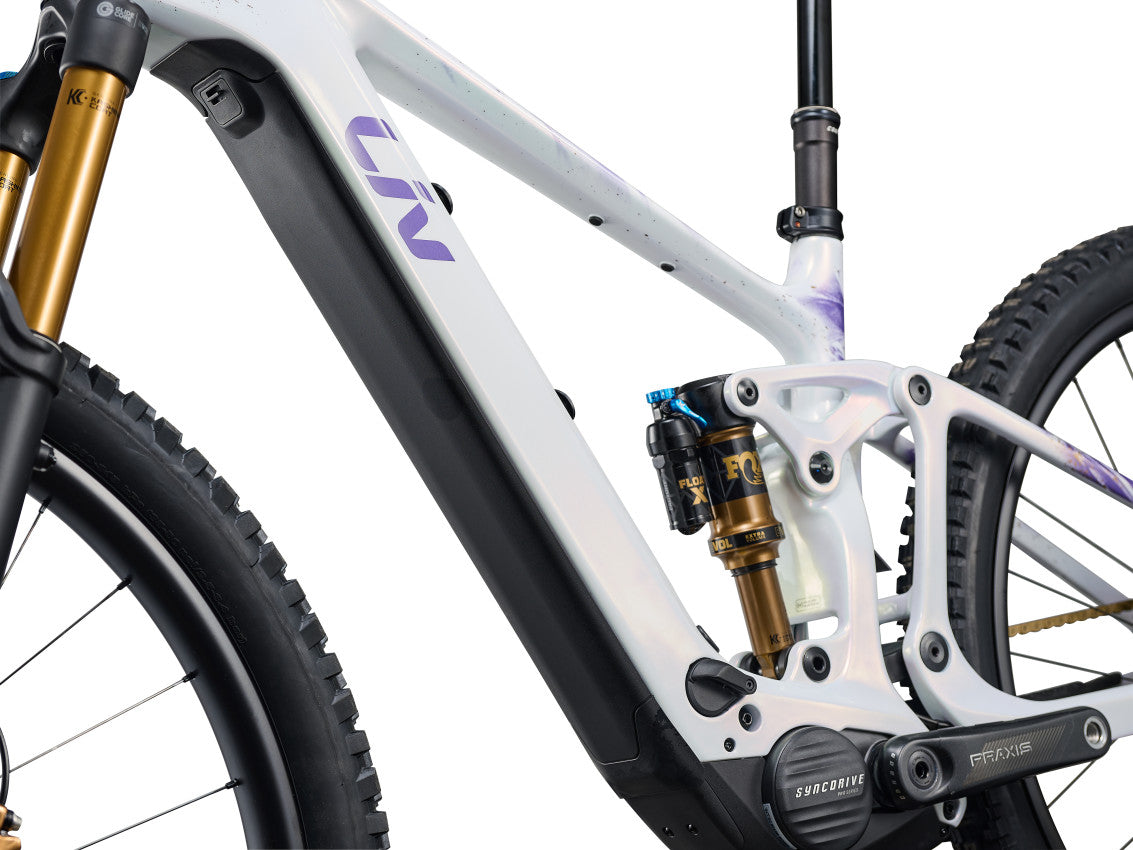

Full Maestro suspension kinematics are preserved through a custom motor housing, keeping the rear wheel active for pedaling stability, traction, and control over rough terrain. With 150mm rear travel, a 160mm fork, MX wheels, a 3-position flip chip, and a 20.0 kg complete bike weight, the chassis stays composed and easier to place through technical climbs, tight corners, and demanding descents. To handle the added forces of full-power riding, TRX and TRA HD WheelSystems use high-torque titanium ratchet hubs that are 20% stronger in fatigue testing and the 300 Nm-rated high-torque KMC chain delivers 35% greater pin strength versus leading benchmark 12-speed chains.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

XS

150 cm 163 cm
S

158 cm 169 cm
M

164 cm 175 cm

Name	XS	S	M
A Seat Tube Length (mm) (inch)	380	15	400	15.7	425	16.7
A1 Seat Post Insertion Depth (mm) (inch)	225	8.9	245	9.6	270	10.6
B Seat Tube Angle (degrees)	76.6° \| 77.0° \| 77.4°	76.6° \| 77.0° \| 77.4°	76.6° \| 77.0° \| 77.4°
C Top Tube Length (mm) (inch)	552 \| 550 \| 548	21.7 \| 21.7 \| 21.6	565 \| 563 \| 561	22.2 \| 22.2 \| 22.1	598 \| 596 \| 594	23.5 \| 23.5 \| 23.4
D Head Tube Length (mm) (inch)	95	3.7	105	4.1	115	4.5
E Head Tube Angle (degrees)	64.1° \| 64.5° \| 64.9°	64.1° \| 64.5° \| 64.9°	64.1° \| 64.5° \| 64.9°
F Fork Rake (mm) (inch)	44	1.7	44	1.7	44	1.7
G Trail (mm) (inch)	125.4 \| 122.5 \| 119.6	4.9 \| 4.8 \| 4.7	125.4 \| 122.5 \| 119.6	4.9 \| 4.8 \| 4.7	125.4 \| 122.5 \| 119.6	4.9 \| 4.8 \| 4.7
H Wheelbase (mm) (inch)	1184 \| 1183 \| 1182	46.6 \| 46.6 \| 46.5	1199 \| 1198 \| 1197	47.2 \| 47.2 \| 47.1	1232 \| 1231 \| 1230	48.5 \| 48.5 \| 48.4
I Chain Stay Length (mm) (inch)	443	17.4	443	17.4	443	17.4
J Bottom Bracket Drop (mm) (inch)	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3	17 \| 12 \| 7	0.7 \| 0.5 \| 0.3
K Stack (mm) (inch)	620 \| 618 \| 615	24.4 \| 24.3 \| 24.2	629 \| 627 \| 624	24.8 \| 24.7 \| 24.6	638 \| 636 \| 633	25.1 \| 25 \| 24.9
L Reach (mm) (inch)	409 \| 412 \| 415	16.1 \| 16.2 \| 16.3	420 \| 423 \| 426	16.5 \| 16.7 \| 16.8	448 \| 452 \| 455	17.6 \| 17.8 \| 17.9
M Stand Over Height (mm) (inch)	722 \| 727 \| 732	28.4 \| 28.6 \| 28.8	730 \| 735 \| 740	28.7 \| 28.9 \| 29.1	730 \| 735 \| 740	28.7 \| 28.9 \| 29.1
O Stem Length (mm) (inch)	40	1.6	40	1.6	40	1.6
P Crank Length (mm) (inch)	155	6.1	155	6.1	155	6.1
Q Wheel Size	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]	29" [F], 27.5" [R]

Specifications

Motor Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power

Controller Giant RideControl Ergo 5 wireless Integrated E+ System & seatpost remote

Classification ASTM/EN Class 4 EN17406 / ISO4210-2M

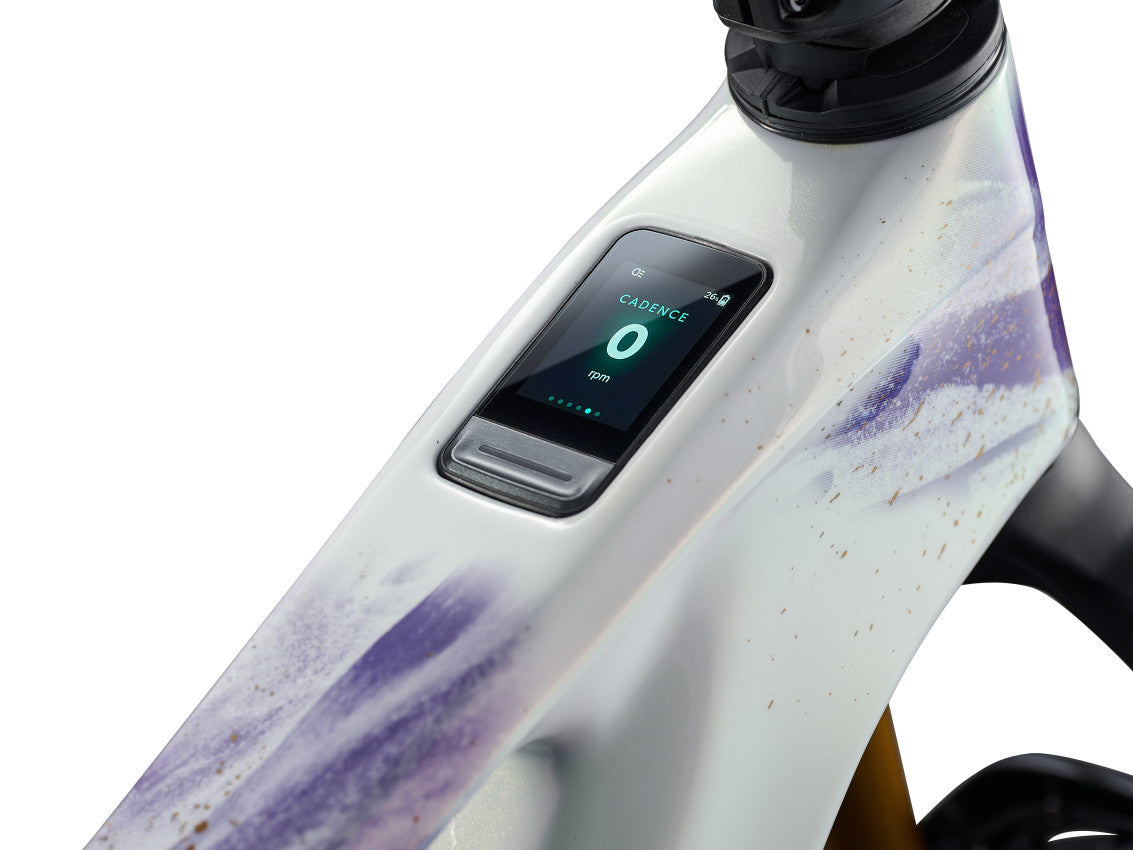

Display RideControl GO LUX, frame integrated LED display ANT+

Battery EnergyPak Smart 560Wh EnergyPak Plus 280 range extender included

Charger 48V 4A Smart Charger X

Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed

Sizes XS, S, M

Colours Prism Pearl

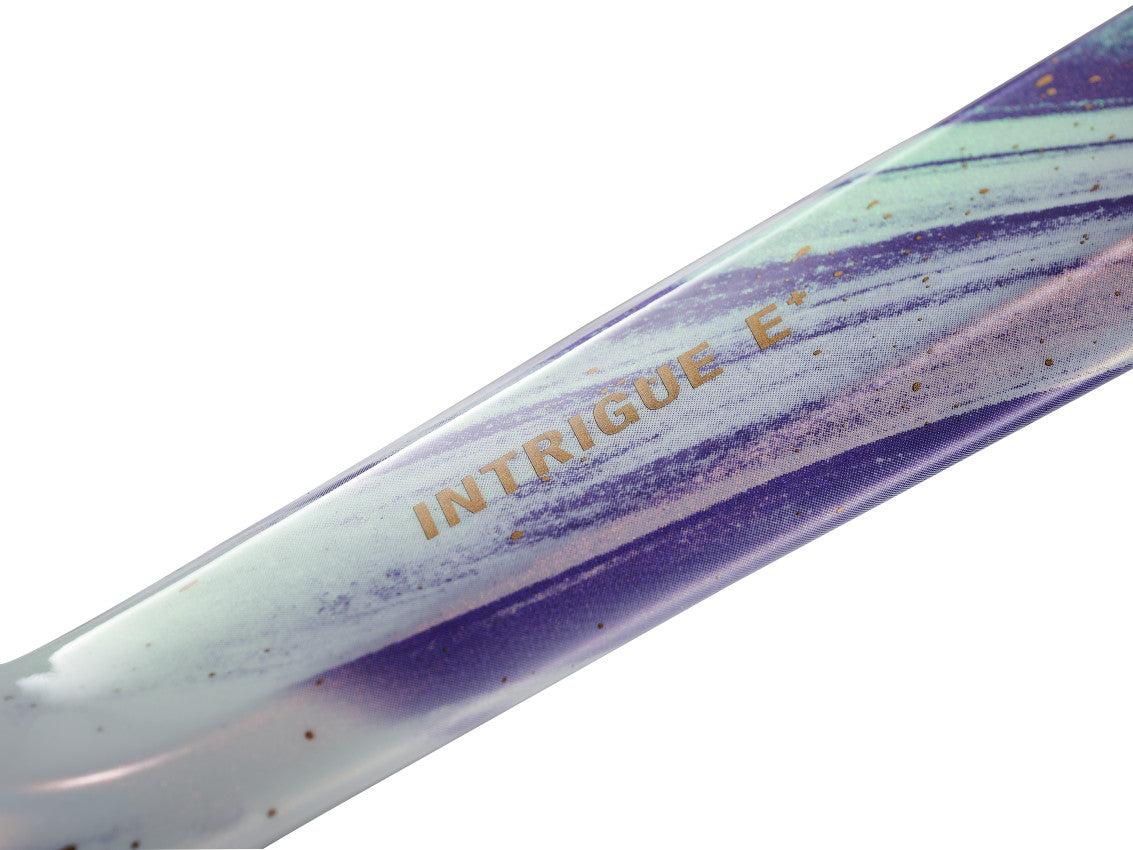

Frame Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle

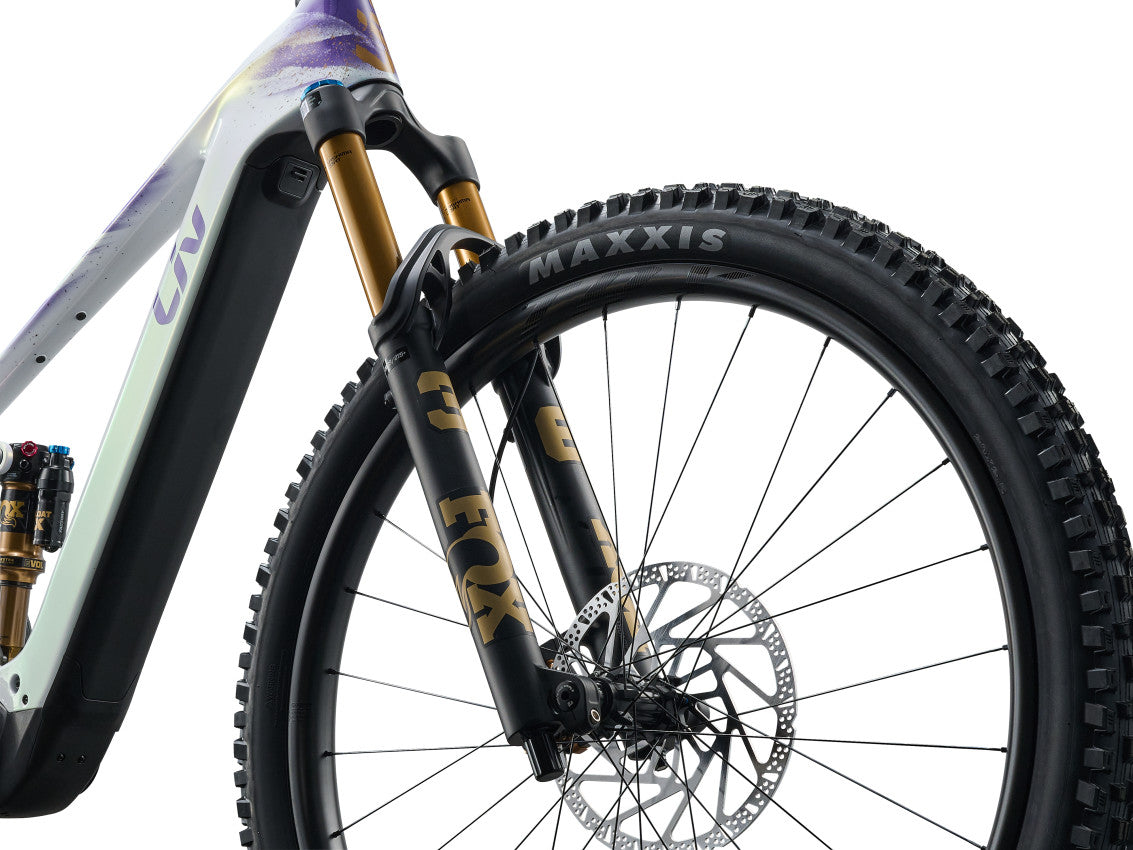

Fork Fox 36 Factory, 160mm travel, 44mm offset, GRIP X damper, Kabolt-X 15x110mm thru-axle

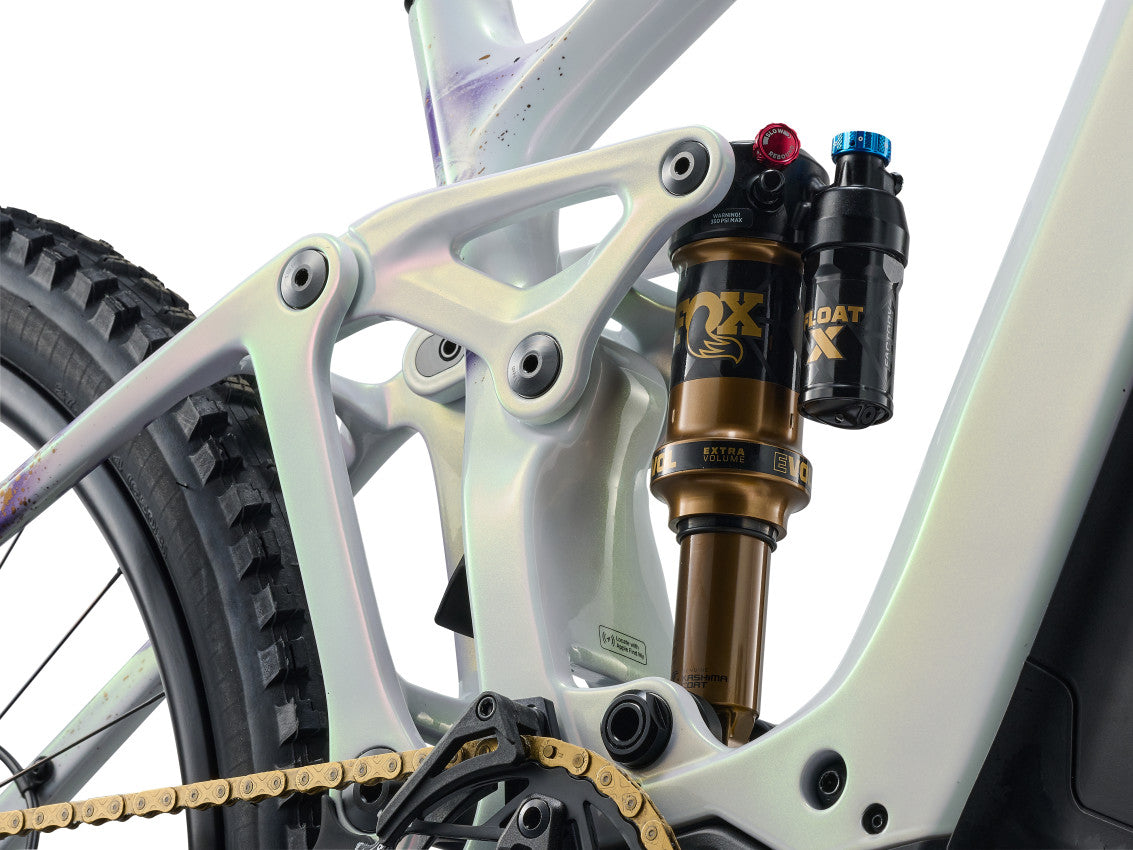

Shock Fox Float X Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned

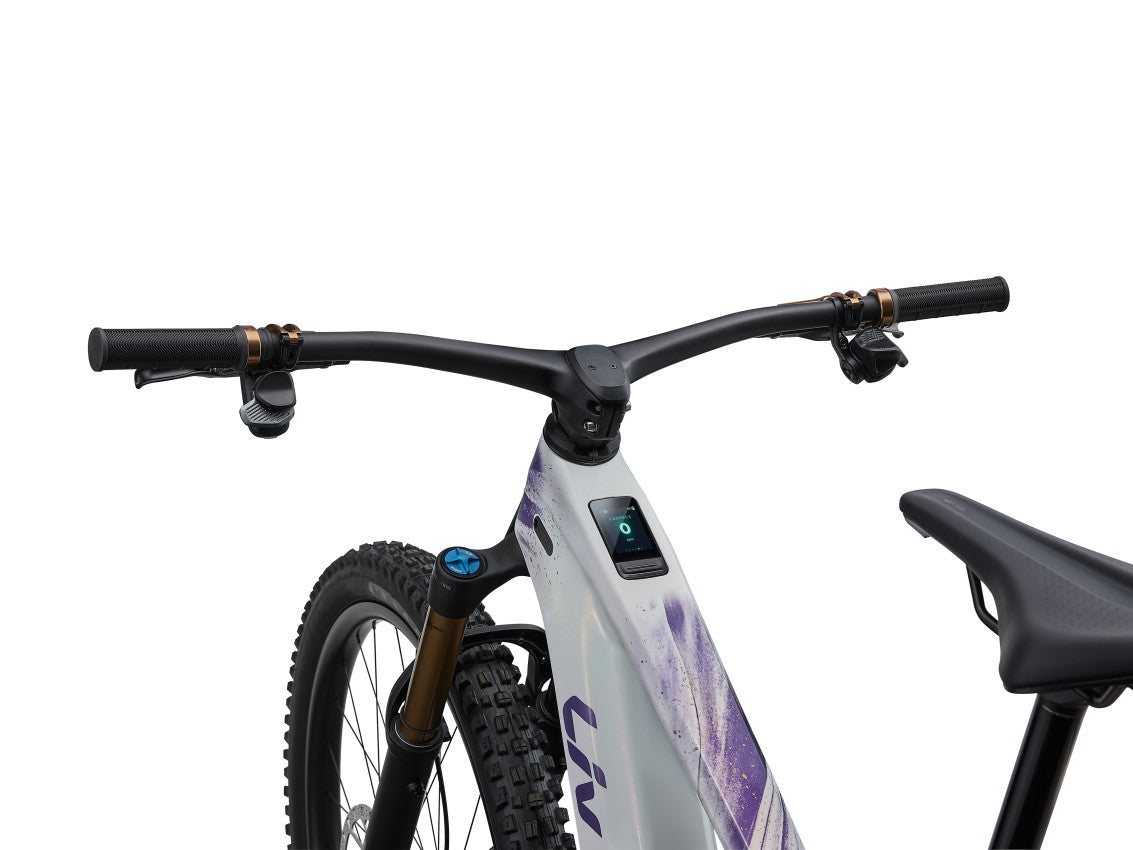

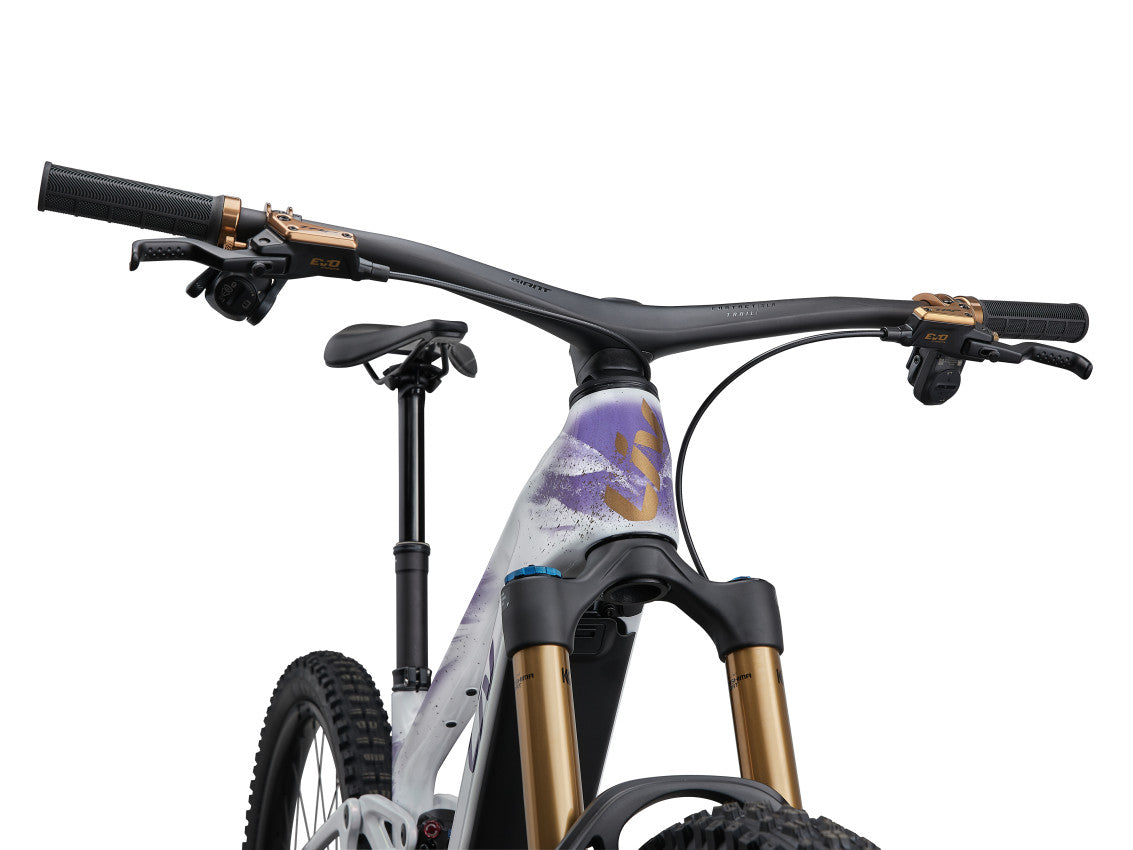

Handlebar Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 20mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System

Grips Liv Tactal Pro Single lock-on

Stem Giant Contact SLR Trail, integrated carbon 1-piece handlebar, 20mm Rise, 40/45/50mm Reach Adjust, +3/0/-3degree Angle Adjust System

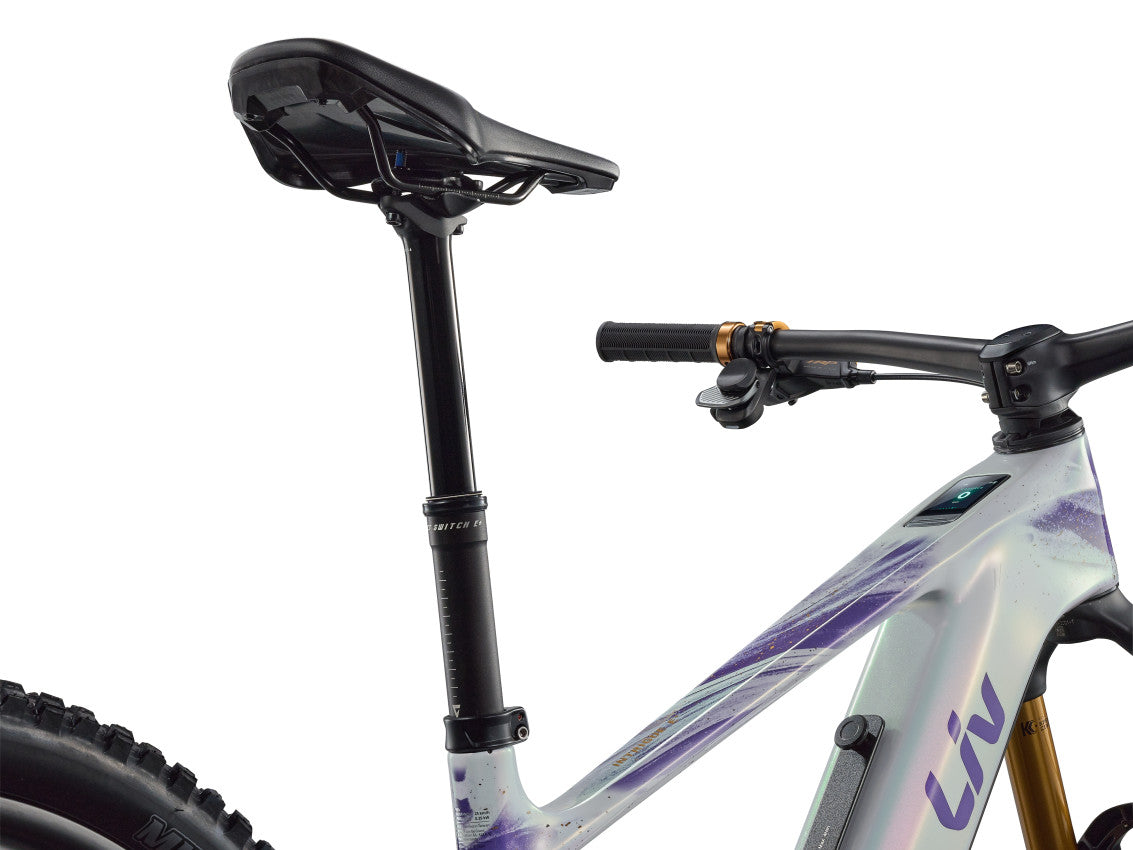

Seatpost Giant Contact Switch E, electronic travel-adjust dropper post XS: 100mm travel / 30.9 x 374mm S: 140mm travel / 30.9 x 457mm M:170mm travel / 30.9 x 514mm

Saddle Liv Sylvia SL HD

Pedals N/A

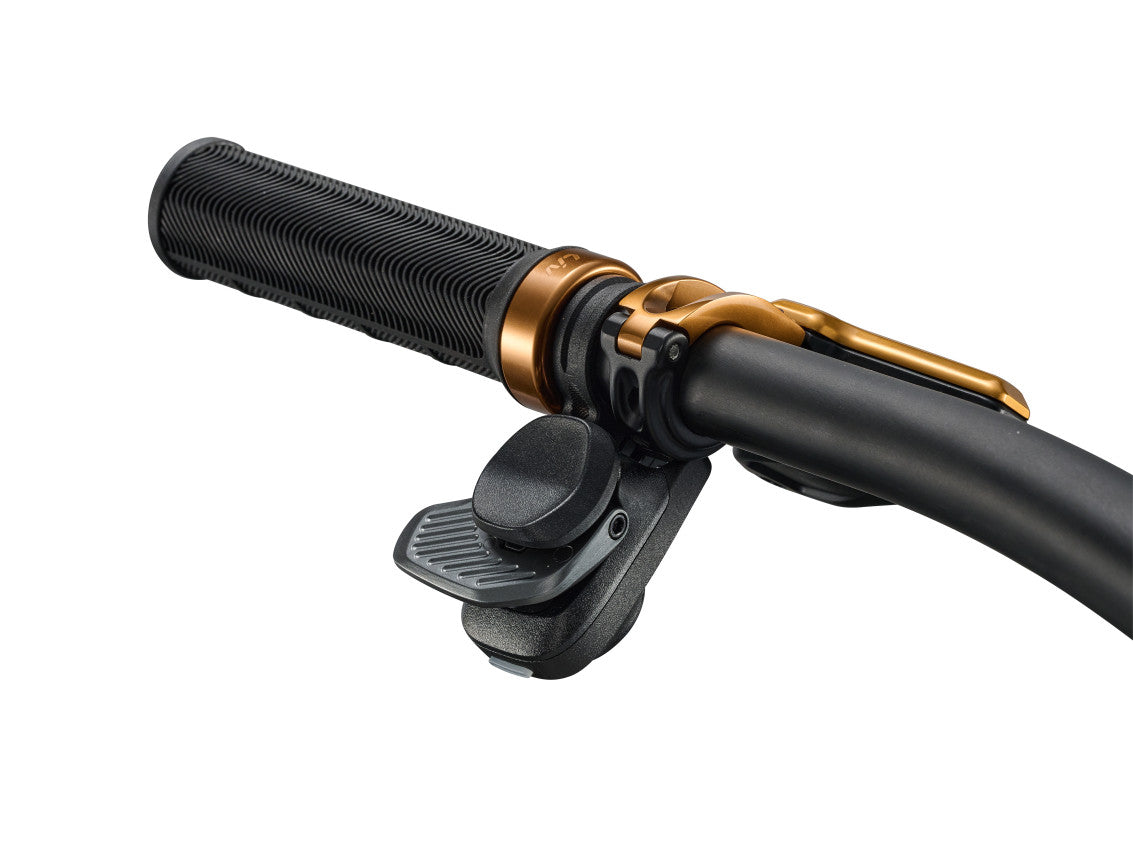

Shifters SRAM AXS Pod, Rocker Paddle, 1x12

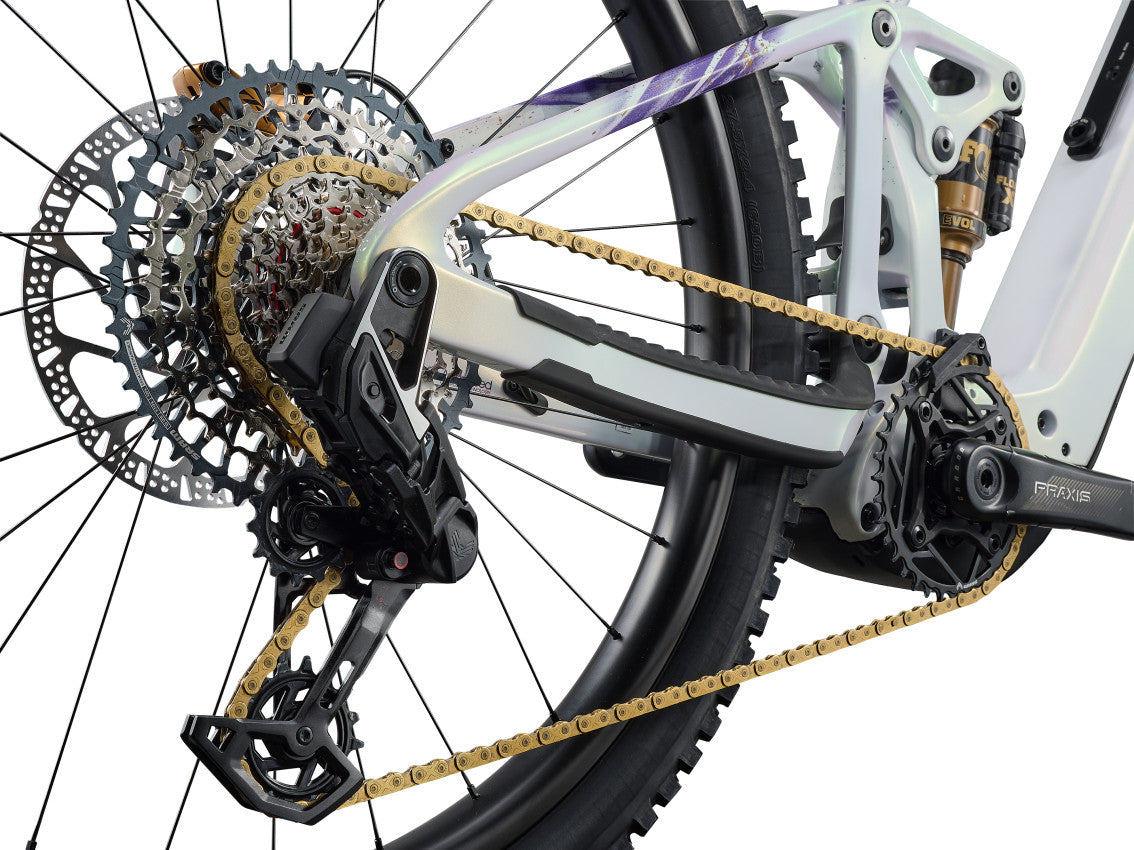

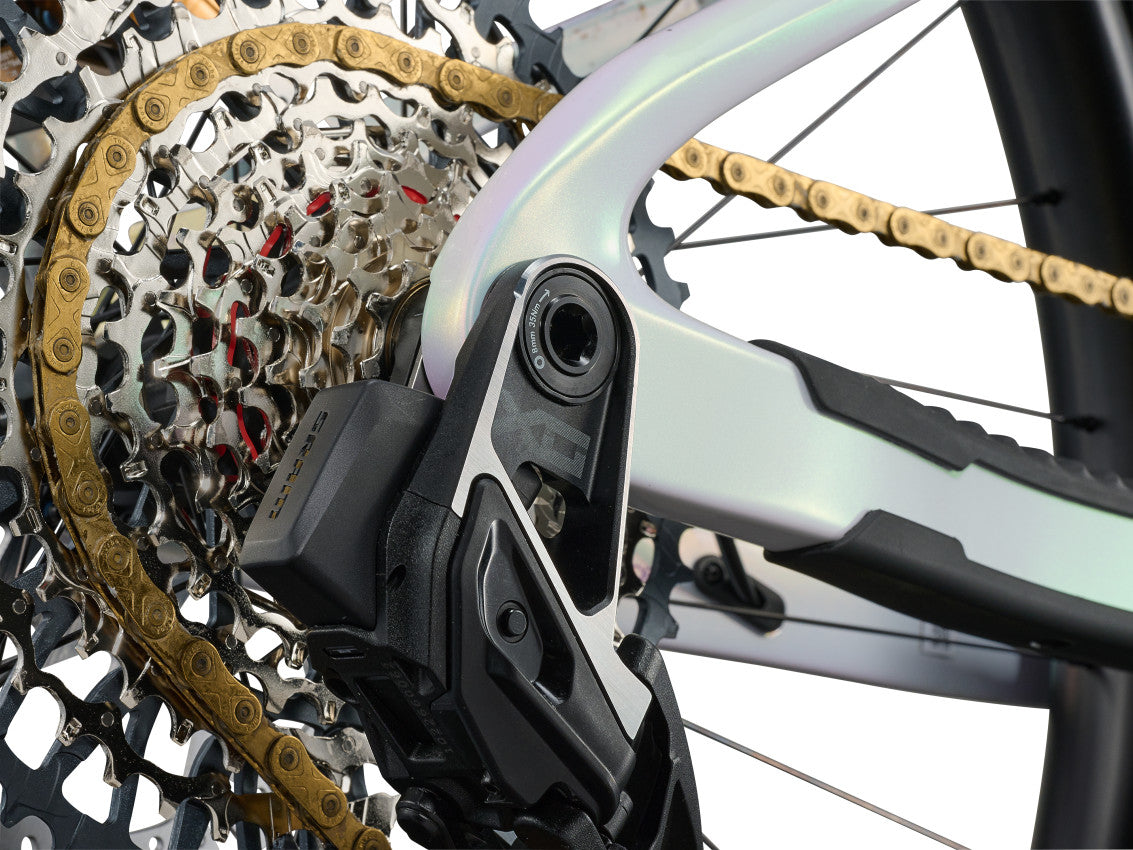

Rear derailleur SRAM X0 Eagle Transmission AXS

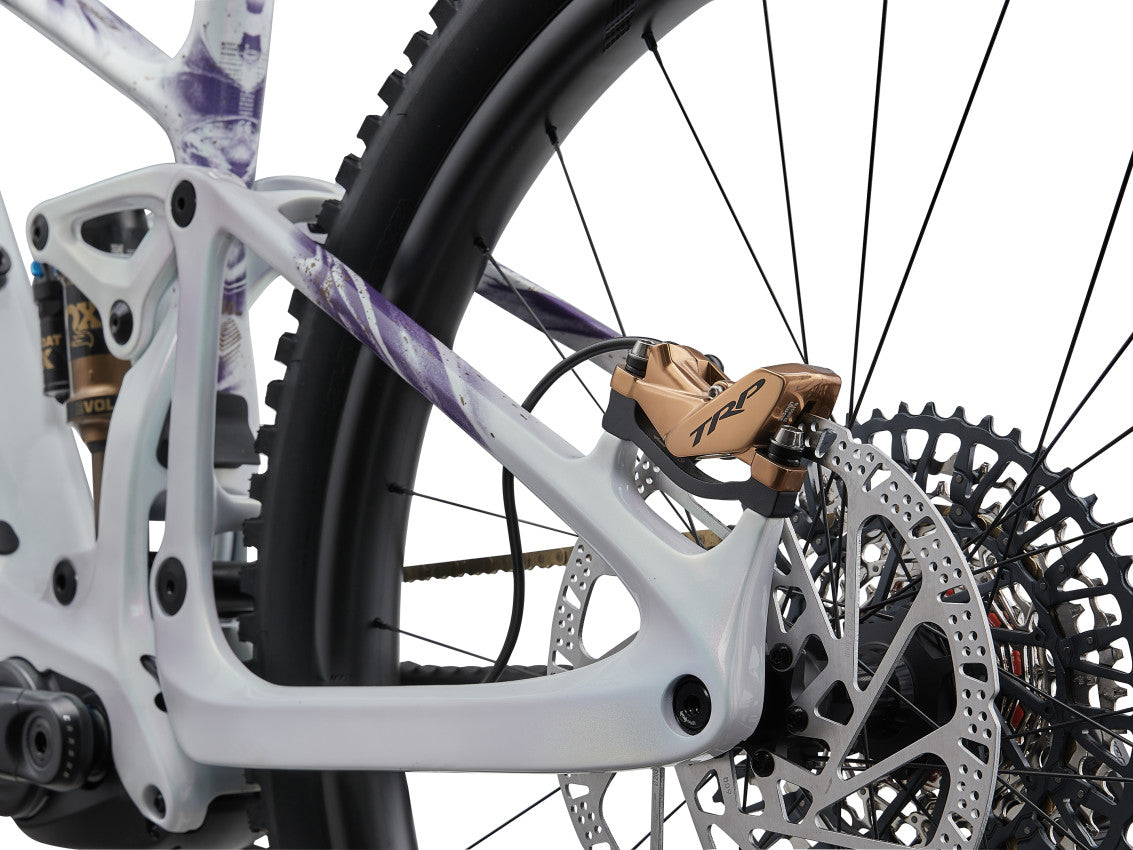

Brakes TRP EVO Pro, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm

Brake levers TRP EVO Pro

Cassette SRAM GX XS-1275 Eagle Tranmission 10-52T

Chain KMC eFlatHT

Crankset Praxis Performance Carbon e-crank arms SRAM Eagle Transmission steel direct mount, 36T chain ring XS:155mm, S: 155mm,M:155mm

Bottom bracket N/A

Rims Giant TRX Hookless Tubeless ready Carbon 29" [F] 27.5" [R] 30mm inner width

Hubs [F] Giant E-TRX MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRX MTB Alloy Hub, SRAM XD Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H

Spokes Sapim Laser, e-bike optimised

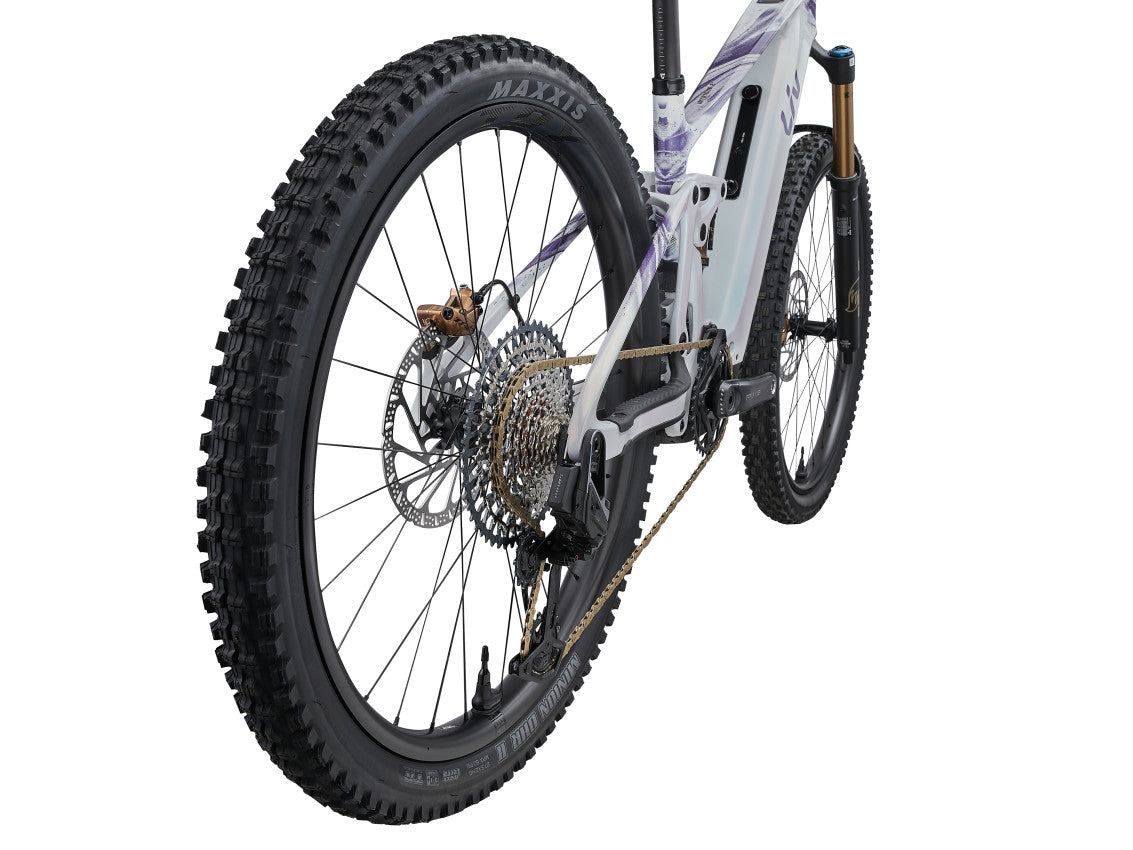

Tyres Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C Maxx Grip [F] Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, EXO+ 3C Maxx Terra [R]

Extras Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool)

Lighting Optional: Giant Recon series e-bike lights available and direct-connect compatible

Fender/chainguard Co-moulded guide 32-36T adjustable

Combined max load limit 140 kg

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
