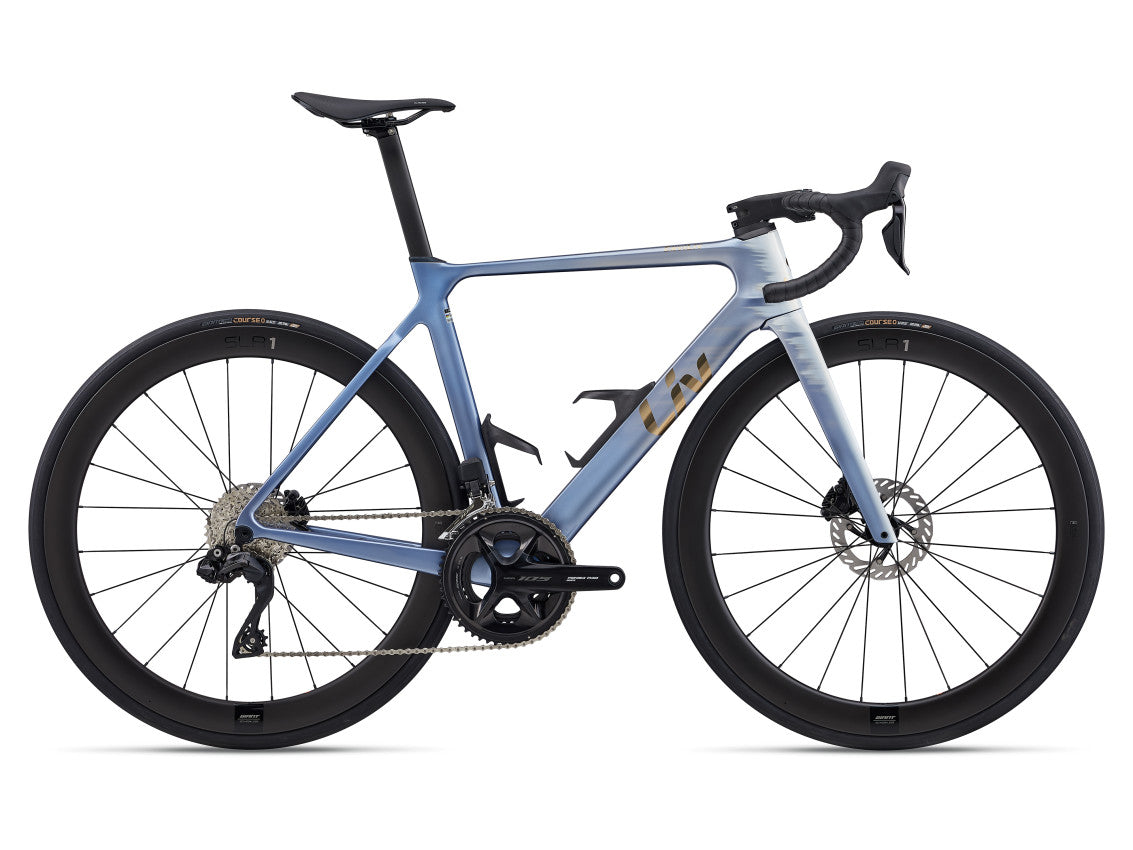

• Image 1 of 1 - DreamyBlue - A
Liv Logo

EnviLiv Advanced Pro 1

$6,999.00
Tax included
From the stage race breakaway to the final criterium lap, the all-new EnviLiv is made to be out front. We’ve redesigned our signature sprinter for optimised aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Optimised Aerodynamics

In our pursuit of maximum power and efficiency, we analyse how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and an all-new Contact SLR Aero cockpit, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and an Advanced SL-grade composite fork—resulting in 205 grams of weight savings over the previous generation.

Seamless Integration

When every second matters, so does every detail. So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

Bike Geometry Diagram
Code Name XS S M
A Seat Tube Length (mm) (inch) 470 500 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 508 524 540
D Head Tube Length (mm) (inch) 120 135 155
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 49 49 49
G Trail (mm) (inch) 66.3 59.9 56.8
H Wheelbase (mm) (inch) 973 977 984
I Chain Stay Length (mm) (inch) 405 405 405
J Bottom Bracket Drop (mm) (inch) 72 70 70
K Stack (mm) (inch) 517 532 553
L Reach (mm) (inch) 370 377 382
M Stand Over Height (mm) (inch) 732 761 787
O Stem Length (mm) (inch) 80 90 100
P Crank Length (mm) (inch) 165 170 170

Specifications

Sizes XS, S, M
Colours Dreamy Blue
Frame Advanced-grade composite, 12x142mm thru-axle, disc
Fork Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar Liv Contact SLR Aero XS:36cm, S:38cm, M:40cm
Grips Liv Stratus Elite 2.0
Stem Giant Contact SL Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm
Seatpost Giant Vector, composite, -5/+15mm offset
Saddle Liv Alacra SL
Pedals N/A
Shifters Shimano 105 Di2
Front derailleur Shimano 105 Di2 FD-R7150
Rear derailleur Shimano 105 Di2 RD-R7150
Brakes Shimano 105 Di2 hydraulic, Shimano RT-CL700 rotors, [F] 160mm, [R] 140mm
Brake levers Shimano 105 Di2
Cassette Shimano 105, 12-speed, 11x34
Chain KMC X12L-1
Crankset Shimano 105, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm
Bottom bracket Shimano, press fit
Rims Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
Spokes SAPIM CX-Ray
Tires Giant Gavia Course 0, 700x28c, folding, tubeless
Extras Computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
Max tire clearance 30mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
