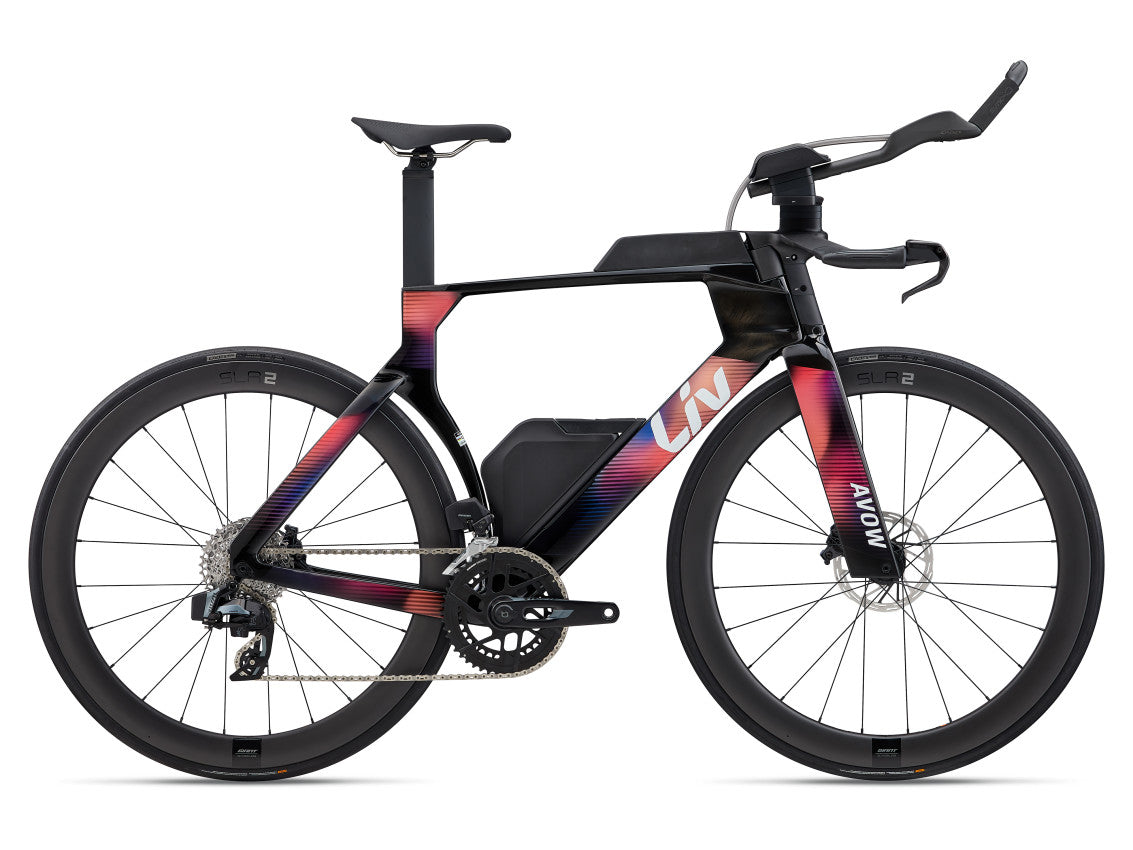

• Image 1 of 13 - MY25AvowAdvancedSL_Carbon

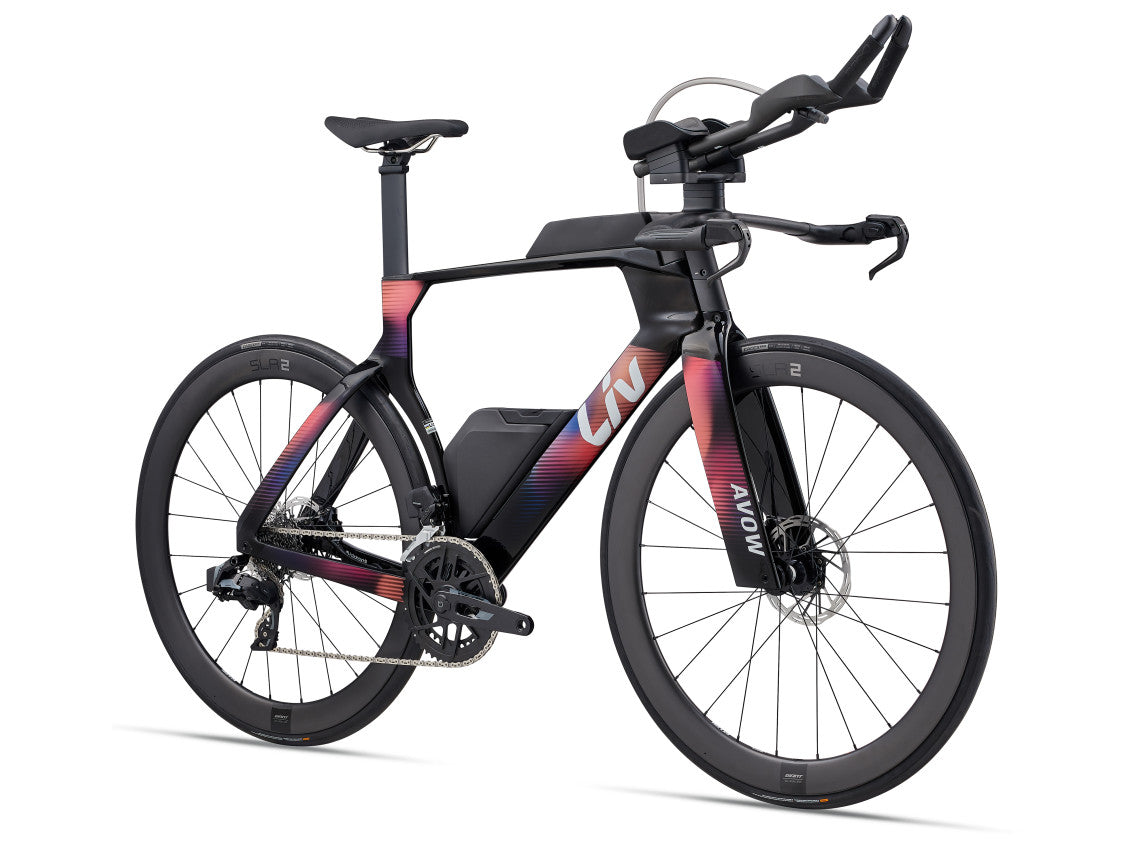

  • Image 2 of 13 - MY25AvowAdvancedSL_Carbon-Front
  • Image 3 of 13 - MY25AvowAdvancedSL_Carbon-Rear2
  • Image 4 of 13 - MY25AvowAdvancedSL_Carbon-D10

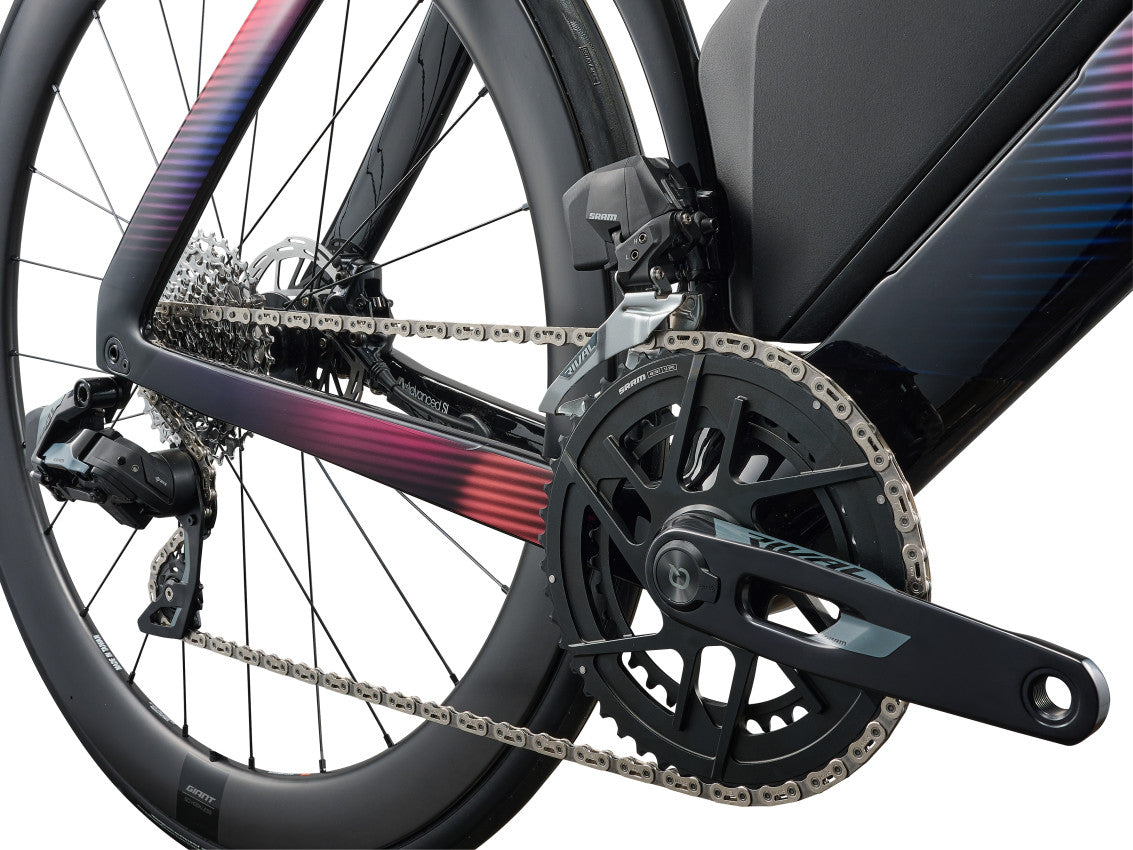

  • Image 5 of 13 - MY25AvowAdvancedSL_Carbon-D2

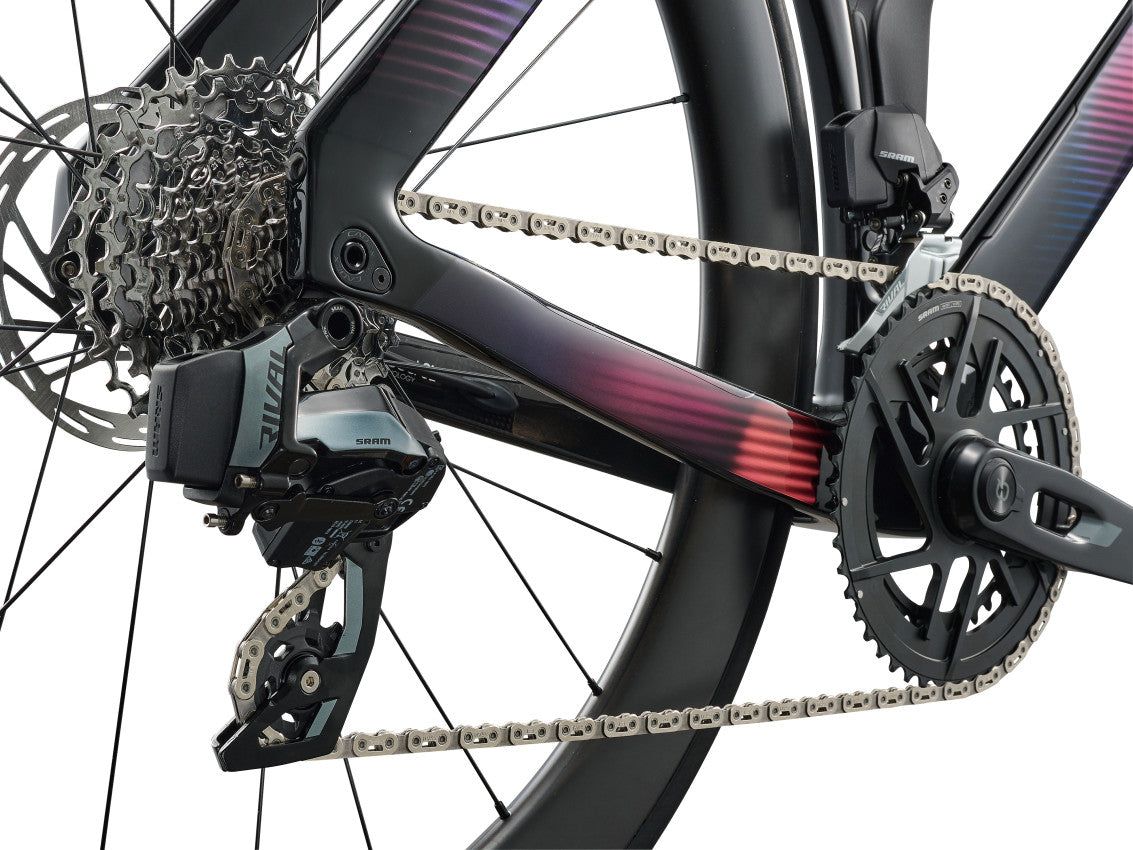

  • Image 6 of 13 - MY25AvowAdvancedSL_Carbon-D4

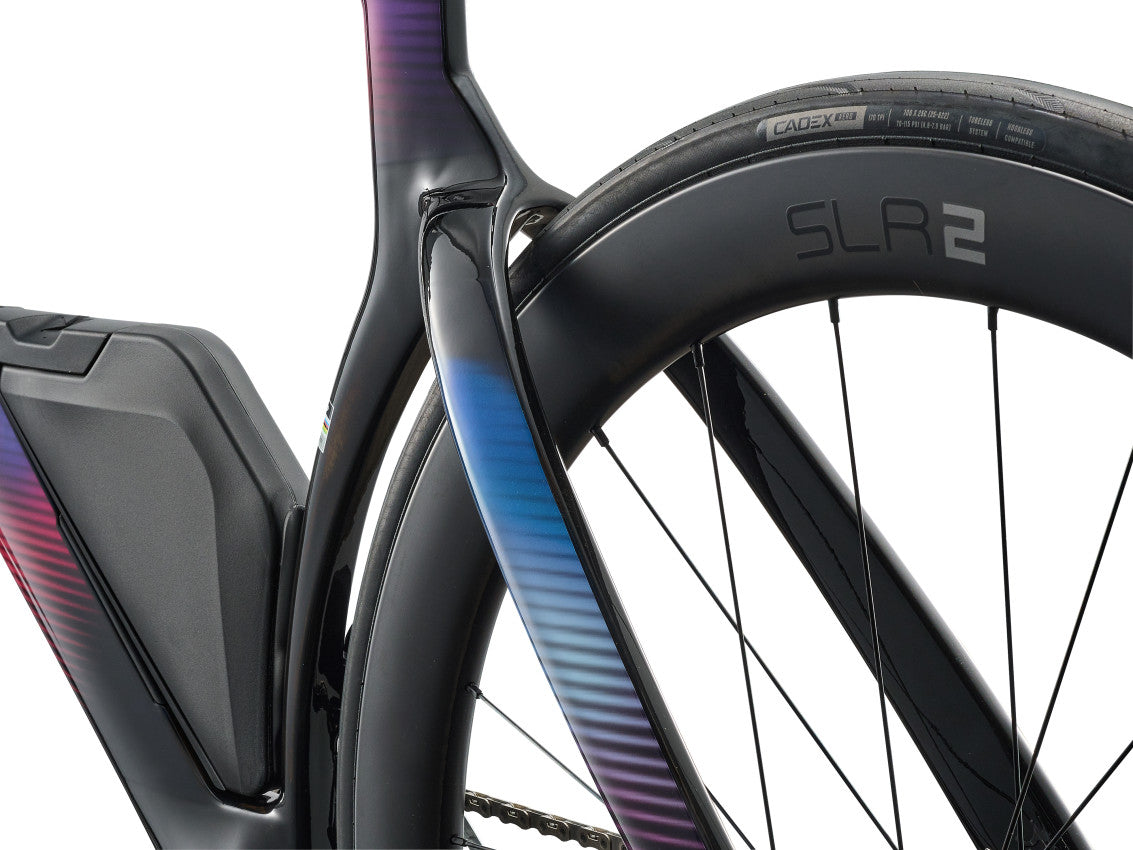

  • Image 7 of 13 - MY25AvowAdvancedSL_Carbon-D9

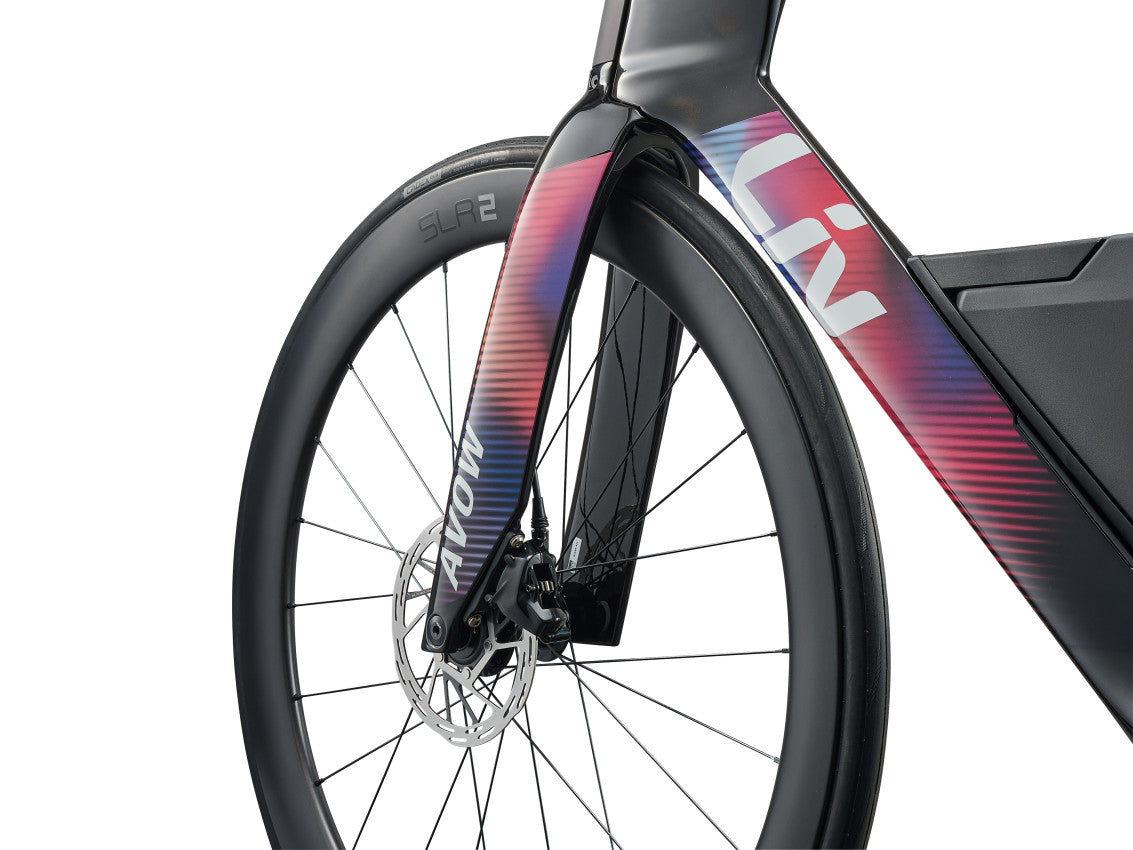

  • Image 8 of 13 - MY25AvowAdvancedSL_Carbon-D5

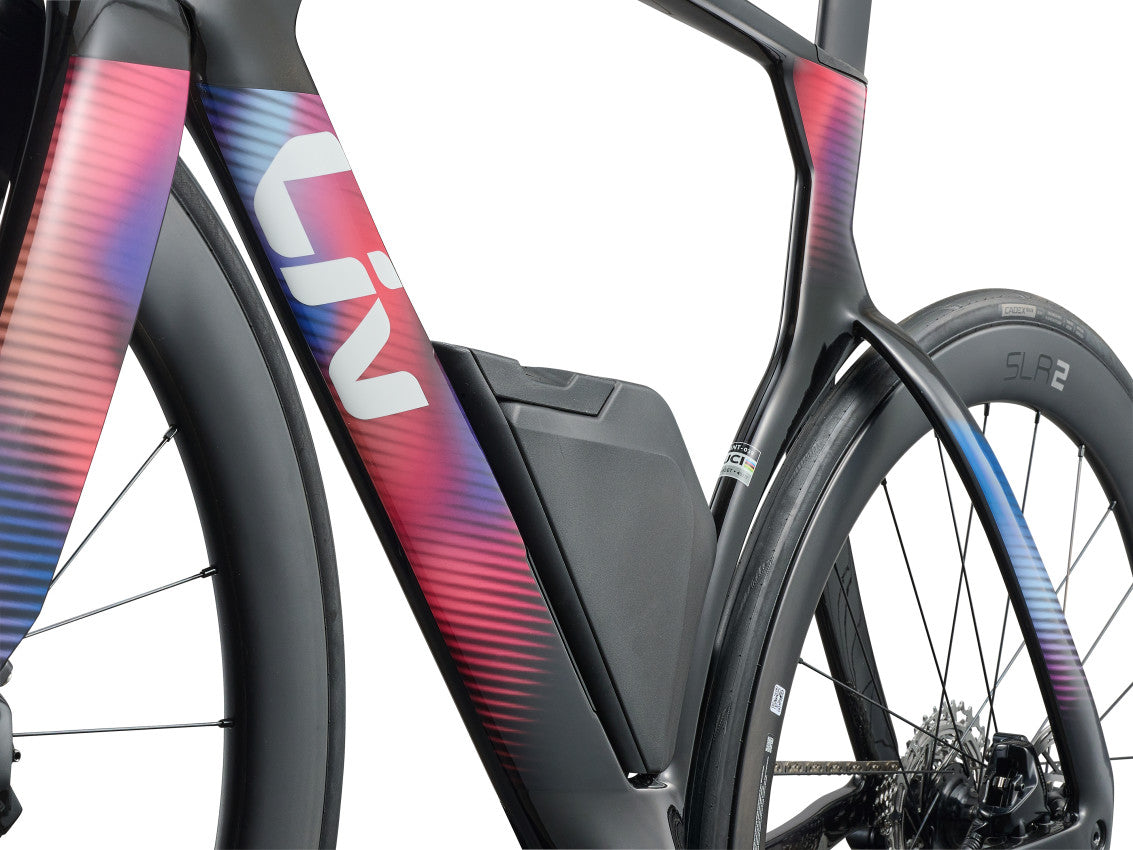

  • Image 9 of 13 - MY25AvowAdvancedSL_Carbon-D6

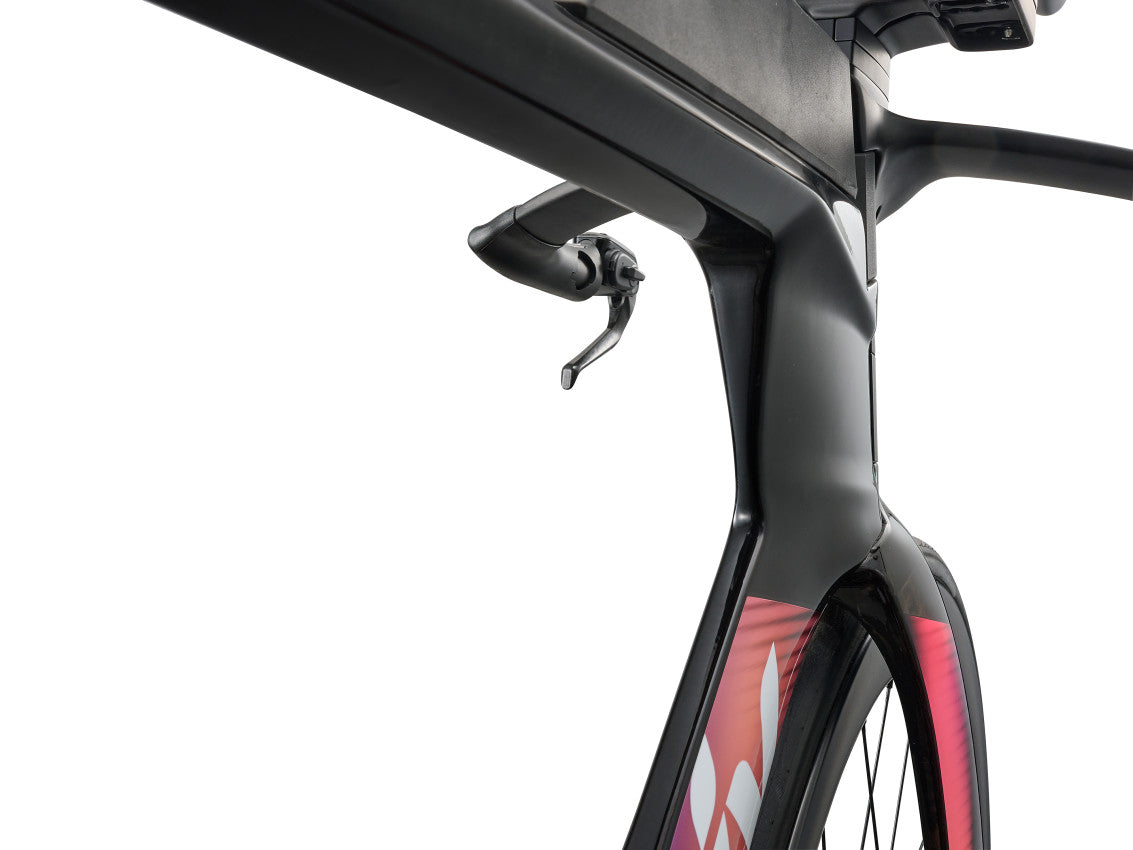

  • Image 10 of 13 - MY25AvowAdvancedSL_Carbon-D8

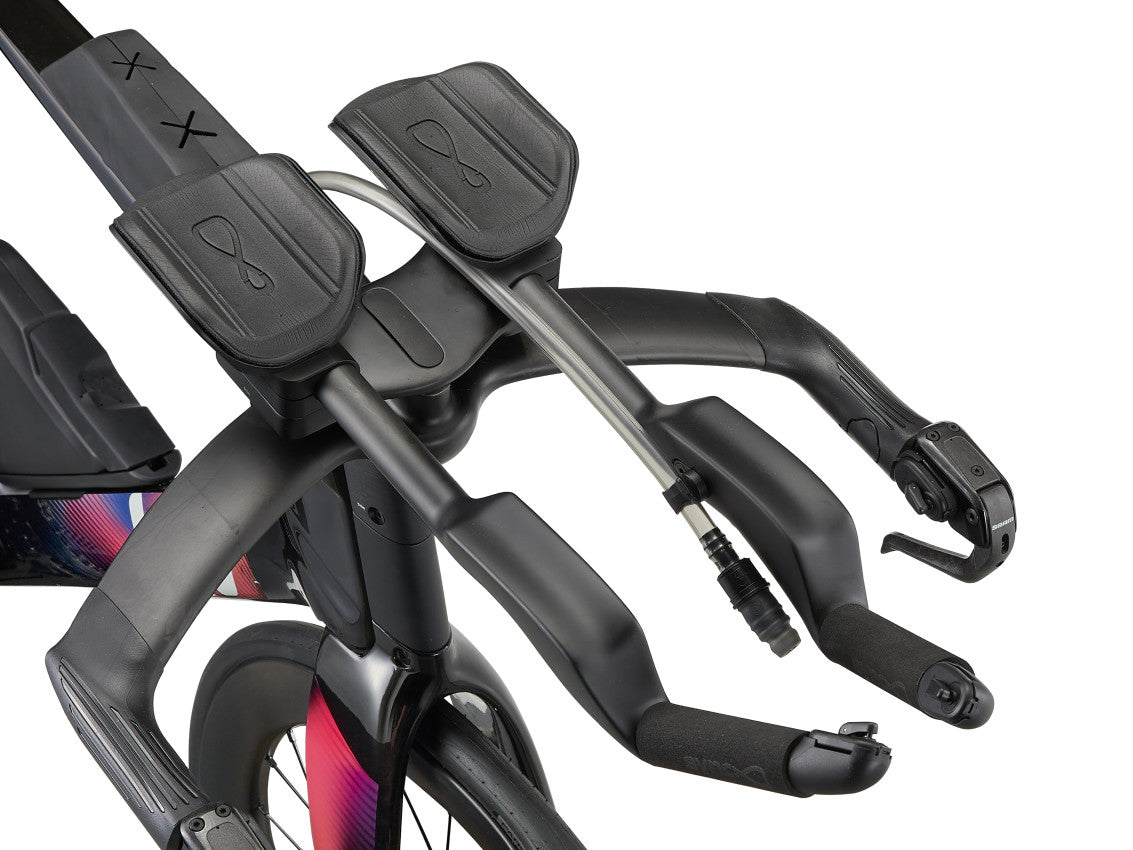

  • Image 11 of 13 - MY25AvowAdvancedSL_Carbon-D7

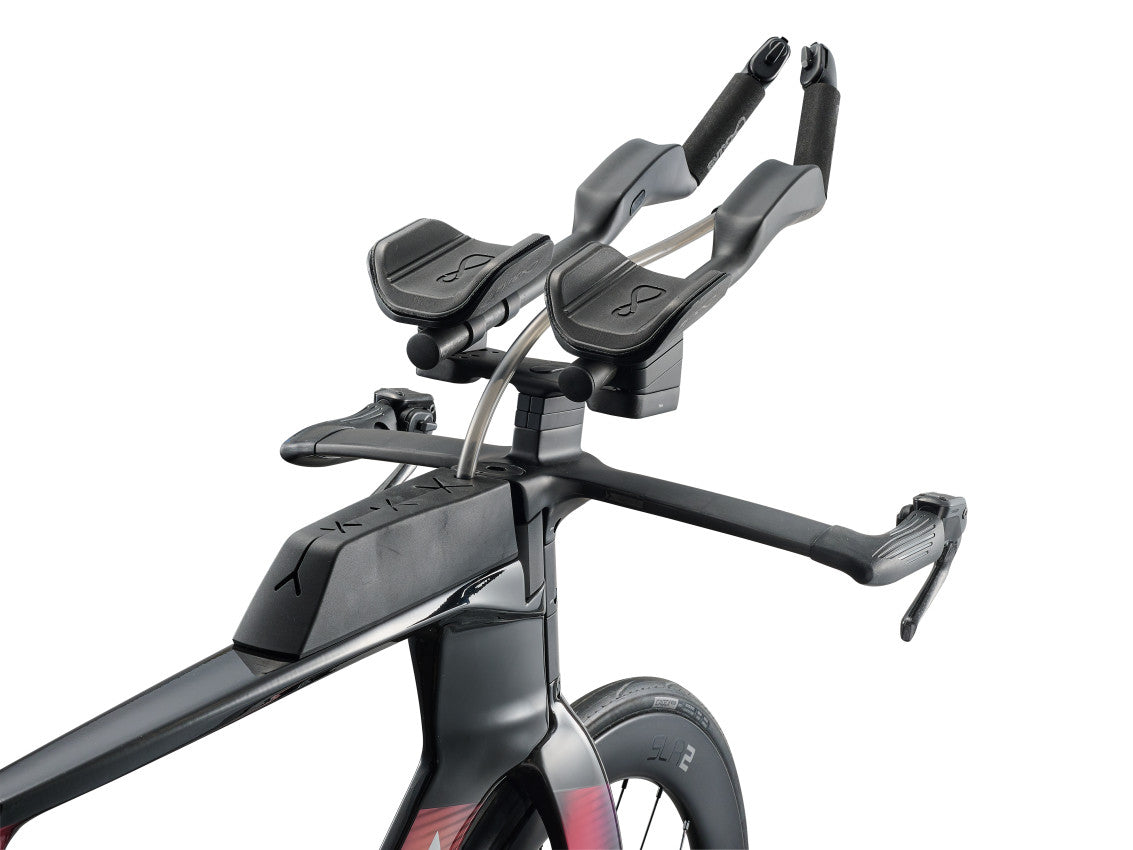

  • Image 12 of 13 - MY25AvowAdvancedSL_Carbon-D1

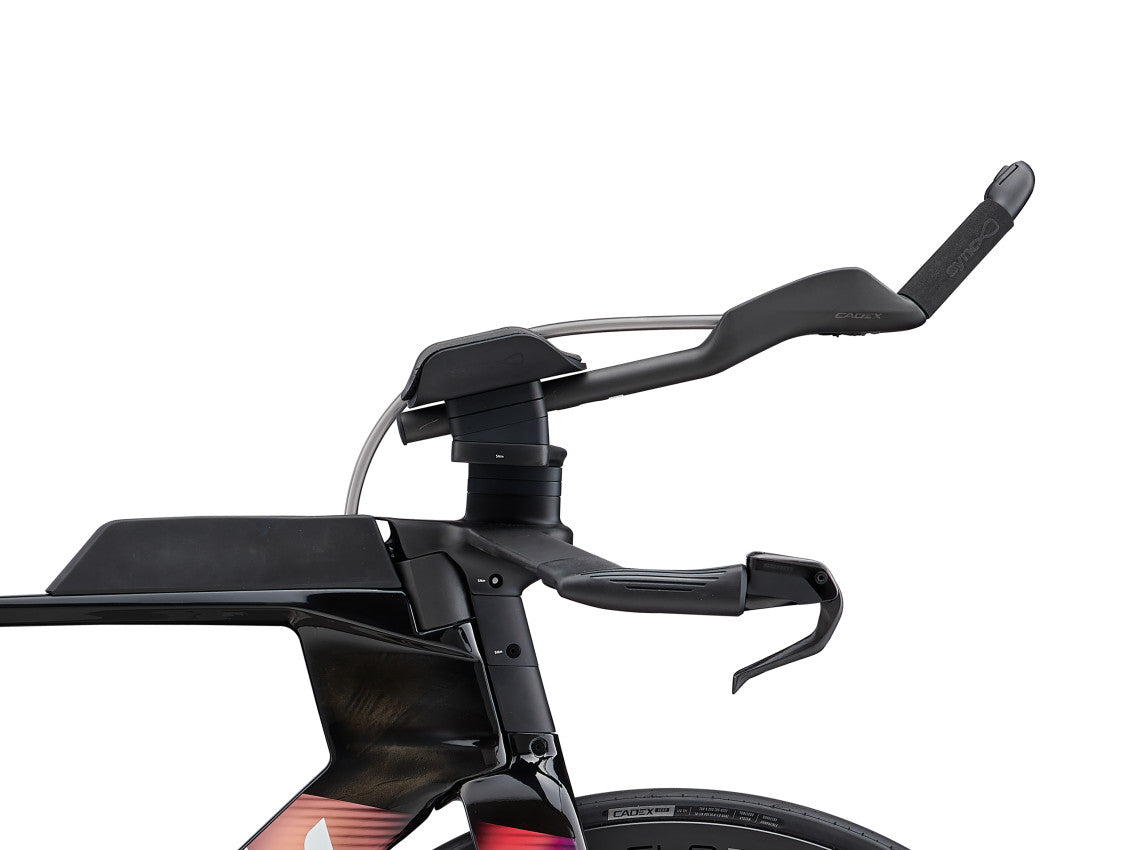

  • Image 13 of 13 - MY25AvowAdvancedSL_Carbon-D3
1 13
Liv Logo

Avow Advanced SL

$8,999.00
Tax included
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Avow Advanced SL - Md / Carbon is available from supplier warehouse - 7 days

Techs & Features

YOUR FASTEST BIKE SPLIT

Everything about the Advanced SL carbon frameset has been optimized to shave seconds. The sleek, integrated hydration reservoir and bento box put fuel at your fingertips. And the new frameset is lighter by 433g, without compromising stiffness or aerodynamics, translating to 10% greater overall efficiency—which means energy left over for the run.

YOUR OPTIMIZED FIT

Dial in every aspect, with four seatpost offset positions (within a 51mm range) and 24x more armrest positions, varying stack, reach, angle and width, using a simple, travel-friendly two-bolt mechanism. Make it your bike for the course—more comfort for Ironman or more streamlined for TT.

YOU’RE IN CONTROL

Integrated disc brakes deliver greater stopping power without compromise to aero efficiency, thanks to fork shaping that shields the brakes from the wind. Enhanced seatpost and armrest compliance help you settle into a comfortable, confident position for 20k or 180k.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XXS
    151 cm 161 cm
  • XS
    159 cm 169 cm
  • S
    166 cm 176 cm
  • M
    173 cm 182 cm
Bike Geometry Diagram
Code Name XXS XS S M
A Seat Tube Length (mm) (inch) 440 477 508 538
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 493 510 530 554
D Head Tube Length (mm) (inch) 65 85 105 125
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 40 40 40 40
G Trail (mm) (inch) 79 69 63 63
H Wheelbase (mm) (inch) 969 974 988 1013
I Chain Stay Length (mm) (inch) 405 405 405 405
J Bottom Bracket Drop (mm) (inch) 70 70 70 70
K Stack (mm) (inch) 467 490 513 532
L Reach (mm) (inch) 387 397 412 431
M Stand Over Height (mm) (inch) 733 758 787 815
Q Wheel Size 700C 700C 700C 700C
R Arm Pad Stack (TRI) 604-686 | (TT) 556-640 (TRI) 629-709 | (TT) 582-662 (TRI) 653-733 | (TT) 605-685 (TRI) 672-752 | (TT) 624-704
S Arm Pad Reach (TRI) 309-383 | (TT) 326-400 (TRI) 323-398 | (TT) 339-414 (TRI) 340-415 | (TT) 355-430 (TRI) 360-435 | (TT) 375-450

Specifications

Sizes XXS, XS, S, M
Colours Carbon
Frame Advanced SL-grade composite, 12x142mm thru-axle, disc
Fork Advanced SL-grade composite, full-composite steerer, 12x100mm, disc
Shock N/A
Handlebar AeroDrive base bar with Sync armrest set, 10- and 15-degree extension wedge
Grips Rubber integrated
Stem AeroDrive integrated stem
Seatpost Liv Avow Composite
Saddle Liv Contact SL Tri
Arm rest kit Sync armrest set
Shifters SRAM eTap AXS Wireless Blips - extension and basebar mounted
Front derailleur SRAM Rival AXS, FD-Rival-E-E1
Rear derailleur SRAM Rival AXS, RD-Rival-E-E1
Brakes SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake levers SRAM S-900 Aero hydraulic
Cassette SRAM Rival E1 XG-1250, 12-speed, 10-36
Chain SRAM Rival-E1, 12-speed
Crankset SRAM Rival E1 DUB, 35/48 with SRAM spindle power meter XXS:160mm, XS:160mm, S:160mm, M:165mm
Bottom bracket SRAM DUB, press fit
Rims Giant SLR 2 50 WheelSystem, [F]50mm, [R]50mm
Hubs [F] Giant Alloy, CenterLock, 12mm thru-axle [R] Giant Alloy, 3 pawl 30t driver, CenterLock, 12mm thru-axle
Spokes SAPIM Sprint
Tires CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras Bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tyre size
Max tire clearance 30mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
