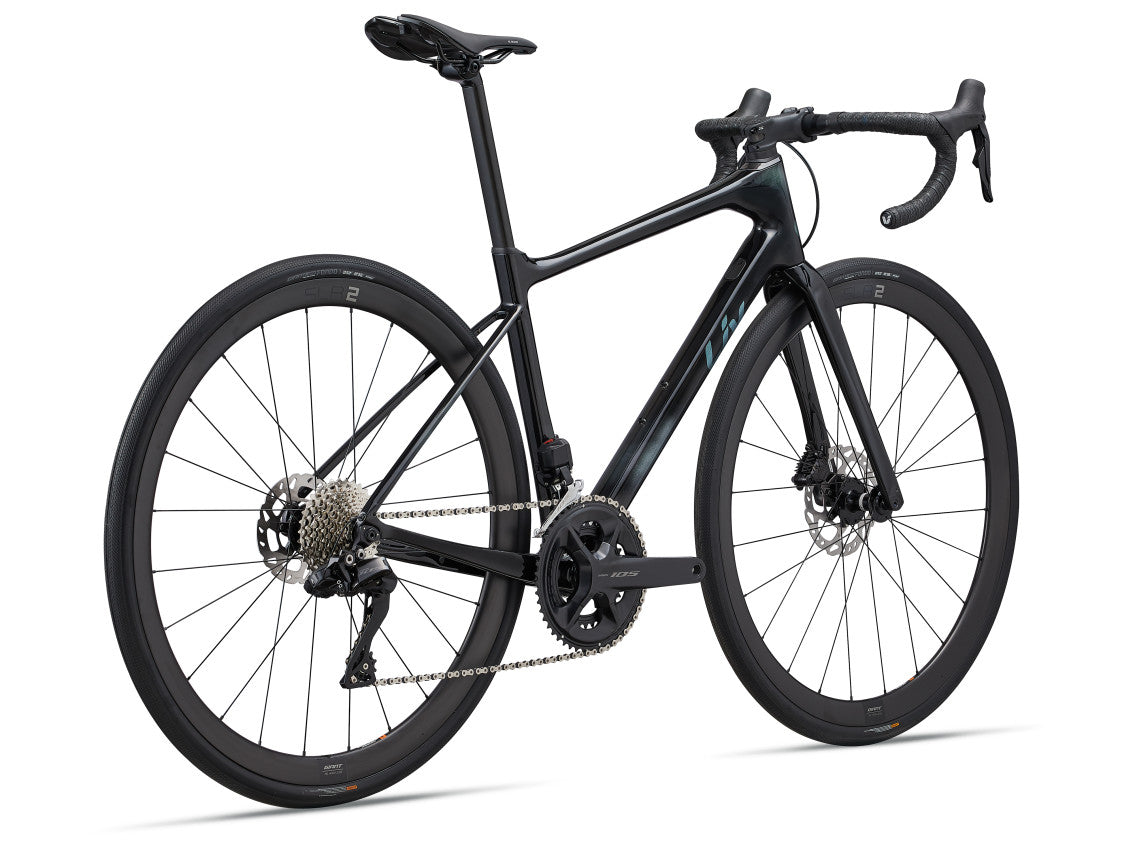

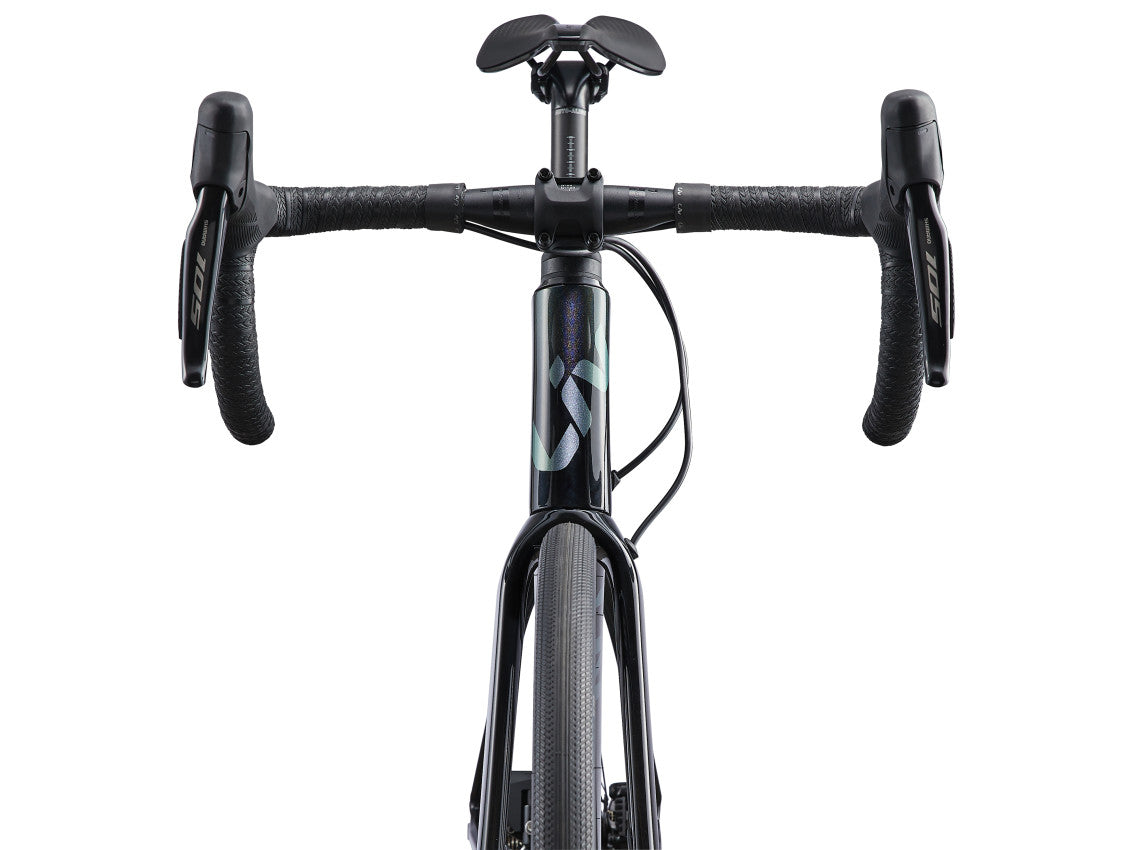

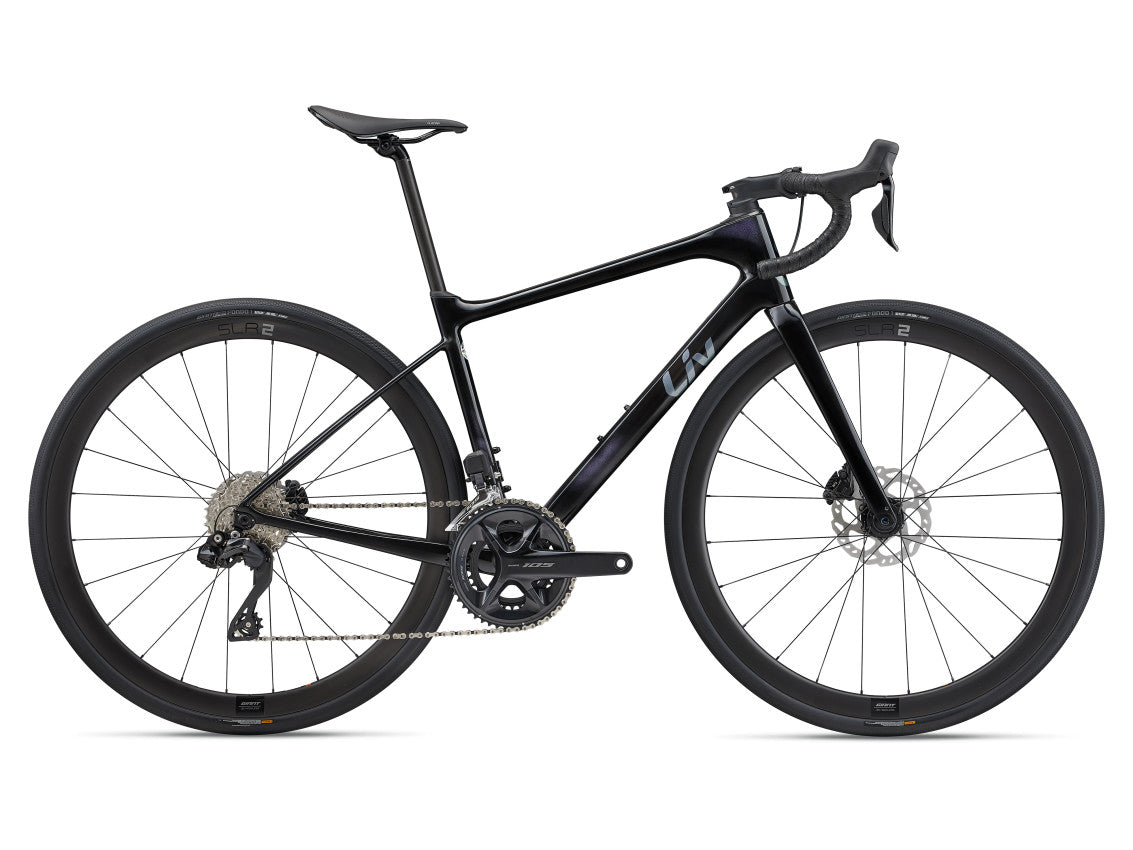

Avail Advanced Pro 2 XS Custom
Ideal for both epic solo adventures and group road rides, the Avail Advanced Pro is lightweight and comfortable.
Techs & Features
Built for Endurance

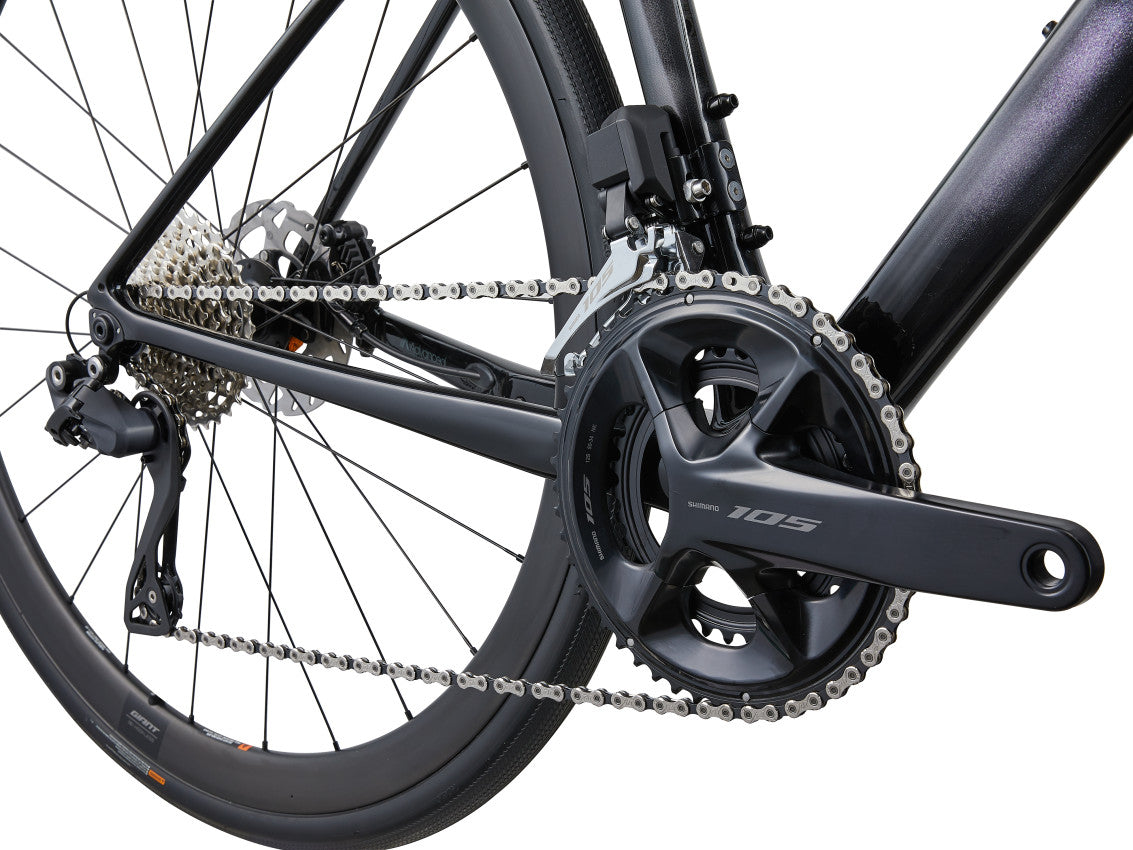

Advanced-Grade Composite and OverDrive 2 provide unprecedented pedalling and cornering stiffness on an endurance geometry for all-day riding.
Control

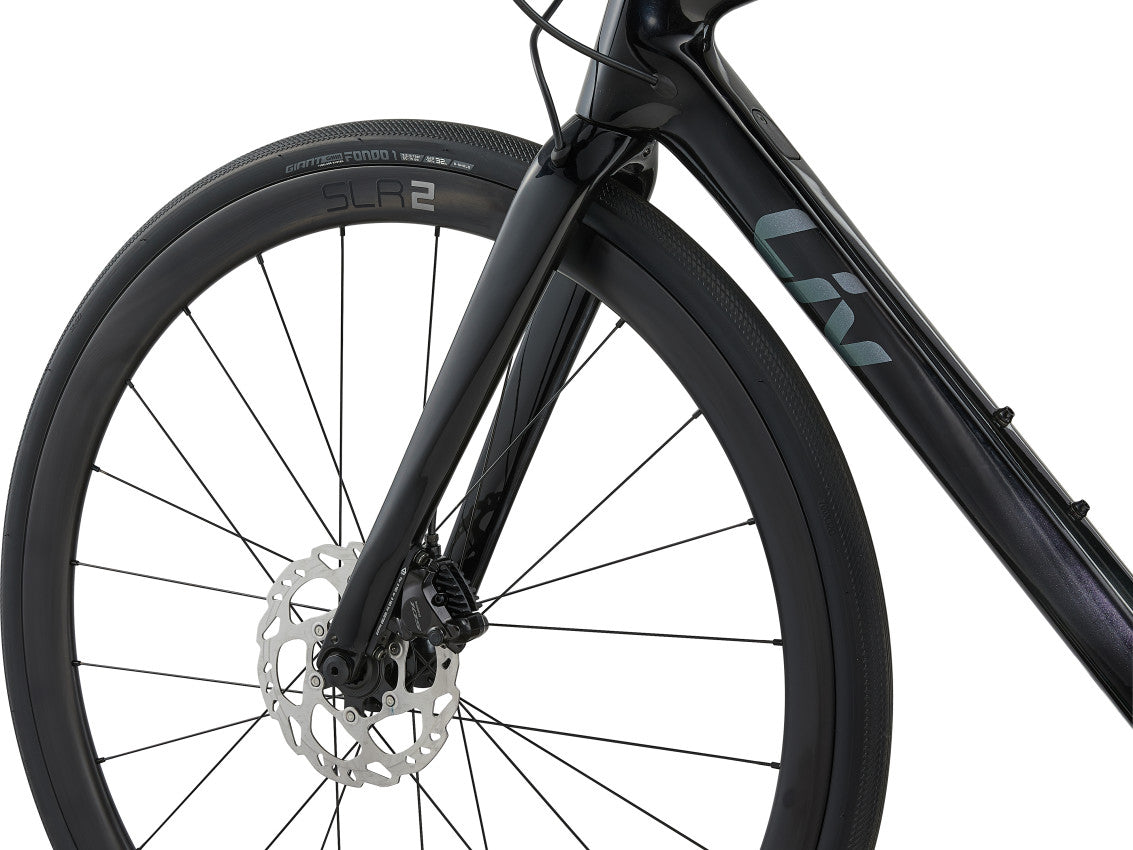

Combines the weight-savings and stability of a compact road frame design with powerful disc brakes for expert handling and control, no matter the weather and road conditions.
Adaptable Comfort
The Avail tackles the roads less travelled with larger-size tyre compatibility and a D-Fuse seatpost to soak up bumps.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.
-
XS153 cm 162 cm
-
S158 cm 169 cm
-
M165 cm 174 cm

Code | Name | XS | S | M |
---|---|---|---|---|
A | Seat Tube Length (mm) (inch) | 400 | 435 | 470 |
B | Seat Tube Angle (degrees) | |||
C | Top Tube Length (mm) (inch) | 515 | 525 | 540 |
D | Head Tube Length (mm) (inch) | 125 | 145 | 165 |
E | Head Tube Angle (degrees) | |||
F | Fork Rake (mm) (inch) | 50 | 50 | 50 |
G | Trail (mm) (inch) | 71.3 | 64.7 | 61.5 |
H | Wheelbase (mm) (inch) | 995 | 998 | 1004 |
I | Chain Stay Length (mm) (inch) | 420 | 420 | 420 |
J | Bottom Bracket Drop (mm) (inch) | 75 | 73 | 73 |
K | Stack (mm) (inch) | 527 | 547 | 568 |
L | Reach (mm) (inch) | 368 | 373 | 377 |
M | Stand Over Height (mm) (inch) | 684 | 716 | 745 |
O | Stem Length (mm) (inch) | 70 | 80 | 90 |
P | Crank Length (mm) (inch) | 165 | 170 | 170 |
Q | Wheel Size | 700C | 700C | 700C |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
