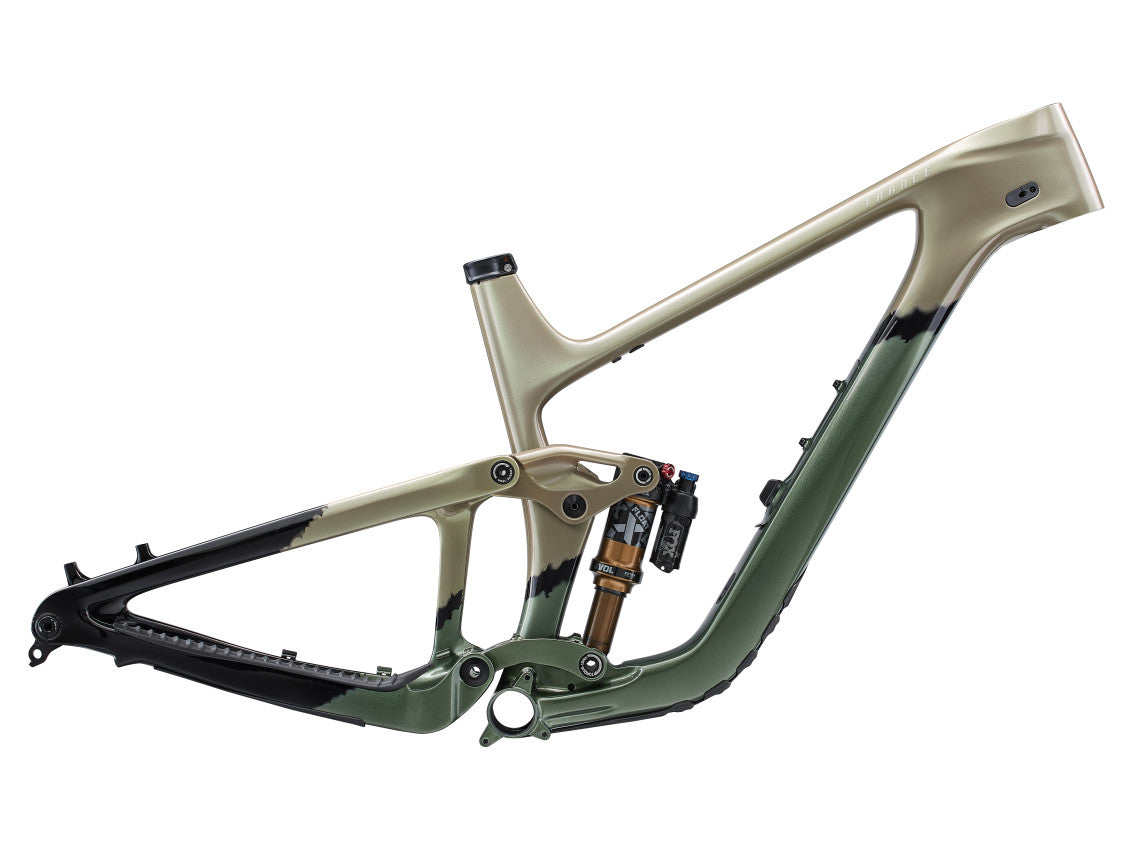

• Image 1 of 3 - Ocean Trench
  • Image 2 of 3 - Trance Advanced Pro 29 Frameset
  • Image 3 of 3 - Trance Advanced Pro 29 Frameset
1 3
Giant Logo

Trance Advanced Pro 29 Frameset

$1,999.00 $4,699.00
Shred hard and shred fast with this lively 29er. It’s built on an all-new full-composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.
Size
Colour
2 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Adjustable frame geometry

New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

29er confidence and control

Designed for larger 29-inch diameter wheels optimised to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Progressive trail design

Lightweight composite frameset features a longer reach and steeper seat tube angle for aggressive trail riding and improved climbing capabilities. Maestro rear suspension features 120mm of rear wheel travel designed for a 130mm fork up front. The frame also includes a cleanly integrated storage space in the down tube for tools, snacks or other essentials.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    163 cm 172 cm
  • M
    171 cm 180 cm
  • L
    179 cm 188 cm
  • XL
    187 cm 198 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 420 430 465 496
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 561 | 559 599 | 597 626 | 624 663 | 661
D Head Tube Length (mm) (inch) 100 110 120 130
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 126 | 120 126 | 120 126 | 120 126 | 120
H Wheelbase (mm) (inch) 1166 | 1165 1195 | 1194 1124 | 1123 1263 | 1262
I Chain Stay Length (mm) (inch) 439 | 437 439 | 437 439 | 437 439 | 437
J Bottom Bracket Drop (mm) (inch) 45 | 35 45 | 35 45 | 35 45 | 35
K Stack (mm) (inch) 610 | 604 619 | 613 628 | 622 637 | 631
L Reach (mm) (inch) 422 | 431 447 | 456 472 | 480 507 | 515
M Stand Over Height (mm) (inch) 729 | 737 723 | 732 746 | 755 751 | 760
O Stem Length (mm) (inch) 40 40 50 50
P Crank Length (mm) (inch) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"

Specifications

Sizes S, M, L, XL
Colours Ocean Trench
Frame Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle, integrated downtube storage
Shock Fox Float X Factory, 2 position lever with LSC adjust, Trunnion, custom tuned for Giant
Extras Rear 12x148mm thru-axle, seat clamp
Max tire clearance 2.6"
Max chainring size 34t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
