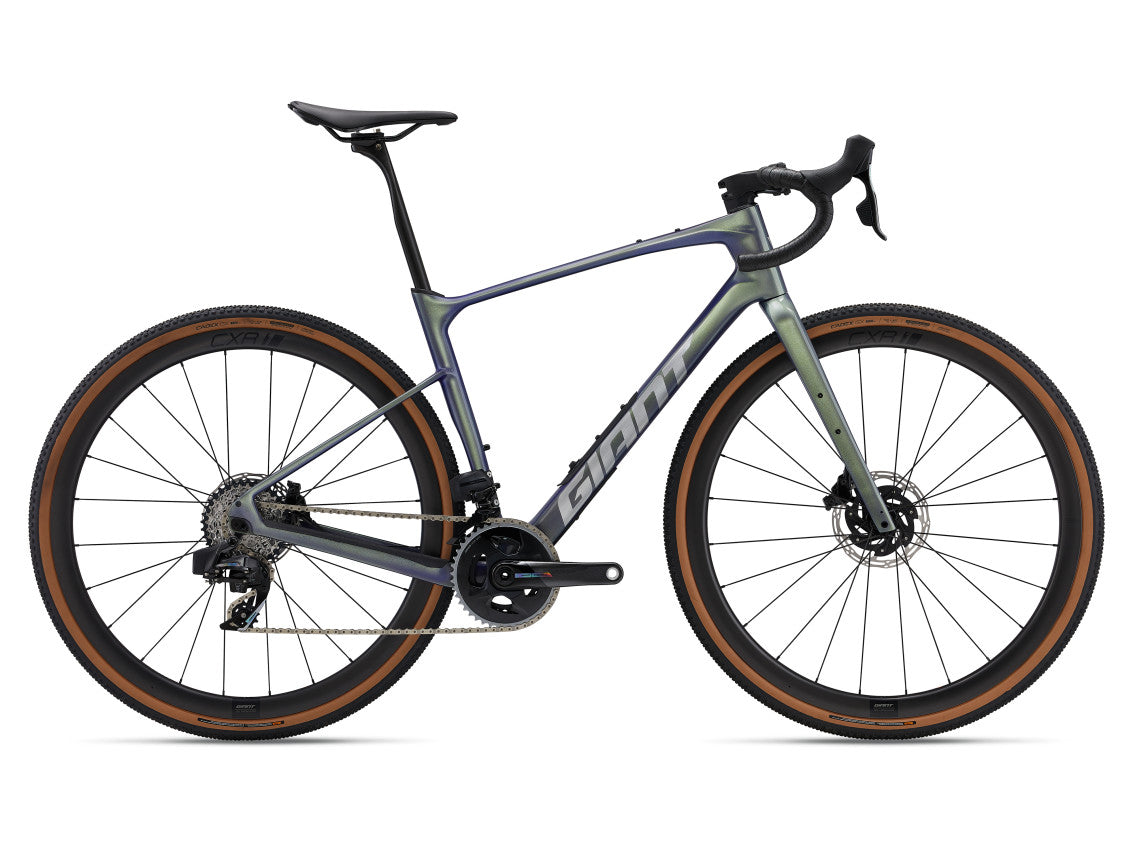

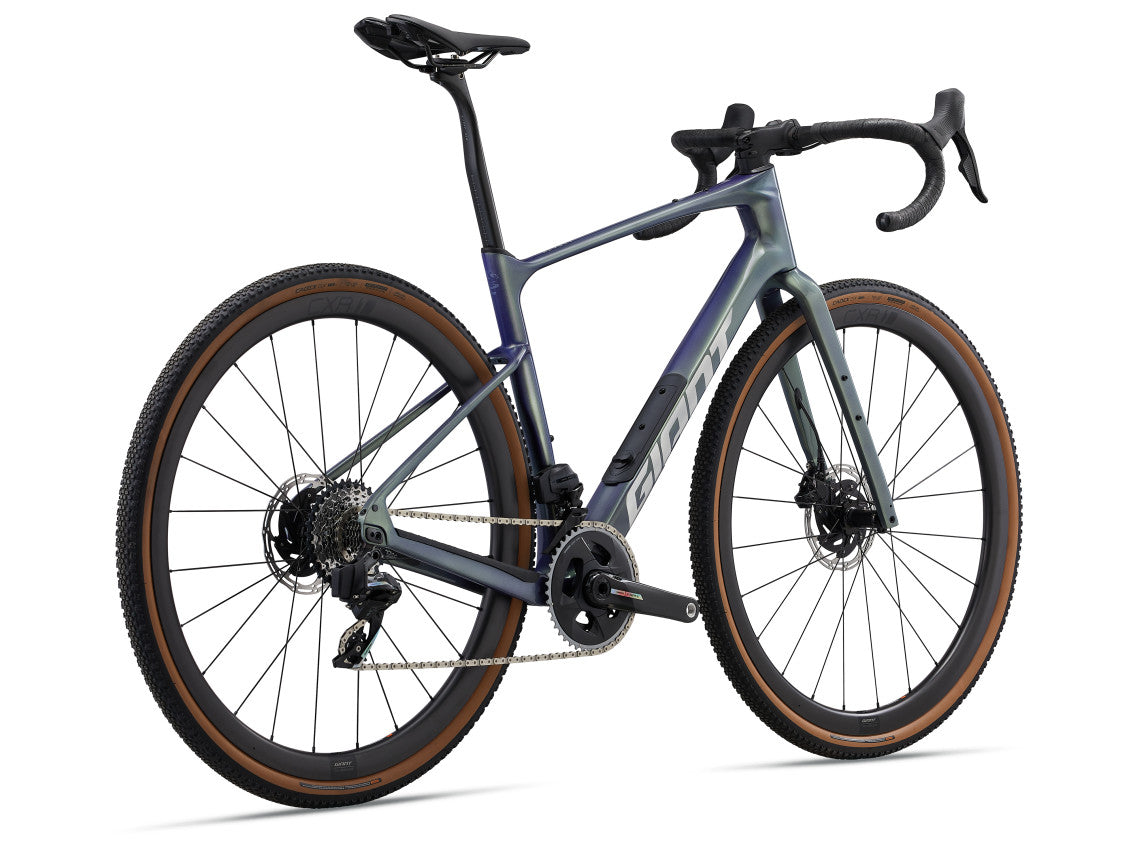

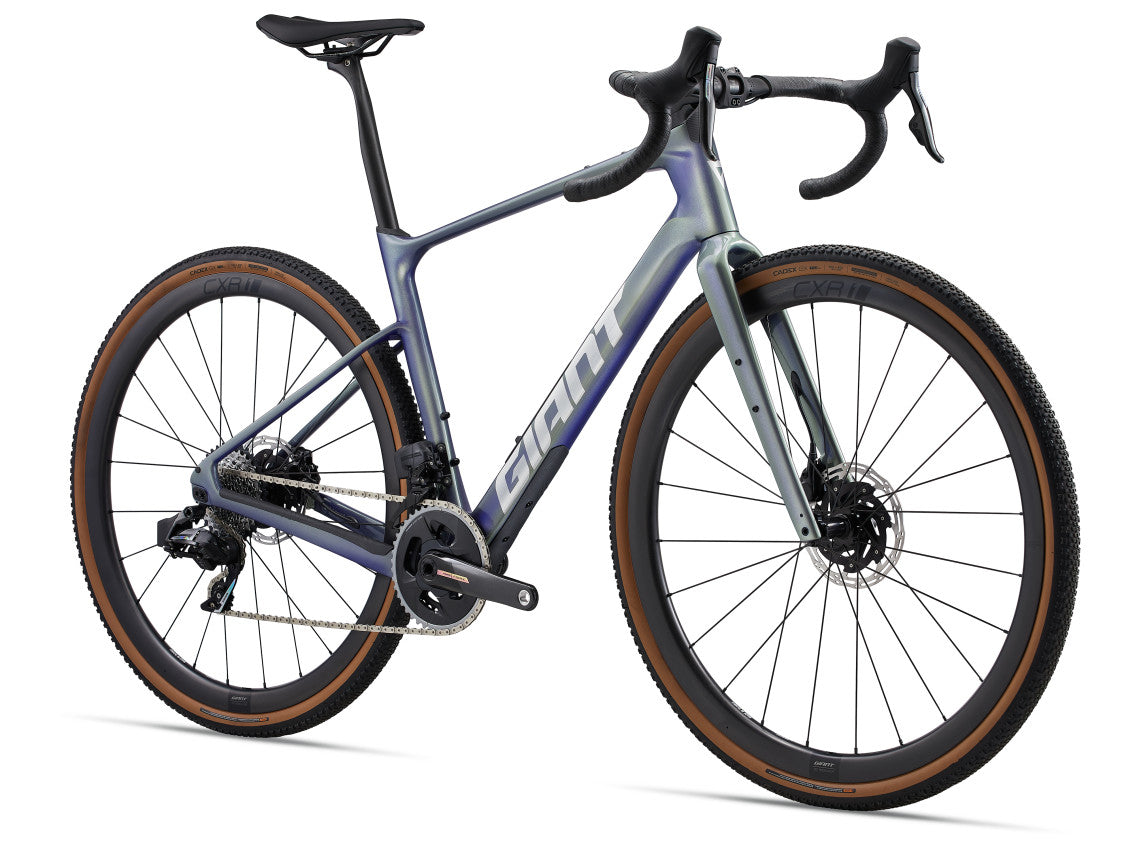

Revolt Advanced Pro 0

$8,499.00

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

Size

Lg ML Md Sm XL XS

Colour

Interstellar

Product variants

Revolt Advanced Pro 0 - Lg / Interstellar is available from our supplier warehouse. Our team will call you when we receive your order to confirm the arrival date - usually 7-10 days.

Techs & Features

FAST AND VERSATILE

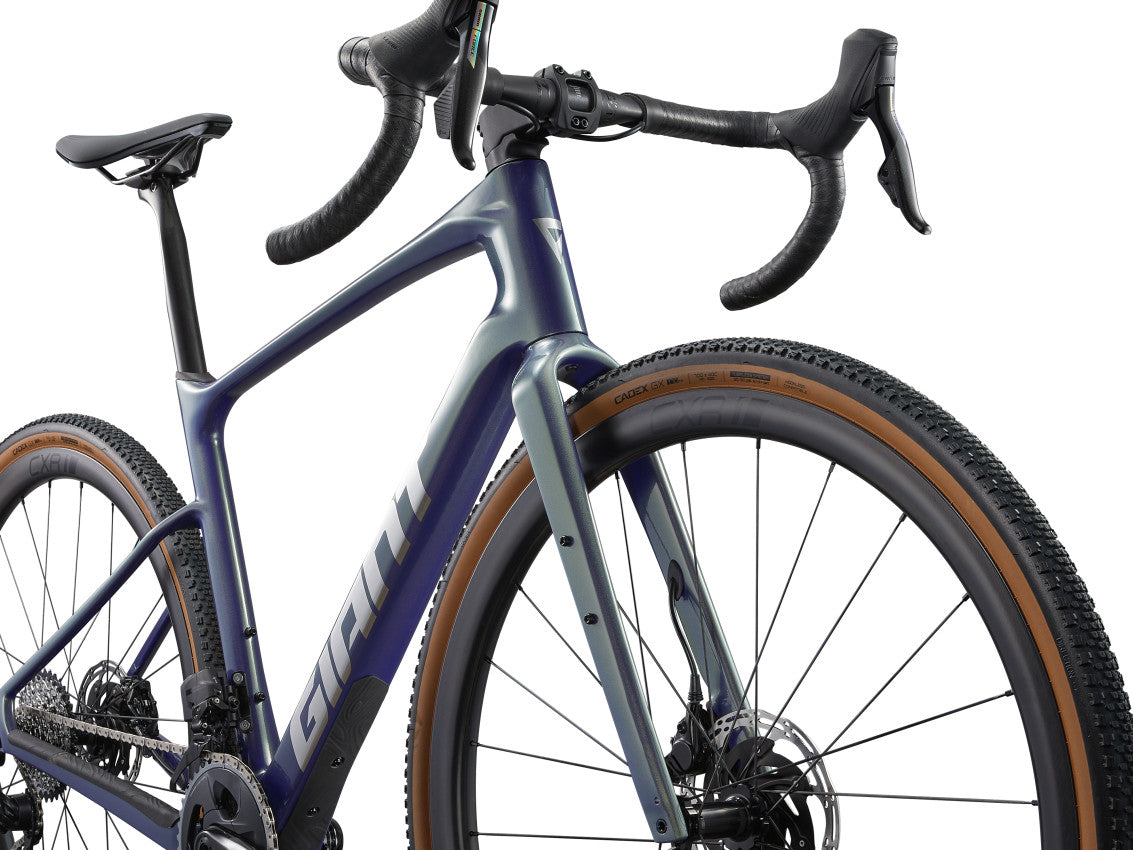

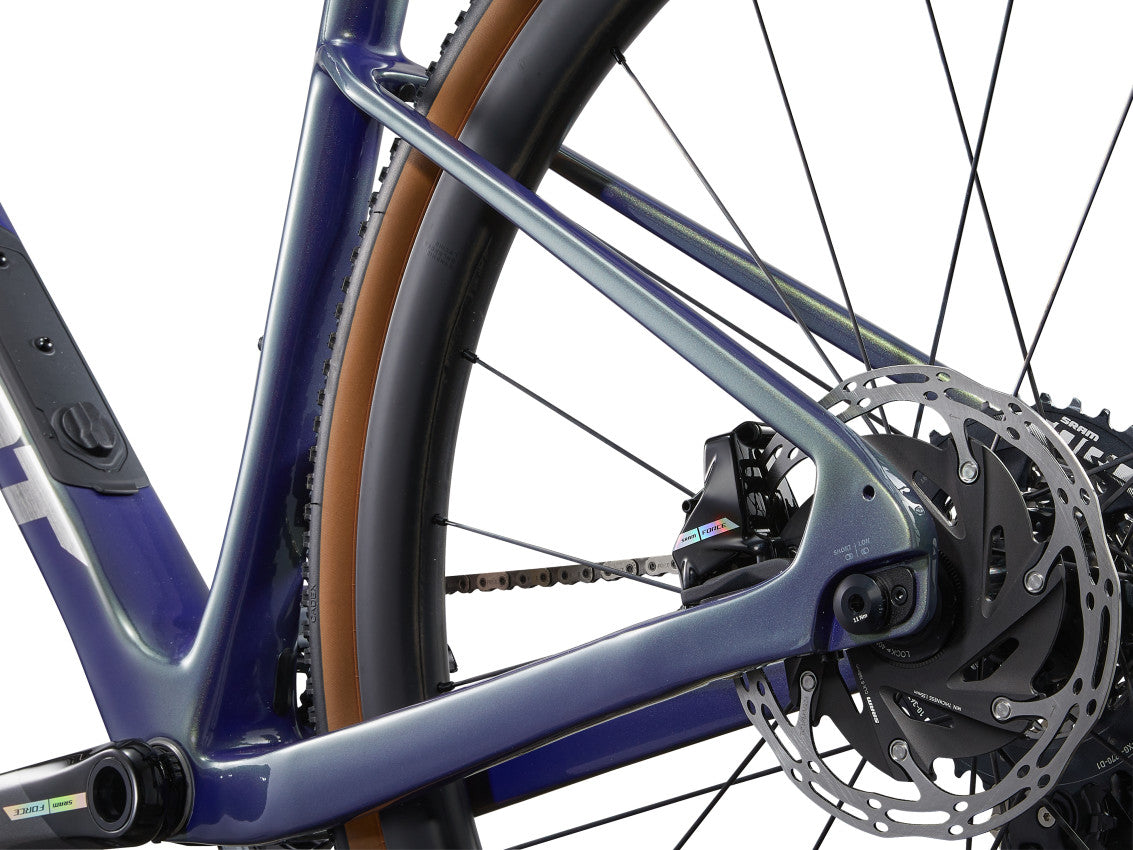

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

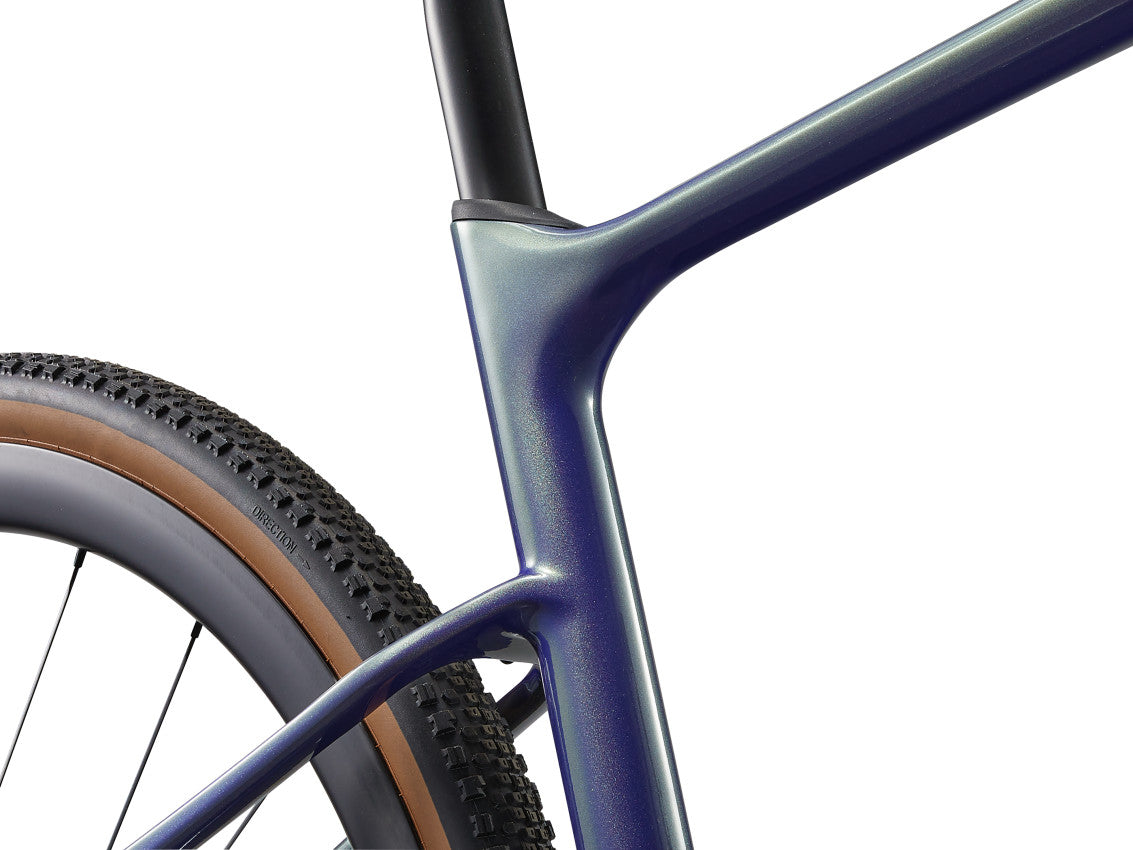

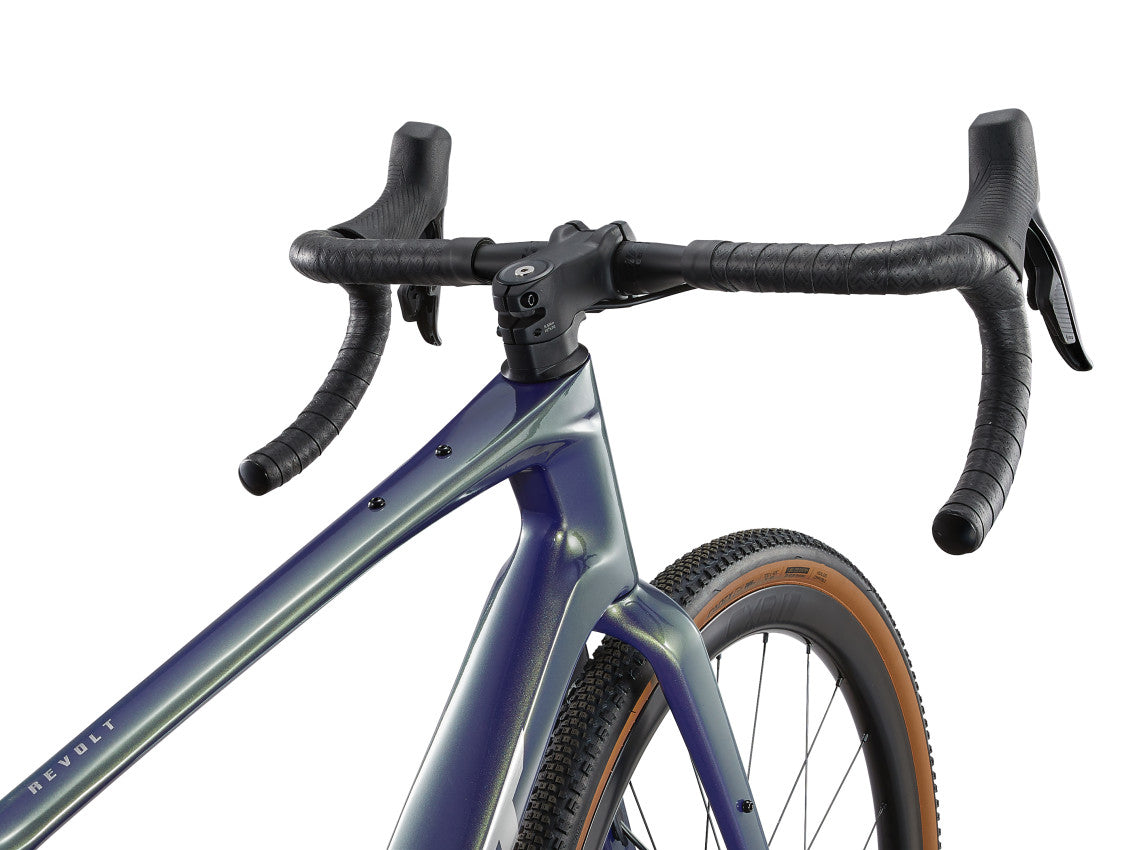

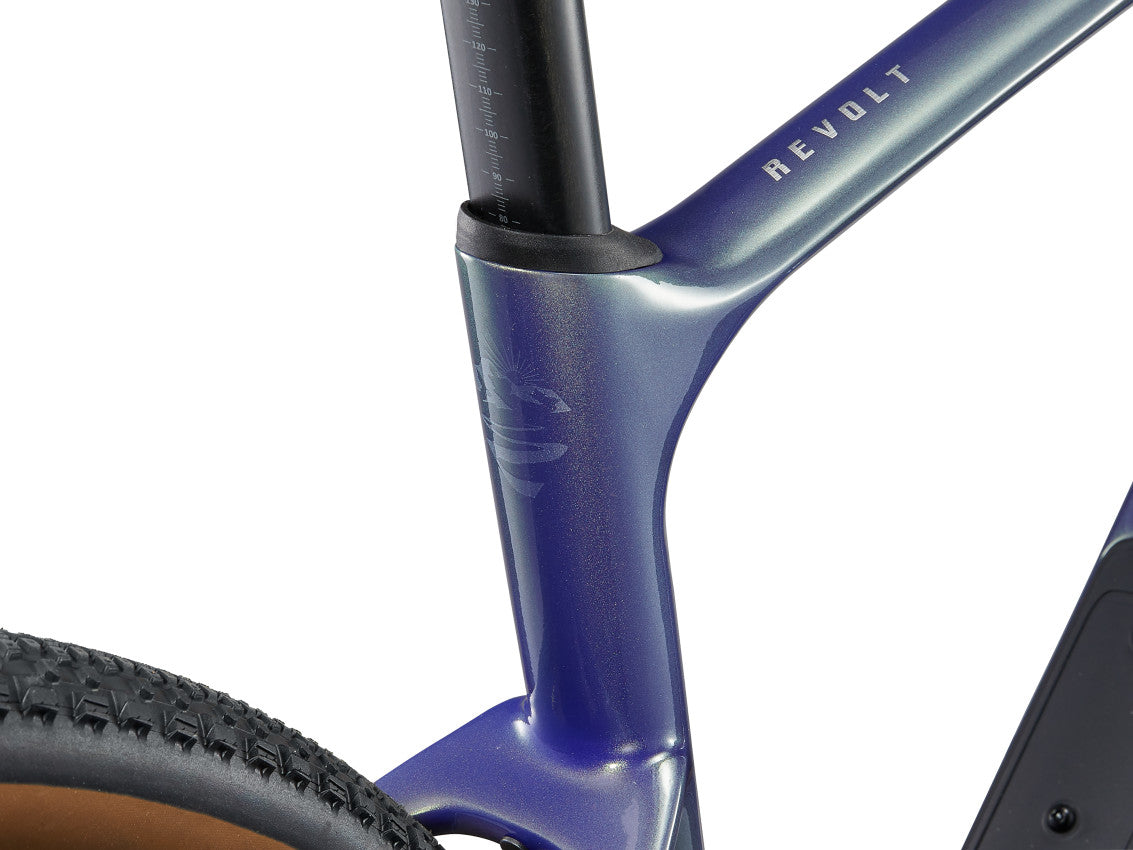

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION

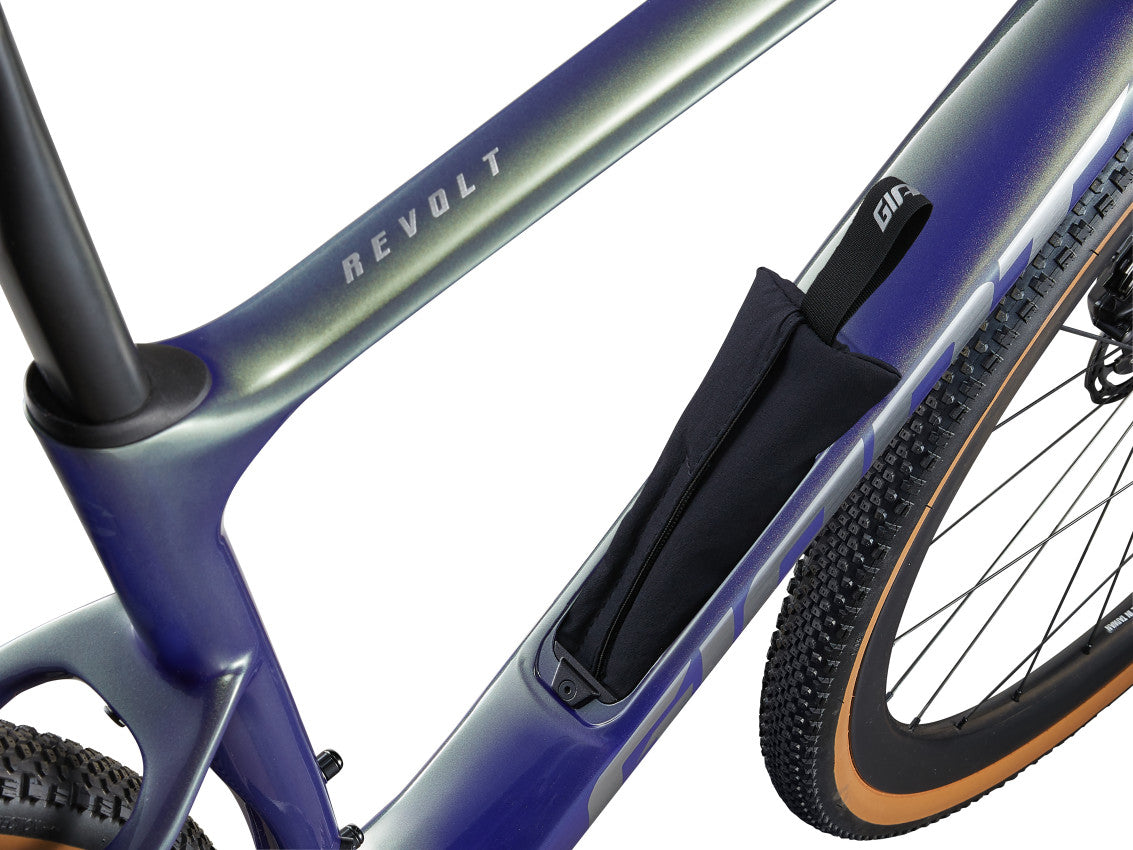

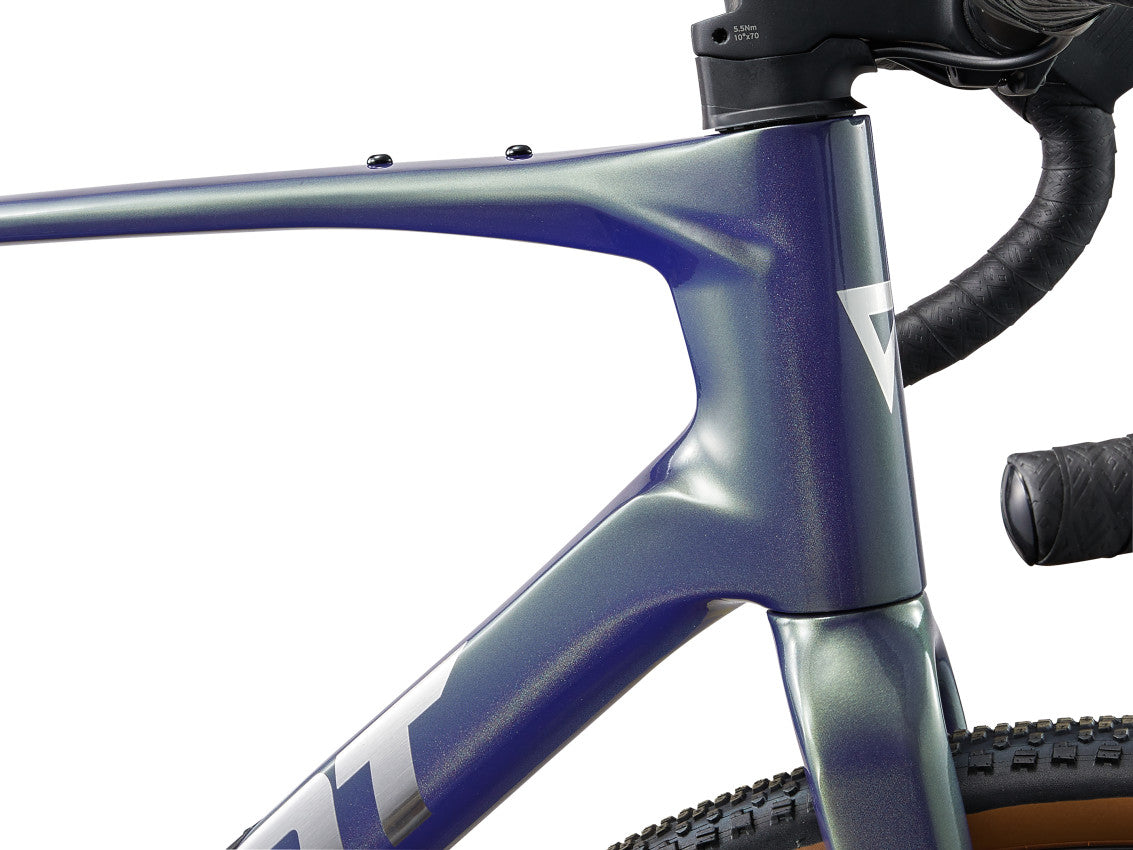

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

XS

155 cm 166 cm
S

159 cm 171 cm
M

169 cm 181 cm
ML

174 cm 186 cm
L

179 cm 191 cm
XL

189 cm 200 cm

Code	Name	XS	S	M	ML	L	XL
A	Seat Tube Length (mm) (inch)	430	16.9	450	17.7	470	18.5	490	19.3	510	20.1	530	20.9
B	Seat Tube Angle (degrees)	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm) (inch)	540	21.3	550	21.7	560	22	575	22.6	585	23	600	23.6
D	Head Tube Length (mm) (inch)	125	4.9	135	5.3	150	5.9	165	6.5	180	7.1	195	7.7
E	Head Tube Angle (degrees)	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F	Fork Rake (mm) (inch)	50	2	50	2	50	2	50	2	50	2	50	2
G	Trail (mm) (inch)	7882	3.13.2	7275	2.83	6872	2.72.8	6568	2.62.7	6568	2.62.7	6568	2.62.7
H	Wheelbase (mm) (inch)	10241034	40.340.7	10201030	40.240.6	10261036	40.440.8	10311041	40.641	10411051	4141.4	10561066	41.642
I	Chain Stay Length (mm) (inch)	425435	16.717.1	425435	16.717.1	425435	16.717.1	425435	16.717.1	425435	16.717.1	425435	16.717.1
J	Bottom Bracket Drop (mm) (inch)	8081	3.13.2	8081	3.13.2	8081	3.13.2	8081	3.13.2	8081	3.13.2	8081	3.13.2
K	Stack (mm) (inch)	556	21.9	570	22.4	586	23.1	602	23.7	616	24.3	630	24.8
L	Reach (mm) (inch)	381	15	381	15	387	15.2	391	15.4	397	15.6	407	16
M	Stand Over Height (mm) (inch)	724731	28.528.8	740747	29.129.4	757764	29.830.1	774780	30.530.7	791797	31.131.4	807814	31.832
O	Stem Length (mm) (inch)	50	2	60	2.4	70	2.8	80	3.1	80	3.1	90	3.5
P	Crank Length (mm) (inch)	170	6.7	170	6.7	172.5	6.8	172.5	6.8	175	6.9	175	6.9
Q	Wheel Size

Specifications

Sizes XS, S, M, M/L, L, XL

Colours Interstellar/Chrome

Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

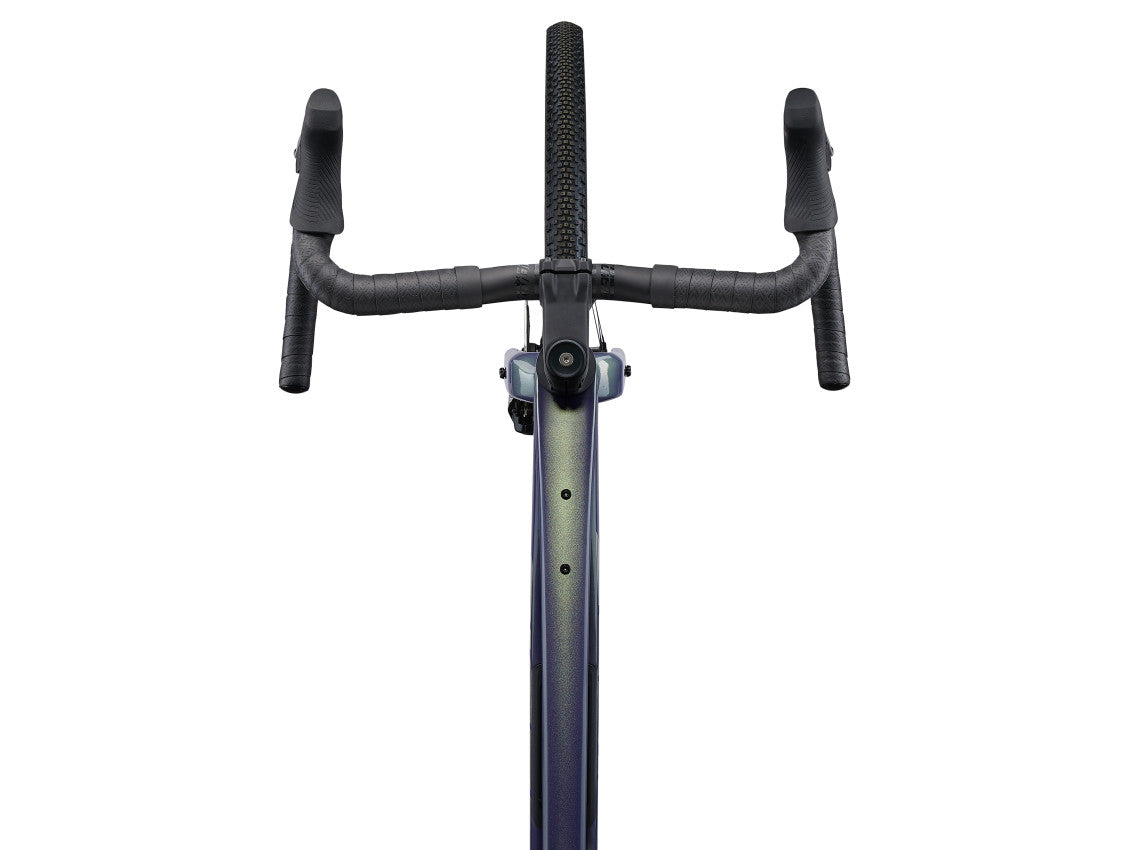

Handlebar Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips Stratus Lite 3.0

Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost Giant D-Fuse SLR, composite, -5/+15mm offset

Saddle Giant Approach SL

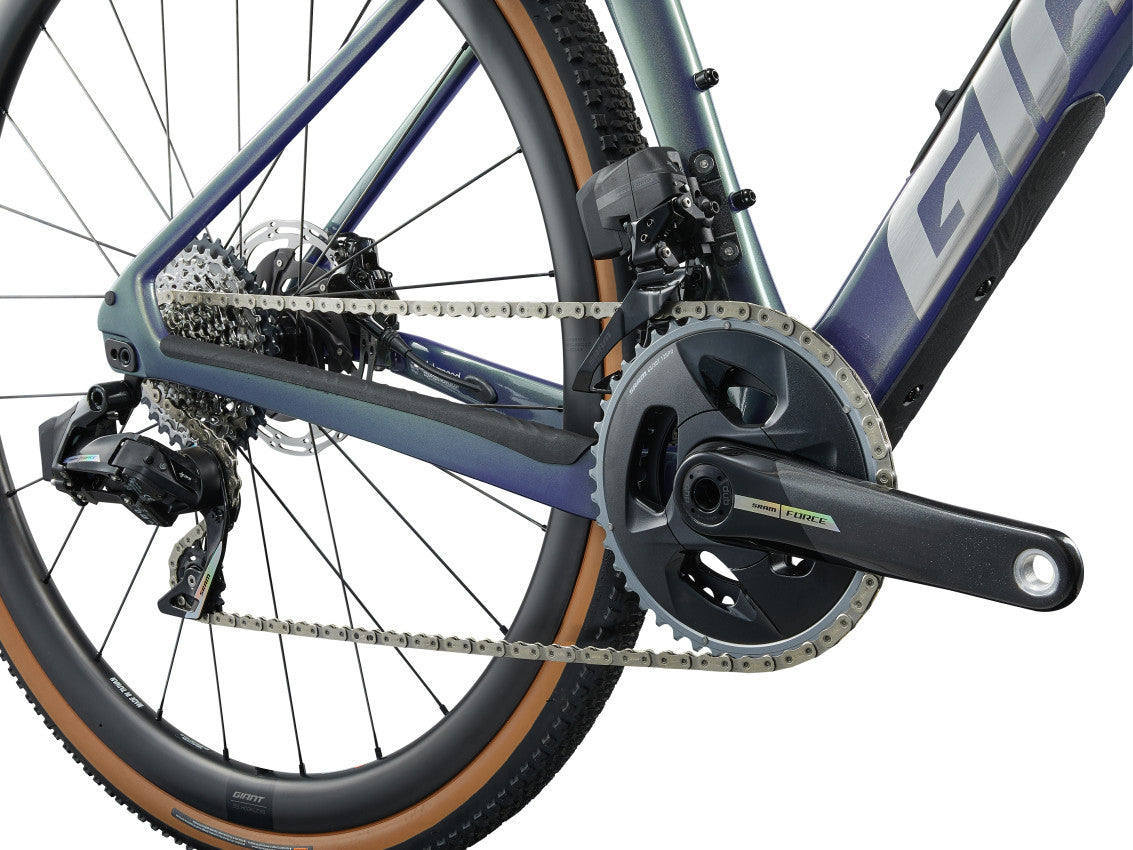

Shifters SRAM Force eTap AXS, 2x12

Front derailleur SRAM Force eTap AXS

Rear derailleur SRAM Force eTap AXS

Brakes SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm

Brake levers SRAM Force eTap AXS hydraulic

Cassette SRAM Force, 12-speed, 10x36

Chain SRAM Force D1

Crankset SRAM Force D2 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom bracket SRAM DUB, press fit

Rims Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle

Spokes Sapim CX-Ray

Tires CADEX GX, 700x40c, tubeless

Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
