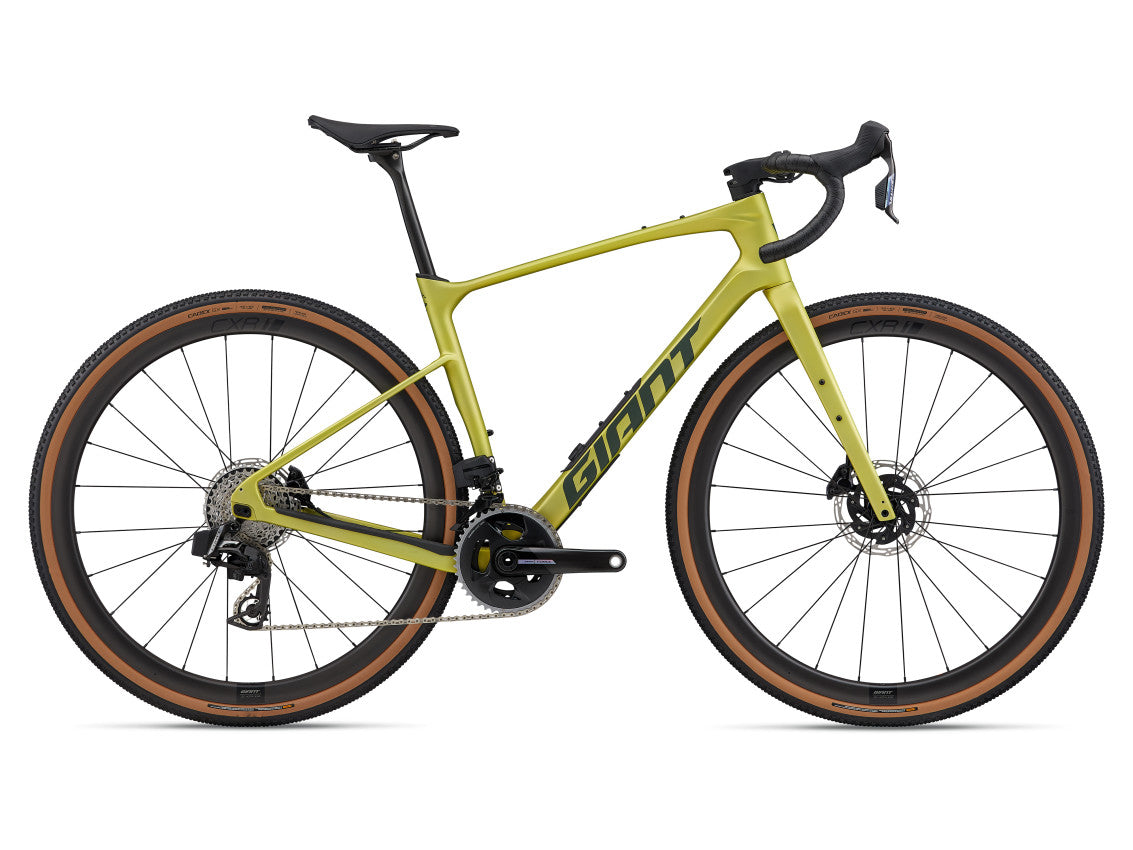

Revolt Advanced Pro 0

$8,799.00
Tax included
GRAVEL CRUSHER
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

FAST AND VERSATILE

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    155 cm 166 cm
  • S
    159 cm 171 cm
  • M
    169 cm 181 cm
  • ML
    174 cm 186 cm
  • L
    179 cm 191 cm
  • XL
    189 cm 200 cm
Bike Geometry Diagram
Code Name XS S M ML L XL
A Seat Tube Length (mm) (inch) 430 450 470 490 510 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 540 550 560 575 585 600
D Head Tube Length (mm) (inch) 125 135 150 165 180 195
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50 50
G Trail (mm) (inch) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) (inch) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) (inch) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) (inch) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) (inch) 556 570 586 602 616 630
L Reach (mm) (inch) 381 381 387 391 397 407
M Stand Over Height (mm) (inch) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) (inch) 50 60 70 80 80 90
P Crank Length (mm) (inch) 170 170 172.5 172.5 175 175

Specifications

Sizes XS, S, M, M/L, L, XL
Colours Cyber Lime
Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse SLR, composite, -5/+15mm offset
Saddle Giant Grit SL
Pedals N/A
Shifters SRAM Force AXS E1, 2x12
Front derailleur SRAM Force AXS D2
Rear derailleur SRAM Force AXS E1
Brakes SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm
Brake levers SRAM Force AXS E1 hydraulic
Cassette SRAM Force E1, 12-speed, 10x36
Chain SRAM Force E1
Crankset SRAM Force D2 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket SRAM DUB, press fit
Rims Giant CXR 1 WheelSystem, [F] 35mm, [R] 35mm
Hubs [F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tires CADEX GX, 700x40c, tubeless
Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
Max tyre clearance 53mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
