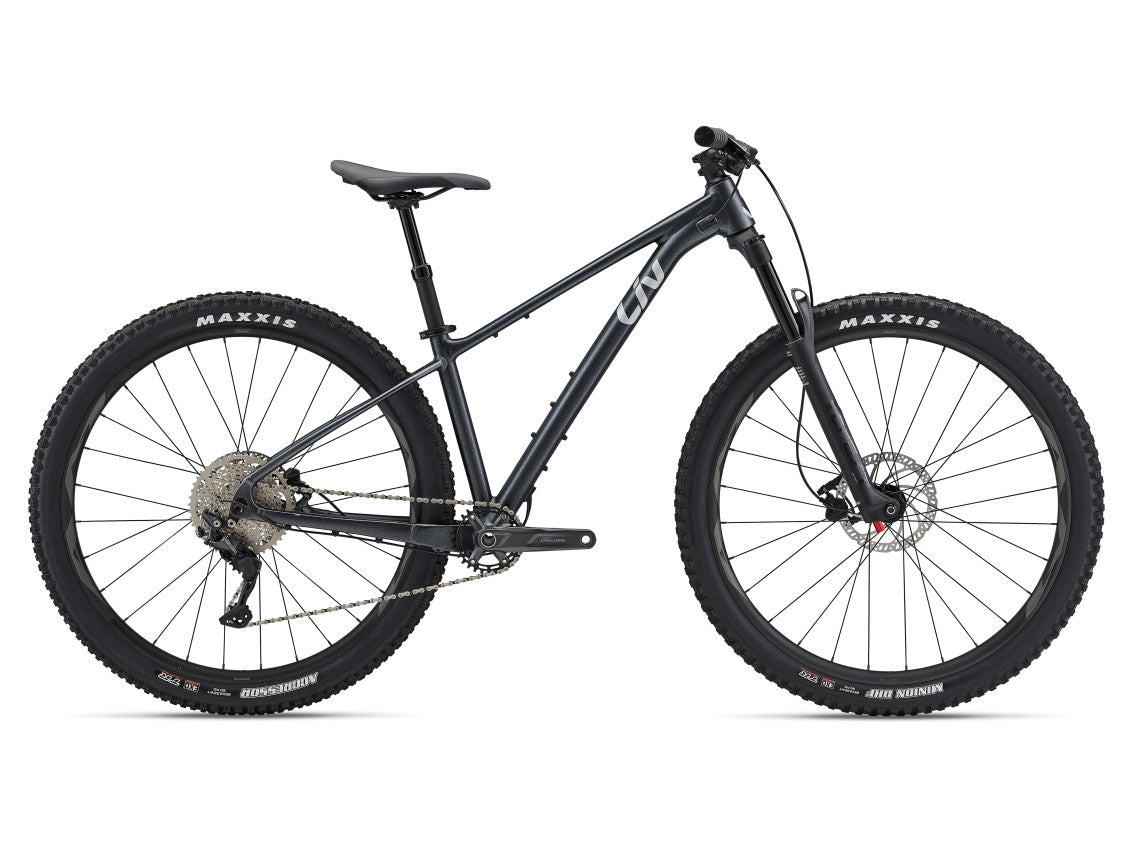

• Image 1 of 1 - Black Diamond
Liv Logo

Lurra 2

$1,329.00 $1,899.00
Tax included
Feel more connected to the trail with the all-new Lurra. Built for charging up singletrack climbs and diving into fast, flowy descents, this hardtail trail bike is simplicity at its best.
Size
Colour
2 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Optimal Trail Design

Lightweight ALUXX SL-Grade Aluminium hardtail frame with a steep seat tube angle optimizes your input when powering up climbs and hammering on the flats, resulting in greater efficiency and speed. And a 66-degree head tube angle offers confidence on steep descents, while the 438mm chainstays keep it feeling stable and playful. Frame sizes are paired up with wheel sizes, providing the ideal fit for you and where you want to ride.

Boosted Confidence

Take on technical terrain with the 130mm of plush front suspension, high-volume tubeless tyres offering extreme traction on roots, rocks and ruts, and a dropper seatpost allowing you to get low and ride with control.

Adventure-Ready

The Lurra comes equipped with mounts for two water bottle cages and additional mounts on the underside of the top tube allow riders to add a small gear bag for stowing tools. Internal cable routing keeps the important stuff tidy and protected, so you can stay focused on the ride ahead.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS (27.5")
    150 cm 163 cm
  • S (27.5")
    158 cm 169 cm
  • S (29")
    158 cm 169 cm
  • M (29")
    164 cm 175 cm
  • L (29")
    170 cm 181 cm
Bike Geometry Diagram
Code Name XS (27.5") S (27.5") S (29") M (29") L (29")
A Seat Tube Length (mm) (inch) 360 380 380 410 430
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 544 564 554 575 596
D Head Tube Length (mm) (inch) 95 105 90 100 110
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44 44
G Trail (mm) (inch) 113.9 113.9 121.7 121.7 121.7
H Wheelbase (mm) (inch) 1118 1140 1136 1159 1182
I Chain Stay Length (mm) (inch) 438 438 438 438 438
J Bottom Bracket Drop (mm) (inch) 60 60 60 60 60
K Stack (mm) (inch) 608 617 618 627 636
L Reach (mm) (inch) 393 410 406 425 443
M Stand Over Height (mm) (inch) 613 661 661 712 737
O Stem Length (mm) (inch) 40 40 40 50 50
P Crank Length (mm) (inch) 165 170 170 170 170
Q Wheel Size 27.5" 27.5" 29" 29" 29"

Specifications

Sizes XS (27.5"), S (27.5"), S (29"), M (29"), L (29")
Colours Black Diamond
Frame ALUXX SL-Grade Aluminium, 12x148 thru-axle
Fork Giant Crest 34 RCL, 130mm, 15x110
Shock N/A
Handlebar Giant Connect, 31.8mm
Grips Liv Sole-O
Stem Giant Contact, 31.8mm XS:40mm, S:40mm, M:50mm, L:50mm
Seatpost Giant Contact Switch dropper, remote
Saddle Liv Sylvia
Pedals Platform
Shifters Shimano Deore M4100, 1x10
Front derailleur N/A
Rear derailleur Shimano Deore M5120, Shadow +
Brakes Tektro HDM 276, hydraulic, Tektro rotors [F]180mm, [R]180mm
Brake levers Tektro HDM 275
Cassette Shimano Deore M4100, 11x46
Chain KMC X-10
Crankset Shimano Deore M5100, 30t For 27.5": XS: 170mm, S: 170mm For 29": S: 170mm, M: 170mm, L: 170mm
Bottom bracket Shimano, threaded
Rims For 27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width For 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
Hubs Alloy, sealed
Spokes Sapim
Tires For 27.5": Maxxis Ardent Race 27.5x2.6, EXO, TR, tubeless For 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless, [R] Maxxis Aggressor 29x2.5 WT, EXO, TR, tubeless
Extras Tubeless prepared, max tyre size 2.6", max chainring size 32t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
