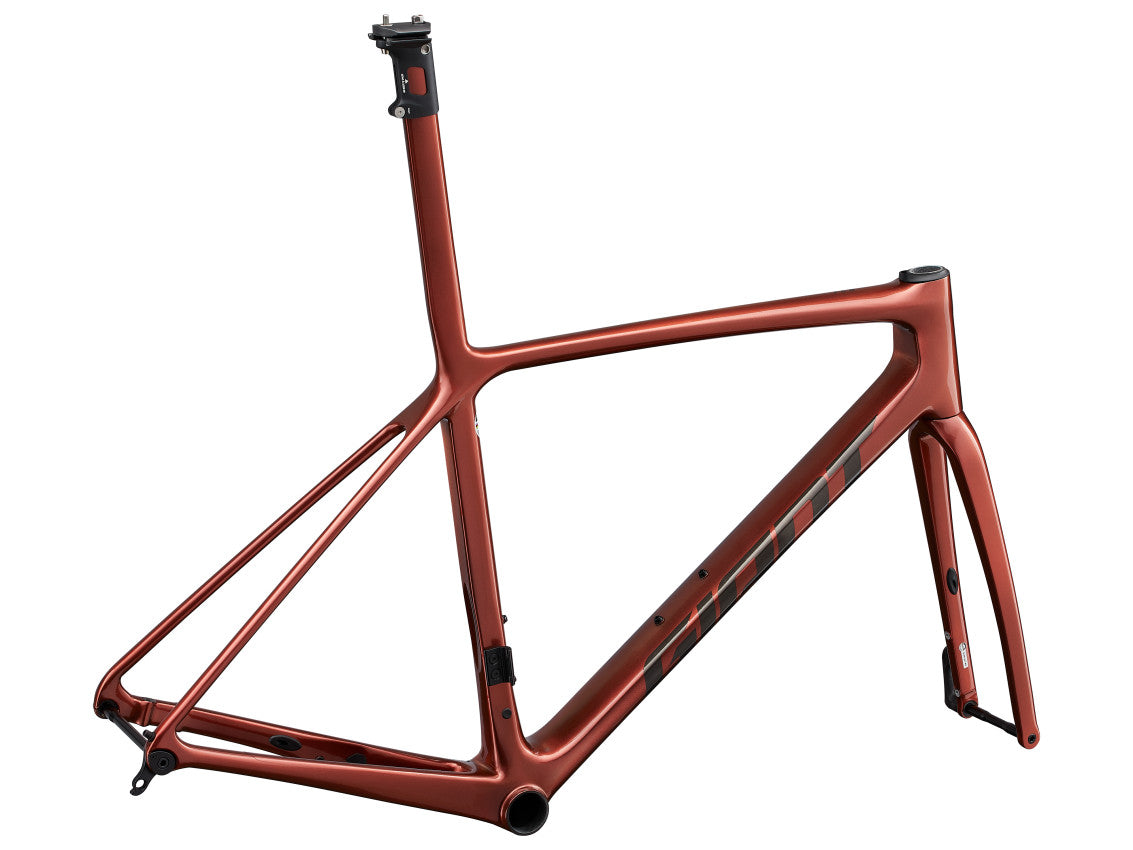

TCR Advanced SL Disc Frame and Fork

$1,899.00 ~~$4,499.00~~

The latest generation of our flagship road racing series has been winning the biggest races in the world for more than three decades. It’s the ultimate all-rounder for the performance obsessed.

Size

Colour

Terracotta

Product variants

2 in stock

Techs & Features

Class-leading efficiency

With the highest pedalling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

S

165 cm 175 cm
M

171 cm 181 cm
ML

177 cm 187 cm
L

183 cm 193 cm
XL

189 cm 199 cm

Code	Name	S	M	ML	L	XL
A	Seat Tube Length (mm) (inch)	710	28	740	29.1	770	30.3	800	31.5	830	32.7
B	Seat Tube Angle (degrees)	74.0°	73.5°	73.0°	73.0°	72.5°
C	Top Tube Length (mm) (inch)	535	21.1	550	21.7	565	22.2	580	22.8	600	23.6
D	Head Tube Length (mm) (inch)	130	5.1	145	5.7	165	6.5	185	7.3	200	7.9
E	Head Tube Angle (degrees)	72.3°	73.0°	73.0°	73.0°	73.0°
F	Fork Rake (mm) (inch)	45	1.8	45	1.8	45	1.8	45	1.8	45	1.8
G	Trail (mm) (inch)	64	2.5	59.2	2.3	59.2	2.3	59.2	2.3	59.2	2.3
H	Wheelbase (mm) (inch)	977	38.5	980	38.6	991	39	1006	39.6	1020	40.2
I	Chain Stay Length (mm) (inch)	405	15.9	405	15.9	405	15.9	405	15.9	405	15.9
J	Bottom Bracket Drop (mm) (inch)	70	2.8	70	2.8	67	2.6	67	2.6	67	2.6
K	Stack (mm) (inch)	528	20.8	545	21.5	562	22.1	581	22.9	596	23.5
L	Reach (mm) (inch)	383	15.1	388	15.3	393	15.5	402	15.8	412	16.2
M	Stand Over Height (mm) (inch)	725	28.5	747	29.4	773	30.4	800	31.5	816	32.1
O	Stem Length (mm) (inch)	90	3.5	100	3.9	110	4.3	110	4.3	120	4.7
P	Crank Length (mm) (inch)	170	6.7	172.5	6.8	172.5	6.8	175	6.9	175	6.9
Q	Wheel Size	700C	700C	700C	700C	700C	700C	700C	700C	700C	700C

Specifications

Sizes S, M, M/L, L, XL

Colours Raw Carbon and Terracotta

Frame Advanced SL-Grade Composite, integrated seatpost, disc

Fork Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc

Shock N/A

Handlebar N/A

Grips N/A

Stem N/A

Seatpost Advanced SL-Grade composite, integrated design, -5/+15mm offset

Saddle N/A

Pedals N/A

Shifters N/A

Front derailleur N/A

Rear derailleur N/A

Brakes N/A

Brake levers N/A

Cassette N/A

Chain N/A

Crankset N/A

Bottom bracket BB86 accepts press fit style BB only, bearing set not included

Rims N/A

Hubs N/A

Spokes N/A

Tires N/A

Extras Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, RideSense ANT+/Bluetooth

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
