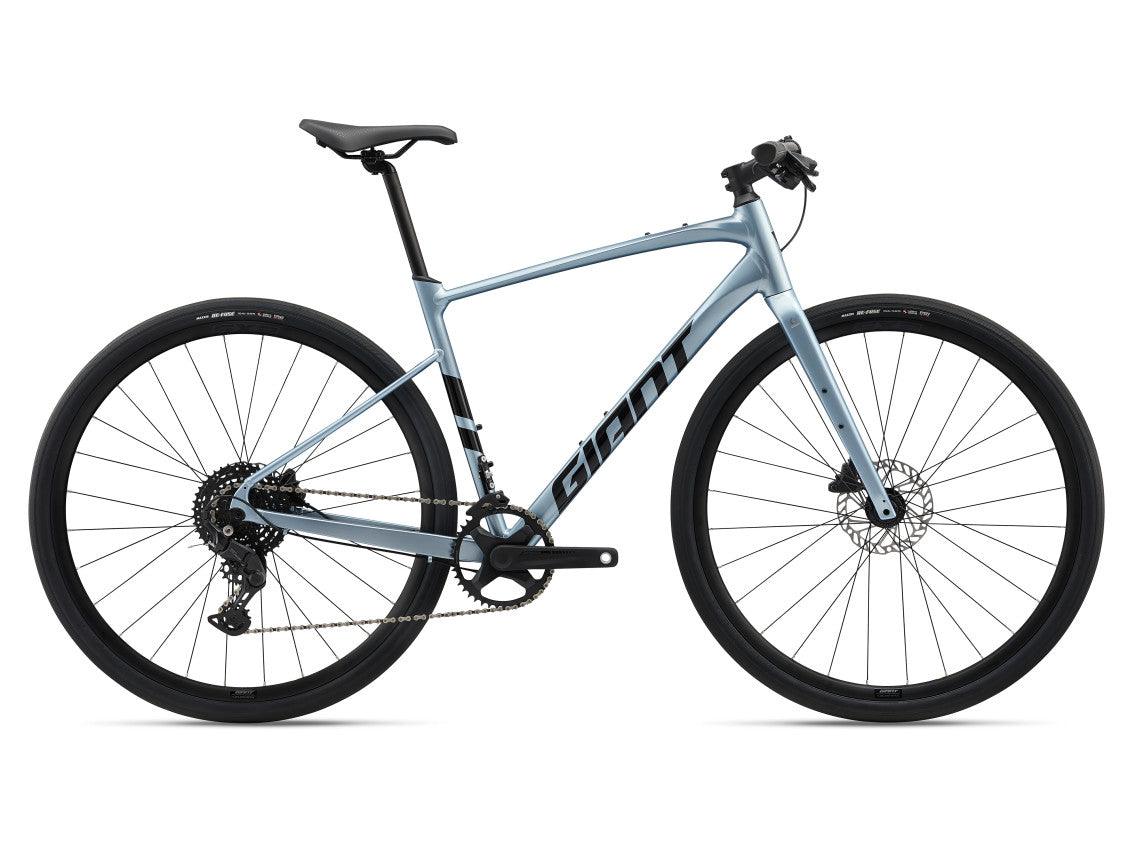

FastRoad AR 2

$1,599.00

It’s quick, it’s agile, and it can take you just about anywhere. With flat handlebar positioning, a smooth ride quality, and wide tubeless tyres, FastRoad AR frees you up to ride paved roads, bumpy bike paths and everything in between.

Size

Lg ML Md Sm XL XS

Colour

Glacier Silver

Product variants

1 in stock

Techs & Features

Lightweight efficiency

High-quality ALUXX aluminium frame and composite fork deliver efficient pedalling power for a smooth, fast ride on variable roads and paths.

Smooth, stable ride quality

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoContact saddle helps smooth out rough roads.

All-road capabilities

High-volume 40mm tubeless tyres offer the freedom and versatility to ride smooth roads, bumpy bike paths or gravel.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

XS

155 cm 165 cm
S

160 cm 170 cm
M

170 cm 180 cm
ML

175 cm 185 cm
L

180 cm 190 cm
XL

190 cm 200 cm

Code	Name	XS	S	M	ML	L	XL
A	Seat Tube Length (mm) (inch)	435	17.1	455	17.9	475	18.7	495	19.5	525	20.7	555	21.9
B	Seat Tube Angle (degrees)	73.5°	73.5°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm) (inch)	545	21.5	560	22	575	22.6	590	23.2	610	24	630	24.8
D	Head Tube Length (mm) (inch)	110	4.3	130	5.1	155	6.1	175	6.9	200	7.9	225	8.9
E	Head Tube Angle (degrees)	70.5°	70.5°	71.0°	71.0°	71.5°	71.5°
F	Fork Rake (mm) (inch)	50	2	50	2	50	2	50	2	50	2	50	2
G	Trail (mm) (inch)	73.7	2.9	73.7	2.9	70.4	2.8	70.4	2.8	67.1	2.6	67.1	2.6
H	Wheelbase (mm) (inch)	1031	40.6	1047	41.2	1058	41.7	1069	42.1	1084	42.7	1105	43.5
I	Chain Stay Length (mm) (inch)	435	17.1	435	17.1	435	17.1	435	17.1	435	17.1	435	17.1
J	Bottom Bracket Drop (mm) (inch)	75	3	75	3	75	3	75	3	75	3	75	3
K	Stack (mm) (inch)	533	21	552	21.7	578	22.8	597	23.5	623	24.5	646	25.4
L	Reach (mm) (inch)	387	15.2	396	15.6	404	15.9	407	16	419	16.5	432	17
M	Stand Over Height (mm) (inch)	718	28.3	736	29	756	29.8	773	30.4	800	31.5	826	32.5
O	Stem Length (mm) (inch)	70	2.8	80	3.1	90	3.5	90	3.5	100	3.9	110	4.3
P	Crank Length (mm) (inch)	170	6.7	170	6.7	170	6.7	172.5	6.8	172.5	6.8	172.5	6.8
Q	Wheel Size	700	700	700	700	700	700

Specifications

Sizes XS, S, M, M/L, L, XL

Colours Glacier Silver

Frame ALUXX-grade aluminium, 12x142mm thru-axle, disc

Fork Advanced-grade composite, composite OverDrive steerer, 12x100mm thru-axle, disc

Shock N/A

Handlebar Giant Sport, flat, 31.8mm

Grips Giant ErgoContact

Stem Giant Sports XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm

Seatpost Giant D-Fuse, alloy, 350mm

Saddle Giant ErgoContact

Pedals Platform pedal

Shifters Shimano CUES U4000, 9-speed

Front derailleur N/A

Rear derailleur Shimano CUES

Brakes Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm

Brake levers Tektro HD-R280

Cassette Shimano CS-LG3009, 11x41

Chain Shimano CN-LG500

Crankset FSA Omega AGX+, 42t XS:170mm, S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL: 175mm

Bottom bracket Threaded

Rims Giant S-X2 Disc wheelset

Hubs Giant alloy, 12mm thru-axle

Spokes Sapim

Tires Maxxis Re-Fuse, tubeless, 700x40c

Extras Tubeless prepared, 42mm max tyre size

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
