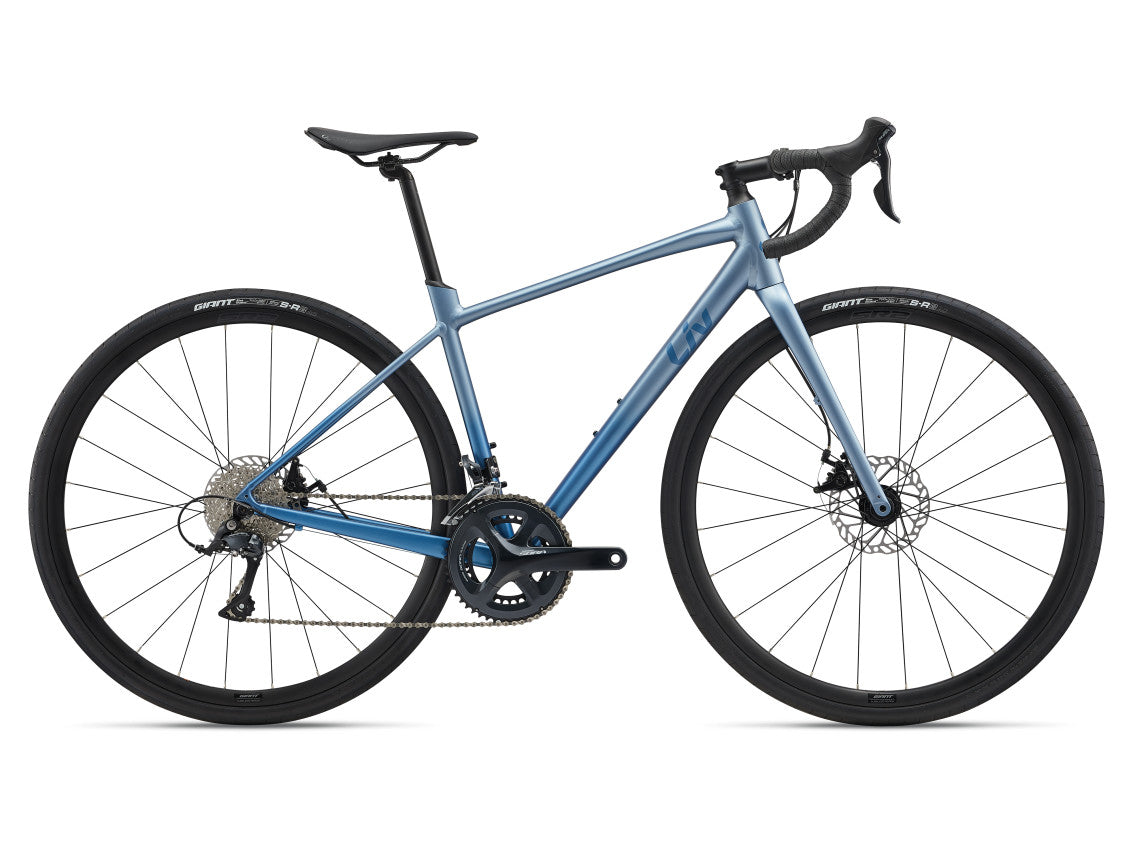

Avail AR 3

$1,799.00

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Avail AR 3 - Lg / Blue is available from our supplier warehouse. Our team will call you when we receive your order to confirm the arrival date - usually 7-10 days.

Techs & Features

Comfort

The lightweight ALUXX aluminium frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tyres up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    153 cm 162 cm
  • S
    158 cm 169 cm
  • M
    165 cm 174 cm
  • L
    171 cm 182 cm
Bike Geometry Diagram
Code Name XS S M L
A Seat Tube Length (mm) (inch) 410 445 480 515
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 515 525 540 555
D Head Tube Length (mm) (inch) 118 138 158 178
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 53 53 53 53
G Trail (mm) (inch) 69.5 62.9 59.6 59.6
H Wheelbase (mm) (inch) 999 1001 1006 1022
I Chain Stay Length (mm) (inch) 422 422 422 422
J Bottom Bracket Drop (mm) (inch) 80 80 80 80
K Stack (mm) (inch) 538 561 582 601
L Reach (mm) (inch) 366 369 373 383
M Stand Over Height (mm) (inch) 681 709 736 766
O Stem Length (mm) (inch) 70 80 90 90
P Crank Length (mm) (inch) 165 170 170 172.5
Q Wheel Size 700C 700C 700C 700C

Specifications

Sizes XS, S, M, L
Colours Frost Silver/Electron Blue
Frame ALUXX-Grade aluminium, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Shock N/A
Handlebar Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm
Grips Liv All Condition
Stem Giant Sport XS:70mm, S:80mm, M:90mm, L:90mm
Seatpost Giant D-Fuse, alloy
Saddle Liv Approach
Shifters Shimano Sora
Front derailleur Shimano Sora
Rear derailleur Shimano Sora
Brakes Tektro MD-C550 mechanical, Giant MPH Rotors [F]160mm, [R]160mm
Brake levers Shimano Sora
Cassette Shimano CS-HG400, 9-speed, 11x34
Chain KMC X9
Crankset Shimano Sora, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm
Bottom bracket Cartridge
Rims Giant S-R2 Disc wheelset
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tires Giant S-R3 AC, 700x32c
Extras 38mm max tyre size
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
