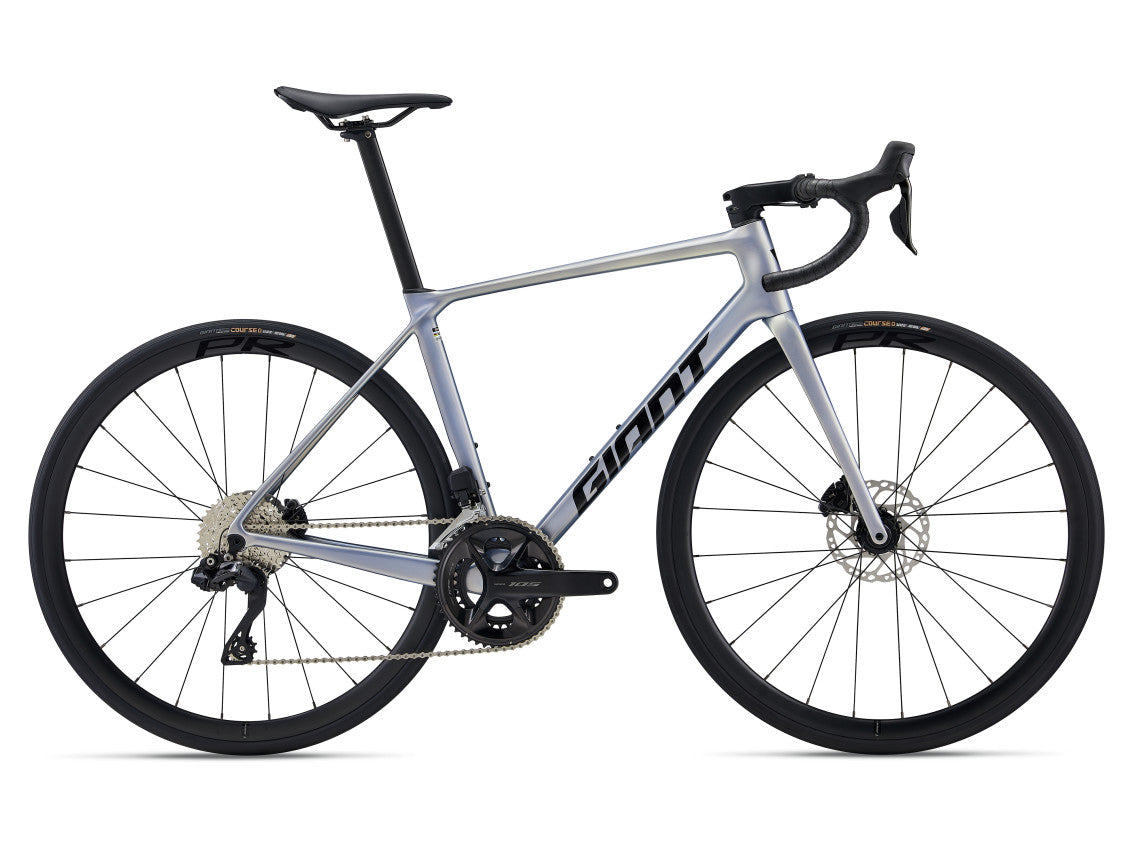

TCR Advanced 1

$4,999.00
Tax included
Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.
Size
Colour
6 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tyre pressures for increased grip and a reduced risk of punctures.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    157 cm 169 cm
  • S
    165 cm 175 cm
  • M
    171 cm 181 cm
  • ML
    177 cm 187 cm
  • L
    183 cm 193 cm
  • XL
    189 cm 199 cm
Bike Geometry Diagram
Code Name XS S M ML L XL
A Seat Tube Length (mm) (inch) 425 445 470 500 530 560
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 520 535 550 565 580 600
D Head Tube Length (mm) (inch) 120 130 145 165 185 200
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 45 45 45 45 45 45
G Trail (mm) (inch) 72.1 64 59.2 59.2 59.2 59.2
H Wheelbase (mm) (inch) 976 977 980 991 1006 1020
I Chain Stay Length (mm) (inch) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) (inch) 72 70 70 67 67 67
K Stack (mm) (inch) 517 528 545 562 581 596
L Reach (mm) (inch) 376 383 388 393 402 412
M Stand Over Height (mm) (inch) 719 734 752 768 786 803
O Stem Length (mm) (inch) 80 90 100 110 110 120
P Crank Length (mm) (inch) 165 165 170 170 172.5 172.5

Specifications

Sizes XS, S, M, M/L, L, XL
Colours Dreamy Blue
Frame Advanced-grade Composite, 12x142mm thru-axle, disc
Fork Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Grips Stratus Lite 2.0
Stem Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant Variant, composite, -5/+15mm offset
Saddle Giant Approach
Pedals N/A
Shifters Shimano 105 Di2
Front derailleur Shimano 105 Di2 FD-7150
Rear derailleur Shimano 105 Di2 RD-7150
Brakes Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm
Brake levers Shimano 105 Di2
Cassette Shimano 105, 12-speed, 11x34
Chain KMC X12L-1
Crankset Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom bracket Shimano, press fit
Rims Giant P-R1, [F]30mm, [R]30mm
Hubs Giant alloy, 12mm thru-axle
Spokes Stainless
Tires Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
Extras Tubeless prepared, 33mm max tyre size
Max tyre clearance 33mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
