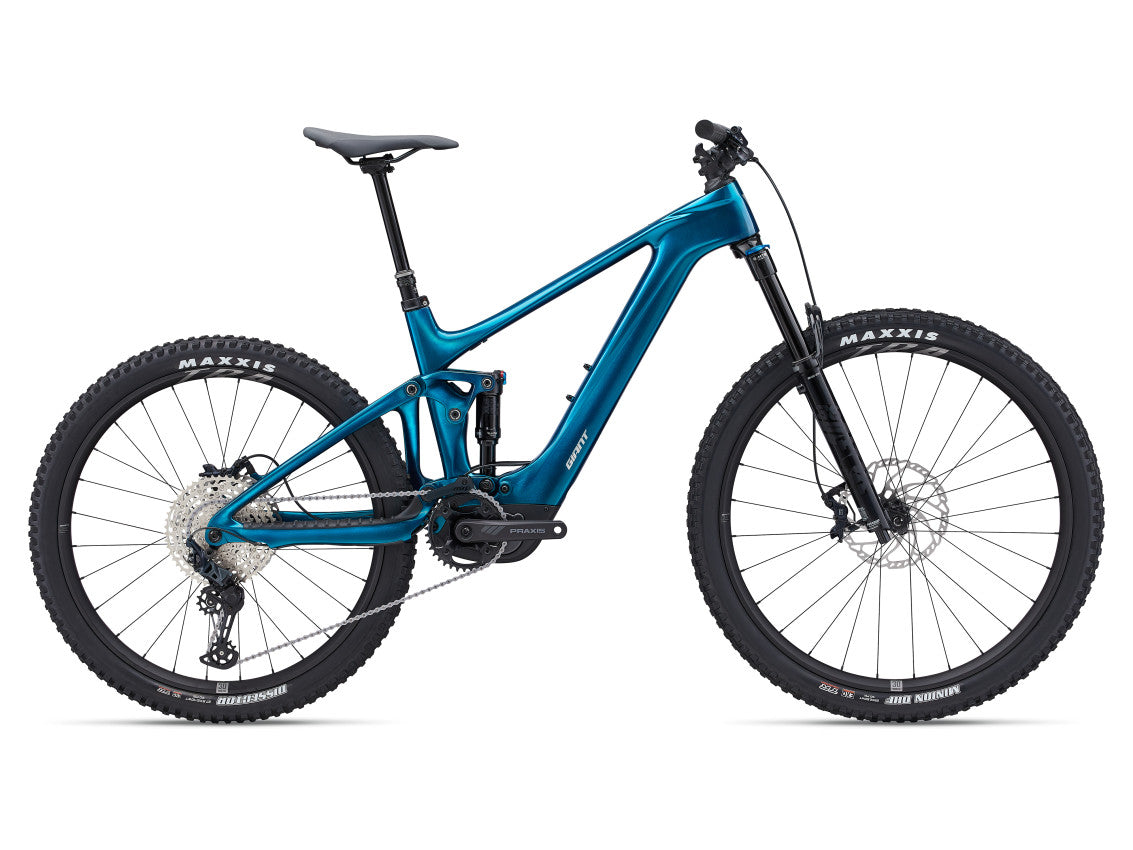

Trance X Advanced E+ EL 2 25km/h

$9,999.00

Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.EnergyPak 400 / SyncDrive Pro2 Mg

Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Lighter weight

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

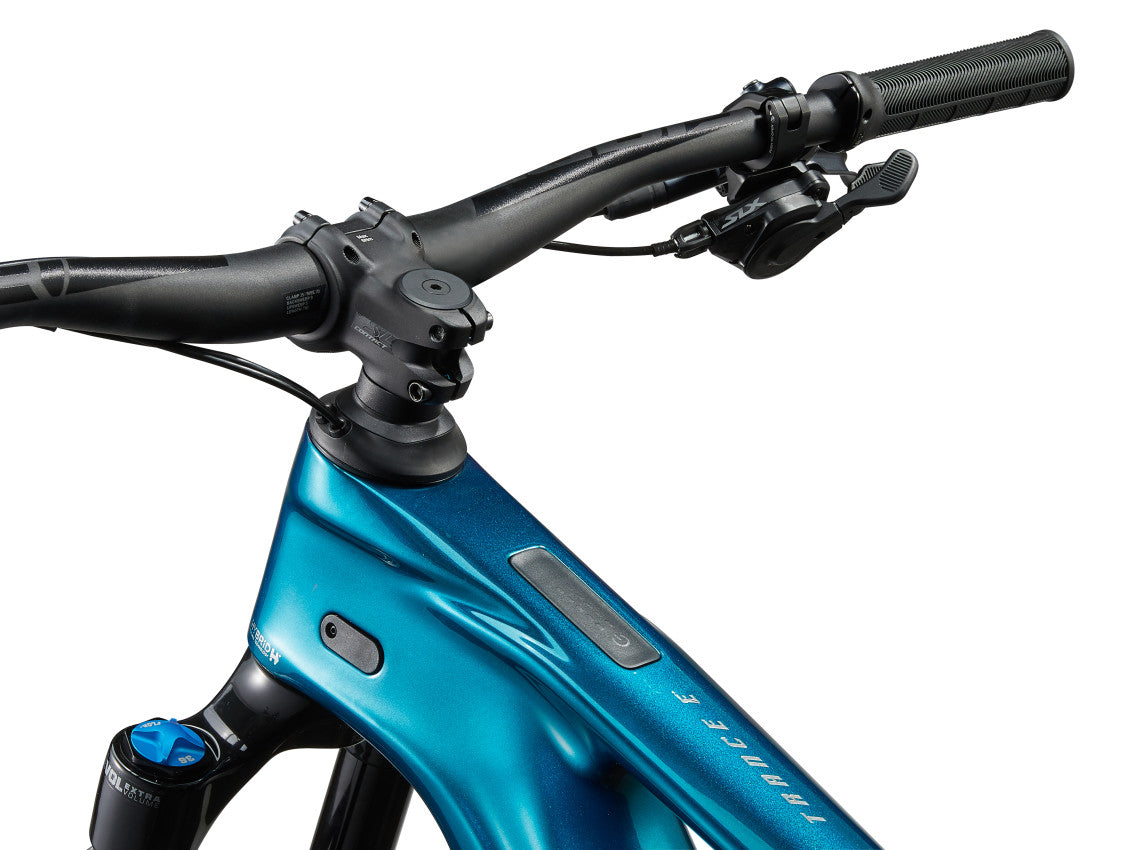

Advanced cockpit control

RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

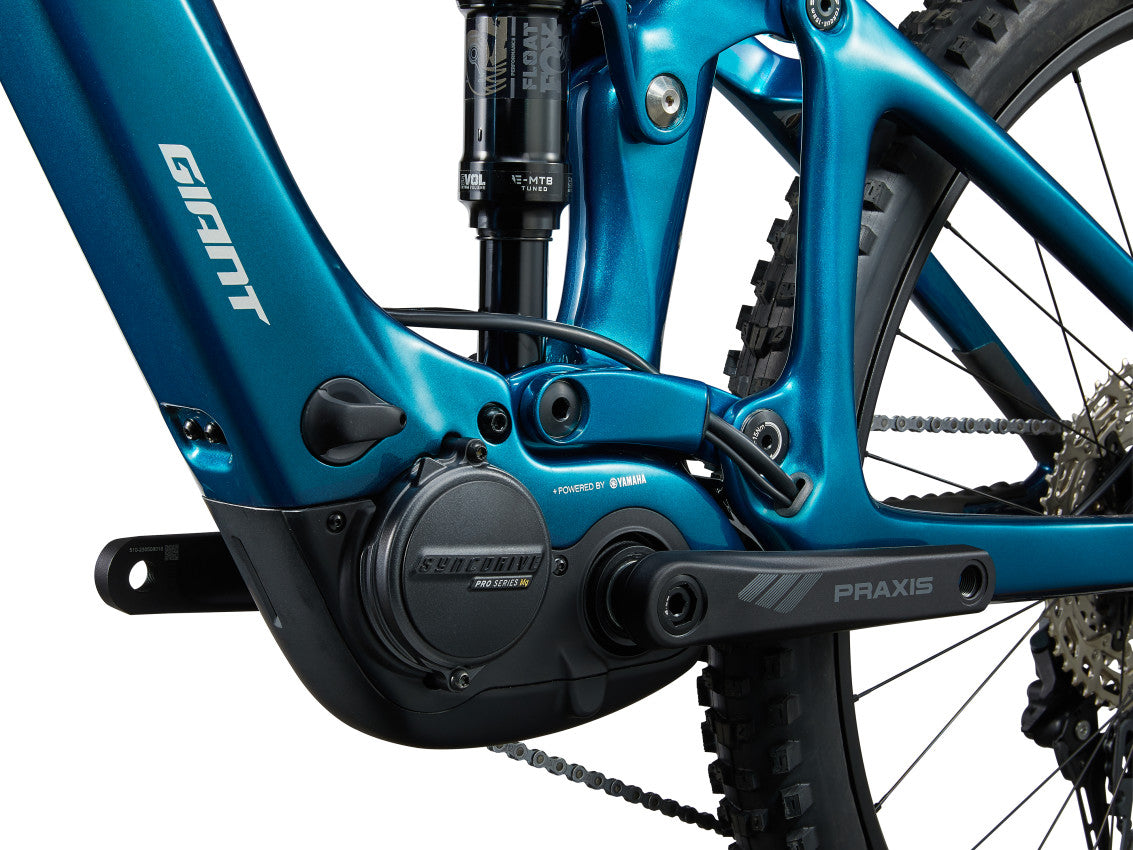

More power

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    163 cm 174 cm
  • M
    171 cm 182 cm
  • L
    179 cm 190 cm
  • XL
    187 cm 199 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 400 425 450 475
A1 Seat Post Insertion Depth (mm) (inch) 220 245 270 295
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 577575 607605 636634 665663
D Head Tube Length (mm) (inch) 95 100 115 130
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 113.1108 113.1108 113.1108 113.1108
H Wheelbase (mm) (inch) 11941195 12151212 12441244 12751275
I Chain Stay Length (mm) (inch) 447447 447447 447447 447447
J Bottom Bracket Drop (mm) (inch) 10 10 10 10
K Stack (mm) (inch) 607601 611605 625619 639633
L Reach (mm) (inch) 439447 457462 480487 505513
M Stand Over Height (mm) (inch) 726735 733742 732741 741750
O Stem Length (mm) (inch) 40 40 50 50
P Crank Length (mm) (inch) 160 165 165 170
Q Wheel Size

Specifications

Motor Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
Controller RideControl Ergo 3, grip integrated
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Charger EnergyPak 4A smart charger compact
Sizes S, M, L, XL
Colours Sea Sparkle
Frame Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
Fork Fox 36 Float Performance E-Tuned, 150mm travel, 44mm offset, GRIP 3-position Micro Adjust damper, Boost Kabolt 110
Shock Fox Float Performance, EVOL Large Volume sleeve, 2-position Lever, custom tuned
Handlebar Giant Contact SL 35 Trail, 35
Grips Giant Tactal Pro-E, single lock-on
Stem Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
Saddle Giant Romero
Pedals N/A
Shifters Shimano SLX
Front derailleur MRP HD2 co-moulded chain guide
Rear derailleur Shimano SLX, 12-speed, Shadow+
Brakes Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm [F/R]
Brake levers Shimano SLX, I-spec EV
Cassette Shimano, CS-M6100, 10-51T, 12-speed
Chain KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm
Bottom bracket N/A
Rims Giant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection
Hubs Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle
Spokes Sapim E-Lite [R] Race [F], e-bike optimised
Tires Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4"" Foldable, TLR, EXO [R]
Extras Tubeless kit (liquid, valves, levers)
Lighting Optional:- Giant Recon series e-bike lights available and direct connectable
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
