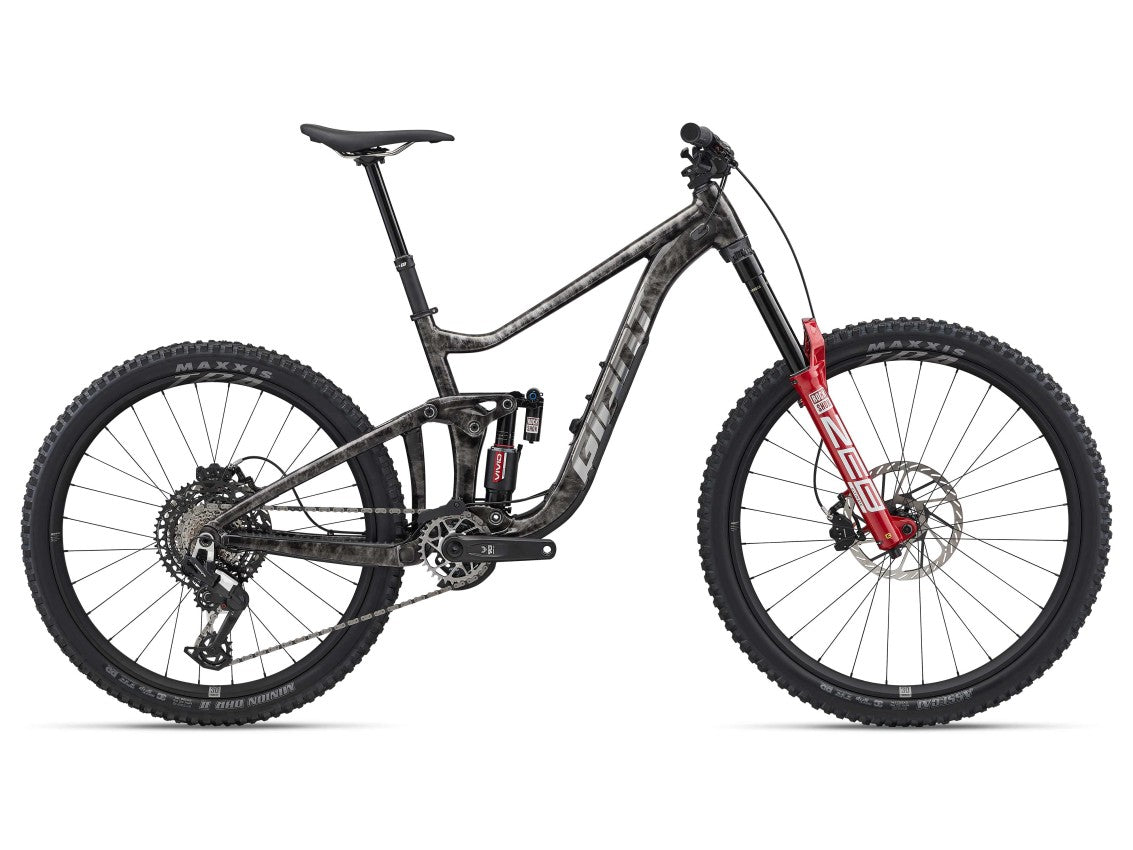

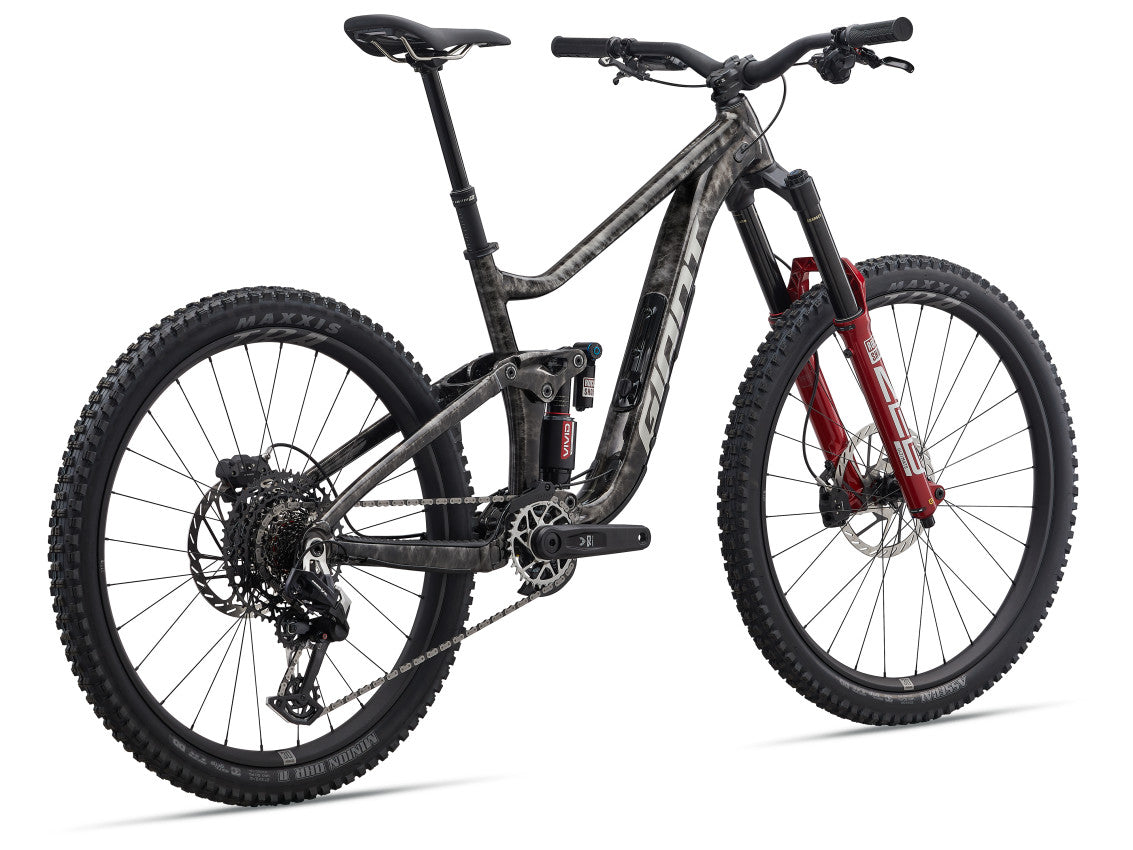

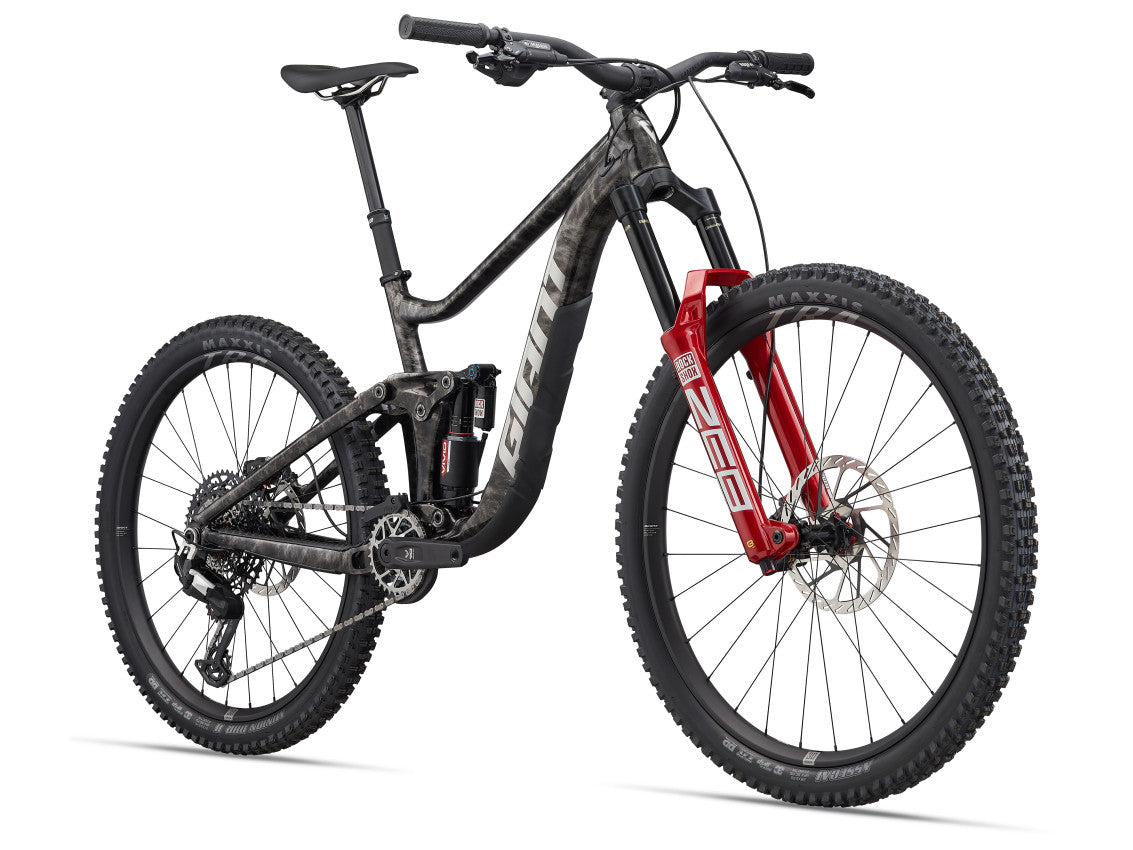

Reign SE

$7,999.00
Tax included

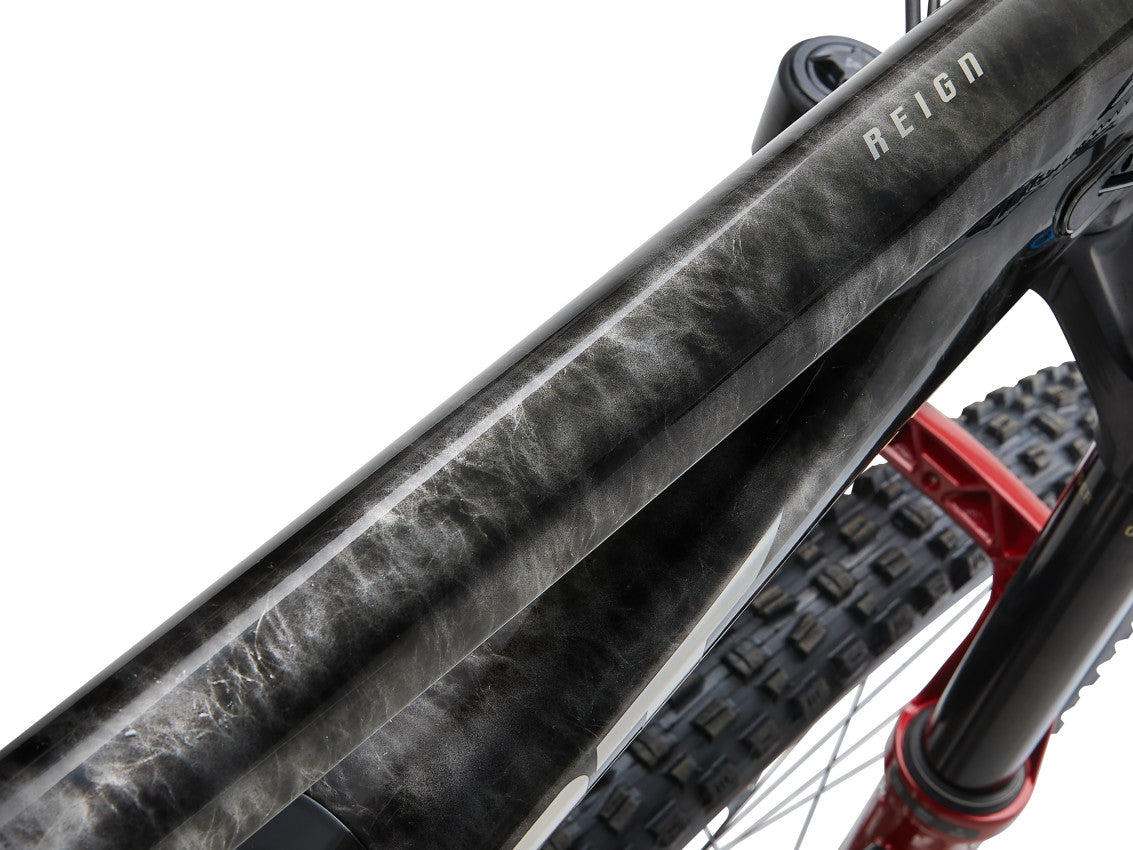

Big hits and all-out descents. This trail-crushing enduro machine features a unique paint treatment that makes each bike one of a kind. Its mixed wheel size, with a 29-inch front and 27.5-inch rear, blends stability and speed with agility that pops. The geometry is designed for a longer-travel 165mm rear suspension setup and a 180mm fork, giving you the upper hand on the on the rowdiest trails and bike park terrain.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

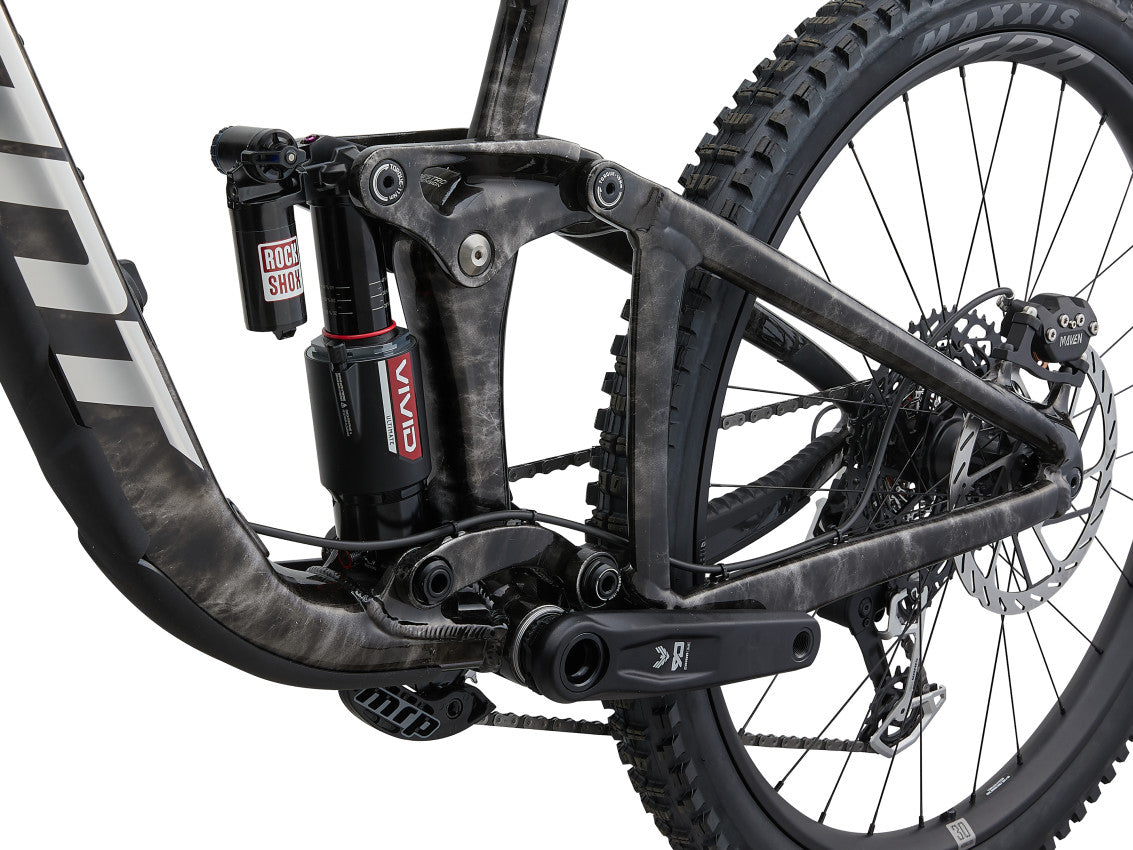

RACE-BRED SUSPENSION

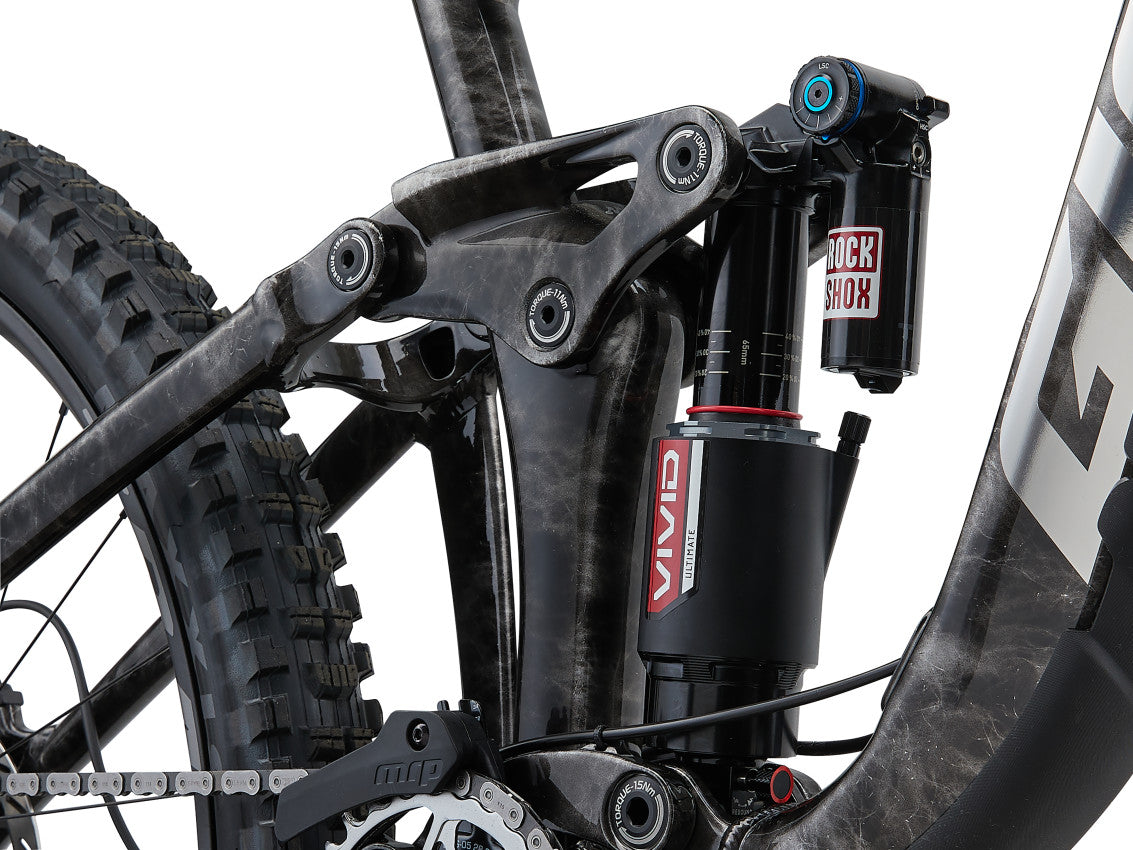

The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 180mm travel fork. The trunnion mount rear shock has a longer stroke while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.

ADJUSTABLE ENDURO GEOMETRY

A flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 62.6 or 63-degree head angle and corresponding 77.4 or 77.8-degree seat tube angle, resulting in a 20 or 15mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.

MIXED WHEEL SIZE

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • M
    171 cm 180 cm
  • L
    179 cm 188 cm
  • XL
    187 cm 198 cm
Bike Geometry Diagram
Code Name M L XL
A Seat Tube Length (mm) (inch) 425 450 475
A1 Seat Post Insertion Depth (mm) (inch) 383 308 333
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 589 | 588 623 | 622 655 | 654
D Head Tube Length (mm) (inch) 105 105 120
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44
G Trail (mm) (inch) 147 | 145 147 | 145 147 | 144
H Wheelbase (mm) (inch) 1251 | 1250 1275 | 1274 1308 | 1307
I Chain Stay Length (mm) (inch) 443 | 442 443 | 442 443 | 442
J Bottom Bracket Drop (mm) (inch) 20 | 15 20 | 15 21 | 15
K Stack (mm) (inch) 639 | 636 648 | 645 653 | 650
L Reach (mm) (inch) 446 | 450 466 | 470 497 | 501
M Stand Over Height (mm) (inch) 734 | 739 750 | 755 744 | 749
O Stem Length (mm) (inch) 40 40 40
P Crank Length (mm) (inch) 165 165 165
Q Wheel Size 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R]

Specifications

Sizes M, L, XL
Colours Black Lightning/Chrome

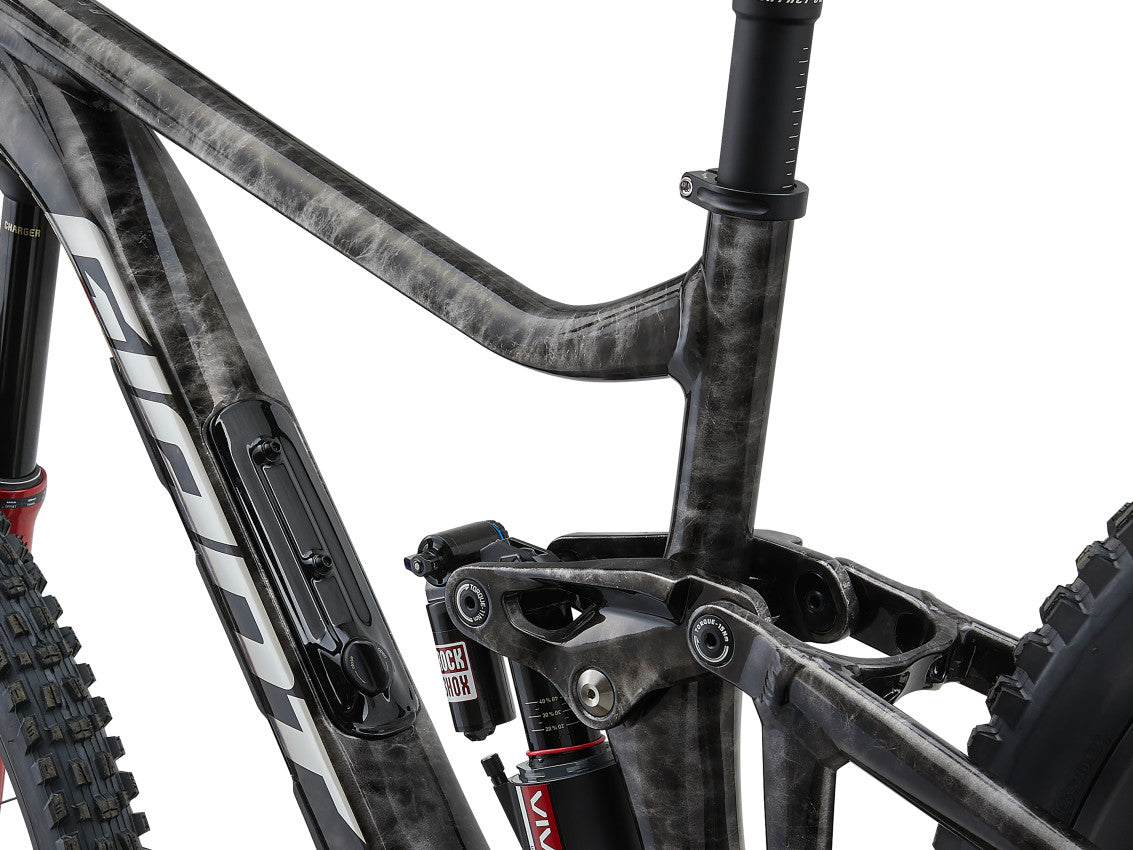

Frame ALUXX SL-grade aluminium front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage

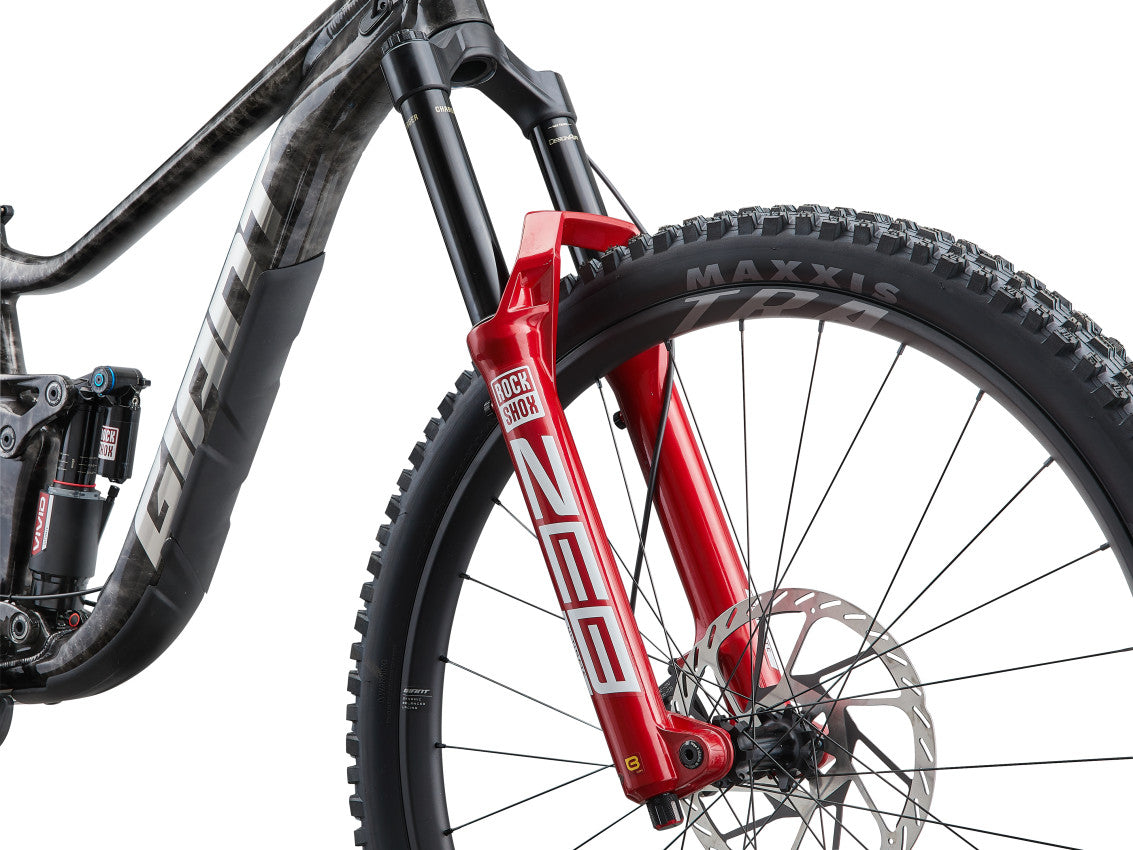

Fork RockShox Zeb Ultimate, Charger 3.1 RC2 damper, 180mm, 15x110, Maxle Stealth, Debonair
Shock RockShox Vivid Ultimate, RCT2, adjustable hydraulic bottom out, trunnion mount, 205/65 S:425#, M:425#, L:450#, XL: 475#

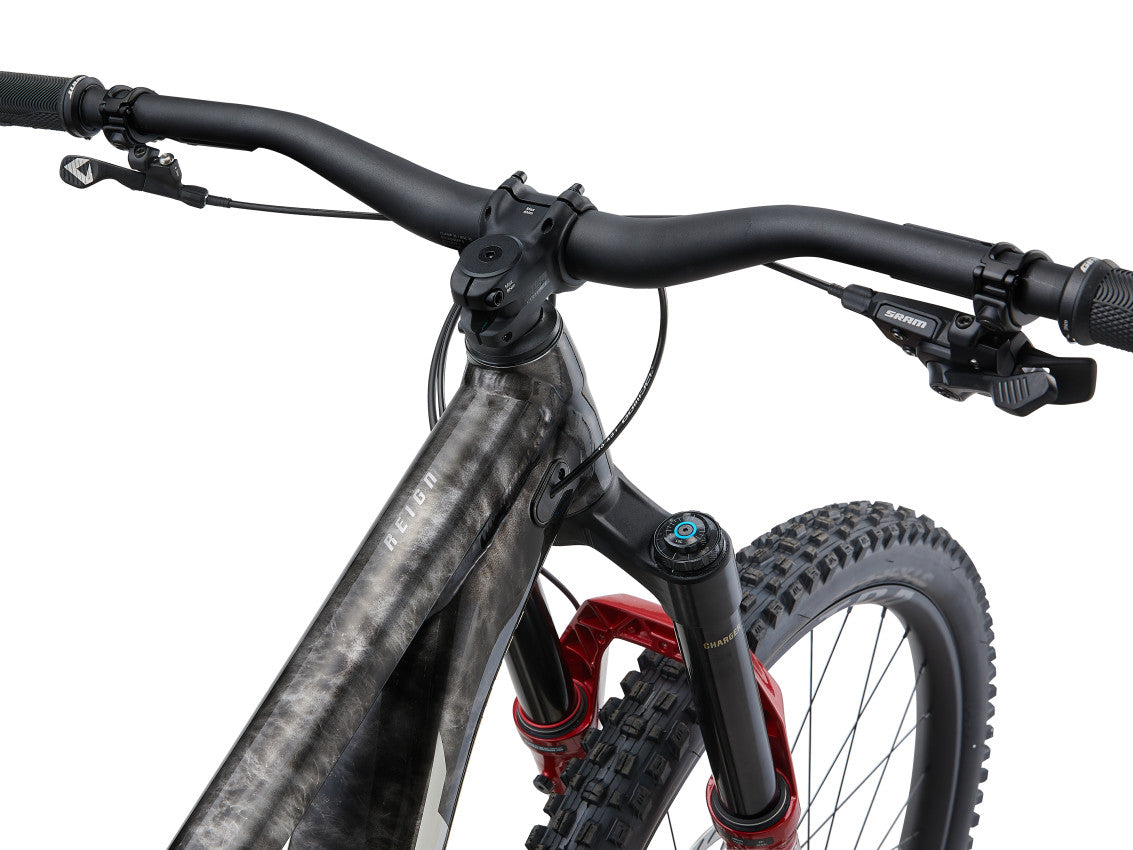

Handlebar Giant Contact TR35, 35mm rise
Grips Giant Tactal Pro Single
Stem Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm
Saddle Giant Romero
Pedals N/A
Shifters SRAM Eagle 90, mechanical, 1x12
Front derailleur N/A

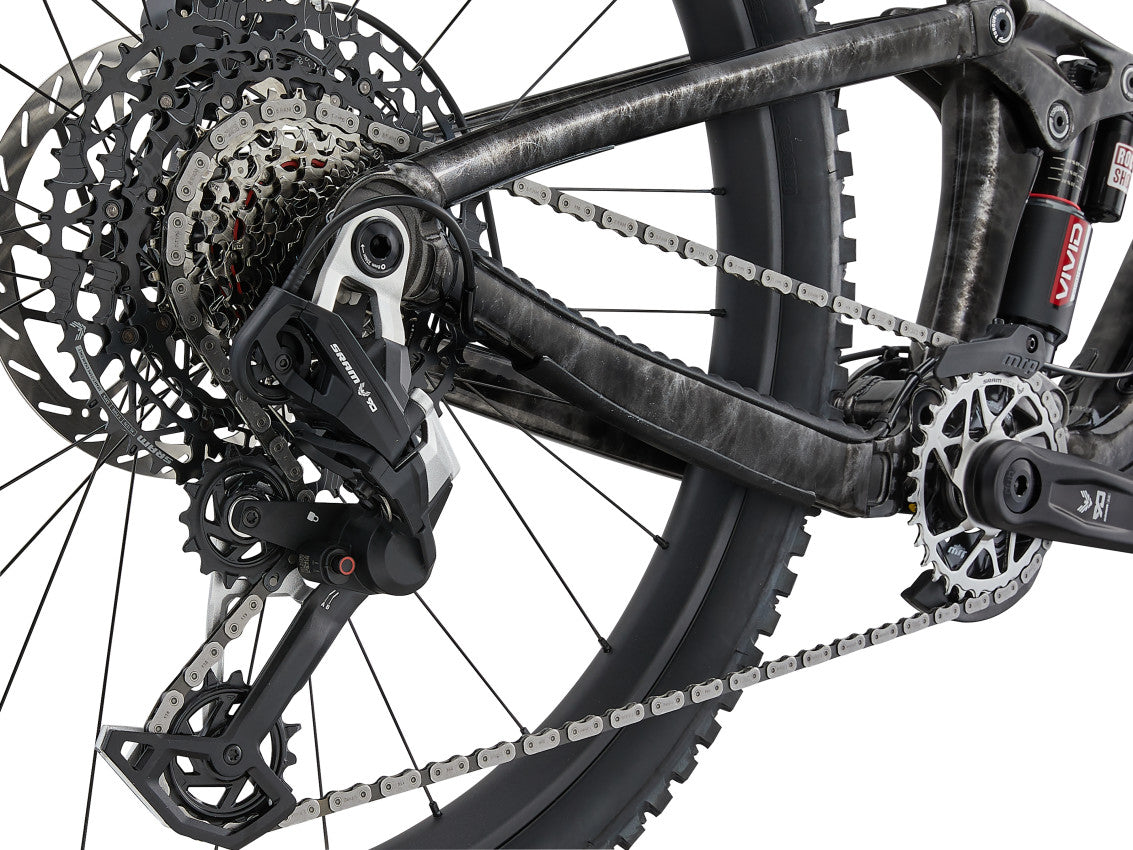

Rear derailleur SRAM Eagle 90 mechanical transmission

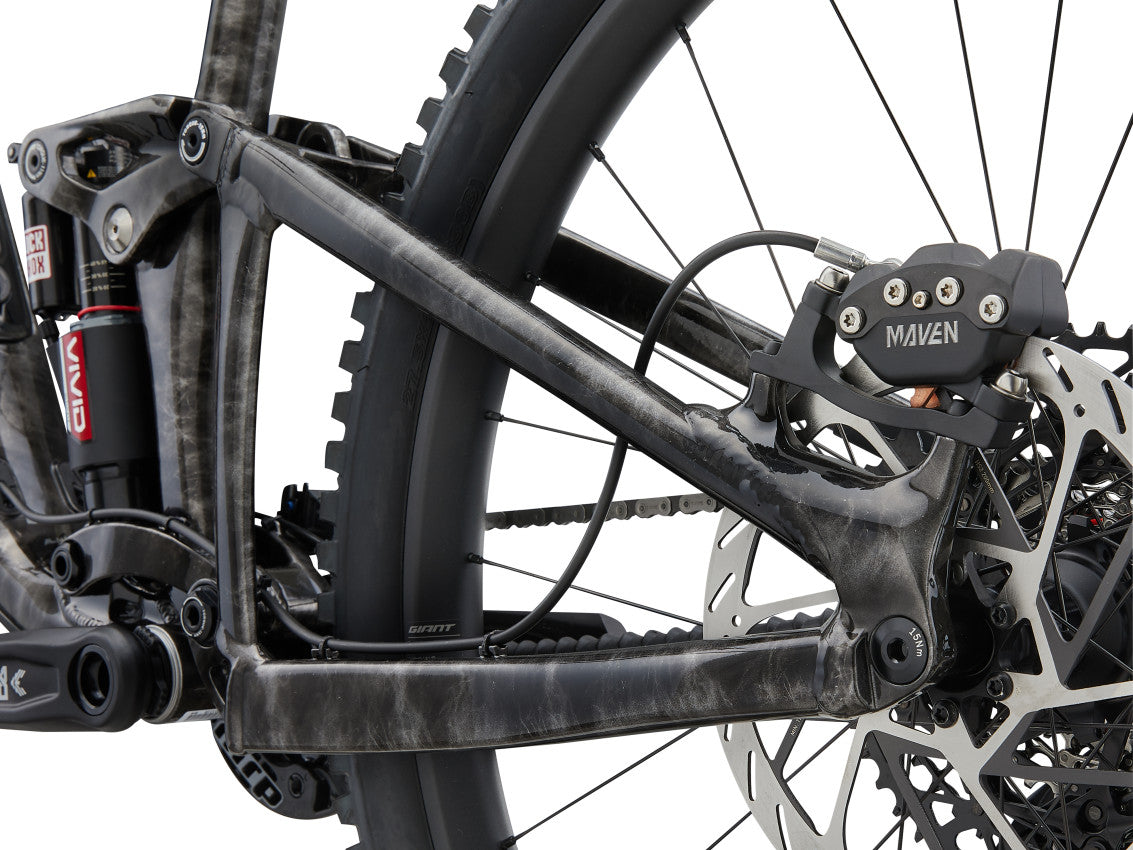

Brakes SRAM Maven, hydraulic, SRAM HS2 rotors [F]220mm, [R]200mm
Brake levers SRAM Maven
Cassette SRAM XS 1270, 10x52
Chain SRAM 70
Crankset SRAM 90, 32t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
Bottom bracket SRAM DUB, press fit
Rims Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body
Spokes Sapim, 28, straight pull, DBL Technology
Tyres [F] Maxxis Assegai 29x2.5 WT, 3C MaxxGrip, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxGrip, DD, TR tubeless
Extras Tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
