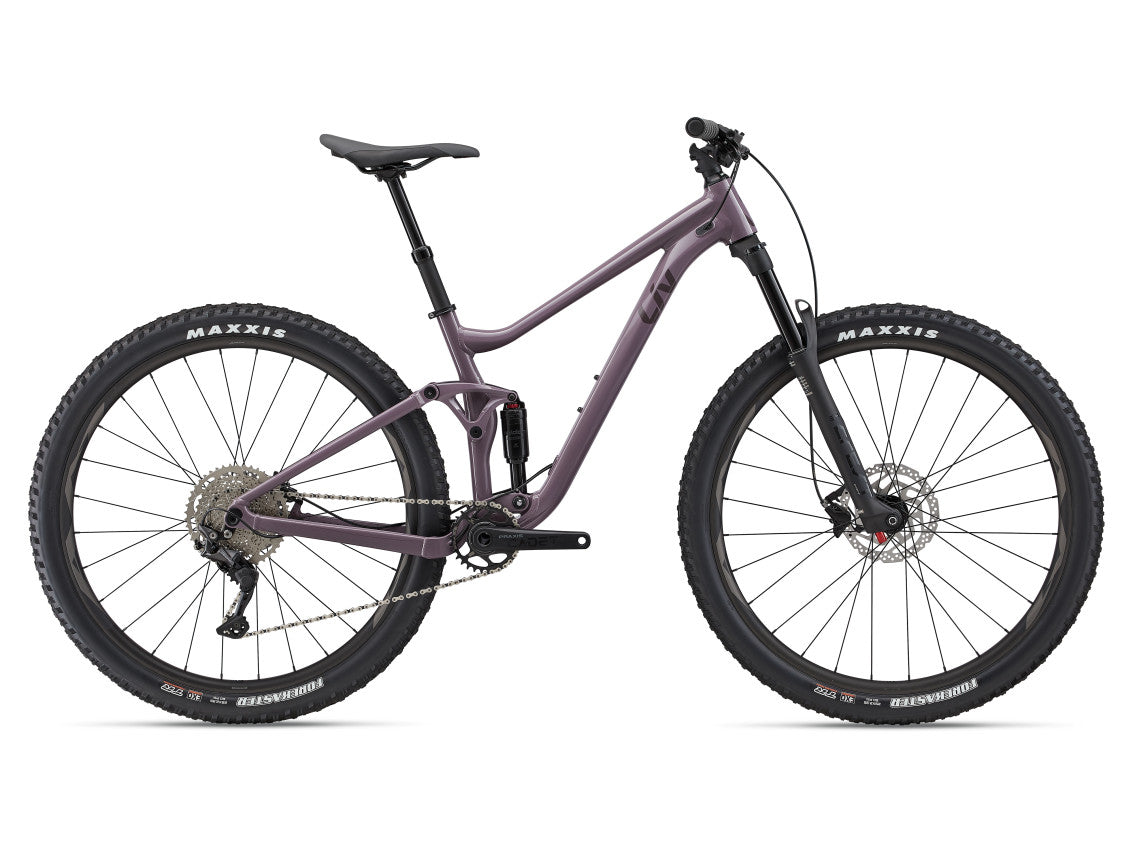

• Image 1 of 2 - Purple Ash

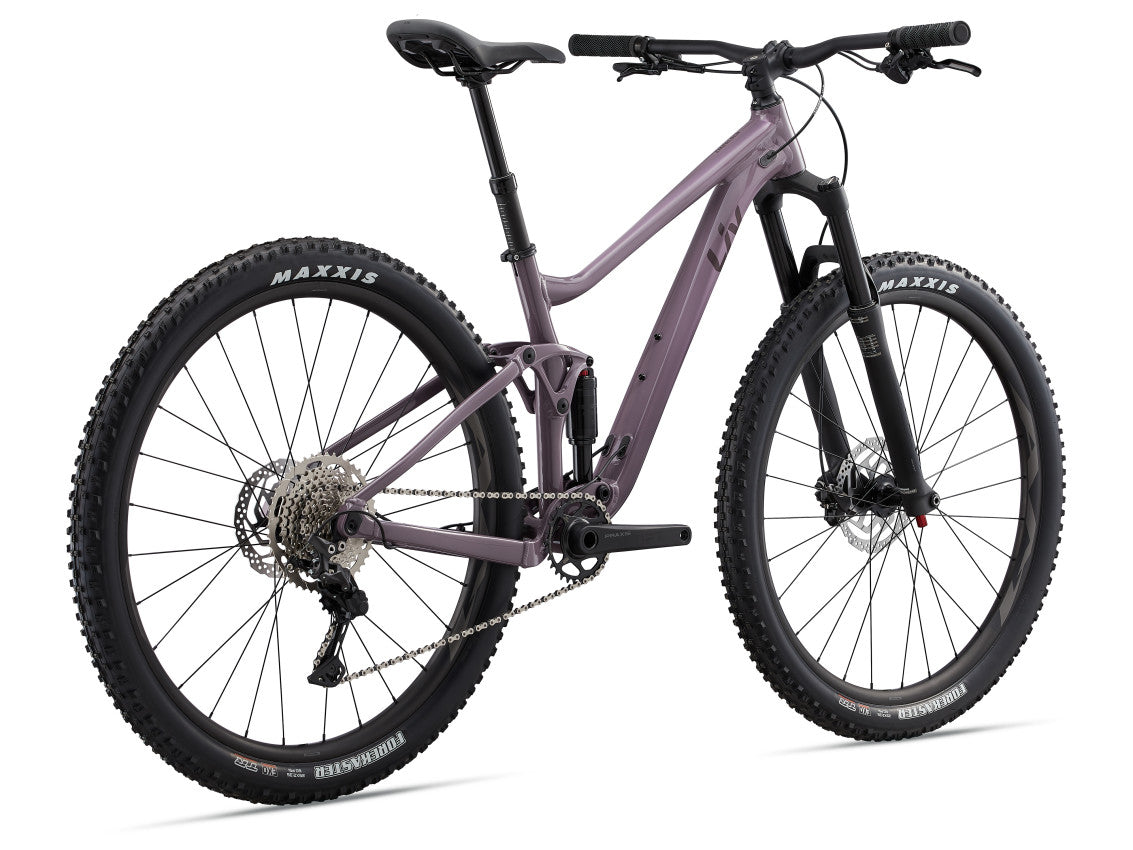

  • Image 2 of 2 - Purple Ash Rear Angle
1 2
Liv Logo

Embolden 2

$6,299.00
Tax included
Nothing is off-limits to the Embolden, a trail bike designed to conquer tricky climbs, rowdy descents, and chunky rock gardens with confidence.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Embolden 2 - Sm / Blue is available from supplier warehouse - 7 days

Techs & Features

Wheel Options

Available in 27.5- and 29-inch wheel size options, select the Embolden that best fits you and where you want to ride.

Trail Capability

ALUXX-Grade Aluminium frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.

Flexpoint Suspension

The 120mm of FlexPoint Suspension provides an effective, lightweight and durable suspension system so you have increased control while riding over rooty and rocky terrain.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS (27.5")
    150 cm 160 cm
  • S (29")
    158 cm 169 cm
  • M (29")
    164 cm 175 cm
  • L (29")
    170 cm 181 cm
Bike Geometry Diagram
Code Name XS (27.5") S (29") M (29") L (29")
A Seat Tube Length (mm) (inch) 380 405 420 440
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 565 565 585 605
D Head Tube Length (mm) (inch) 95 105 115 125
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 43 51 51 51
G Trail (mm) (inch) 103.6 105.3 105.3 105.3
H Wheelbase (mm) (inch) 1109 1147 1169 1190
I Chain Stay Length (mm) (inch) 435 438 438 438
J Bottom Bracket Drop (mm) (inch) 20 40 40 40
K Stack (mm) (inch) 560 614 623 632
L Reach (mm) (inch) 404 412 430 447
M Stand Over Height (mm) (inch) 690 712 734 755
O Stem Length (mm) (inch) 40 40 50 50
P Crank Length (mm) (inch) 165 170 170 170
Q Wheel Size 27.5" 29" 29" 29"

Specifications

Sizes 27.5": XS, 29": S, M, L
Colours Purple Ash
Frame ALUXX-Grade Aluminium, 120mm FlexPoint Suspension
Fork Giant Crest 34 RCL, 130mm, 15x110
Shock Suntour Raidon R
Handlebar Giant Connect Trail, alloy, 31.8mm
Grips Giant Sole-O
Stem Giant Contact XS:40mm (27.5) S:50mm, M:50mm, L:60mm (29)
Seatpost Giant Contact Switch dropper, remote XS: 75mm travel / 30.9 x 295mm (27.5) S: 100 M: 125mm travel / 30.9 x 395mm (29) L: 125mm travel / 30.9 x 395mm (29)
Saddle Liv Sylvia
Pedals N/A
Shifters Shimano Deore M4100, 1x10
Front derailleur N/A
Rear derailleur Shimano Deore M5120
Brakes Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm
Brake levers Shimano BL-MT201
Cassette Shimano Deore M4100, 11x46
Chain KMC X-10
Crankset Praxis Cadet Boost, 30t XS:165mm (27.5) S:170mm, M:170mm, L:170mm (29)
Bottom bracket Praxis, press fit
Rims Giant AM 27.5, tubeless ready (XS), Giant AM 29, tubeless ready (S, M, L)
Hubs [F] Alloy 15x110, loose ball [R] Alloy 12x148, loose ball
Spokes Sapim
Tires [F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless [F/R] Maxxis Forecaster 29x2.35 WT, EXO, TR, tubeless
Extras Tubeless prepared, max tyre size 2.4", max chainring size 32t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
