Revolt X Advanced Pro 0

$4,699.00
Tax included
Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

Smooth control

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

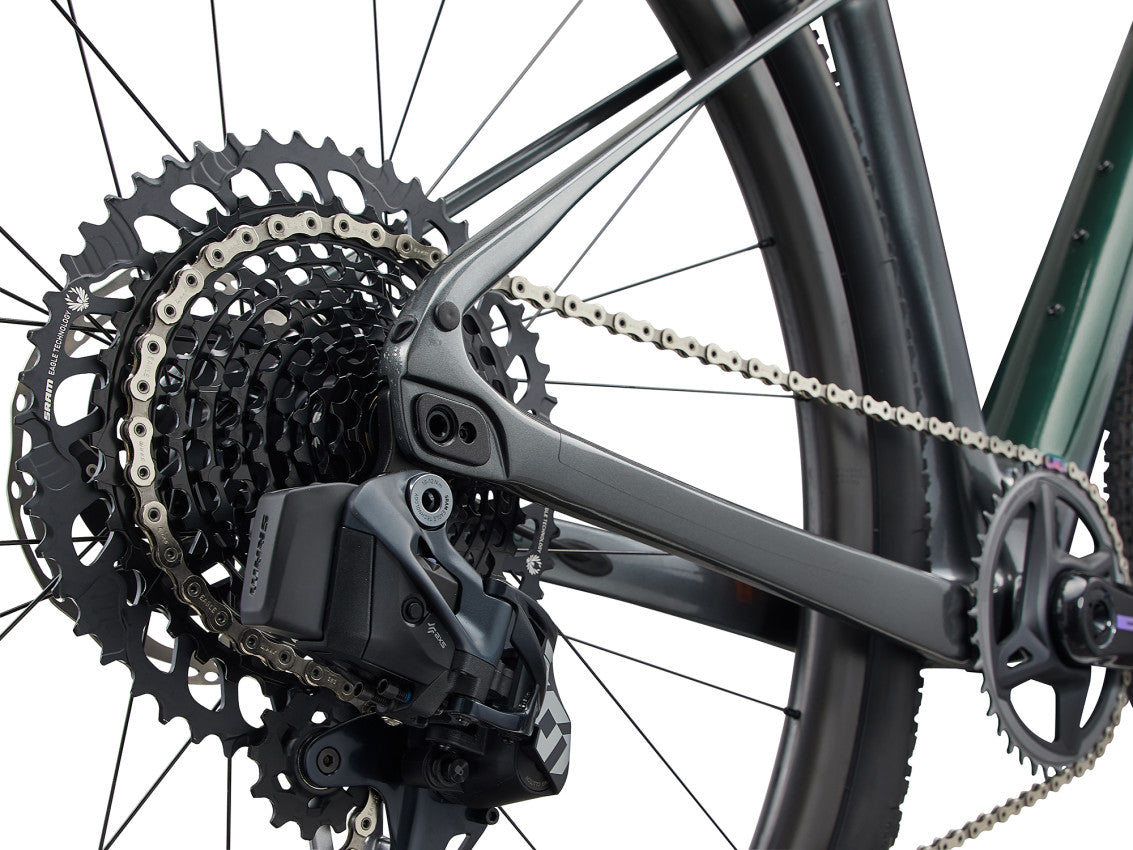

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    155 cm 166 cm
  • S
    159 cm 171 cm
  • M
    169 cm 181 cm
  • ML
    174 cm 186 cm
  • L
    179 cm 191 cm
  • XL
    189 cm 200 cm
Bike Geometry Diagram
Code Name XS S M ML L XL
A Seat Tube Length (mm) (inch) 430 450 470 490 510 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 543 553 560 575 585 600
D Head Tube Length (mm) (inch) 90 100 115 130 145 160
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50 50
G Trail (mm) (inch) 80.3 | 83.7 76.9 | 80.3 73.5 | 76.8 70.1 | 73.4 70.1 | 73.4 70.1 | 73.4
H Wheelbase (mm) (inch) 1023 | 1033 1024 | 1034 1026 | 1036 1031 | 1041 1041 | 1051 1057 | 1067
I Chain Stay Length (mm) (inch) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) (inch) 68 | 69 68 | 69 68 | 69 68 | 69 68 | 69 68 | 69
K Stack (mm) (inch) 549 560 576 592 607 621
L Reach (mm) (inch) 386 387 389 393 399 410
M Stand Over Height (mm) (inch) 720 | 726 736 | 743 755 | 761 772 | 778 790 | 796 808 | 814
O Stem Length (mm) (inch) 50 60 70 80 80 90
P Crank Length (mm) (inch) 170 170 172.5 172.5 175 175
Q Wheel Size 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C |

Specifications

Sizes XS, S, M, M/L, L, XL
Colours Kelp Forest/Charcoal
Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Fork Fox 32 Float TC Performance Elite, 40mm, Fit 4 damper12x100mm thru-axle
Shock N/A
Handlebar Giant Contact SL XR D-Fuse, 16-degree flare, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Grips Stratus Lite 3.0
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:70mm, L:80mm, XL:80mm

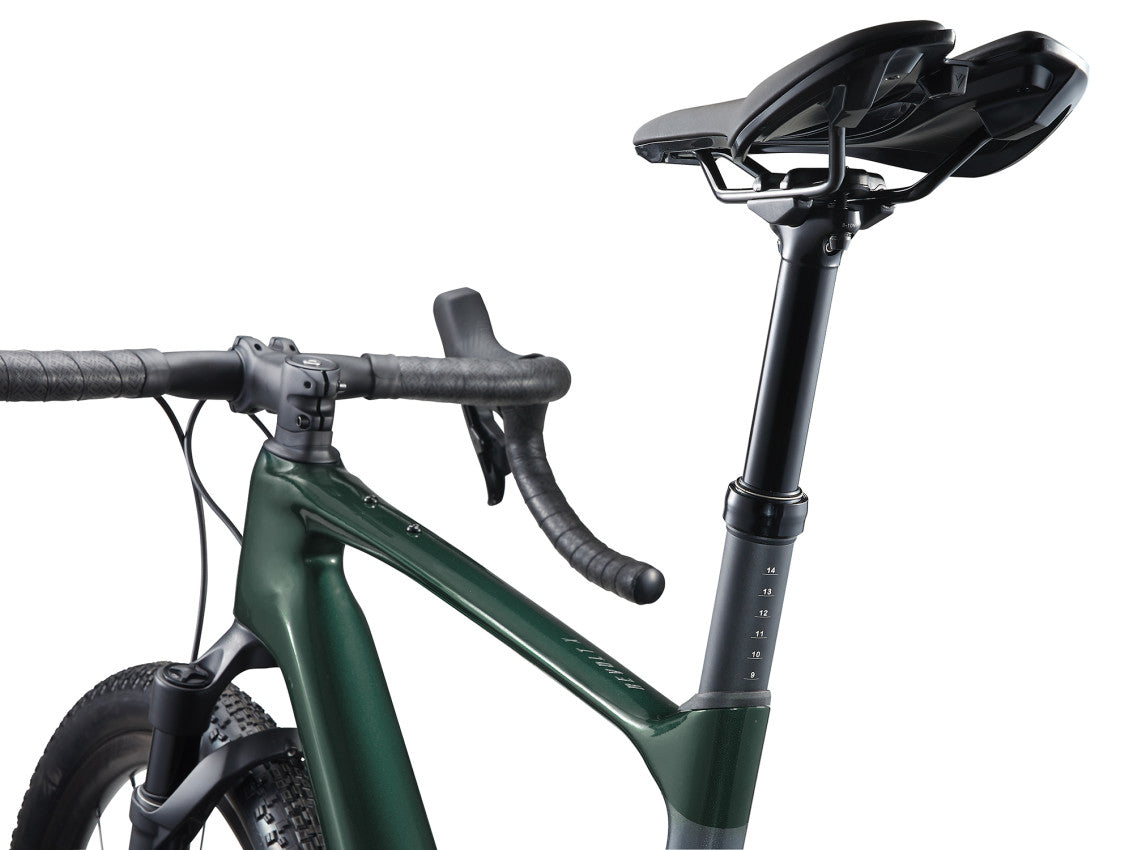

Seatpost Post Moderne, dropper, 30.9mm with 25mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
Saddle Giant Approach SL
Pedals N/A
Shifters SRAM Force eTap AXS, 1x12
Front derailleur N/A
Rear derailleur SRAM X01 Eagle AXS
Brakes SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
Brake levers SRAM Force eTap AXS hydraulic, left lever dropper switch
Cassette SRAM XG-1295, 12-speed, 10x52
Chain SRAM X01 Eagle
Crankset SRAM FORCE 1 Wide, DUB 1X 40T XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket SRAM DUB, press fit
Rims Giant CXR 1 X1 Carbon Disc WheelSystem
Hubs [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, 36t ratchet system, CenterLock, 12mm thru-axle
Spokes Sapim CX-Ray
Tyres Maxxis Rambler, 700x50c, tubeless prepared
Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
