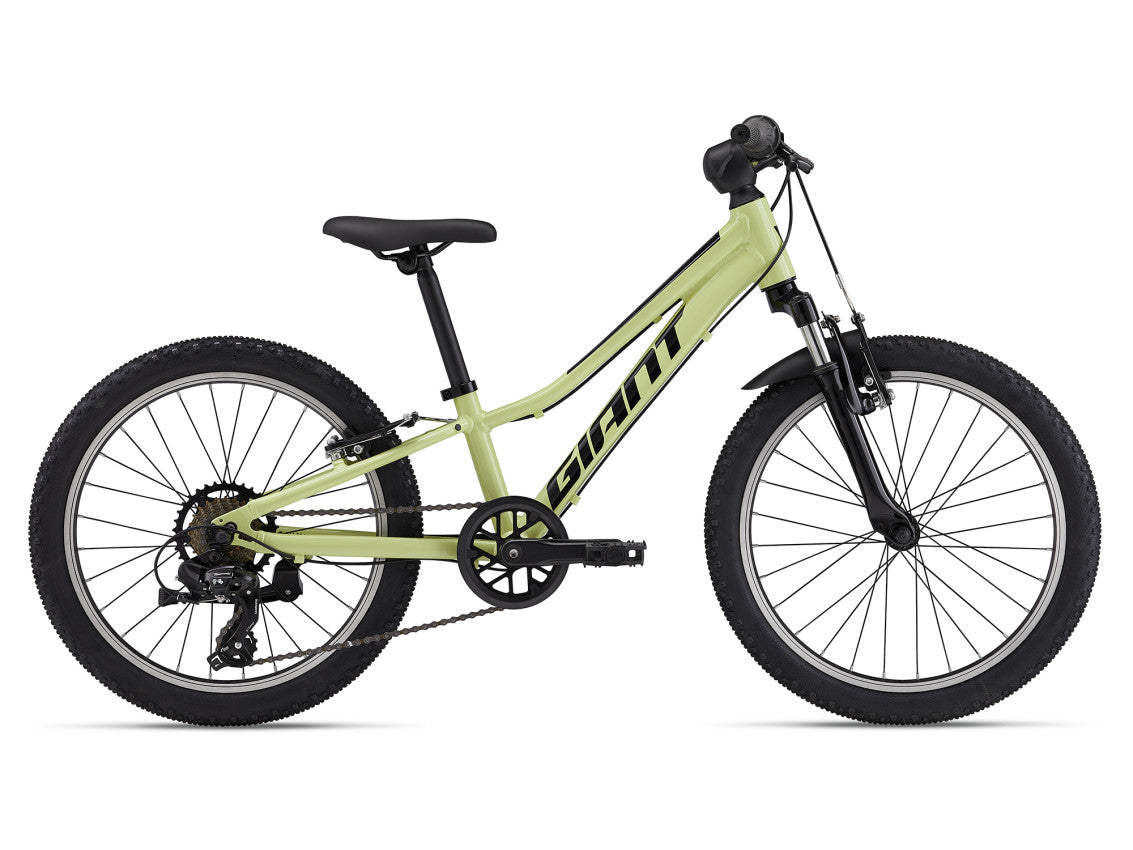

Talon 20
From neighbourhood adventures to family trail outings, this built-for-kids mountain bike makes it easy for young riders to enjoy the bike life. The frame design and components inspire confidence and control as they develop their skills.
Techs & Features
Off-road control

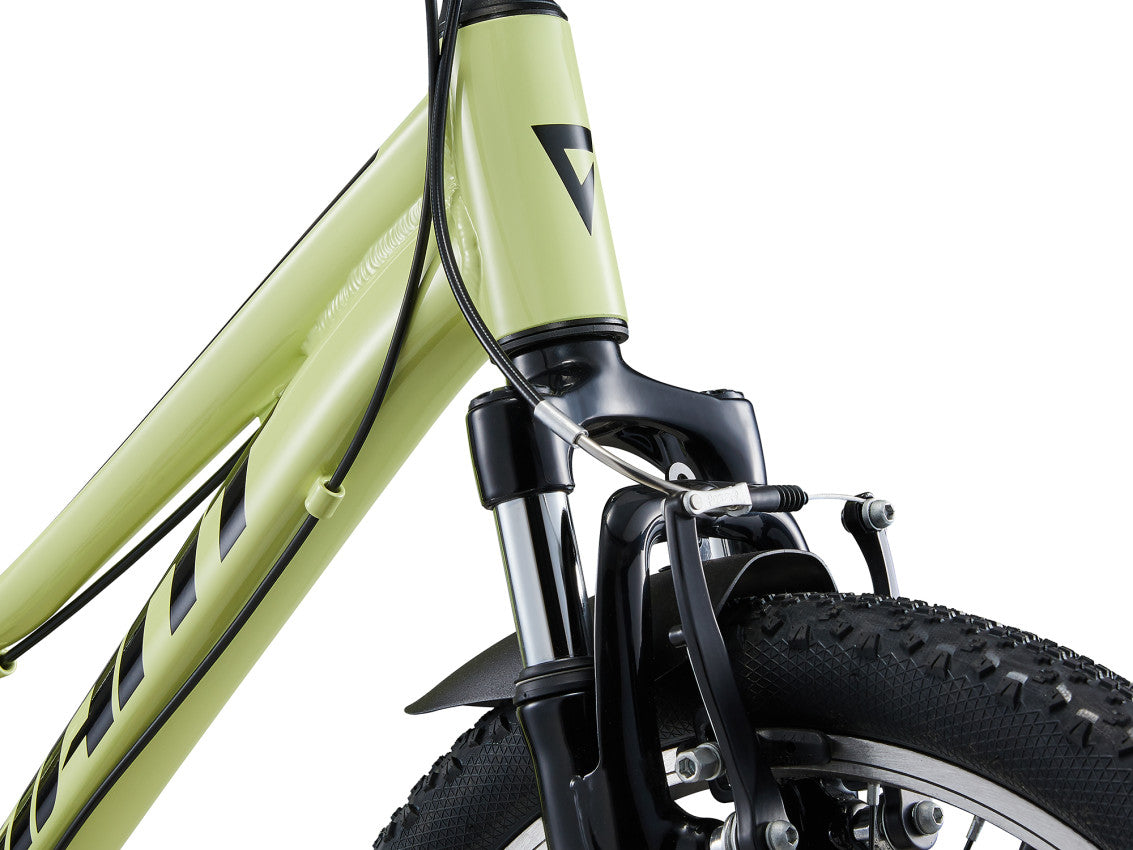

A shorter seat tube with a lower bottom bracket and standover height create a lower centre of gravity with greater stability and manoeuvrability on dirt paths and trails. Talon 20 comes with a 30mm suspension fork for added control on bumpy terrain.
Kid-sized components

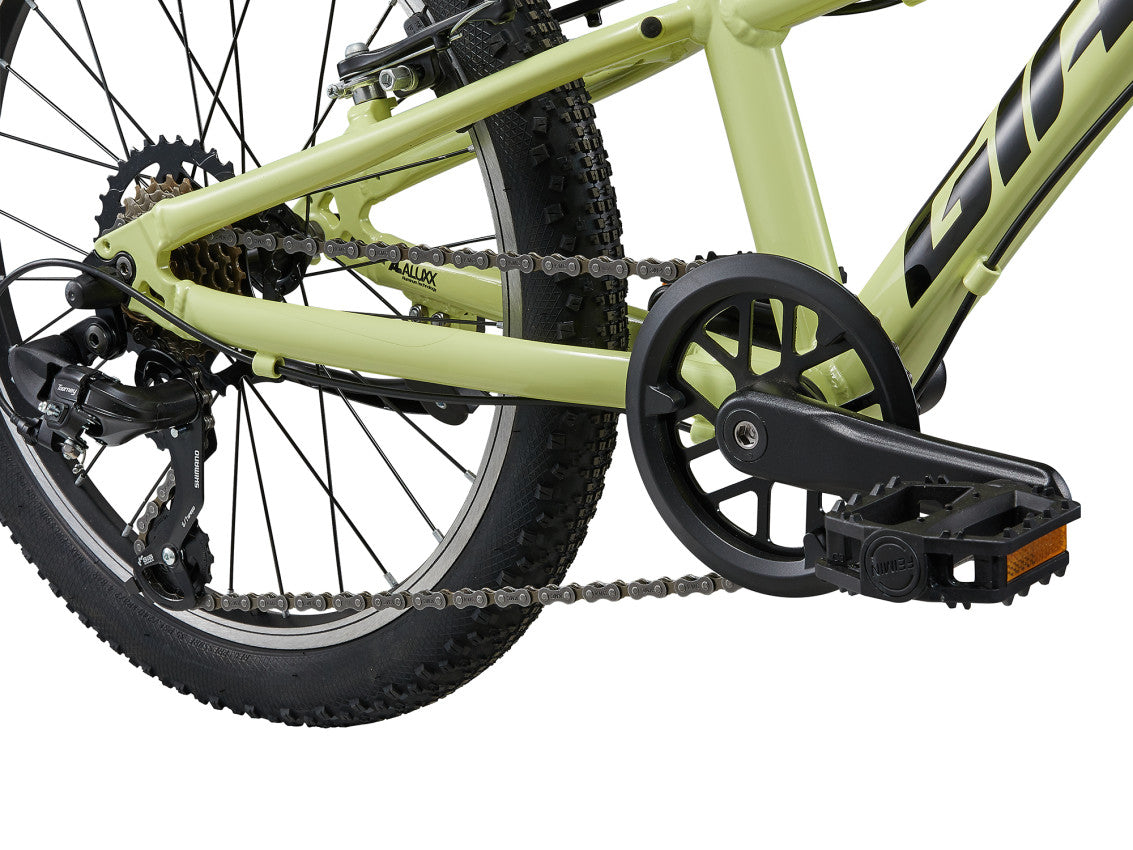

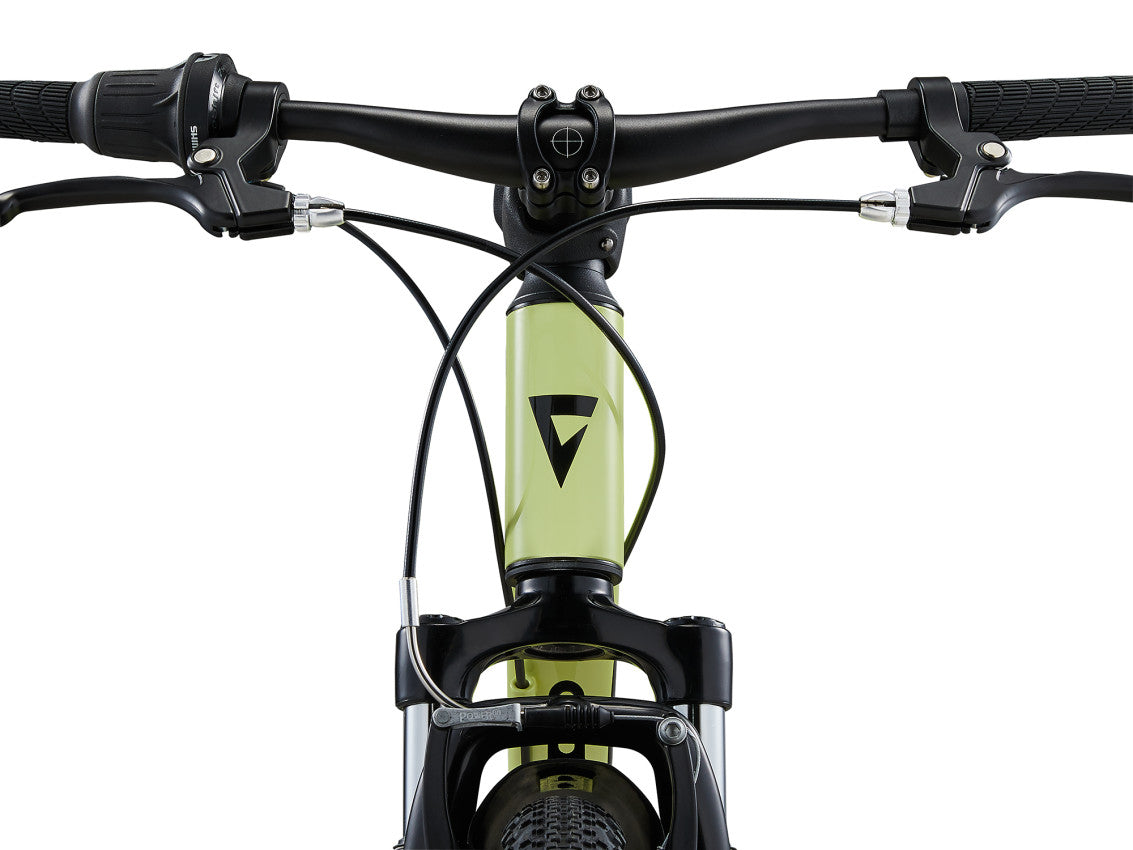

Smaller diameter handlebars and short-reach brake levers offer better grip and control for smaller hands. Shorter cranks ensure smooth pedalling and prevent the pedals from hitting the ground while cornering.
All the accessories
A kickstand, mini fender, stem pad protection, and a bell make Talon 20 a fun and easy bike for everyday rides around the neighbourhood.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.
-
One Size113 cm 135 cm
| Code | Name | One Size |
|---|---|---|
| A | Seat Tube Length (mm) (inch) | 225 |
| B | Seat Tube Angle (degrees) | |
| C | Top Tube Length (mm) (inch) | 450 |
| D | Head Tube Length (mm) (inch) | 110 |
| E | Head Tube Angle (degrees) | |
| F | Fork Rake (mm) (inch) | 34.5 |
| G | Trail (mm) (inch) | 62.1 |
| H | Wheelbase (mm) (inch) | 875.9 |
| I | Chain Stay Length (mm) (inch) | 375 |
| J | Bottom Bracket Drop (mm) (inch) | 30 |
| K | Stack (mm) (inch) | 451.8 |
| L | Reach (mm) (inch) | 303.2 |
| M | Stand Over Height (mm) (inch) | 475 |
| O | Stem Length (mm) (inch) | 60 |
| P | Crank Length (mm) (inch) | 130 |
| Q | Wheel Size | 20" |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
