STP 24

$1,499.00

Tax included

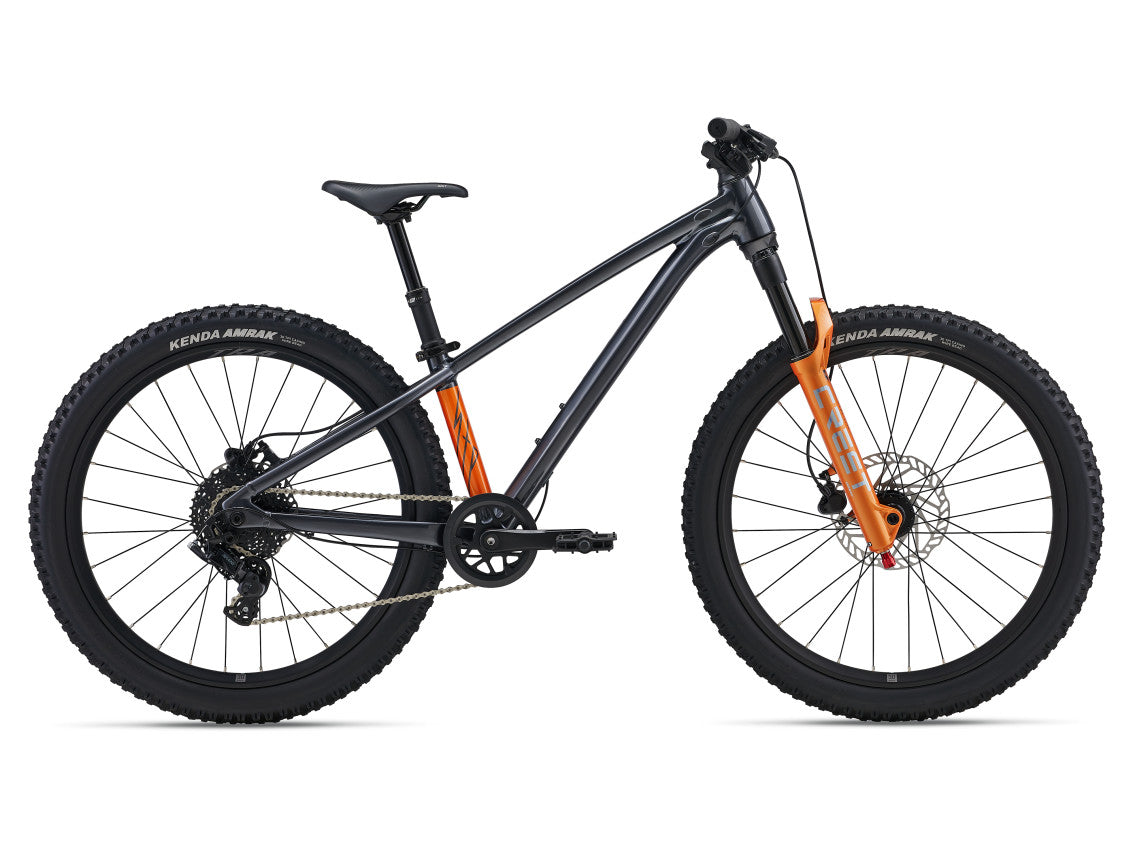

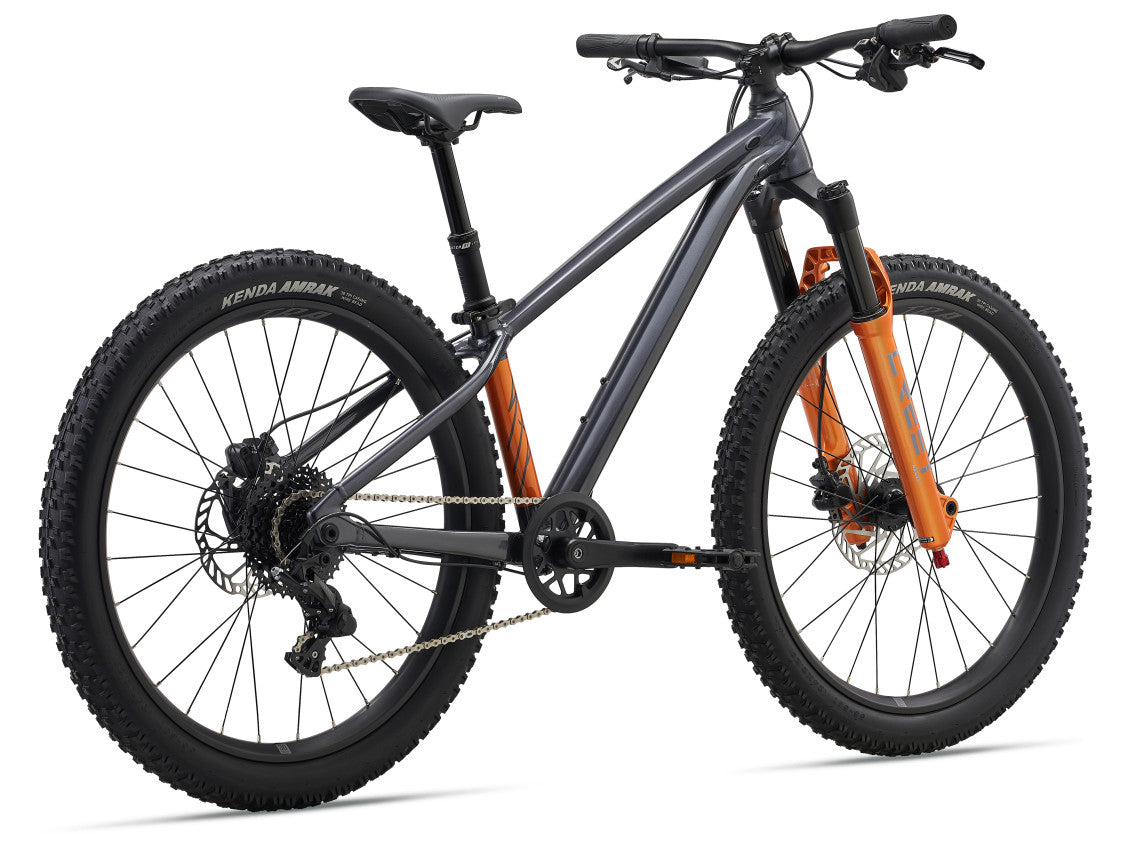

Made to help young riders have fun and show off their skills, this mini dirt shredder features a purpose-built aluminium frame and 100mm suspension fork with 24-inch wheels. Trail-worthy MTB components including hydraulic brakes and a dropper seatpost add to its capabilities, giving kids what they need to follow their dirt dreams.

Colour

Black Chrome

Product variants

Techs & Features

FIT FOR YOUTH

The frame’s low stand-over height offers greater balance and stability with a lower centre of gravity that make this model ideal for riders 125-145cm tall. The 24-inch wheels, shorter cranks, and sized-down cockpit components make for smooth pedalling and easier handling, while a dropper seatpost makes it easy to adjust riding position on the fly.

GREATER CONTROL

Youth-specific features including a Crest TR Comp Lite 100mm suspension fork, Grit Core Lite saddle, smaller diameter handlebars, and hydraulic brakes with lighter modulation give STP 24 a smooth, controlled ride, helping young riders focus on building skills and gaining confidence.

PLAYFUL AGILITY

With a lightweight, durable ALUXX aluminium frame, the STP 24 is easy for young riders to manoeuvre. A shorter wheelbase and chainstays add a playful feel and make it easier to lift the front wheel while riding.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

One Size

125 cm 145 cm

Name	One Size
A Seat Tube Length (mm) (inch)	300	11.8
A1 Seat Post Insertion Depth (mm) (inch)	250	9.8
B Seat Tube Angle (degrees)	73.0°
C Top Tube Length (mm) (inch)	523	20.6
D Head Tube Length (mm) (inch)	90	3.5
E Head Tube Angle (degrees)	67.0°
F Fork Rake (mm) (inch)	30	1.2
G Trail (mm) (inch)	104	4.1
H Wheelbase (mm) (inch)	975	38.4
I Chain Stay Length (mm) (inch)	375	14.8
J Bottom Bracket Drop (mm) (inch)	40	1.6
K Stack (mm) (inch)	534	21
L Reach (mm) (inch)	360	14.2
M Stand Over Height (mm) (inch)	629	24.8
O Stem Length (mm) (inch)	40	1.6
P Crank Length (mm) (inch)	140	5.5

Specifications

Sizes One size

Colours Black Chrome

Frame ALUXX-grade aluminium, 12x142mm thru-axle

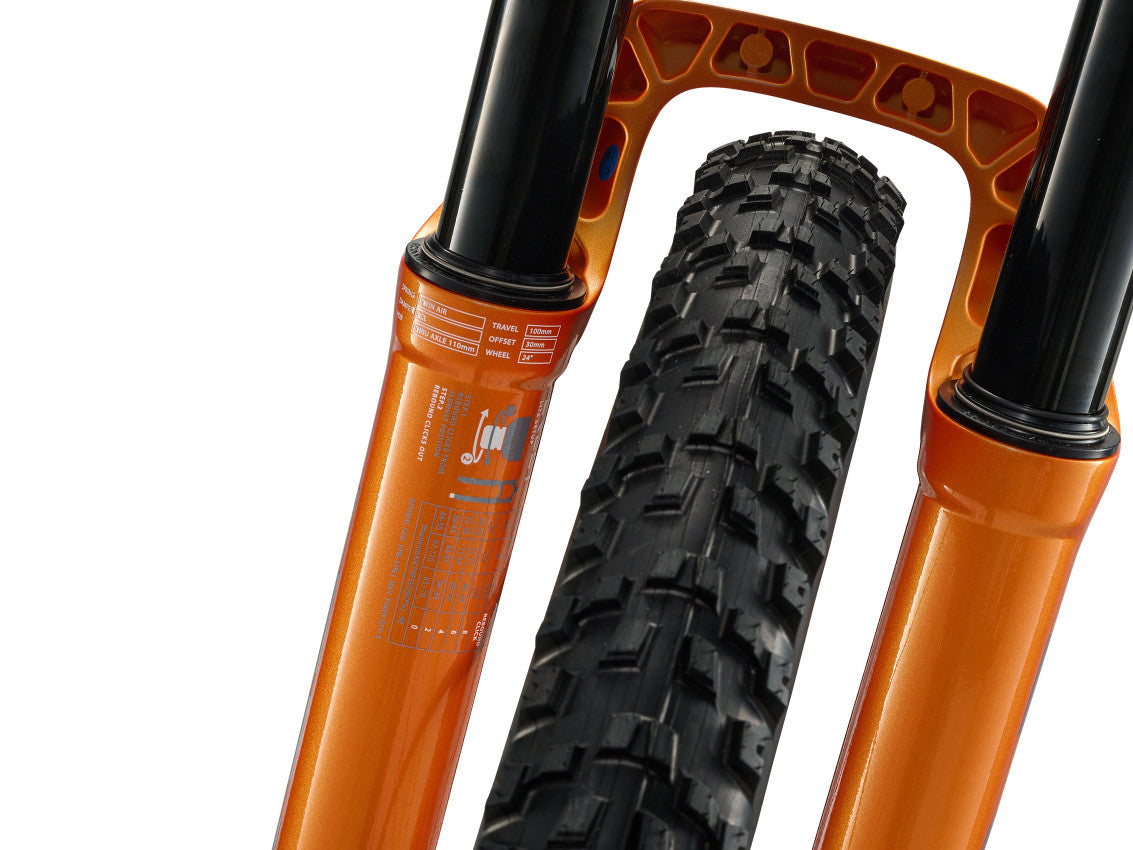

Fork Crest TR Comp, 34mm stanchions, 15x110mm thru-axle, 100mm travel, youth tuned

Shock N/A

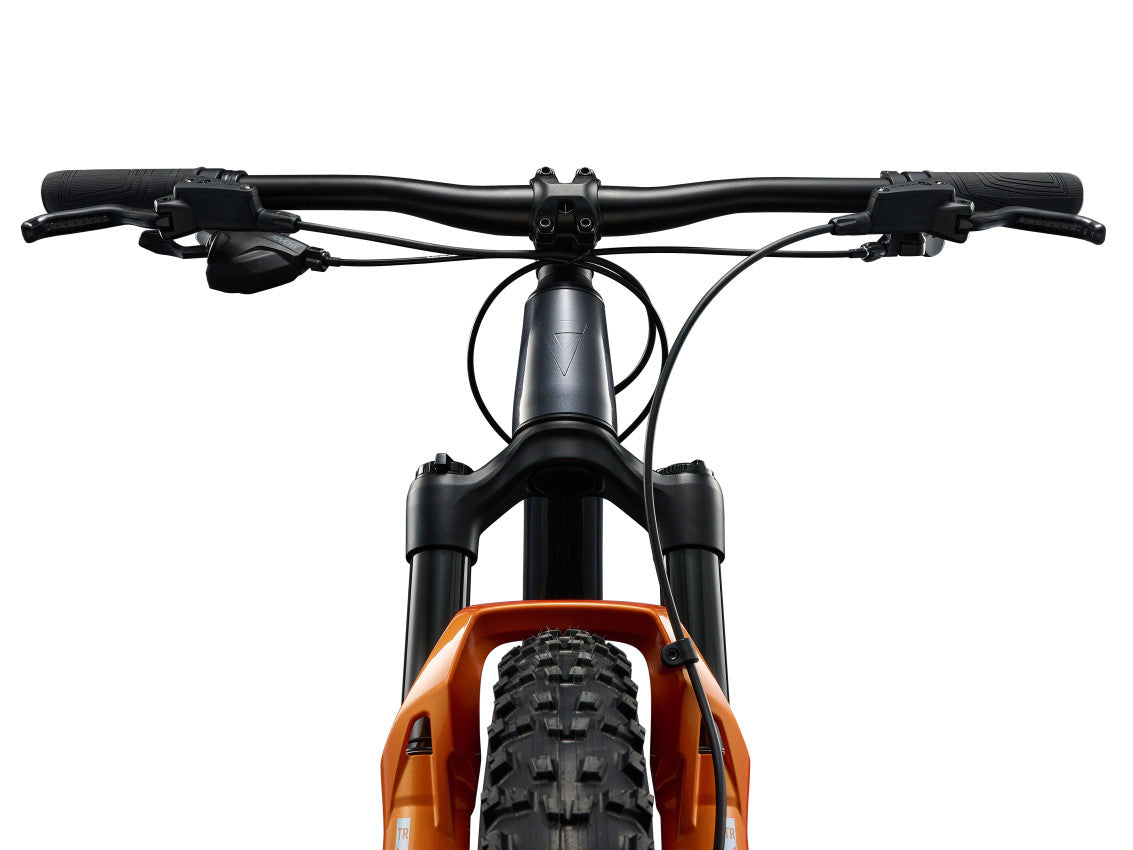

Handlebar Giant Sport, alloy, 31.8mm

Grips Giant Junior

Stem Forged alloy, 0-degree

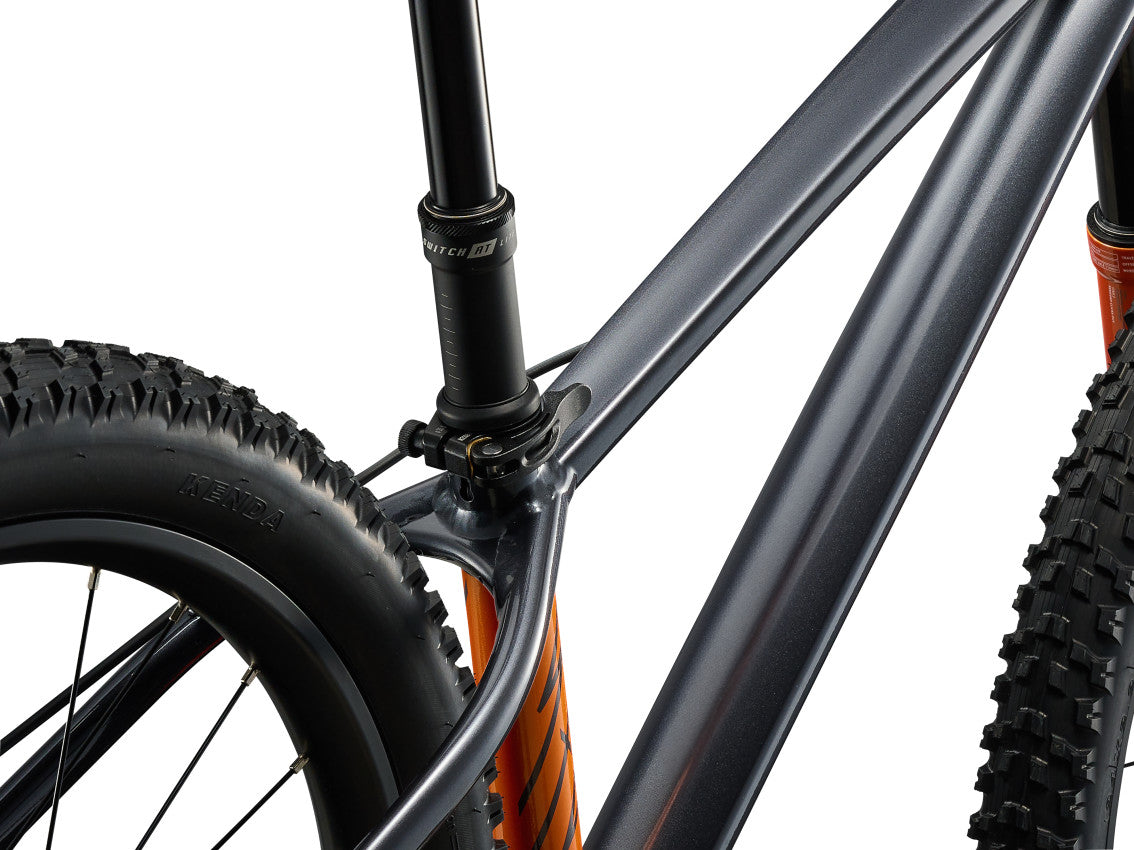

Seatpost Giant Contact Switch AT Lite, adjustable travel, remote 70-100mm travel / 30.9 x 315mm

Saddle Giant Grit Core

Pedals Platform

Shifters microSHIFT Advent, 1x9

Front derailleur N/A

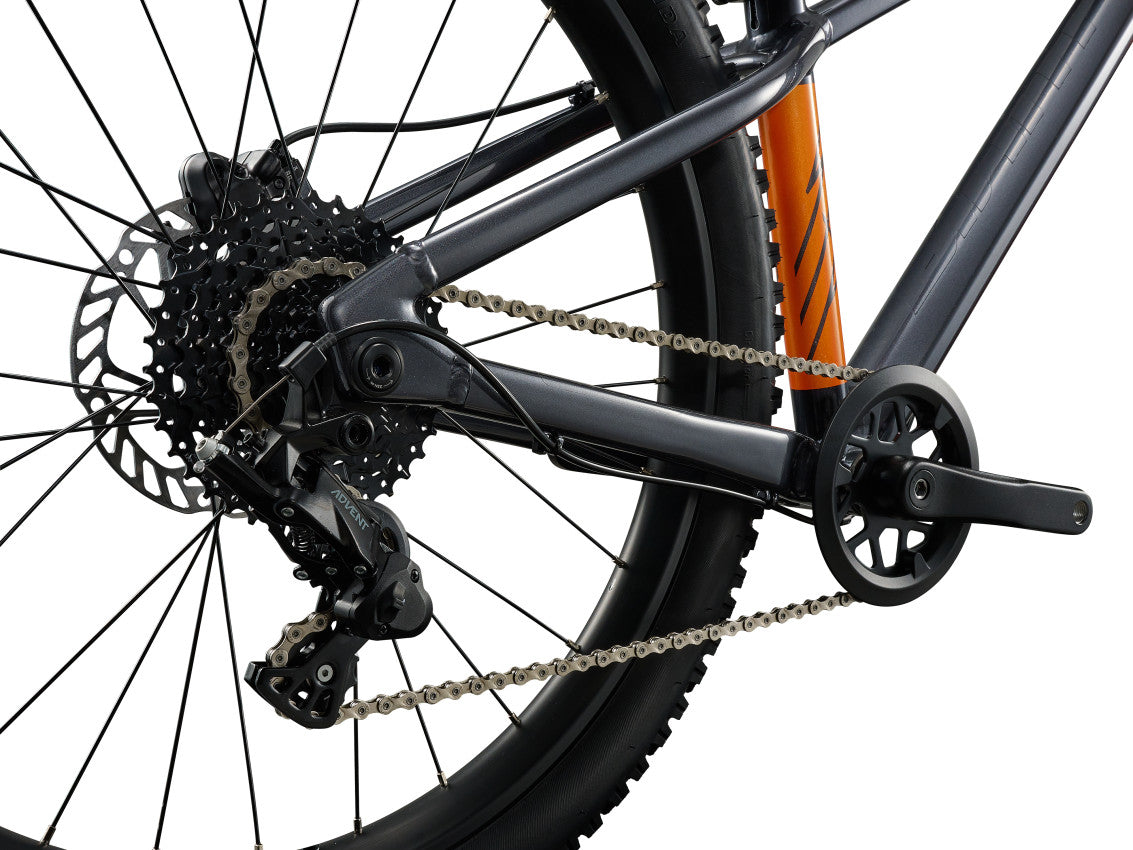

Rear derailleur microSHIFT Advent, 1x9

Brakes Tektro HD-J2820 hydraulic [F]180mm, [R]160mm rotors

Brake levers Tektro HD-J2820

Cassette Shimano HG93, 11x38

Chain KMC X9

Crankset Prowheel Forged, 30t, 140mm

Bottom bracket Cartridge threaded

Rims Giant TRA 2 Hookless Tubeless ready Alloy, 30mm inner width

Hubs [F] Giant Tracker, thru-axle, 6-bolt, [R] Giant Tracker thru-axle, 6-bolt, HG driver body

Spokes Stainless, 14g

Tyres Kenda Amrak, 24x2.2"

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
