• MY24 STP 24 FS-LIV_Color A Deep Lake
Liv Logo

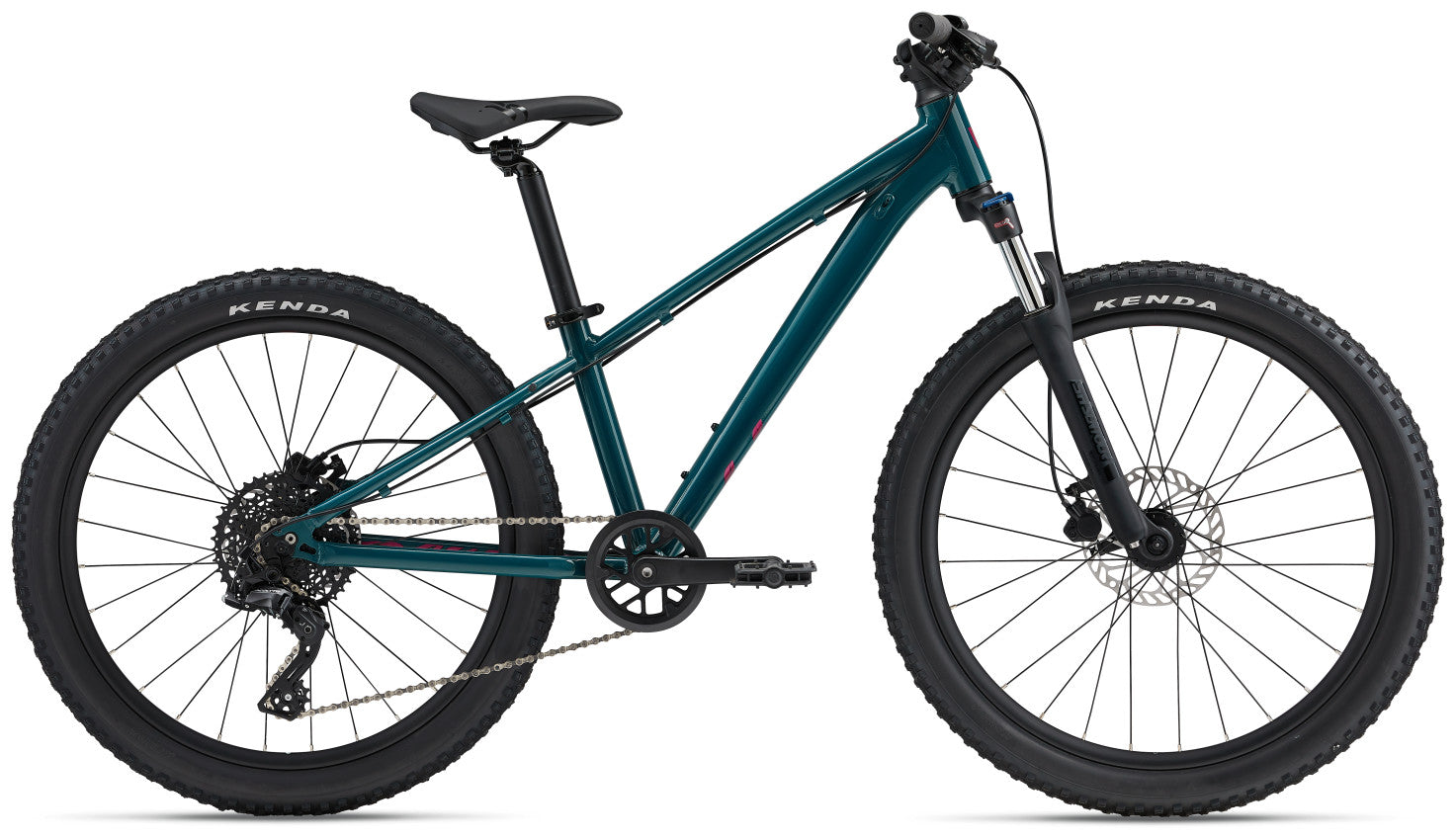

Liv STP 24 Deep Lake

$929.00

Designed for young riders looking to try out the dirt or pumptrack, this all-new shredder is built on a lightweight, super-strong aluminium frame with quick, responsive 24-inch wheels.

6 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Versatile

Built with a lightweight, strong and durable ALUXX-grade aluminium frameset, the bike cruises the pump tracks, trails, and streets with ease.

Quick and Responsive

The frame geometry is designed for 24-inch wheels and a low saddle height, with a taller front end for a responsive, predictable ride quality.

Maximum Control

Powerful disc brakes and an 80mm suspension fork with a lockout option gives her safe and confidence-inspiring control.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • One Size
    125 cm 145 cm
Bike Geometry Diagram
Code Name One Size
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 495
D Head Tube Length (mm) (inch) 105
E Head Tube Angle (degrees)
H Wheelbase (mm) (inch) 978
I Chain Stay Length (mm) (inch) 410
K Stack (mm) (inch) 524
L Reach (mm) (inch) 335
M Stand Over Height (mm) (inch) 668
P Crank Length (mm) (inch) 140

Specifications

Sizes One size
Colours Deep Lake
Frame ALUXX-Grade aluminium
Fork SR XCT L24, coil, 80mm, lockout
Shock N/A
Handlebar Giant Sport, alloy, 31.8mm
Grips Giant Junior, custom taper design
Stem Forged alloy, 0-degree
Seatpost Alloy, two-bolt, 30.9x300mm
Saddle STP JR
Pedals Platform
Shifters microSHIFT Acolyte, 1x8
Front derailleur N/A
Rear derailleur microSHIFT Acolyte
Brakes Tektro HD-J285, short reach [F]160mm, [R]160mm rotors
Brake levers Tektro HD-J285
Cassette MicroSHIFT Acolyte, 12x42
Chain KMC Z8.3
Crankset Alloy forged, 30t, 140mm
Bottom bracket Semi-cartridge
Rims Giant 24", alloy, 28mm inner width
Hubs Giant Disc, 28h, QR, alloy, disc
Spokes Stainless, 14g
Tires Kenda Karma, 24x2.2"
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
