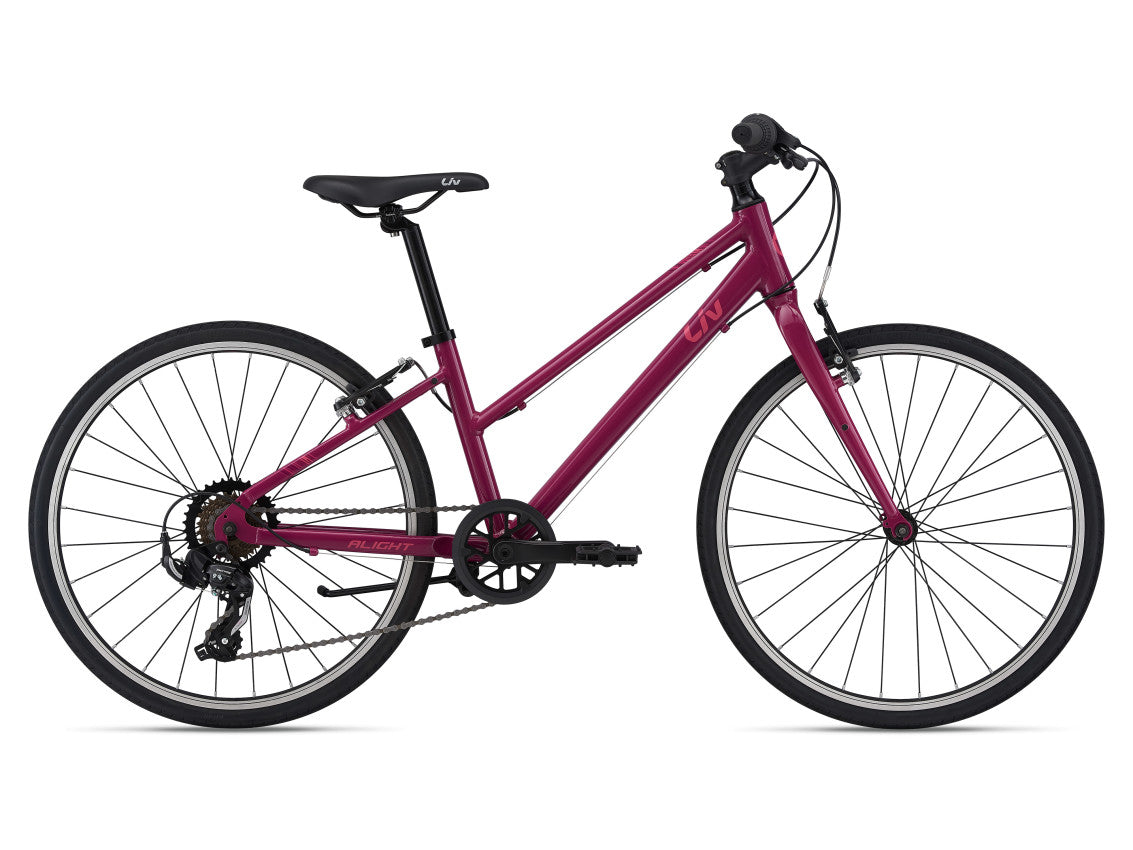

Alight 24
From family rides to school commutes, the Alight 24 turns everyday rides into big adventures.
Techs & Features
Safe and Secure
An upright position and flat handlebar lets her find balance and stability, while hand brakes provide reliable slowing and stopping power.
Confidence Inspiring
The Alight 24 was designed with low stand-over height and easy-to-use components made with her in mind, including smaller 24-inch wheels.
Sturdy
Composed of lightweight ALUXX-Grade Aluminium, The Alight 24’s frame is tough and durable without weighing her down.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.
-
One Size130 cm 150 cm
| Code | Name | One Size |
|---|---|---|
| A | Seat Tube Length (mm) (inch) | 315 |
| B | Seat Tube Angle (degrees) | |
| C | Top Tube Length (mm) (inch) | 485 |
| D | Head Tube Length (mm) (inch) | 125 |
| E | Head Tube Angle (degrees) | |
| F | Fork Rake (mm) (inch) | 40 |
| G | Trail (mm) (inch) | 81.9 |
| H | Wheelbase (mm) (inch) | 929 |
| I | Chain Stay Length (mm) (inch) | 385 |
| J | Bottom Bracket Drop (mm) (inch) | 30 |
| K | Stack (mm) (inch) | 482 |
| L | Reach (mm) (inch) | 338 |
| M | Stand Over Height (mm) (inch) | 525 |
| O | Stem Length (mm) (inch) | 60 |
| P | Crank Length (mm) (inch) | 152 |
| Q | Wheel Size | 24" |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
