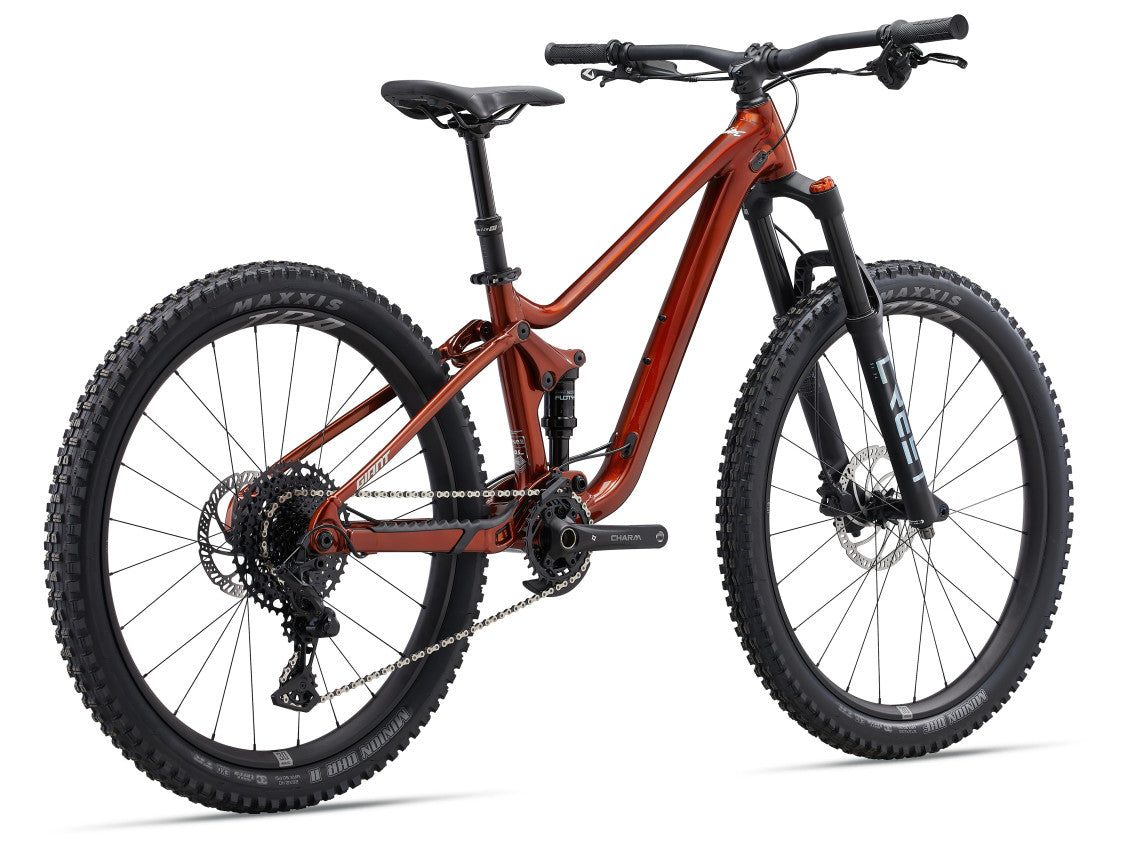

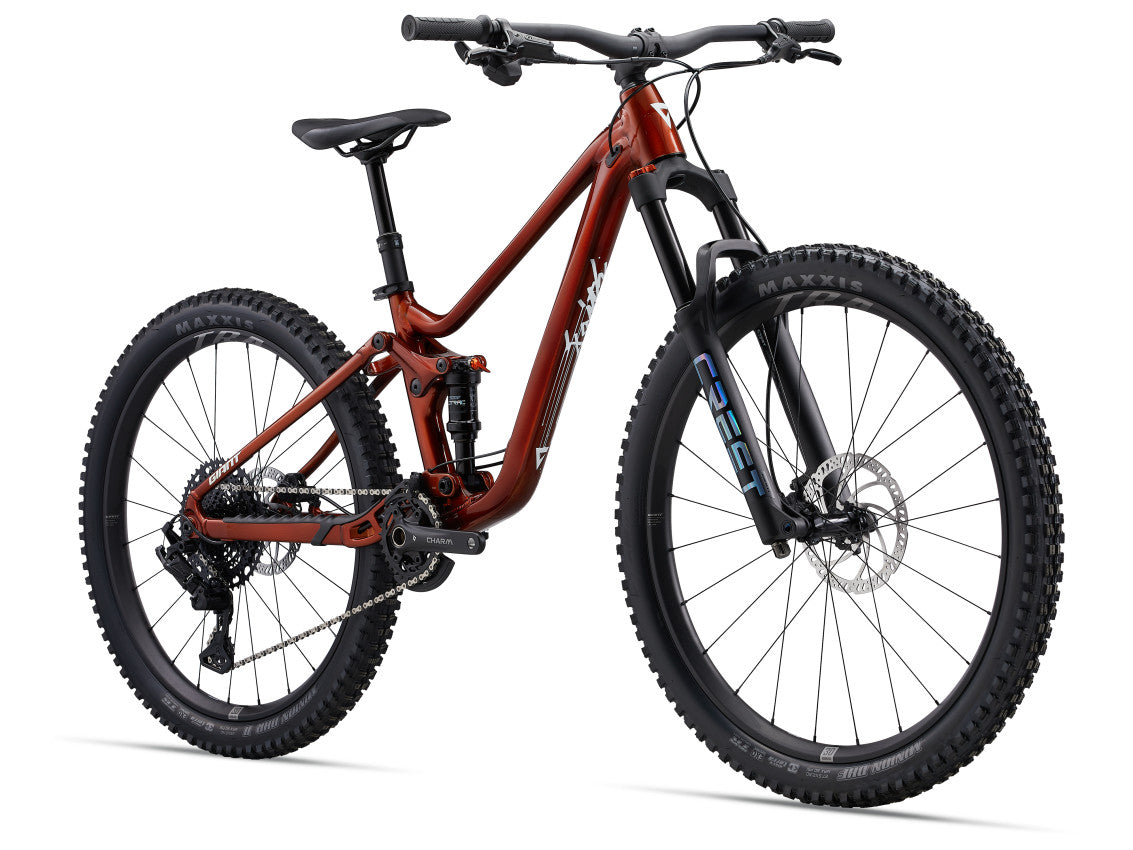

Giant Faith 26/27.5
Small but mighty, this highly capable trail bike is for little rippers with big ambitions. Its lightweight alloy frame, high-performance wheels, and youth-tuned suspension balance efficient climbing, loads of traction, and confident handling to help young trail riders take it to the next level.
Techs & Features
YOUTH-TUNED SUSPENSION

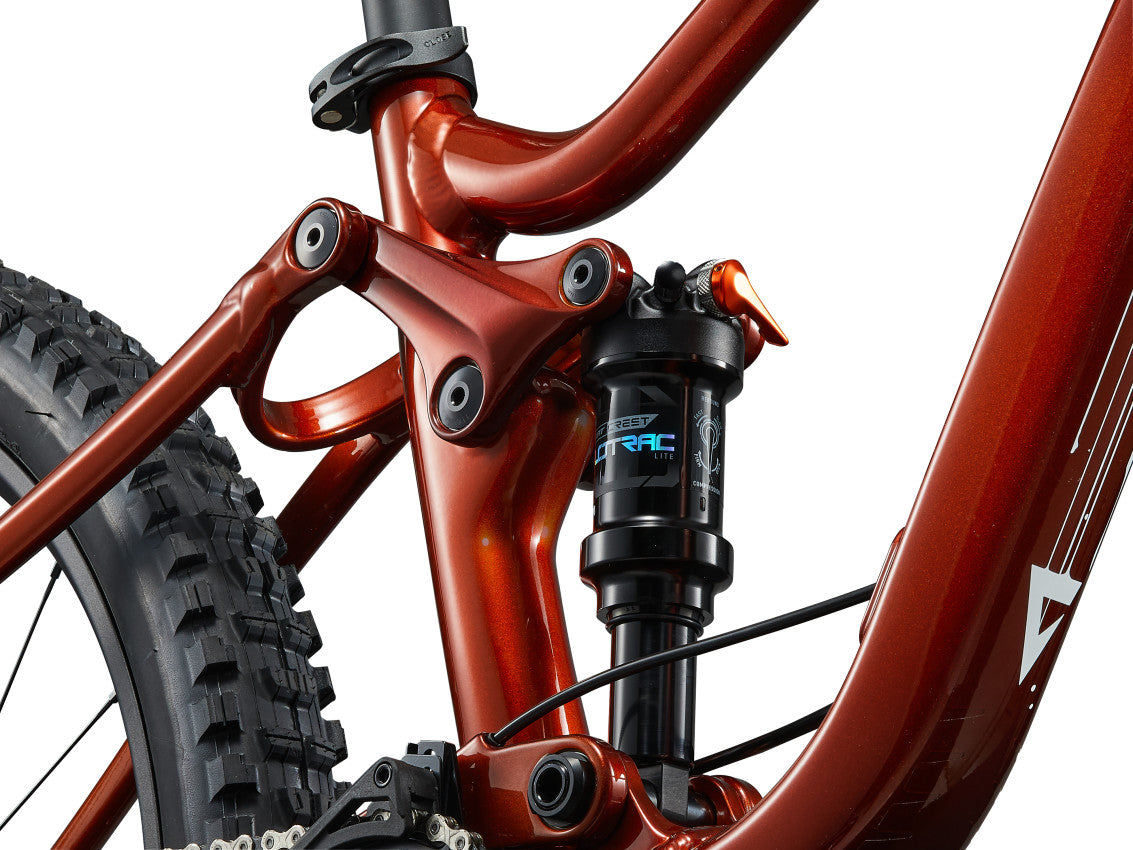

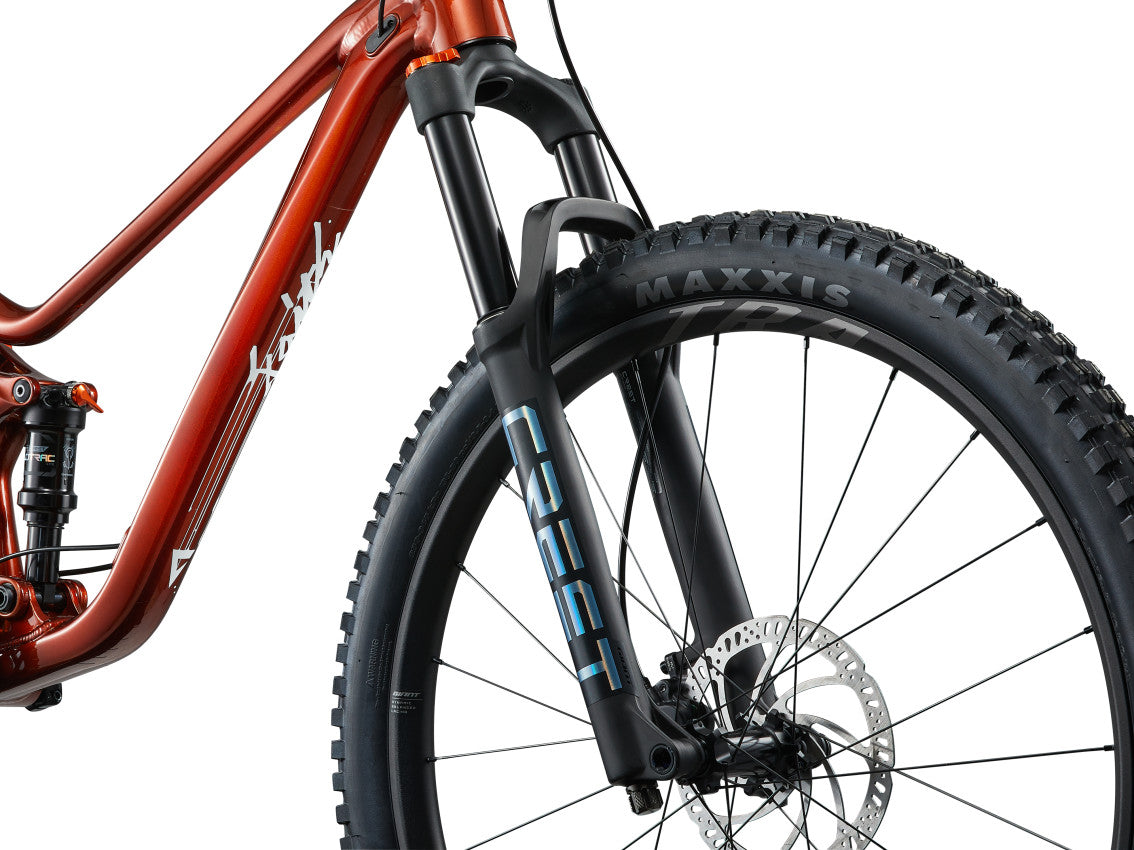

FlexPoint rear suspension with a Giant Crest FloTrac Lite shock delivers 135mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Giant Crest SL FloTune Lite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activation force, giving young riders smooth control and confidence on technical trails.
AGILE AND EFFICIENT
An ALUXX SL aluminium frameset with youth-specific trail geometry is combined with quality lightweight components to minimise weight and help young riders tackle challenging terrain. A new Giant TRA WheelSystem (27.5-inch front/26-inch rear) borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.
OFF-ROAD CONTROL

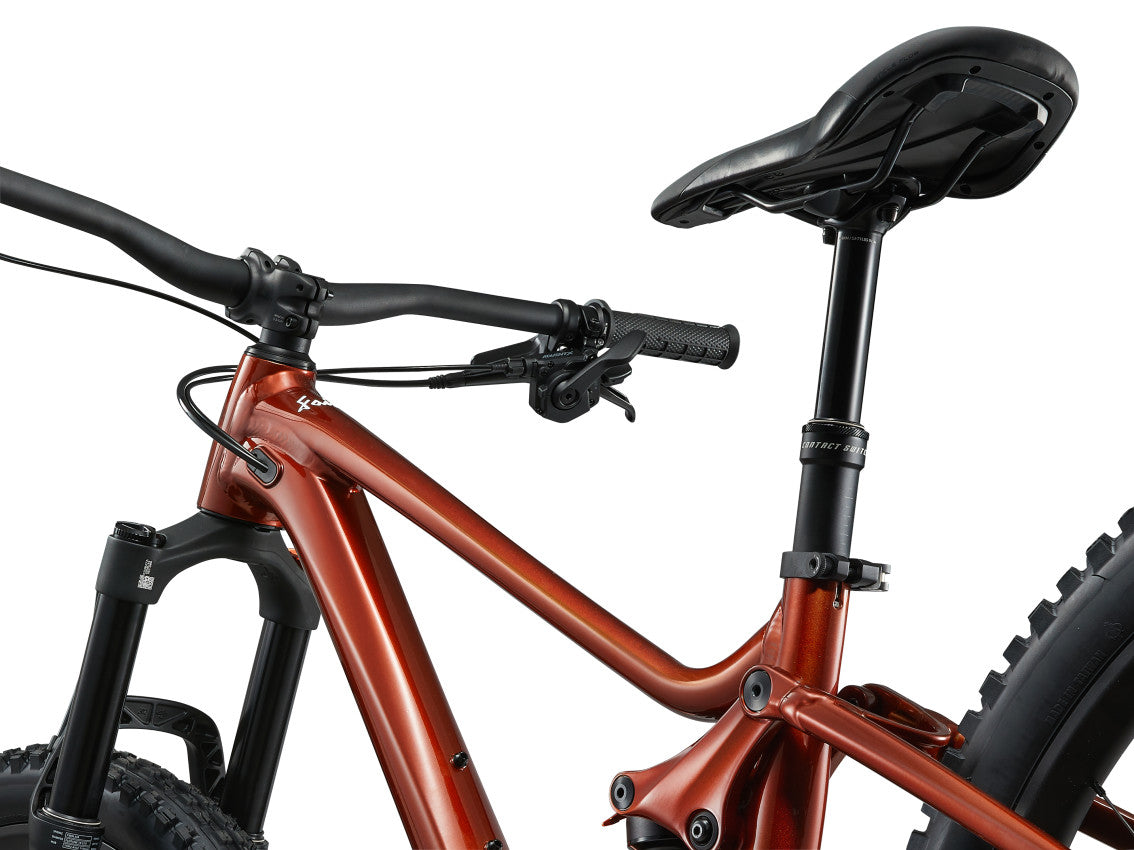

TRA WheelSystem with WideGuard technology results in lighter, stronger rims so riders can run lower tyre pressures for better traction without the risk of tyre punctures or rim damage. The mixed wheel setup combines the agile handling of the 26-inch rear wheel with the improved rollover capabilities of the 27.5-inch front, while a dropper seatpost makes it easy to optimise riding position while climbing or descending.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.
-
One Size145 cm 165 cm
| Code | Name | One Size |
|---|---|---|
| A | Seat Tube Length (mm) (inch) | 350 |
| B | Seat Tube Angle (degrees) | |
| C | Top Tube Length (mm) (inch) | 545 |
| D | Head Tube Length (mm) (inch) | 105 |
| E | Head Tube Angle (degrees) | |
| F | Fork Rake (mm) (inch) | 41 |
| G | Trail (mm) (inch) | 126.5 |
| H | Wheelbase (mm) (inch) | 1147.5 |
| I | Chain Stay Length (mm) (inch) | 425 |
| J | Bottom Bracket Drop (mm) (inch) | 10 |
| K | Stack (mm) (inch) | 584.5 |
| L | Reach (mm) (inch) | 410.1 |
| M | Stand Over Height (mm) (inch) | 676 |
| O | Stem Length (mm) (inch) | 40 |
| P | Crank Length (mm) (inch) | 155 |
| Q | Wheel Size |
Specifications
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
