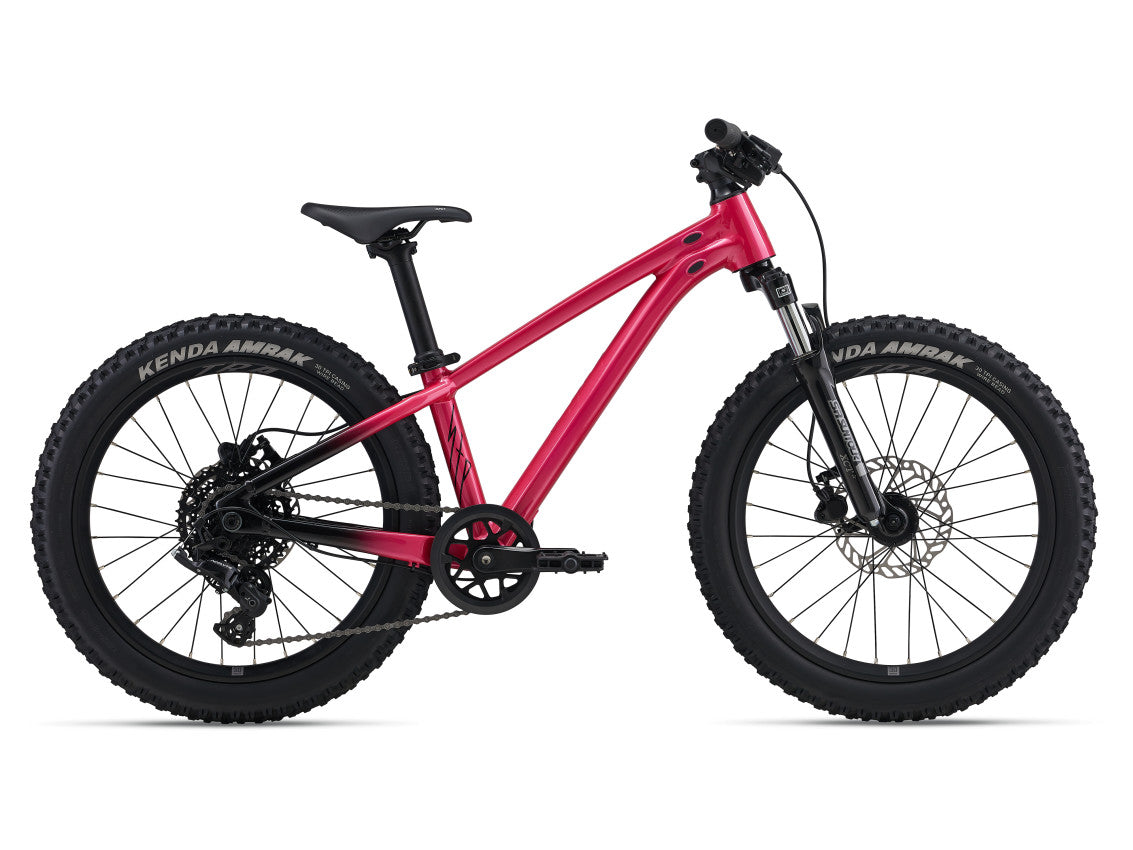

• Image 1 of 6 - K-052-MY26-STP-20-FS-LIV_Color-A-Hot-Pink

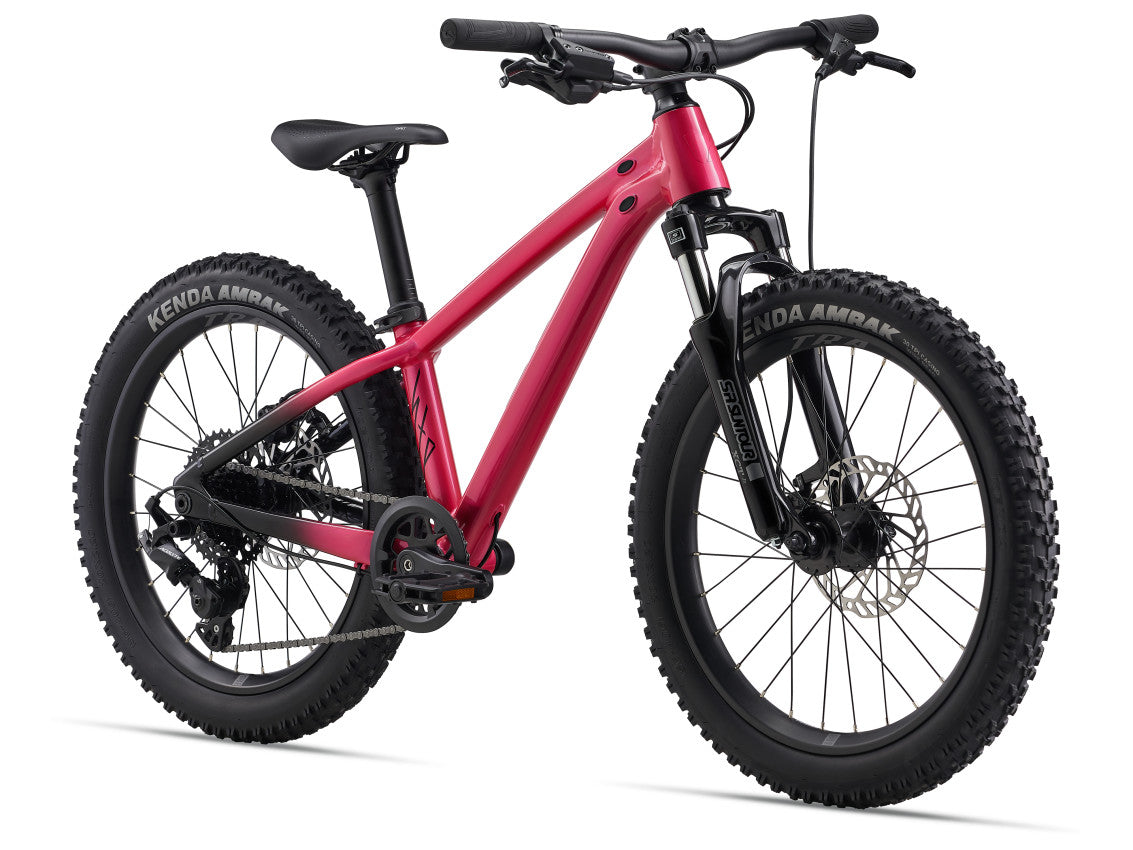

  • Image 2 of 6 - MY26STP20FS-LIV_ColorAHotPink-Front

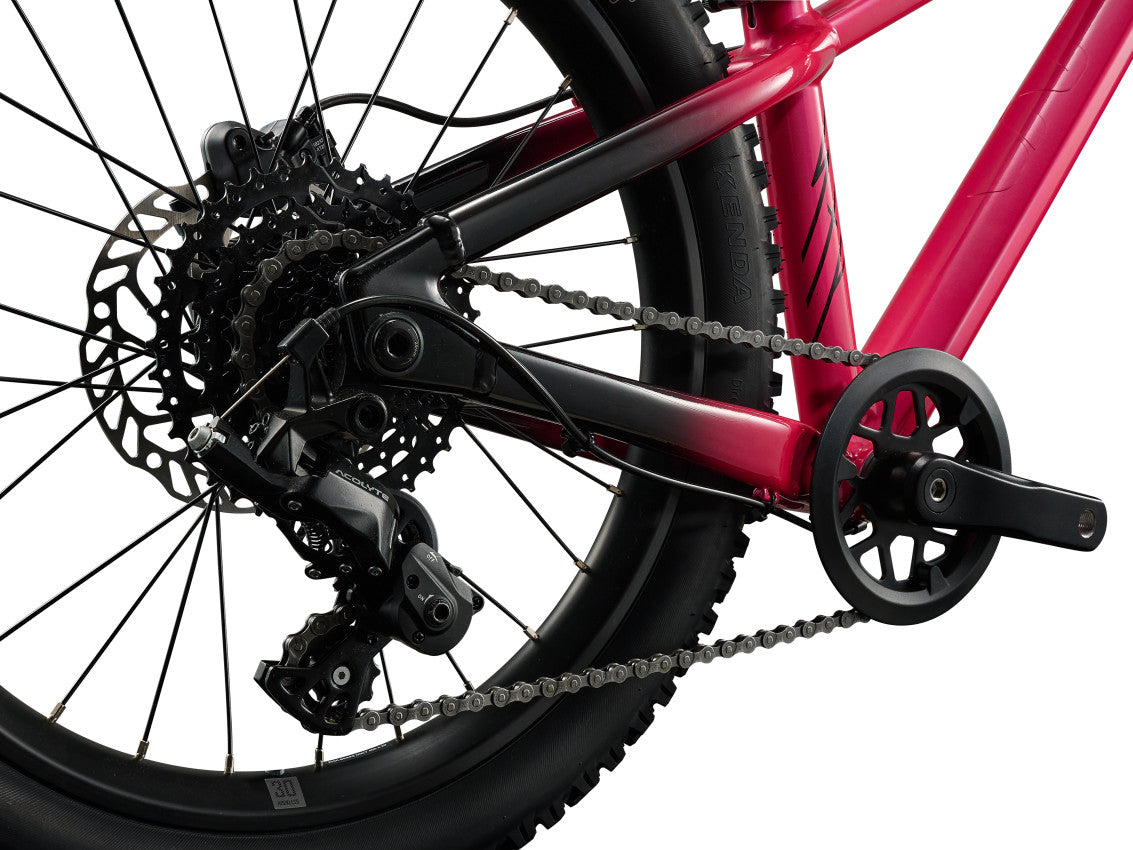

  • Image 3 of 6 - MY26STP20FS-LIV_ColorAHotPink-D4

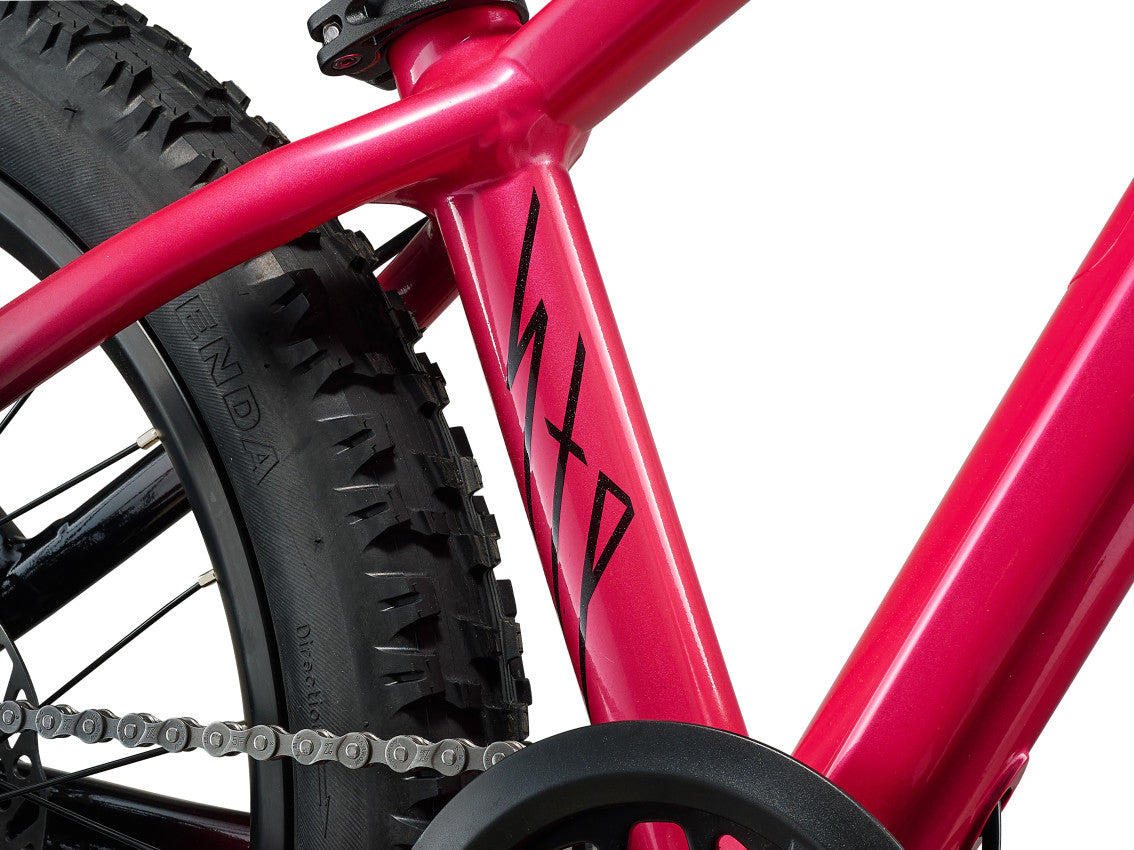

  • Image 4 of 6 - MY26STP20FS-LIV_ColorAHotPink-D1

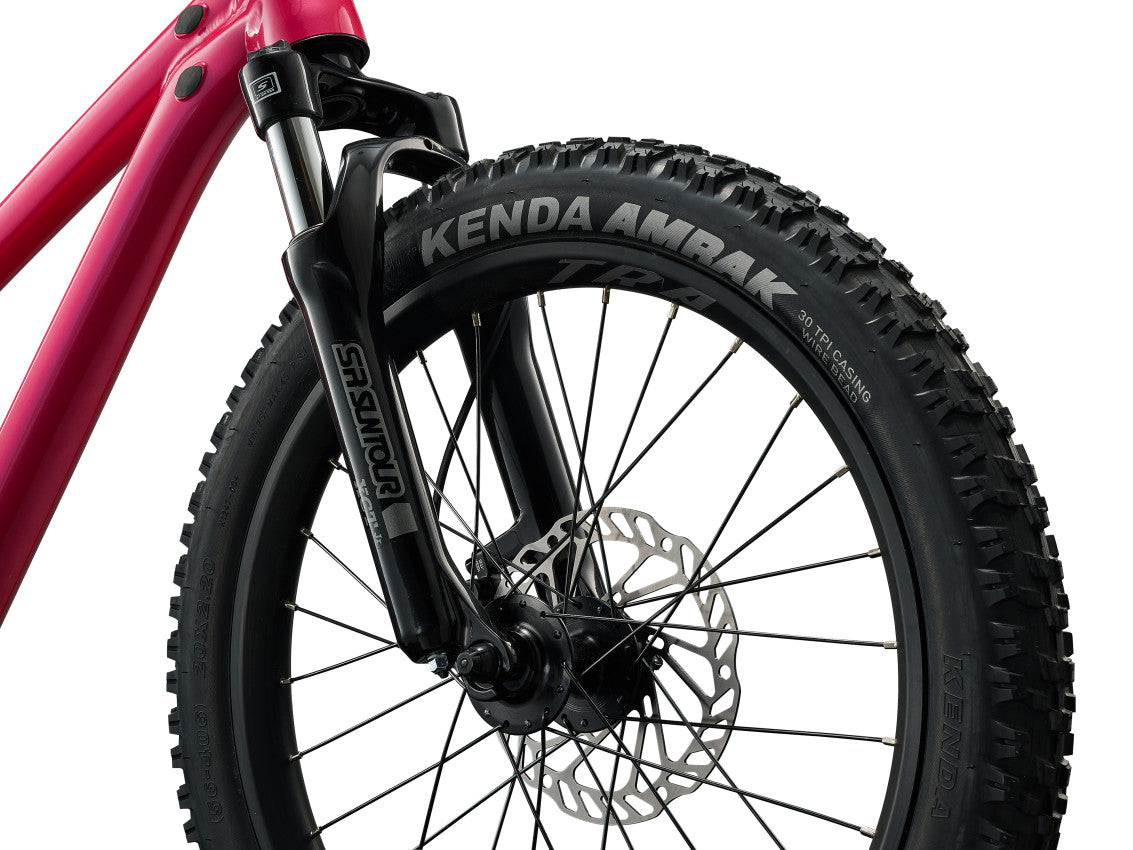

  • Image 5 of 6 - MY26STP20FS-LIV_ColorAHotPink-D2

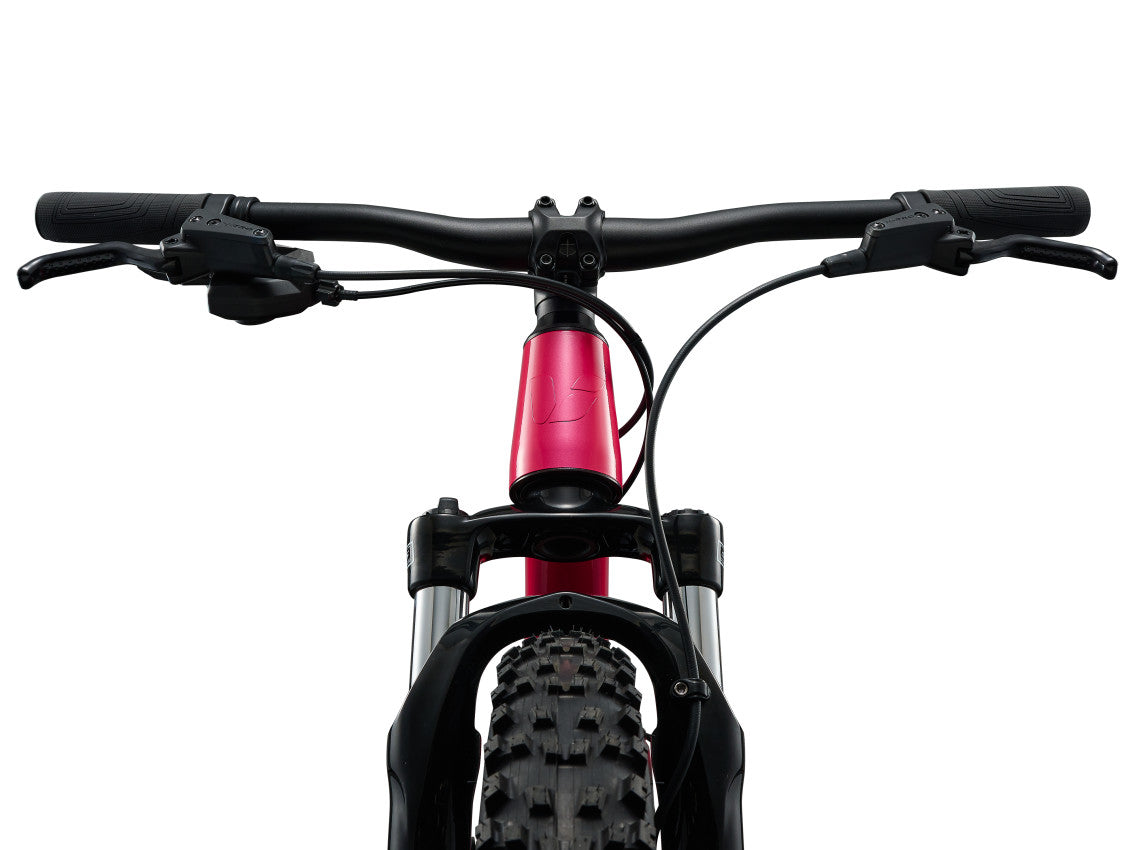

  • Image 6 of 6 - MY26STP20FS-LIV_ColorAHotPink-D3
1 6
Liv Logo

STP 20 FS Liv

$999.00
Tax included
The STP 20 is a lightweight, confidence-building bike for riders discovering off-road fun. Its stable geometry, low stand-over height, and youth-specific components make it ideal for developing skills on pump tracks, dirt jumps, or local trails.
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

BUILT TO LAST

The ALUXX-grade aluminium frame combines durability and low weight, giving young riders a solid platform to ride, learn, and progress. The bike is equipped with a 63mm suspension fork for extra comfort and control on rougher terrain.

YOUTH-TUNED CONTROL

Designed for riders 110–130 cm tall, the STP 20 features youth-specific components, including 105 mm short cranks, a Liv Grit Core Lite saddle, and smaller-diameter handlebars for an optimal fit. Youth-tuned hydraulic disc brakes provide smooth, predictable stopping power, while the low bottom bracket height ensures a stable, balanced feel on all terrain.

TRICK-READY HANDLING

The 20-inch TRA 2 WheelSystem with Wide Guard rim technology provides durability and traction for playful, confident riding. Front and rear thru-axles add steering precision and stability, while the short rear center keeps handling nimble and easy to manoeuvre.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • One Size
    110 cm 130 cm
Bike Geometry Diagram
Code Name One Size
A Seat Tube Length (mm) (inch) 265
A1 Seat Post Insertion Depth (mm) (inch) 200
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 444
D Head Tube Length (mm) (inch) 90
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 40
G Trail (mm) (inch) 91
H Wheelbase (mm) (inch) 821
I Chain Stay Length (mm) (inch) 323
J Bottom Bracket Drop (mm) (inch) 50
K Stack (mm) (inch) 447
L Reach (mm) (inch) 301
M Stand Over Height (mm) (inch) 536
O Stem Length (mm) (inch) 40
P Crank Length (mm) (inch) 105

Specifications

Sizes One size
Colours Hot Pink
Frame ALUXX-grade aluminium, 12x142mm thru-axle
Fork SR XCT JR L 20" coil spring, 63mm travel, 9x100mm QR
Shock N/A
Handlebar Giant Sport, alloy, 31.8mm
Grips Giant Junior
Stem Forged alloy, 0-degree
Seatpost Alloy, two-bolt, 30.9mm
Saddle Liv Grit Core
Pedals Platform
Shifters microSHIFT Acolyte, 1x8
Front derailleur N/A
Rear derailleur microSHIFT Acolyte, 1x8
Brakes Tektro HD-J2820 hydraulic [F]160 mm, [R]160 mm rotors
Brake levers Tektro HD-J2820
Cassette Shimano HG83, 11x38
Chain KMC Z8.1
Crankset Prowheel Forged, 30t, 105mm
Bottom bracket Cartridge threaded
Rims Giant TRA 2 Hookless Tubeless ready Alloy, 30mm inner width
Hubs [F] Giant Tracker, thru-axle, 6-bolt [R] Giant Tracker thru-axle, 6-bolt, HG driver body
Spokes Stainless, 14g
Tyres Kenda Amrak, 20x2.2"
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
