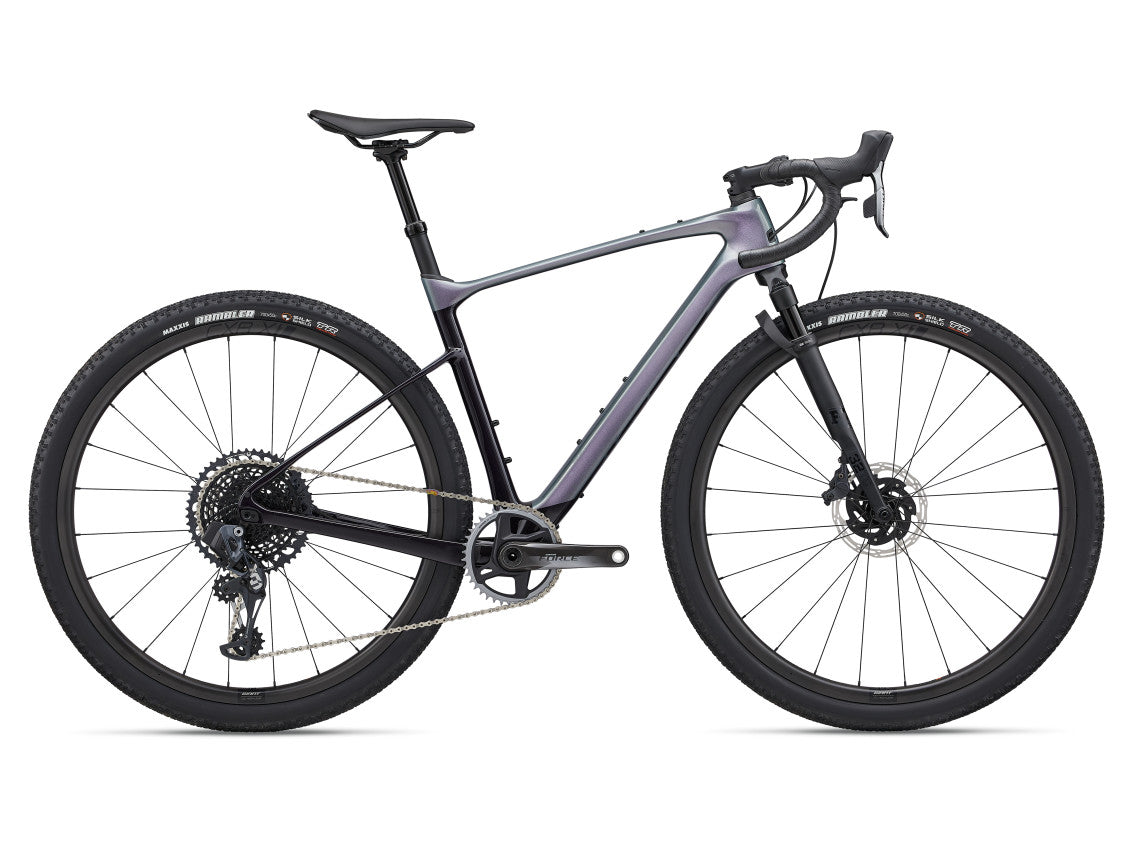

Revolt X Advanced Pro CUSTOM BUILD M Airglow/BlackCurrant

$4,999.00

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.

Size

Product variants

1 in stock

Techs & Features

Smooth control

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can use the included dropper seatpost for maximum confidence, or switch to a proprietary D-Fuse seatpost or a standard 30.9mm round seatpost.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

XS

155 cm 166 cm
S

159 cm 171 cm
M

169 cm 181 cm
ML

174 cm 186 cm
L

179 cm 191 cm
XL

189 cm 200 cm

Code	Name	XS	S	M	ML	L	XL
A	Seat Tube Length (mm) (inch)	430	16.9	450	17.7	470	18.5	490	19.3	510	20.1	530	20.9
B	Seat Tube Angle (degrees)	74.0° \| 73.9°	73.5° \| 73.4°	73.5° \| 73.4°	73.0° \| 72.9°	73.0° \| 72.9°	73.0° \| 72.9°
C	Top Tube Length (mm) (inch)	543	21.4	553	21.8	560	22	575	22.6	585	23	600	23.6
D	Head Tube Length (mm) (inch)	90	3.5	100	3.9	115	4.5	130	5.1	145	5.7	160	6.3
E	Head Tube Angle (degrees)	70.5° \| 70.4°	71.0° \| 70.9°	71.5° \| 71.4°	72.0° \| 71.9°	72.0° \| 71.9°	72.0° \| 71.9°
F	Fork Rake (mm) (inch)	50	2	50	2	50	2	50	2	50	2	50	2
G	Trail (mm) (inch)	80.3 \| 83.7	3.1 \| 3.3	76.9 \| 80.3	3 \| 3.1	73.5 \| 76.8	2.9 \| 3	70.1 \| 73.4	2.8 \| 2.9	70.1 \| 73.4	2.8 \| 2.9	70.1 \| 73.4	2.8 \| 2.9
H	Wheelbase (mm) (inch)	1023 \| 1033	40.3 \| 40.7	1024 \| 1034	40.3 \| 40.7	1026 \| 1036	40.4 \| 40.8	1031 \| 1041	40.6 \| 41	1041 \| 1051	41 \| 41.4	1057 \| 1067	41.6 \| 42
I	Chain Stay Length (mm) (inch)	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1	425 \| 435	16.7 \| 17.1
J	Bottom Bracket Drop (mm) (inch)	68 \| 69	2.7 \| 2.7	68 \| 69	2.7 \| 2.7	68 \| 69	2.7 \| 2.7	68 \| 69	2.7 \| 2.7	68 \| 69	2.7 \| 2.7	68 \| 69	2.7 \| 2.7
K	Stack (mm) (inch)	549	21.6	560	22	576	22.7	592	23.3	607	23.9	621	24.4
L	Reach (mm) (inch)	386	15.2	387	15.2	389	15.3	393	15.5	399	15.7	410	16.1
M	Stand Over Height (mm) (inch)	714 \| 720	28.1 \| 28.3	734 \| 737	28.9 \| 29	750 \| 756	29.5 \| 29.8	767 \| 773	30.2 \| 30.4	785 \| 792	30.9 \| 31.2	803 \| 810	31.6 \| 31.9
O	Stem Length (mm) (inch)	50	2	60	2.4	70	2.8	80	3.1	80	3.1	80	3.1
P	Crank Length (mm) (inch)	170	6.7	170	6.7	172.5	6.8	172.5	6.8	175	6.9	175	6.9
Q	Wheel Size	700C	700C	700c	700c	700c	700c	700c	700c	700c	700c	700c	700c

Specifications

Sizes XS, S, M, M/L, L, XL

Colours Airglow/Black Currant

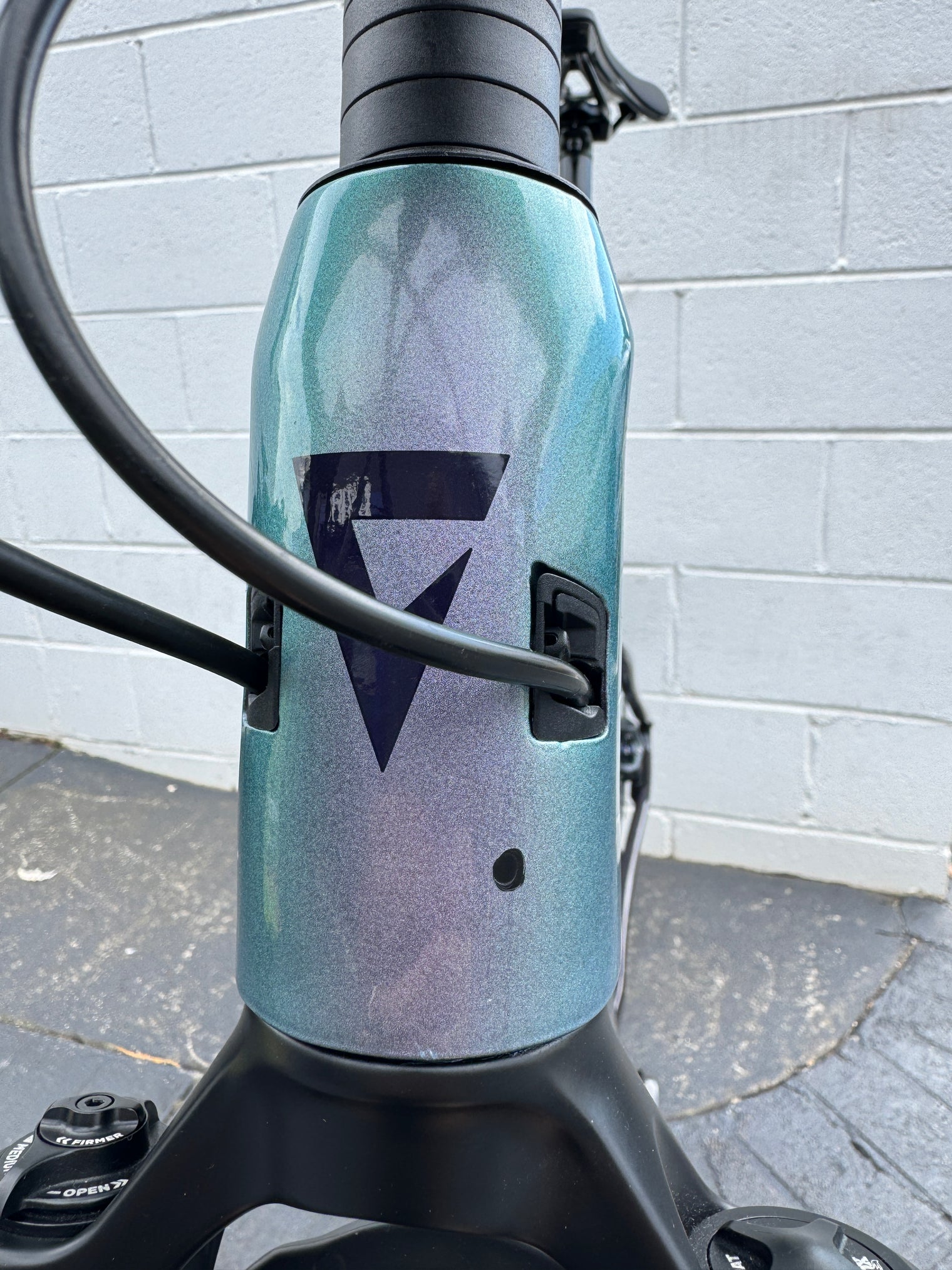

Frame ** Frame has a small chip in headtube as per images. Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

Fork Fox 32 Float TC Performance Elite, 40mm, Fit 4 damper 12x100mm thru-axle

Shock N/A

Handlebar Giant Contact XR D-Fuse, 31.8mm

Grips Stratus Lite 3.0

Stem Giant Contact

Seatpost Postmodern, dropper, 30.9mm

Saddle Giant Approach SL

Pedals N/A

Shifters SRAM Force eTap AXS, 1x12

Front derailleur N/A

Rear derailleur SRAM GX Eagle AXS

Brakes SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors[F]160mm, [R]160mm

Brake levers SRAM Force eTap AXS hydraulic

Cassette Microshift MZ903 11-51T

Chain SRAM X01 Eagle

Crankset SRAM Force D1 DUB, 40t

Bottom bracket SRAM DUB, press fit

Rims Giant P-X2 Disc wheelset, alloy

Hubs Giant alloy, 12mm thru-axle

Spokes Sapim

Tires Maxxis Rambler, 700x45c, tubeless, BLACK

Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position

Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
