Trance X Advanced Pro 29 1 (2023)

$5,519.00 $9,199.00
Tax included
From fast, rowdy descents to technical terrain, this progressive trail bike gives you active suspension, adjustable frame geometry, and everything you need to up your singletrack game.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Trance X Advanced Pro 29 1 (2023) - Lg / Gold is available from supplier warehouse - 7 days

Techs & Features

29er confidence and control

29-inch wheels are optimised to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.

Progressive suspension

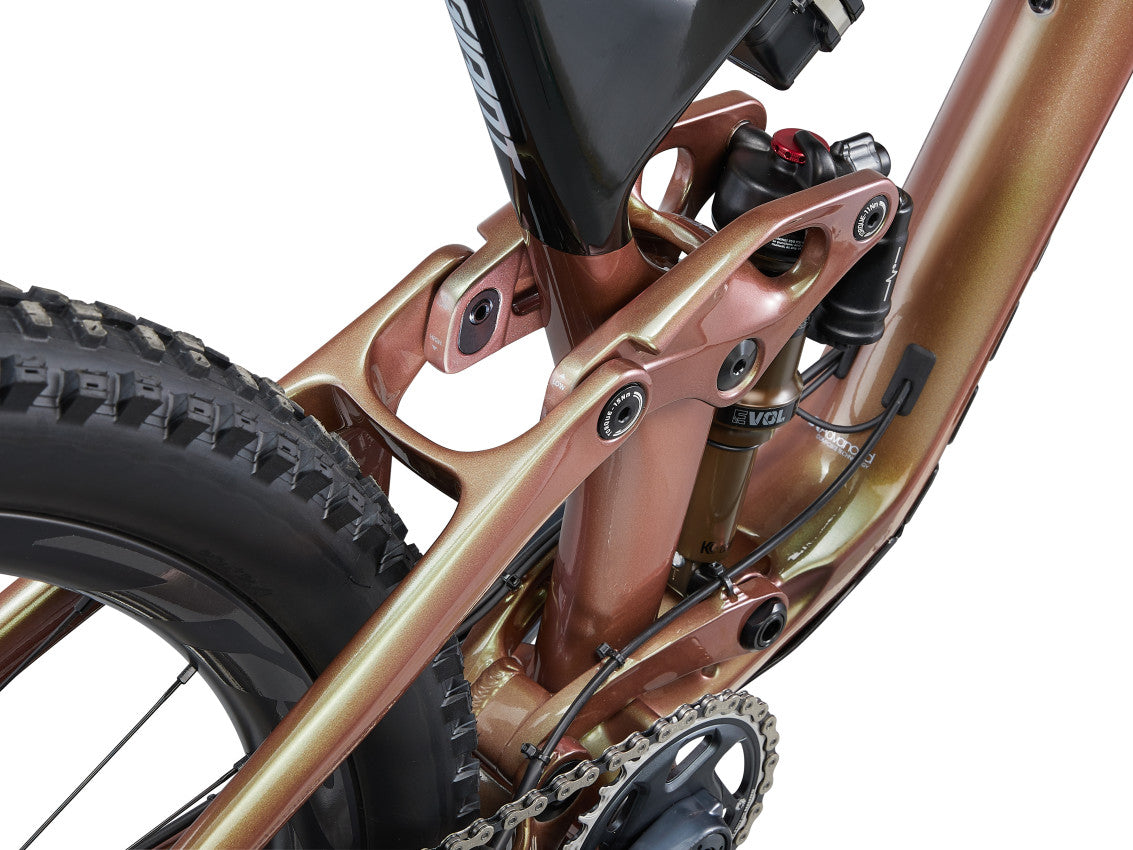

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable geometry

A flip chip lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine tune the handling. You can choose the low position for fast, open terrain, or the high position for slower, tighter singletrack.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    163 cm 172 cm
  • M
    171 cm 180 cm
  • L
    179 cm 188 cm
  • XL
    187 cm 196 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 430 430 465 496
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 566 | 564 597 | 595 629 | 627 656 | 654
D Head Tube Length (mm) (inch) 95 100 110 120
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 125.1 | 119.5 125.1 | 119.5 125.1 | 119.7 125.1 | 119.5
H Wheelbase (mm) (inch) 1173 | 1172 1205 | 1204 1239 | 1238 1268 | 1266
I Chain Stay Length (mm) (inch) 438 | 435 438 | 435 438 | 435 438 | 435
J Bottom Bracket Drop (mm) (inch) 40 | 30 40 | 30 40 | 30 40 | 30
K Stack (mm) (inch) 617 | 611 621 | 615 631 | 624 640 | 634
L Reach (mm) (inch) 426 | 434 456 | 464 486 | 494 511 | 519
M Stand Over Height (mm) (inch) 735 | 743 729 | 738 754 | 763 777 | 786
O Stem Length (mm) (inch) 40 40 50 50
P Crank Length (mm) (inch) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"

Specifications

Sizes S, M, L, XL
Colours Messier/Black/Chrome
Frame Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle
Fork Fox 36 Factory Live Valve, FIT4 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
Shock Fox Factory Live, 185/55, custom tuned for Giant
Handlebar Giant Contact SLR TR35
Grips Giant Tactal Pro Single
Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm, M: 140-170mm travel / 30.9 x 499mm, L: 170-200mm travel / 30.9 x 525mm, XL: 170-200mm travel / 30.9 x 525mm
Saddle Giant Romero SL
Pedals N/A
Shifters SRAM GX Eagle, 1x12
Front derailleur N/A
Rear derailleur SRAM GX Eagle
Brakes SRAM G2 RSC, hydraulic, SRAM CenterLine rotors [F]200mm, [R]180mm
Brake levers SRAM G2 RSC
Cassette SRAM GX-1275, 10x52
Chain SRAM GX Eagle
Crankset SRAM GX, 30t, S:165mm, M:170mm, L:170mm, XL:170mm
Bottom bracket SRAM DUB, press fit
Rims Giant TRX 2 29 Carbon WheelSystem
Hubs [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes Sapim
Tires [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4, EXO, TR, tubeless
Extras Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
