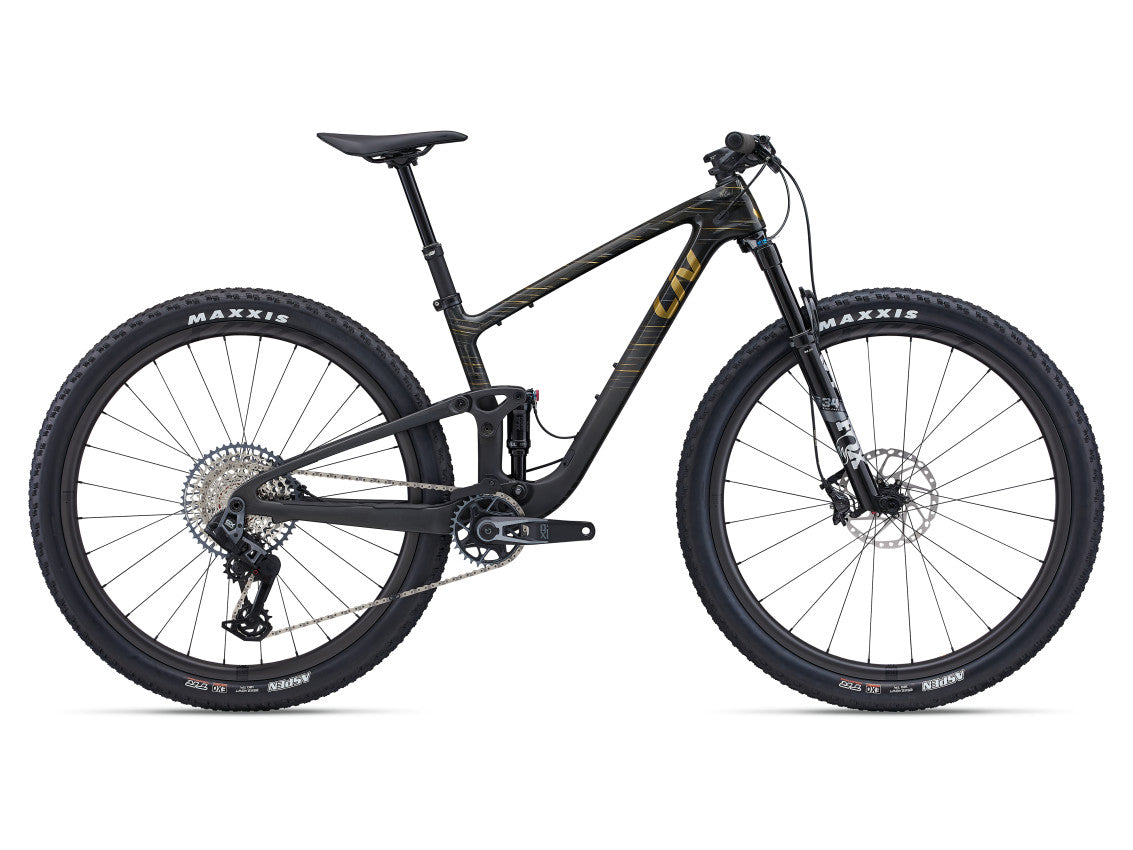

Pique Advanced 29 1 S Raw Carbon

$9,499.00

Cross-country is evolving beyond fast-and-flowy to fast-and-everything—technical terrain, all-day epics, and stage races. The new Pique Advanced 29 is ready for it. Reengineered for greater efficiency and control, this XC queen was built to slay switchbacks, rock gardens, and yesterday’s PRs.

Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

EFFICIENCY IS SPEED

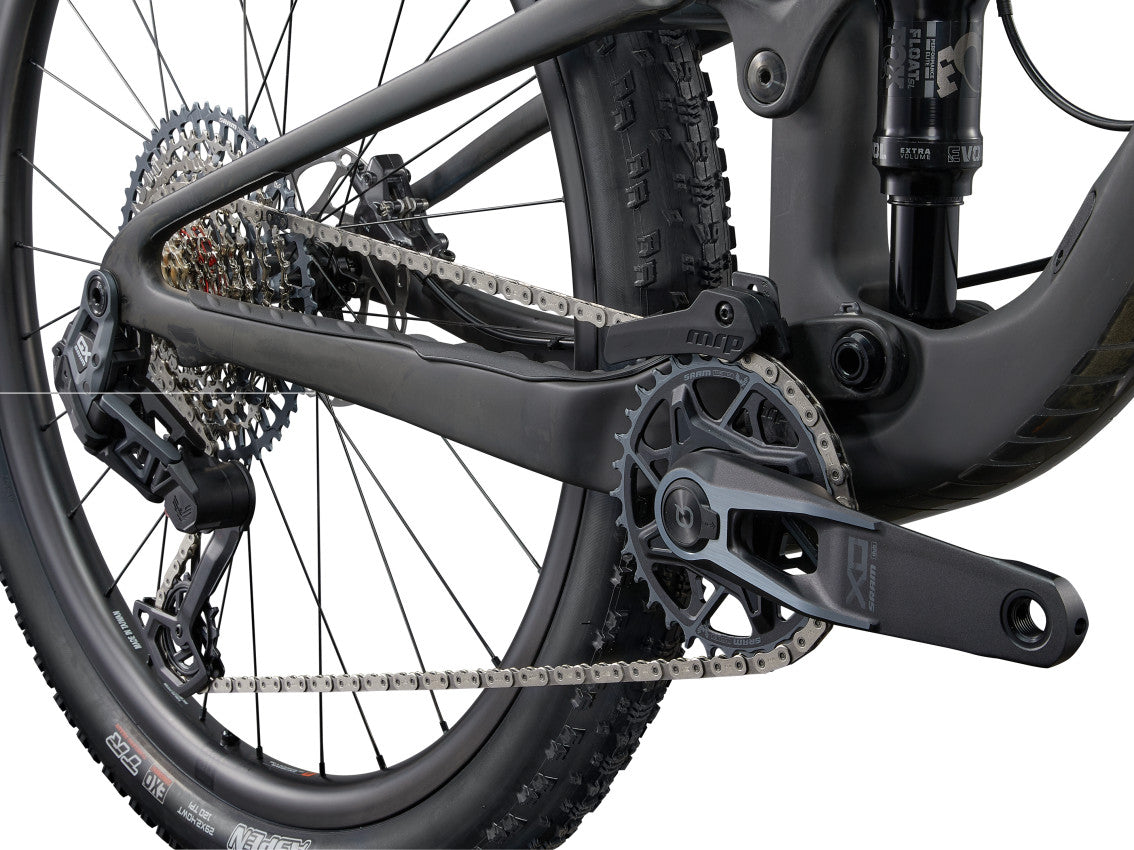

Now 297g lighter*, the Advanced-grade composite frameset also features greater stiffness for efficient power transfer, a massive advantage on climbs and at speed. New FlexPoint Pro suspension minimises weight by minimising parts. And a shorter chainstay offers greater agility for manoeuvring switchbacks, and snappy acceleration for seizing every overtake opportunity. *Compared to previous generation

CONTROL IS POWER

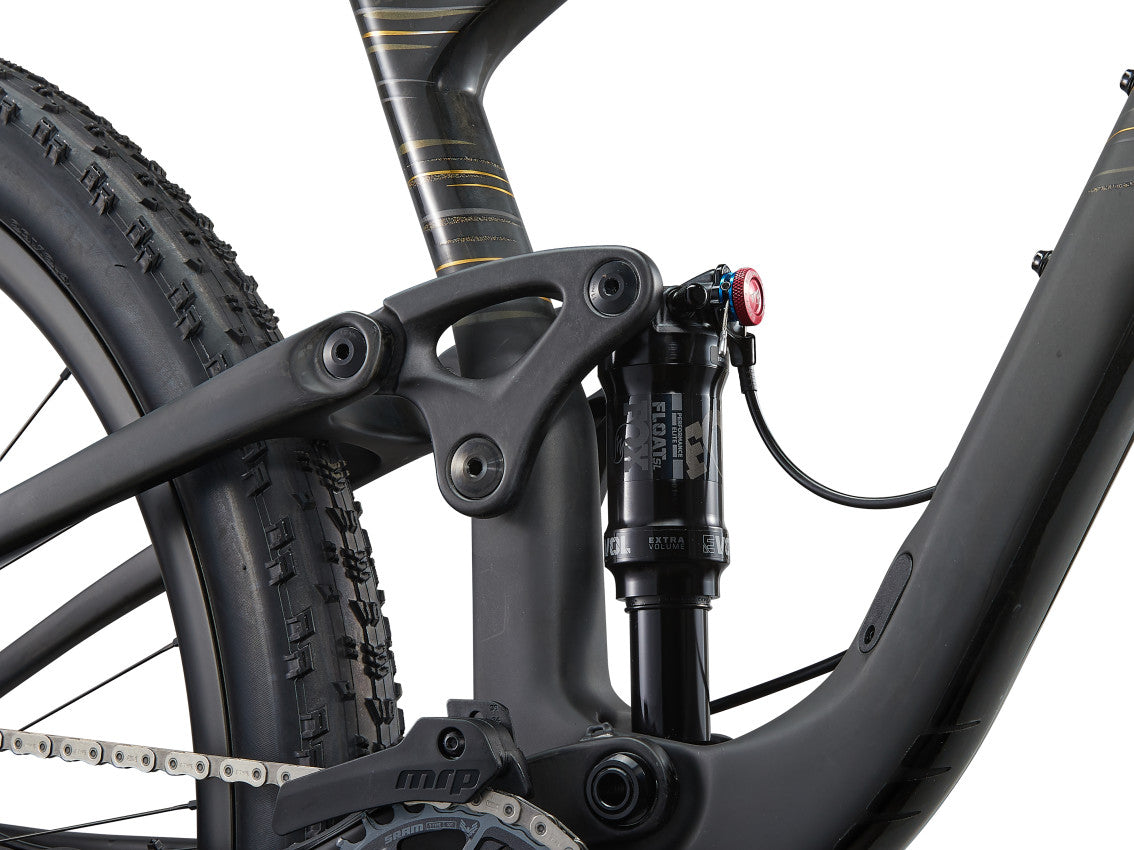

With its patented, linkage-driven, single-pivot design, the new FlexPoint Pro suspension delivers 115mm of smooth, active rear-wheel travel, so you can maximise power and traction over ever-changing and uber-challenging terrain. Combined with a slacker head tube angle and 120mm of front suspension, this setup ensures you're equipped to dominate technical descents.

STABILITY IS MASTERY

Roll over just about anything on 29-inch wheels designed for stability and efficiency. Updated geometry provides a longer reach, putting you in a lower and more aggressive body position. A steeper seat tube angle increases pedaling efficiency on even the steepest climbs. And the modified cockpit includes a 35mm composite handlebar and alloy stem for steering precision.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    150 cm 163 cm
  • S
    158 cm 169 cm
  • M
    164 cm 175 cm
  • L
    170 cm 181 cm
Bike Geometry Diagram
Code Name XS S M L
A Seat Tube Length (mm) (inch) 380 410 440 470
A1 Seat Post Insertion Depth (mm) (inch) 203 233 263 293
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 555 570 585 600
D Head Tube Length (mm) (inch) 90 95 105 115
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 112.2 112.2 112.2 112.2
H Wheelbase (mm) (inch) 1121 1137 1154 1170
I Chain Stay Length (mm) (inch) 435 435 435 435
J Bottom Bracket Drop (mm) (inch) 45 45 45 45
K Stack (mm) (inch) 599 603 612 622
L Reach (mm) (inch) 406 420 432 445
M Stand Over Height (mm) (inch) 748 767 770 791
O Stem Length (mm) (inch) 60 60 70 70
P Crank Length (mm) (inch) 165 170 170 175
Q Wheel Size 29" 29" 29" 29"

Specifications

Sizes XS, S, M, L
Colours Gloss Raw Carbon
Frame Advanced-grade composite front and rear triangles, 115mm FlexPoint Pro Suspension
Fork Fox 34 Float SC Performance Elite, 120mm, FIT4 damper, Boost 15x110 KaBolt, tapered, 44mm offset, 3 position remote lockout
Shock Fox Float SL Performance Elite, 3 position remote lockout, custom tuned for Liv
Handlebar Giant Contact SLR XC Flat, composite, 35mm
Grips Giant XC Pro
Stem Giant Contact SL XC, alloy, 35mm XS: 60mm, S: 60mm, M: 70mm, L: 70mm
Seatpost Giant Contact Switch, adjustable dropper, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 140-170mm travel / 30.9 x 470mm
Saddle Fi'zi:k Vento Argo R5
Pedals N/A
Shifters SRAM AXS, 1x12
Front derailleur N/A
Rear derailleur SRAM GX Eagle, T-Type AXS
Brakes Shimano XT, hydraulic, Shimano RT-64 centerlock rotors [F]180mm, [R]160mm
Brake levers Shimano XT BL-M8100
Cassette SRAM GX, T-Type 10x52
Chain SRAM GX T-Type
Crankset SRAM XO T-Type, power meter, alloy chainring 32t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:175mm
Bottom bracket SRAM DUB, press fit
Rims Giant XCR 1 30 carbon WheelSystem, 30mm inner width
Hubs [F] Giant XC alloy, CenterLock, [R] Giant XC alloy, DT350 internal, 54t ratchet system, CenterLock
Spokes Sapim Laser
Tires Maxxis Aspen, 29x2.4, foldable, TLR, EXO, tubeless
Extras Tubeless prepared, 2.4" max tyre size, 34t max chainring size, Giant/MRP CS chain guide *Not compatible with 2023 or earlier RockShox SID rear shocks.
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
