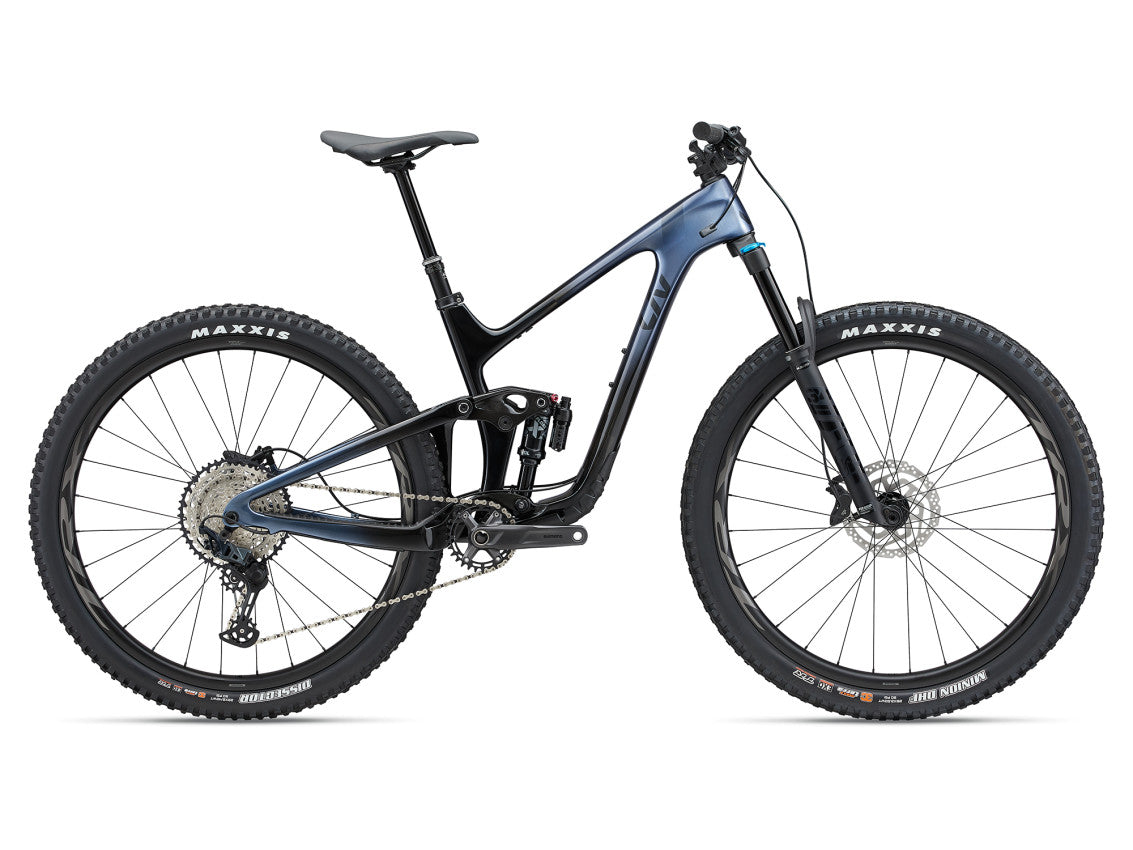

• MY24 Intrigue Advanced 29 1_Color A Ice Age
Liv Logo

Intrigue Advanced 29 1

$6,599.00

Built to cover ground, mow over techy singletrack, and charge down aggressive terrain, the Intrigue Advanced 29 prefers the rowdy side of life.

Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Top Performance Trail

Advanced-grade composite frame, carbon wheelset, Maestro Suspension and flip chip adjustable frame geometry equip you with a lightweight, versatile trail bike.

Balanced Agility

Obstacle-eating 29-inch wheels offer smooth handling and roll easily over small roots and rocks.

Custom Tuned Suspension

The 125 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    158 cm 169 cm
  • M
    164 cm 175 cm
  • L
    170 cm 181 cm
Bike Geometry Diagram
Code Name S M L
A Seat Tube Length (mm) (inch) 425 435 460
A1 Seat Post Insertion Depth (mm) (inch) 295 305 330
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 558 | 557 574 | 573 599 | 597
D Head Tube Length (mm) (inch) 105 110 125
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44
G Trail (mm) (inch) 122 | 117 122 | 117 122 | 117
H Wheelbase (mm) (inch) 1160 | 1160 1177 | 1176 1205 | 1204
I Chain Stay Length (mm) (inch) 438 | 435 438 | 435 438 | 435
J Bottom Bracket Drop (mm) (inch) 40 | 30 40 | 30 40 | 30
K Stack (mm) (inch) 620 | 614 625 | 618 639 | 632
L Reach (mm) (inch) 415 | 424 430 | 438 451 | 460
M Stand Over Height (mm) (inch) 742 | 751 732 | 741 751 | 759
O Stem Length (mm) (inch) 50 50 50
P Crank Length (mm) (inch) 170 170 175
Q Wheel Size [F] 29" [R [F] 29" [R [F] 29" [R

Specifications

Sizes S, M, L
Colours Ice Age
Frame Advanced-grade composite front and rear triangles, 125mm Maestro Suspension, flip chip – Maestro
Fork Fox 34 Performance, 140mm, Grip 2 damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Shock Fox Float X Performance 185x50, custom tuned for Liv
Handlebar Giant Contact TR35, alloy, 35mm
Grips Liv Tactal single lock-on
Stem Giant Contact SL, 35mm S: 50mm, M: 50mm, L: 50mm
Seatpost TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 120-150mm travel / 30.9 x 459mm L: 140-170mm travel / 30.9 x 499mm
Saddle Liv Sylvia
Pedals N/A
Shifters Shimano SLX M7100, 1x12
Front derailleur N/A
Rear derailleur Shimano SLX M7100, Shadow +
Brakes Shimano M6120, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake levers Shimano Deore BL-M6100
Cassette Shimano SLX M7100, 10x51
Chain KMC X12
Crankset Shimano MT512, 30t S:170mm, M:170mm, L:170mm
Bottom bracket Shimano, press fit
Rims Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
Hubs [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes Sapim
Tires [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras Tubeless prepared, max tyre size 2.5", max chainring size 32t
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
