Giant Logo

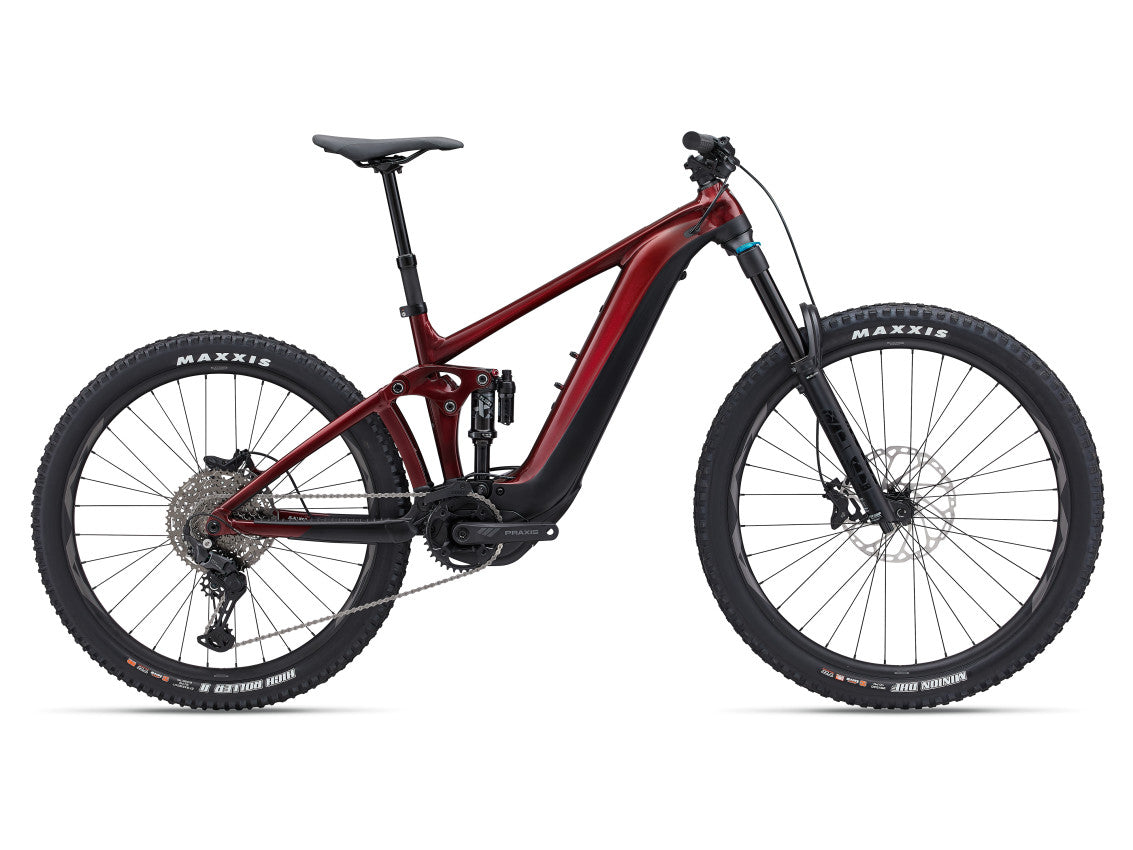

Reign E+ 2

$5,499.00 $9,799.00
Tax included
Every trail, every steep climb, every thrilling descent. Nothing is out of bounds with the Reign E+. This proven trail ripper gives you the power to enjoy the best parts of the ride again and again.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

Trail technology

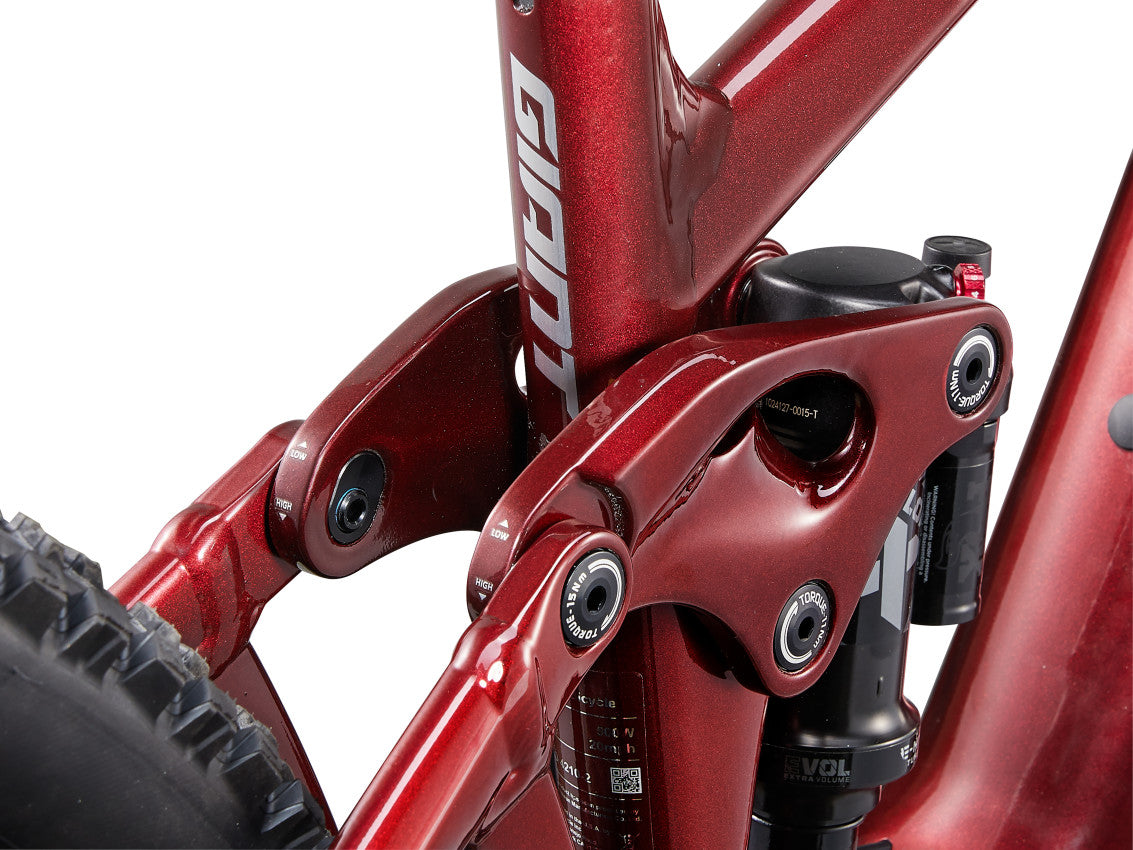

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    162 cm 176 cm
  • M
    169 cm 184 cm
  • L
    176 cm 192 cm
  • XL
    184 cm 200 cm
Bike Geometry Diagram
Code Name S M L XL
A Seat Tube Length (mm) (inch) 400 425 450 475
A1 Seat Post Insertion Depth (mm) (inch) 235 260 285 310
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 569 | 568 595 | 594 622 | 621 649 | 648
D Head Tube Length (mm) (inch) 100 100 110 120
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 44 44 44 44
G Trail (mm) (inch) 135.5 | 132.1 135 | 132 135 | 132 135.5 | 132.1
H Wheelbase (mm) (inch) 1209 | 1210 1236 | 1237 1265 | 1266 1295 | 1296
I Chain Stay Length (mm) (inch) 457 | 455 454 | 454 454 | 454 454 | 454
J Bottom Bracket Drop (mm) (inch) 25 | 15 25 | 15 25 | 15 25 | 15
K Stack (mm) (inch) 636 | 632 635 | 632 645 | 641 654 | 650
L Reach (mm) (inch) 425 | 430 450 | 455 475 | 480 500 | 505
M Stand Over Height (mm) (inch) 785 | 789 772 | 776 771 | 775 768 | 772
O Stem Length (mm) (inch) 40 40 40 50
P Crank Length (mm) (inch) 160 160 165 165
Q Wheel Size 29" [F] 29" [R [F] 29" [R [F] 29" [R

Specifications

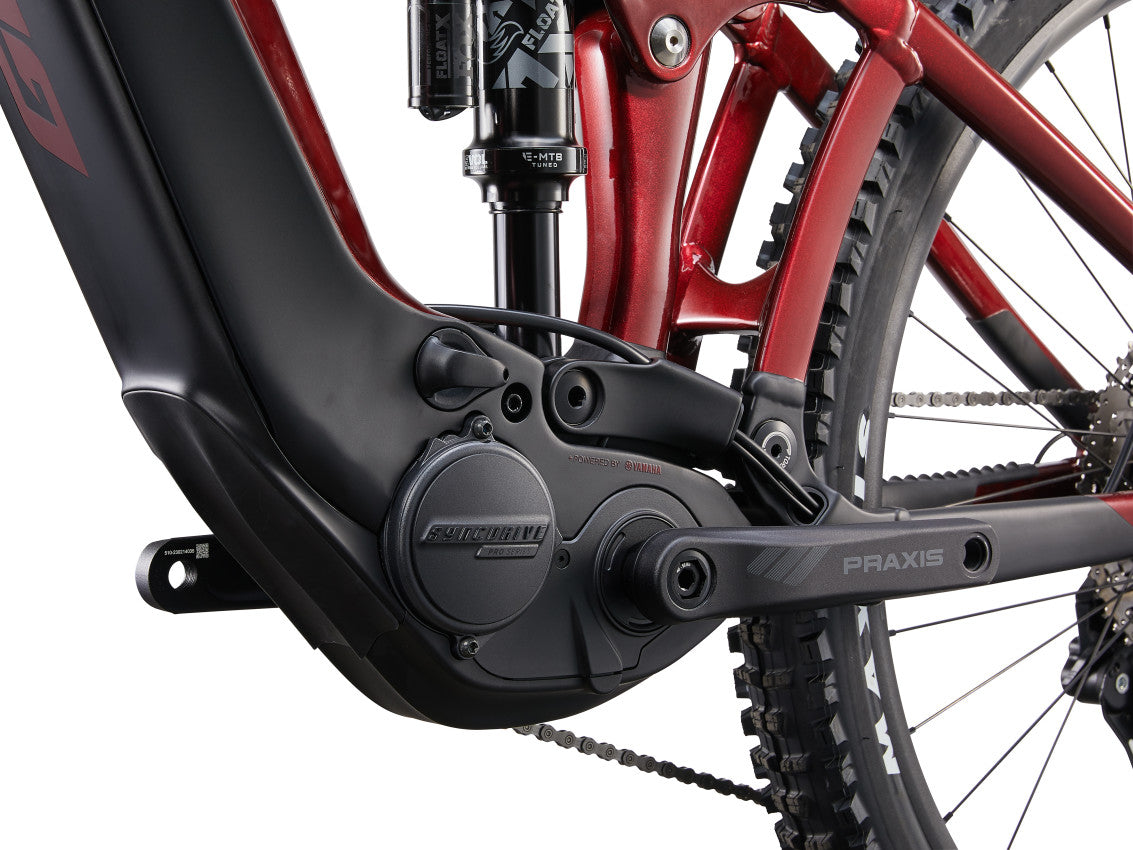

Motor SyncDrive Pro 2, 85Nm, powered by Yamaha
Controller RideControl Ergo 3, grip integrated
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger EnergyPak 6A smart charger
Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S, M, L, XL
Colours Sangria / Black
Frame ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle

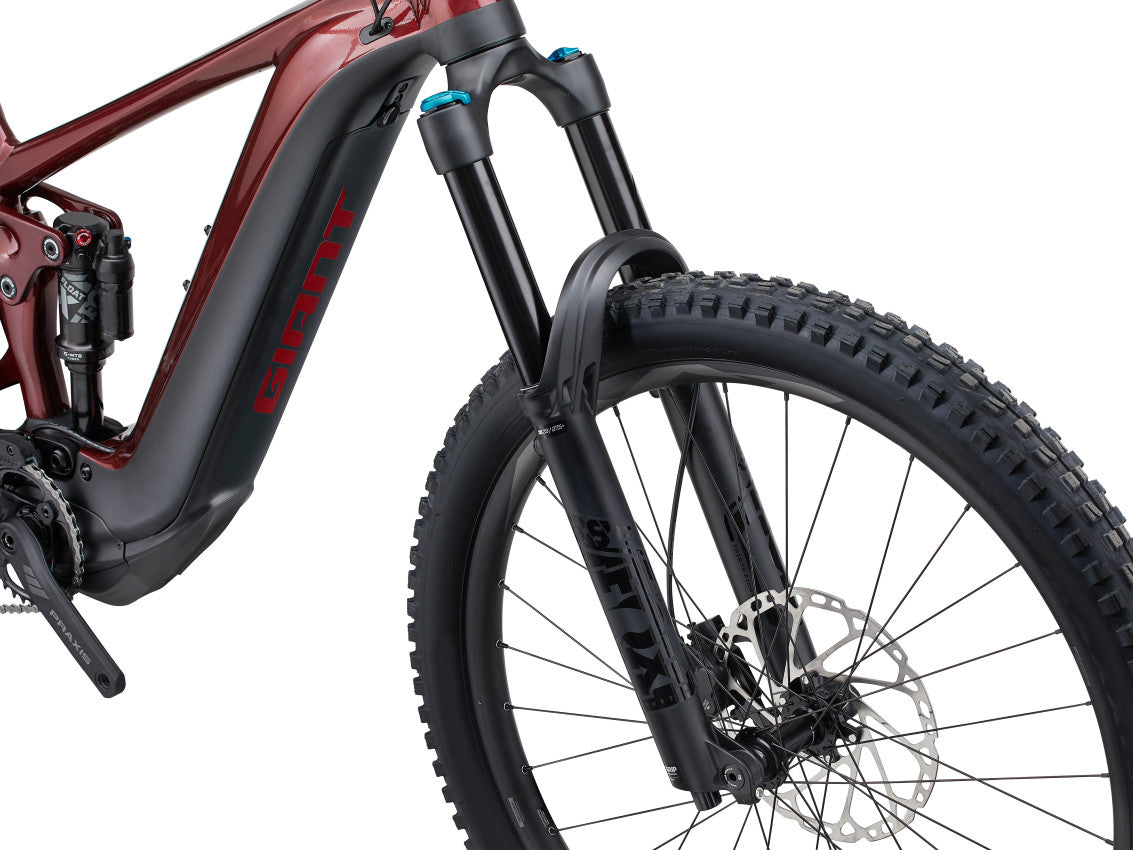

Fork Fox 38 Rhythm E-Tuned, 170mm travel, 44mm offset, GRIP damper, Boost Kabolt-X 110x15mm
Shock Fox Float X Performance, EVOL Large Volume sleeve, custom tuned
Handlebar Giant Contact Trail, 35mm
Grips Giant Tactal Pro-E, single lock-on
Stem Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost Giant Contact Switch, dropper, 30,9mm (S:125/M:150/L:170/XL:200)
Saddle Velo VL3594
Pedals Platform
Shifters Shimano CUES, SL-6000, 1x11
Front derailleur MRP 1X HD2 custom co-molded chain guide
Rear derailleur Shimano CUES, U6000, Shadow+
Brakes Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 220mm[F], 203mm [R]
Brake levers Shimano Deore BL-M6100 , I-spec EV
Cassette Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
Chain Shimano LinkGlide, CN-LG500
Crankset Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm
Bottom bracket N/A
Rims Giant AM 29" [F] 27.5" [R], Tubeless ready
Hubs Shimano MT410 Boost, Center-Lock
Spokes Sapim E-Lite [R] Race [F], e-bike optimised
Tyres Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Extras Tubeless kit (liquid, valves, levers, manual, tool)
Nsw certification ULL-104274-EA
Lock Torx 25 Battery Lock with built-in Torque limiter
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

EN 15194 compliant e-bike
