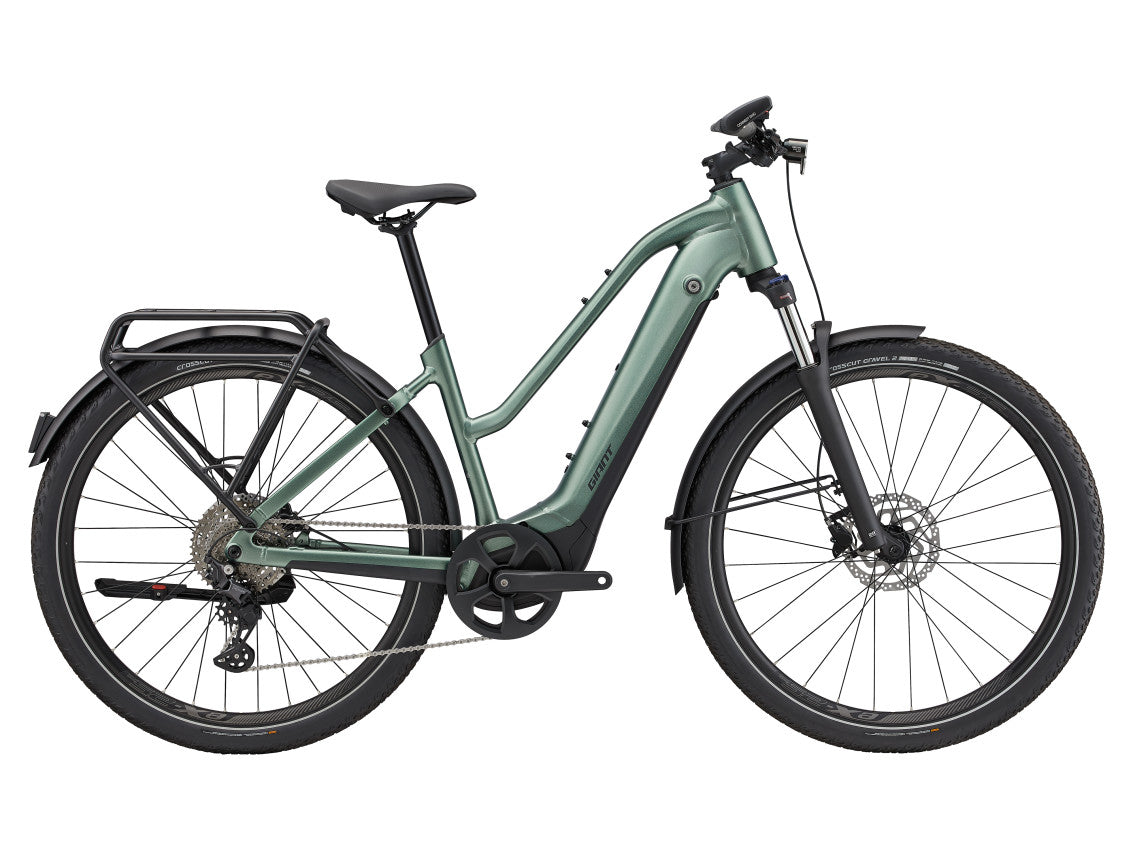

• Misty Forest

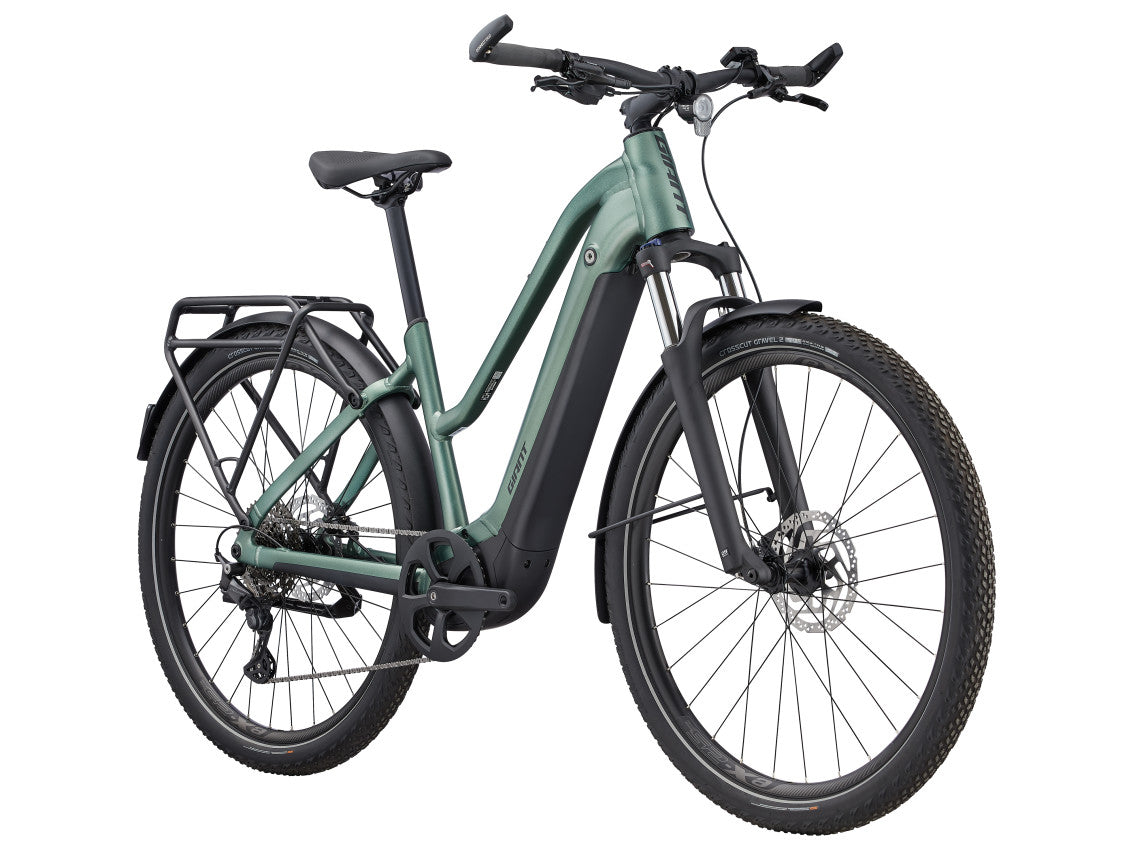

  • MY23 Explore E+ 1 STA_Color A Misty Forest_Front

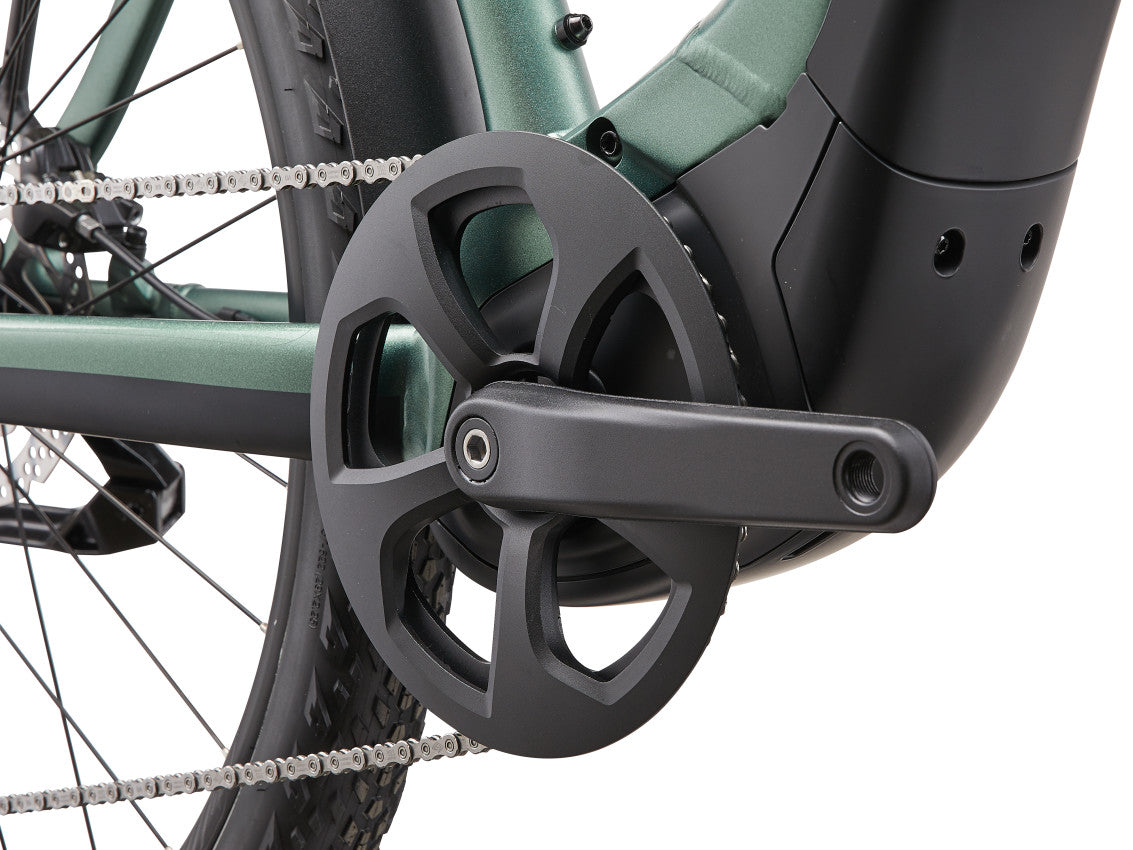

  • MY23 Explore E+ 1 STA_Color A Misty Forest_D2

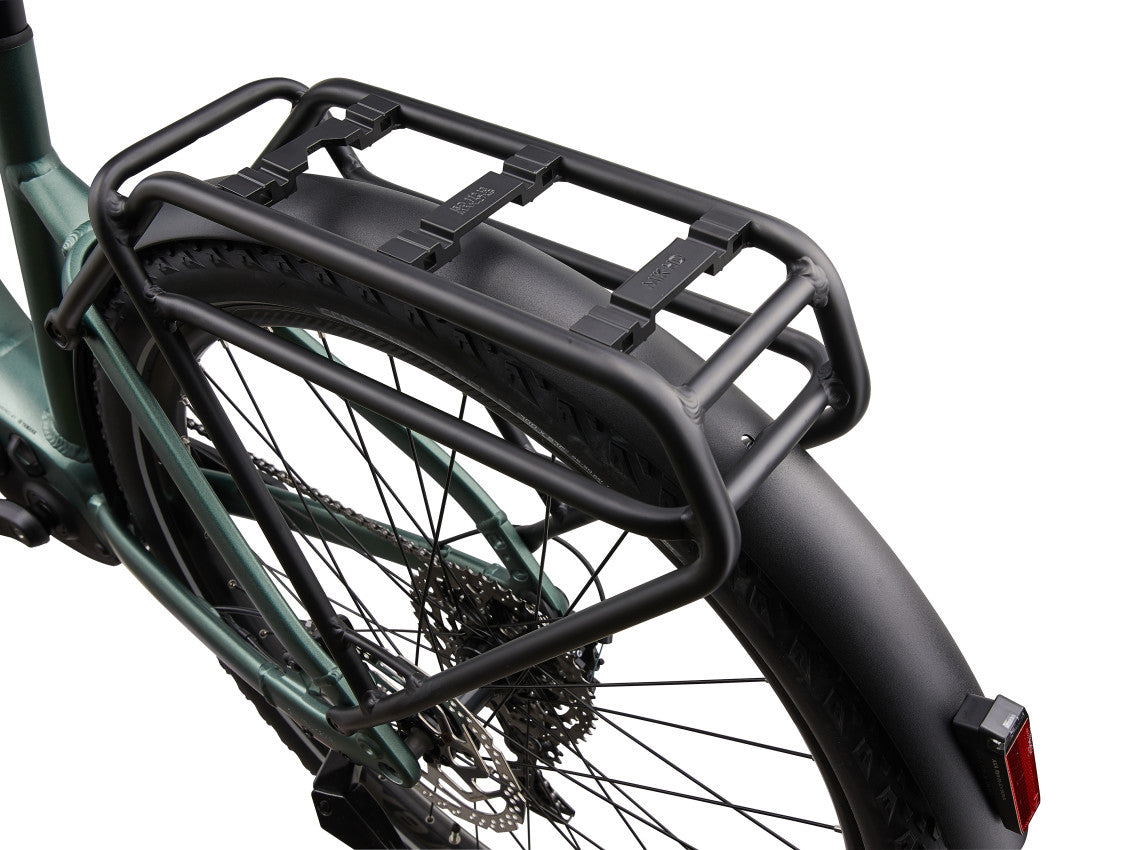

  • MY23 Explore E+ 1 STA_Color A Misty Forest_D3
  • MY23 Explore E+ 1 STA_Color A Misty Forest_D4
1 5
Giant Logo

Explore E + STA

$5,199.00

Go beyond city limits and find new adventures. The new Explore E+ gives you the power to ride further with a powerful new motor and longer range. Smooth suspension and larger tyres make it a highly capable trekker for smooth roads, gravel or dirt.EnergyPak Smart 625 / SyncDrive Sport 2

Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Smooth ride quality

ALUXX aluminium frameset with a 100mm suspension fork and new SyncDrive motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.

Integrated accessories

RideControl Dash allows to check range, battery level and support mode, along with standard cycling data such as speed and distance

Longer Range

EnergyPak battery gives riders the freedom to ride further.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    162 cm 172 cm
Bike Geometry Diagram
Code Name S
A Seat Tube Length (mm) (inch) 410
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 585
D Head Tube Length (mm) (inch) 140
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 51
G Trail (mm) (inch) 88
H Wheelbase (mm) (inch) 1147
I Chain Stay Length (mm) (inch) 455
J Bottom Bracket Drop (mm) (inch) 60
K Stack (mm) (inch) 665
L Reach (mm) (inch) 394
M Stand Over Height (mm) (inch) 682
O Stem Length (mm) (inch) 60
P Crank Length (mm) (inch) 170
Q Wheel Size 29"

Specifications

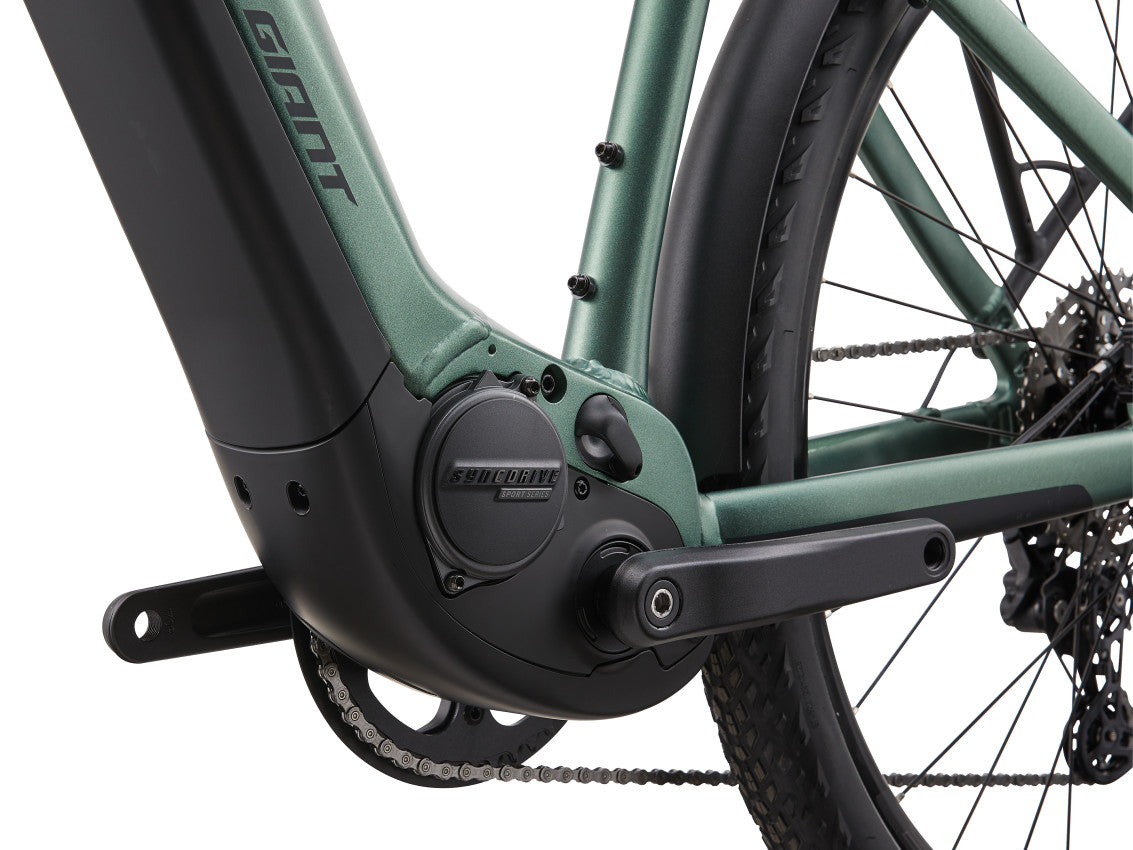

Motor SyncDrive Sport 2, 75Nm, powered by Yamaha
Controller Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
Display RideControl Dash, full color lcd screen
Battery EnergyPak Smart 625, EnergyPak Plus 250 range extender compatible
Charger Giant EnergyPak 4A smart charger compact
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S
Colours Misty Forest
Frame ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Fork SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Shock N/A
Handlebar Giant Connect Riser
Grips Gant Connect Ergo Max w/bar-end
Stem Giant Contact
Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle Selle Royal Vivo Ergo Moderate Unisex
Pedals Platform
Shifters Shimano Deore, LinkGlide
Front derailleur N/A
Rear derailleur Shimano Deore LinkGlide, 10-speed, Shadow+
Brakes Shimano BR-MT200, hydraulic disc, 180mm
Brake levers Shimano BL-MT200
Cassette Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Chain Shimano LinkGlide, CN-LG500
Crankset Forged Alloy Direct spider/chainguard 46T Steel
Bottom bracket N/A
Rims eX25
Hubs Giant eTracker
Spokes Stainless steel, e-bike optimized
Tires Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Extras KSA40 direct mount kickstand
Lighting Recon E HL50 StVZO [F]AXA NYX 6-12V E-bike tail light with brake sensor [R]
Lock ABUS Xplus battery lock
Carrier MIK rack. System bag & basket compatible
Fender/chainguard Alluminum Fenders
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
