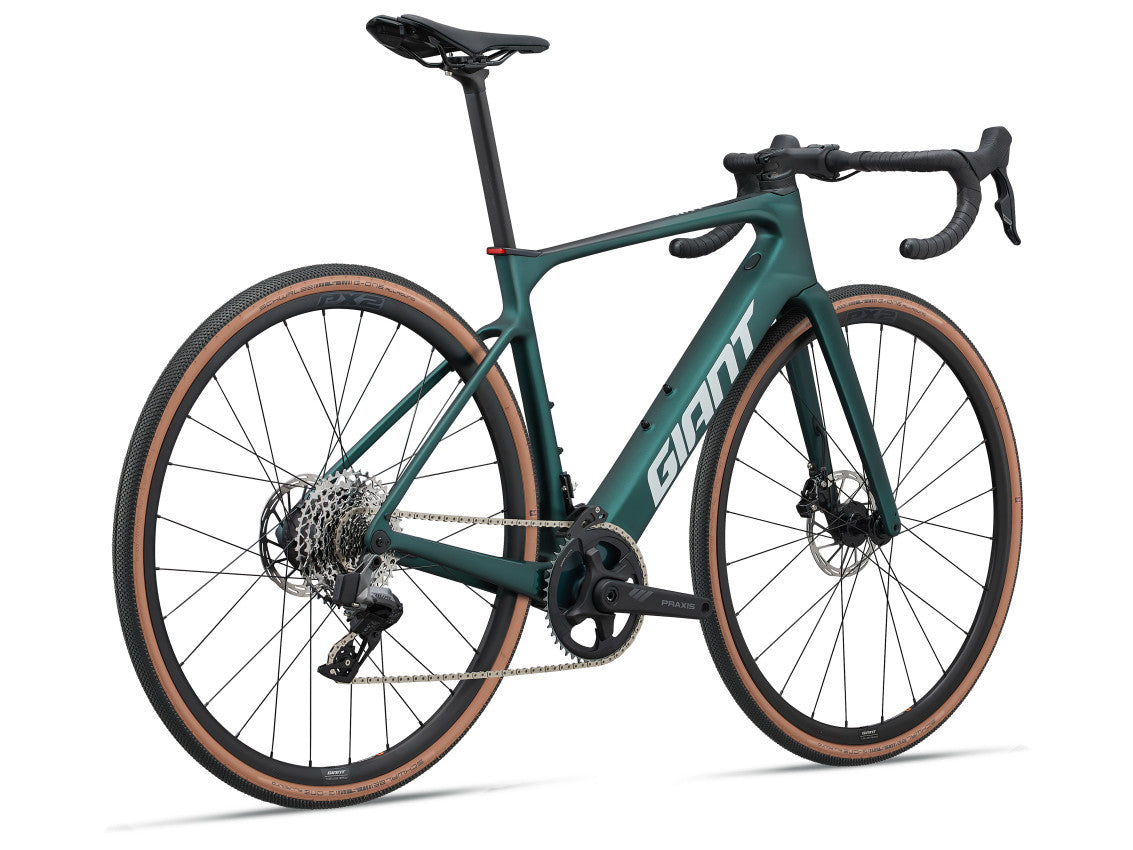

  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-Rear
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D1
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D2
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D3
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D4
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D5
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D6
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D7
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D8
  • MY24 Defy Advanced E+ EL AR_Color A Kelp Forest-D9
1 12
Giant Logo

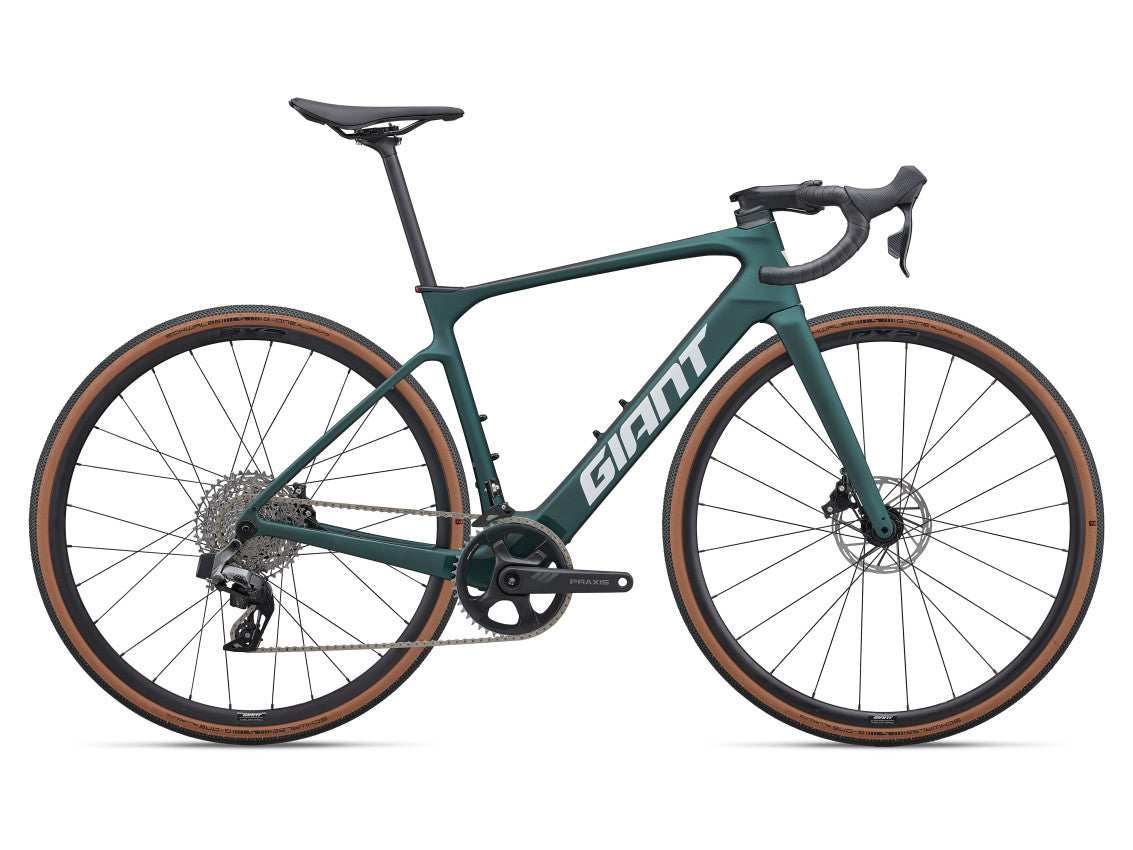

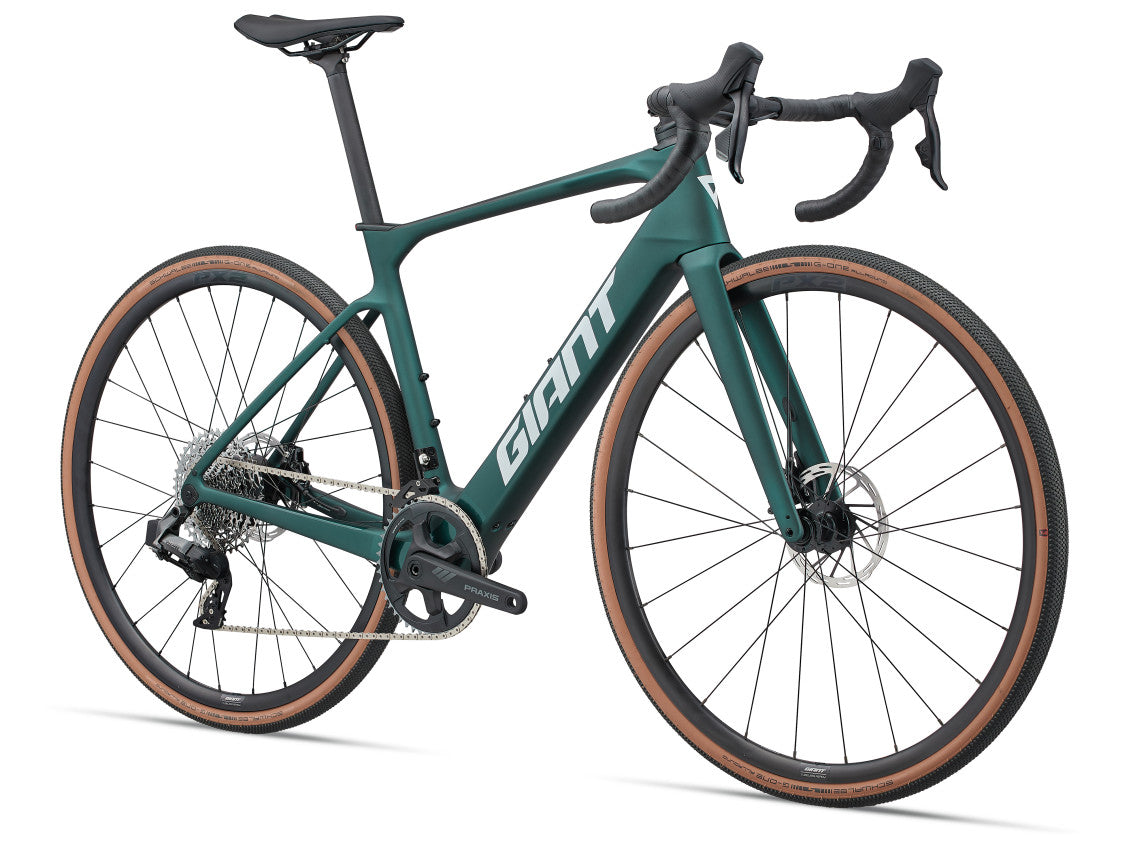

Defy Advanced E+ Elite AR 25km/h

$8,899.00 $10,499.00

With its smooth-riding composite frame, lightweight battery, new SyncDrive Move Plus integrated rear hub motor and all-road ready 35mm tyres, the Defy Advanced E+ AR is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.Energypak 400 / SyncDrive Move

Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Defy Advanced E+ Elite AR 25km/h - Lg / Green is available from our supplier warehouse. Our team will call you when we receive your order to confirm the arrival date - usually 7-10 days.

Techs & Features

SEAMLESS POWER

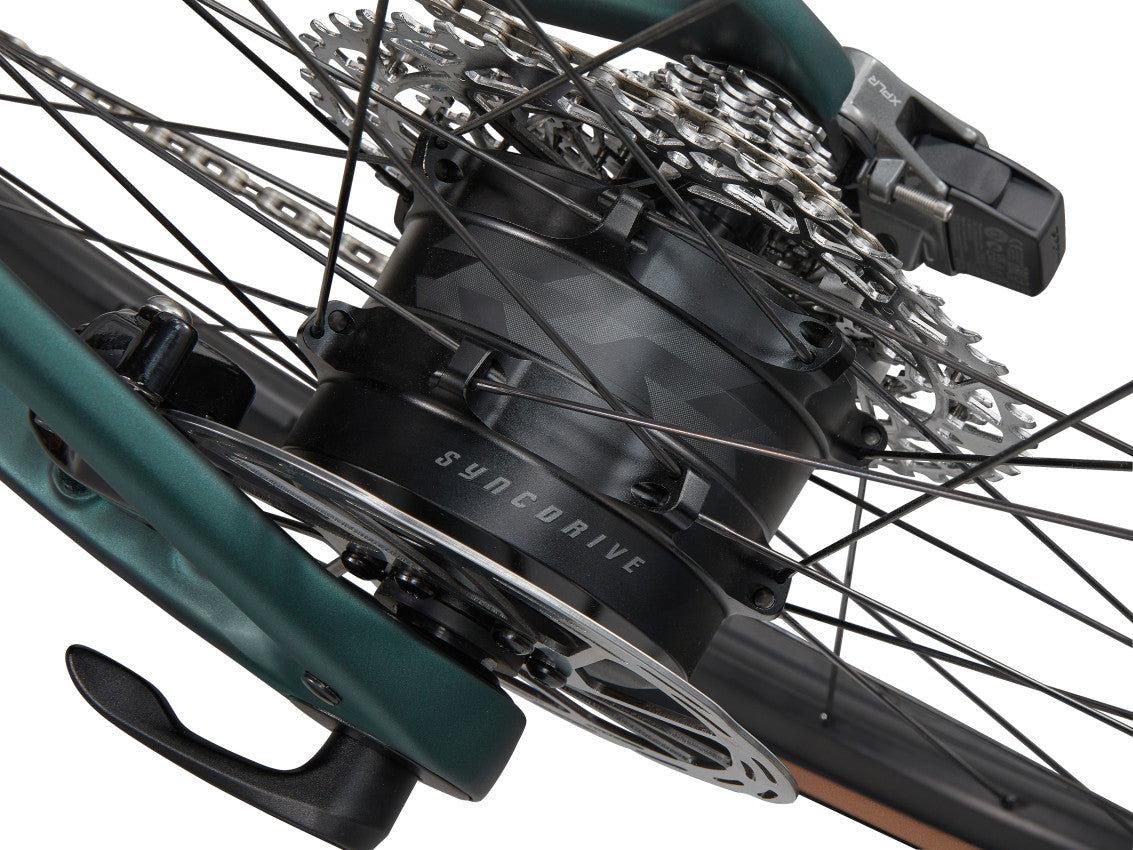

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION

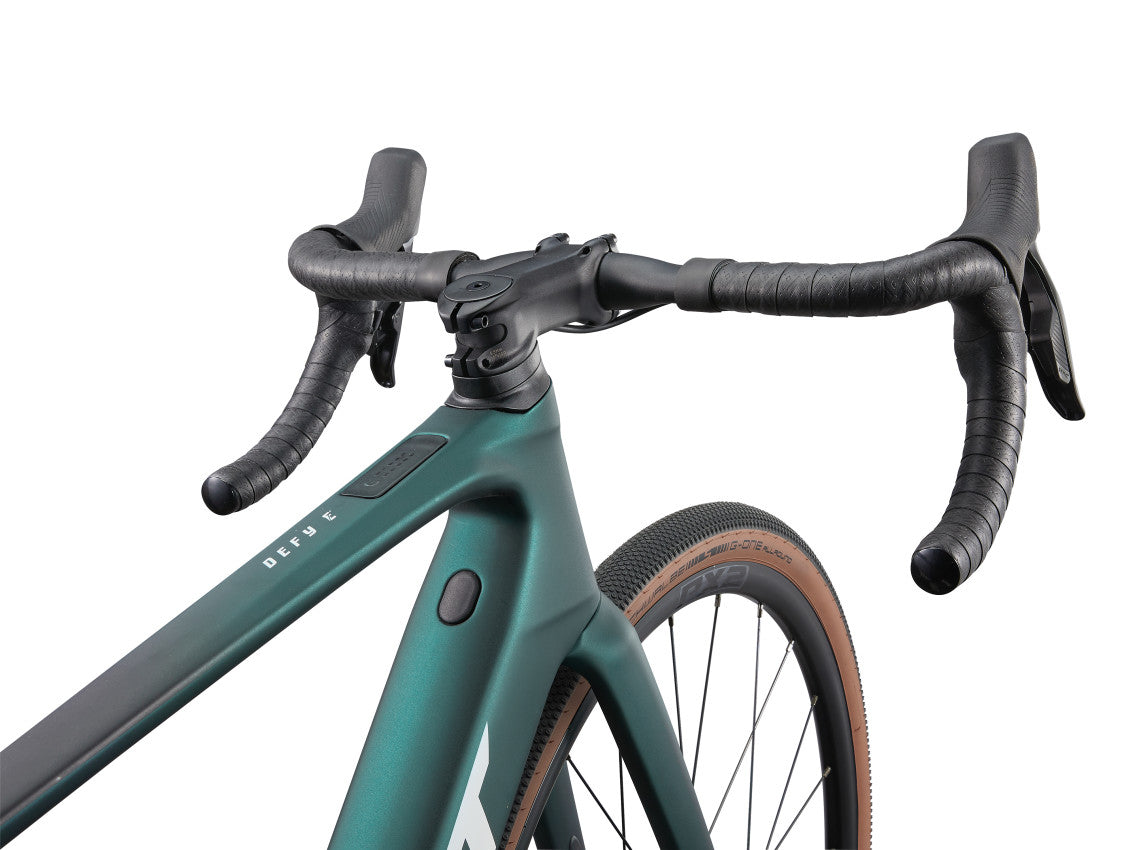

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with all-road ready 35mm tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • S
    166 cm 174 cm
  • M
    172 cm 180 cm
  • ML
    178 cm 186 cm
  • L
    184 cm 192 cm
  • XL
    190 cm 198 cm
Bike Geometry Diagram
Code Name S M ML L XL
A Seat Tube Length (mm) (inch) 445 480 515 535 565
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 530 545 560 575 590
D Head Tube Length (mm) (inch) 130 145 167 187 205
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50
G Trail (mm) (inch) 65.1 58.6 58.6 58.6 58.6
H Wheelbase (mm) (inch) 994.3 995.2 1007.5 1022.7 1037.9
I Chain Stay Length (mm) (inch) 420 420 420 420 420
J Bottom Bracket Drop (mm) (inch) 80 80 75 75 75
K Stack (mm) (inch) 542.2 560.2 576.1 595.2 612.4
L Reach (mm) (inch) 374.3 378.9 383.6 392.8 402.6
M Stand Over Height (mm) (inch) 716 745.5 779 799 824
O Stem Length (mm) (inch) 90 100 110 110 120
P Crank Length (mm) (inch) 170 172.5 172.5 175 175
Q Wheel Size

Specifications

Motor Giant SyncDrive Move Plus, Rear Hub, 30Nm
Controller Mode support switch from SRAM blips
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Charger EnergyPak 4A smart charger compact
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S, M, M/L, L, XL
Colours Kelp Forest
Frame Advanced-Grade Composite, disc, 12x145mm
Fork Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, disc, 12x100mm
Shock -

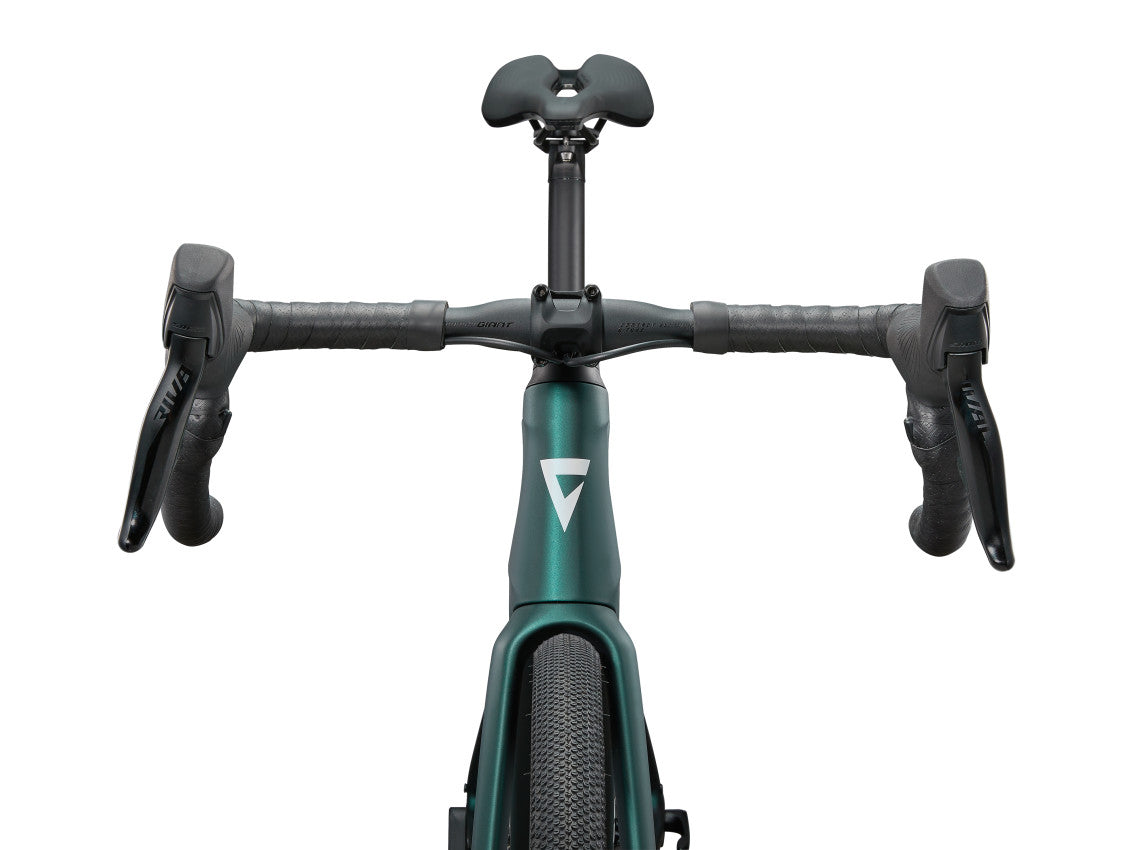

Handlebar Giant Contact SL D-Fuse S:40/42cm, M:42/44cm, M/L:42/44cm, L:44/46cm, XL:44/46cm
Grips Stratus Lite 3.0
Stem Giant Contact SL AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant D-Fuse, composite, -5/+15mm offset
Saddle Giant Approach
Pedals N/A
Shifters SRAM Rival AXS
Front derailleur -
Rear derailleur SRAM Rival XPLR AXS
Brakes SRAM Rival AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake levers SRAM Rival AXS hydraulic
Cassette SRAM Rival XPLR XG-1251, 12-speed, 10-44
Chain SRAM Rival D1

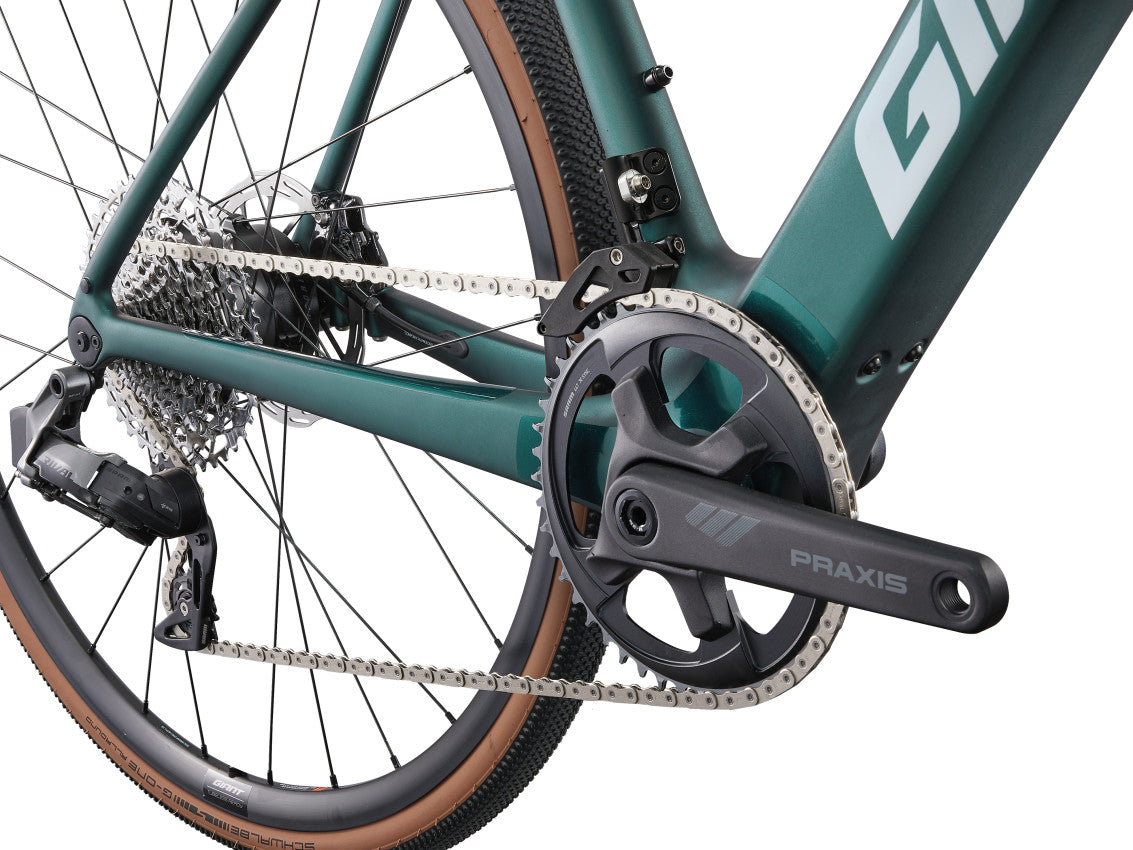

Crankset SRAM X-SYNC 46T BCD107 chain ring Praxis E Crank Alloy ISIS, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket Giant E+ System BBSS
Rims Giant P-X2 Alloy Disc Wheel System, Tubeless Ready
Hubs [F] Giant Alloy, 24H [R] Giant SyncDrive Move Plus, 28H
Spokes Sapim spoke E-Light [R] Race [F], e-bike optimised
Tires Schwalbe G-one Allround Perf, RaceGuard, Brown side-wall 700x35C Tubeless

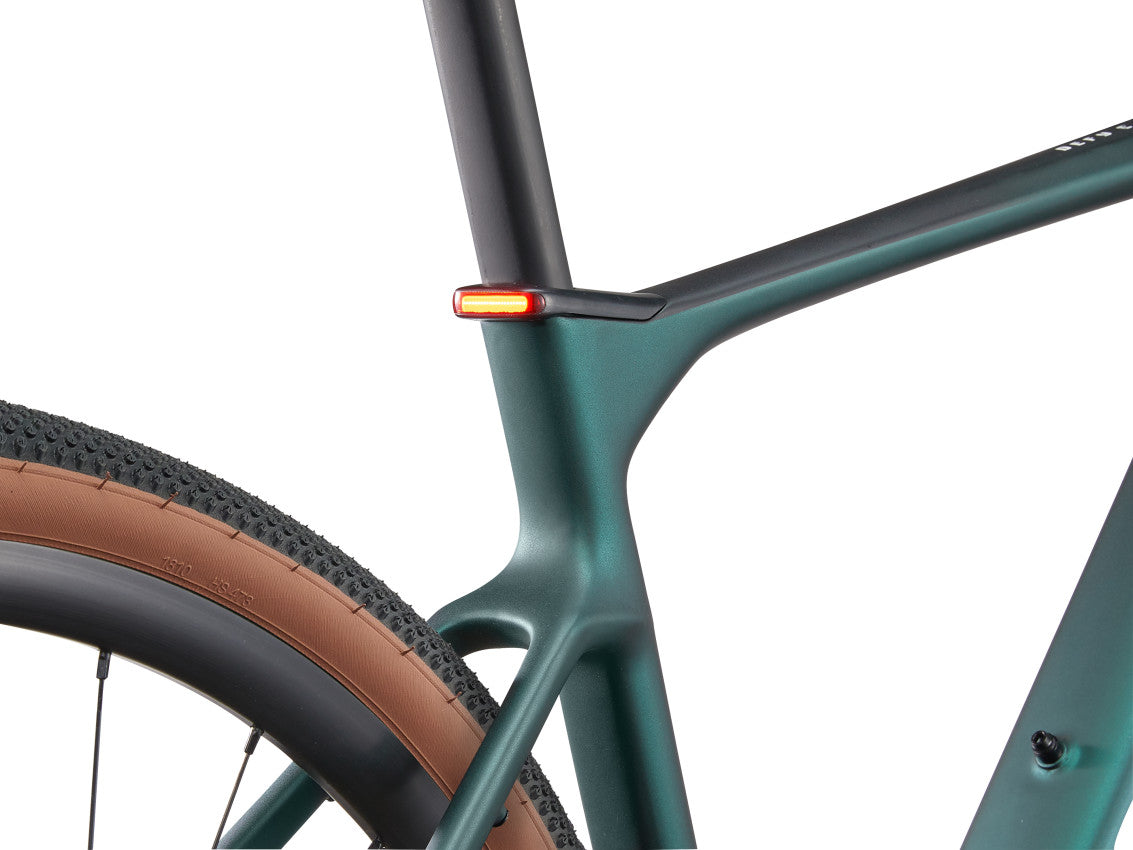

Lighting Seatpost clamp integrated tail light
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
