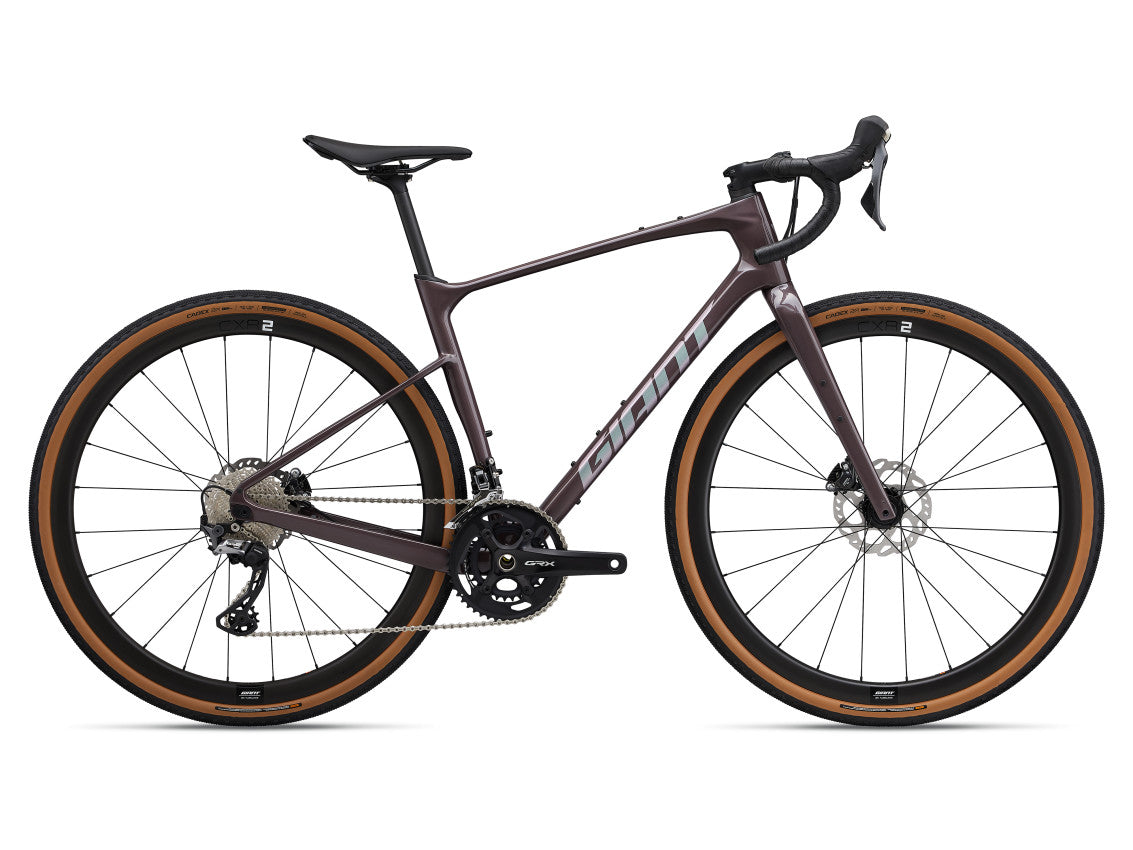

Revolt Advanced 0

$4,499.00 $5,299.00

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Size
Colour
1 in stock

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Techs & Features

Fast and light

Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    155 cm 166 cm
  • S
    159 cm 171 cm
  • M
    169 cm 181 cm
  • ML
    174 cm 186 cm
  • L
    179 cm 191 cm
  • XL
    189 cm 200 cm
Bike Geometry Diagram
Code Name XS S M ML L XL
A Seat Tube Length (mm) (inch) 430 450 470 490 510 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 540 550 560 575 585 600
D Head Tube Length (mm) (inch) 125 135 150 165 180 195
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50 50
G Trail (mm) (inch) 7882 7275 6872 6568 6568 6568
H Wheelbase (mm) (inch) 10241034 10201030 10261036 10311041 10411051 10561066
I Chain Stay Length (mm) (inch) 425435 425435 425435 425435 425435 425435
J Bottom Bracket Drop (mm) (inch) 8081 8081 8081 8081 8081 8081
K Stack (mm) (inch) 556 570 586 602 616 630
L Reach (mm) (inch) 381 381 387 391 397 407
M Stand Over Height (mm) (inch) 724731 740747 757764 774780 791797 807814
N Handlebar Width (mm) (inch) 420 420 440 440 460 460
O Stem Length (mm) (inch) 50 60 70 80 80 90
P Crank Length (mm) (inch) 170 170 172,5 172,5 175 175
Q Wheel Size

Specifications

Sizes XS, S, M, M/L, L, XL
Colors Charcoal Plum, Helios Orange
Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock N/A
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Stratus Lite 3.0
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse, composite, 14mm offset
Saddle Giant Approach
Pedals N/A
Shifters Shimano GRX RX-810, 2x11
Front derailleur Shimano GRX RX-810
Rear derailleur Shimano GRX RX-810
Brakes Shimano GRX RX-810 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake levers Shimano GRX RX-810 hydraulic
Cassette Shimano CS-HG800, 11-speed, 11x34
Chain KMC X11SL-1
Crankset Shimano GRX RX-810, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket Shimano, press fit
Rims Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires CADEX AR, 700x40c, tubeless
Extras tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
