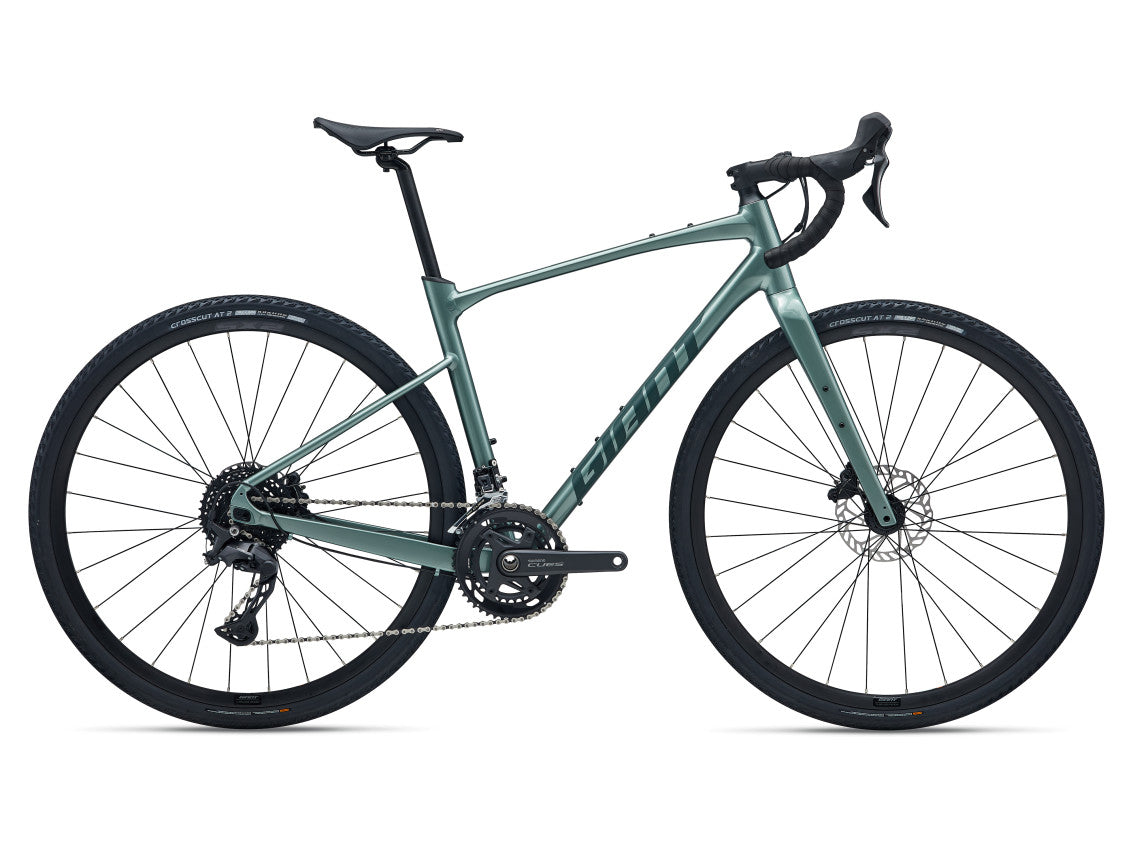

• Image 1 of 1 - ALPINE GREEN - A
Giant Logo

Revolt 1

$2,499.00
Tax included
Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
Size
Colour

Click & Collect Only

This item is Click & Collect Only from the Giant Wollongong Store at Unit 3 9-15 Ellen St and cannot be shipped.

Orders from the Giant Warehouse take approximately 7-10 business days to arrive in store.

Techs & Features

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

  • XS
    155 cm 166 cm
  • S
    159 cm 171 cm
  • M
    169 cm 181 cm
  • ML
    174 cm 186 cm
  • L
    179 cm 191 cm
  • XL
    189 cm 200 cm
Bike Geometry Diagram
Code Name XS S M ML L XL
A Seat Tube Length (mm) (inch) 430 450 470 490 510 530
B Seat Tube Angle (degrees)
C Top Tube Length (mm) (inch) 540 550 560 575 585 600
D Head Tube Length (mm) (inch) 125 135 150 165 180 195
E Head Tube Angle (degrees)
F Fork Rake (mm) (inch) 50 50 50 50 50 50
G Trail (mm) (inch) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) (inch) 1029 | 1039 1025 | 1035 1030 | 1040 1035 | 1045 1045 | 1055 1061 | 1071
I Chain Stay Length (mm) (inch) 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440
J Bottom Bracket Drop (mm) (inch) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) (inch) 556 570 586 602 616 630
L Reach (mm) (inch) 381 381 387 391 397 407
M Stand Over Height (mm) (inch) 717 | 724 734 | 741 752 | 759 769 | 776 786 | 793 801 | 810
O Stem Length (mm) (inch) 50 60 70 80 80 90
P Crank Length (mm) (inch) 170 170 172.5 172.5 175 175
Q Wheel Size 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C |

Specifications

Sizes XS, S, M, M/L, L, XL
Colours Alpine Green
Frame ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Cork tape with gel
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse, alloy, 14mm offset
Saddle Giant Grit
Pedals N/A
Shifters Shimano CUES U6030, 2x10
Front derailleur Shimano CUES U6030
Rear derailleur Shimano Cues U6020, Shadow+
Brakes Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake levers Shimano CUES U6030 hydraulic
Cassette Shimano CS-LG300, 11x39
Chain KMC X11
Crankset Shimano Cues U6030-2, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom bracket Shimano, threaded
Rims Giant S-X2 Disc wheelset, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Stainless
Tires Giant CrossCut AT 2, 700x38c, tubeless
Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Max tyre clearance 53mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
